Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Kenneth — Thu, 14 Mar 2024 22:41:45 GMT

Electrical connectivity between schematic component pins can be created by placing a wire between those pins. This is called physical connectivity since the pins are physically connected with a wire. Connectivity also can be created logically by using suitable net identifiers, such as net labels. As well as providing a human-friendly identifier for a net, a net label allows you to connect points on a circuit without actually physically wiring them together.

Kenneth

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Fabrice@ — Thu, 14 Mar 2024 22:26:51 GMT

I mean the physical connection between Interface MCU and Nrf5340 soc, i can't see any wire connection between them

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Kenneth — Thu, 14 Mar 2024 22:13:18 GMT

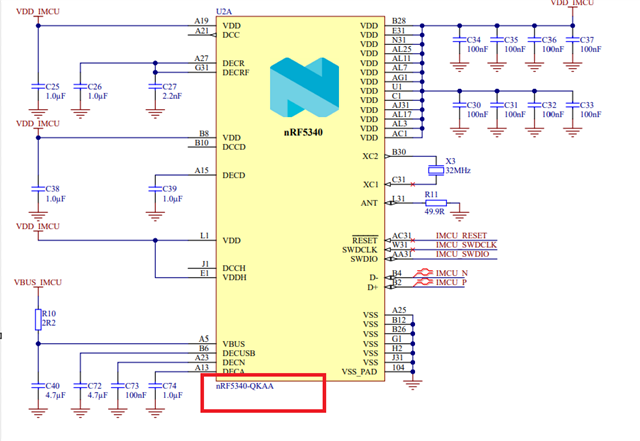

I can see them on the picture you shared when you started the case, look for "IMCU_".

Kenneth

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Fabrice@ — Thu, 14 Mar 2024 22:02:00 GMT

Thank you Kenneth , how does the Interface MCU and nrf5340 are connected ?? i can't see any physical connections on both ship

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Kenneth — Thu, 14 Mar 2024 21:29:51 GMT

It's just to avoid an external programmer/debugger, once programmed the nRF5340 will run whatever program is programmed.

Kenneth

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Fabrice@ — Thu, 14 Mar 2024 21:03:28 GMT

Hi Kenneth thank you , but is it mandatory to use Interface MCU on the customers board ? or nrf5340 standalone it could work without any problem

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Kenneth — Thu, 14 Mar 2024 18:32:45 GMT

Sorry, but I don't have the possibility to look into this. Sounds to me that you may consider just getting and nRF5340 module, ref:
https://www.nordicsemi.com/Resources/Nordic-Partners/3rd-party-modules

Kenneth

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Fabrice@ — Thu, 14 Mar 2024 17:03:08 GMT

Thank you for providing clarification. Before we proceed to close the ticket, could you kindly address the following two questions:

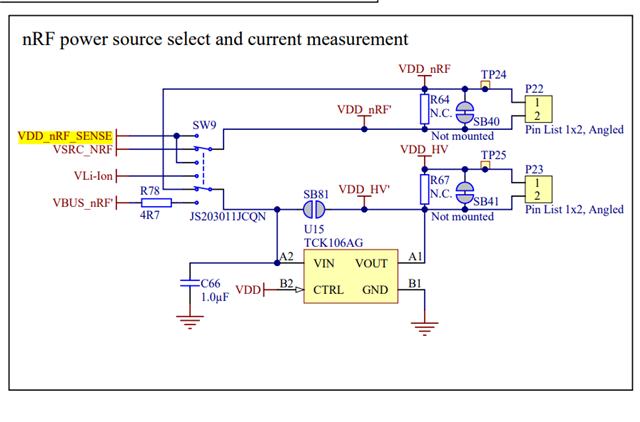

1. Considering that I do not intend to utilize this circuit on my board for current measurement purposes, what potential repercussions might arise if this circuit were omitted? Would the board still be able to power up successfully?

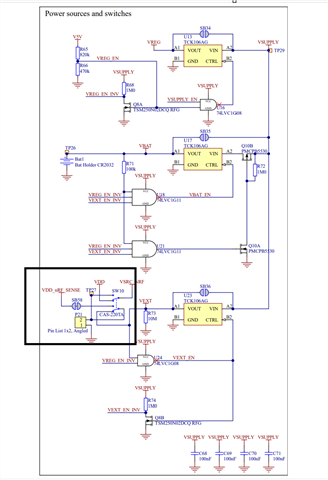

2. What would be the consequence on my board if I were to remove the component enclosed within the black box in the schematic? Specifically, does this component have any significant impact on the board's ability to power up?

3. Does this board incorporate a charging circuit? If so, which specific component or section fulfills this function?

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Kenneth — Thu, 14 Mar 2024 10:04:27 GMT

Hello,

You can find a description on how to work with the nRF5340-DK here:
https://infocenter.nordicsemi.com/topic/ug_nrf5340_dk/UG/dk/intro.html

For all new nRF DK's there is an on-board debugger used to program and debug the actual nRF device that the DK is made for. This on-board debugger/programmer (sometimes referred to as the interface MCU) is by coincidence also an nRF5340, so for the nRF5340-DK there is an nRF5340 used to program and debug an nRF5340.

Kenneth

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Fabrice@ — Wed, 13 Mar 2024 16:41:07 GMT

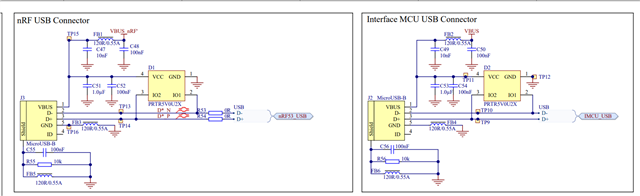

Thank you Kenneth my second question is , what are the difference between these 2 USB circuit ?? i have tried to connect the nRF USB (J3) but my board is not going on but once connect the USB on port J2 it is powered on. what are the difference between these 2 USB port

RE: Difference between NRF5340-QKAA-R7 and NRF5340-QKAA

Kenneth — Wed, 13 Mar 2024 14:11:34 GMT

[quote user=""]the difference between NRF5340-QKAA-R7 and NRF5340-QKAA. Do they possess the same functionality?[/quote]

There is no difference, it's only a difference in how the chips are packaged (e.g. size of reel):
https://infocenter.nordicsemi.com/topic/ps_nrf5340/chapters/ordering_info/doc/ordering_info.html#unique_937570341

Kenneth
