npm1300 reset when read bulk register

RE: npm1300 reset when read bulk register

ketiljo — Tue, 13 Aug 2024 10:25:07 GMT

I suggest you use an exernal pull down resistor to make sure the buzzer is off until you can initalize the GPIO

RE: npm1300 reset when read bulk register

sunnyyang — Mon, 12 Aug 2024 14:03:42 GMT

hi，

I still haven't solved this problem, looking forward to your reply

RE: npm1300 reset when read bulk register

sunnyyang — Fri, 09 Aug 2024 14:33:58 GMT

hi，

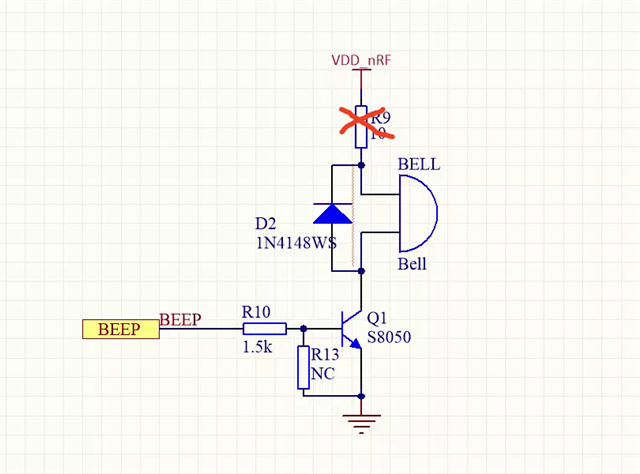

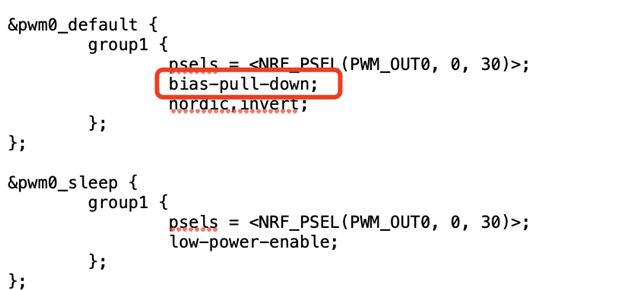

I find when I disconnect buzzer, The voltage will be normal.I have tried to set pin BEEP low but it's failure.What can I do to set level low during the startup phase?

RE: npm1300 reset when read bulk register

Andy Sinclair — Tue, 06 Aug 2024 08:26:59 GMT

Thanks for the scope trace.

VSYS is dropping far enough (below 2.8V) to reset the device.
This suggests a very large inrush current on VOUT which is collapsing the supply.
What sort of load do you have connected?

Thanks
Andy

RE: npm1300 reset when read bulk register

sunnyyang — Tue, 06 Aug 2024 07:59:58 GMT

hi,

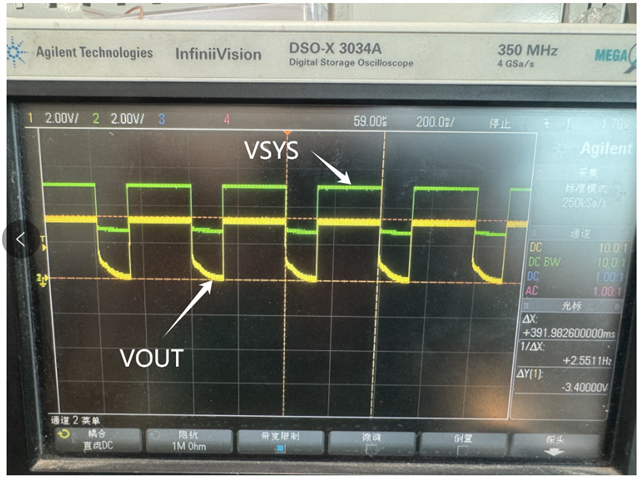

As shown as in this picture,The changes in VSYS and VOUT are the same.

RE: npm1300 reset when read bulk register

Andy Sinclair — Tue, 06 Aug 2024 07:38:13 GMT

Could you get VSYS as well with another probe please?

RE: npm1300 reset when read bulk register

sunnyyang — Mon, 05 Aug 2024 16:01:47 GMT

hi,

This picture is vout.

RE: npm1300 reset when read bulk register

Andy Sinclair — Mon, 05 Aug 2024 09:47:58 GMT

Hi there.

Could you get a scope trace of VSYS at the same time as VOUT please?

Thanks
Andy

RE: npm1300 reset when read bulk register

sunnyyang — Fri, 02 Aug 2024 13:55:14 GMT

hi，

Do you have any other ideas for this question？ I can try it.

RE: npm1300 reset when read bulk register

sunnyyang — Tue, 30 Jul 2024 09:56:05 GMT

hi,

The VCC_3V3_GPS used to power for gps chip.

If you power up the PMIC with the resistors setting the startup voltage and no SW involvement (SoC held is reset), does it behave as expected?

--Yes,It's normal.

RE: npm1300 reset when read bulk register

Andy Sinclair — Tue, 30 Jul 2024 09:41:56 GMT

Thanks for trying that.

A couple of further questions:
What is the source of VCC_3V3_GPS?
If you power up the PMIC with the resistors setting the startup voltage and no SW involvement (SoC held is reset), does it behave as expected?

Thanks
Andy

RE: npm1300 reset when read bulk register

sunnyyang — Mon, 29 Jul 2024 13:44:33 GMT

hi,

I have used the register to write VBUSINLIM0 ->0 and TASKUPDATEILIMSW ->1 but it's not resolve this problem.

RE: npm1300 reset when read bulk register

Andy Sinclair — Mon, 29 Jul 2024 12:24:37 GMT

Thanks.

Could you try changing the VBUS limit to 500mA?
If you are using Zephyr, you can do this by setting `vbus-limit-microamp` in your overlay.

If you are using register writes, please try writing:
VBUSINILIM0 -> 0
followed by
TASKUPDATEILIMSW -> 1

Thanks
Andy

RE: npm1300 reset when read bulk register

sunnyyang — Sun, 28 Jul 2024 08:28:16 GMT

hi，

The VBUSINILIM0 register value is 0x1.

RE: npm1300 reset when read bulk register

Andy Sinclair — Wed, 24 Jul 2024 15:22:27 GMT

Hi.

Can you check the value of VBUSINILIM0 register (address 0x201) please?

Thanks
Andy

RE: npm1300 reset when read bulk register

sunnyyang — Wed, 24 Jul 2024 14:54:04 GMT

hi,

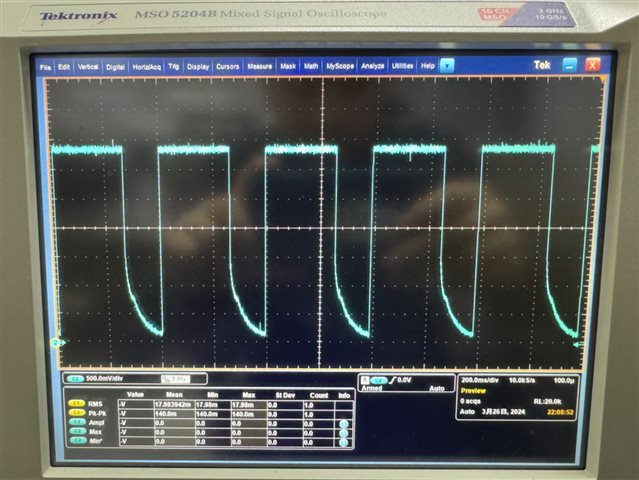

What I mean is that npm1300 stopped supplying power and caused the CPU to restart. As shown as in this picture, Vout periodically stops outputting a voltage of approximately 389ms.

RE: npm1300 reset when read bulk register

Andy Sinclair — Wed, 24 Jul 2024 14:47:33 GMT

Can you clarify what you mean by reset?
Can you get a scope trace of VOUT2 during this reset event please?

Thanks
Andy

RE: npm1300 reset when read bulk register

sunnyyang — Wed, 24 Jul 2024 14:42:23 GMT

hi,

I have tested the VBUSIN and it looks like ok. My device is very small and it just need a little current.

RE: npm1300 reset when read bulk register

Andy Sinclair — Wed, 24 Jul 2024 14:29:39 GMT

Hi.

This could be the USB current limit, can you read the value of VBUSINILIM?

Thanks
Andy

RE: npm1300 reset when read bulk register

sunnyyang — Wed, 24 Jul 2024 14:17:31 GMT

It's sorry the picture is not unclear. Please look the second as this shown.

RE: npm1300 reset when read bulk register

sunnyyang — Wed, 24 Jul 2024 14:15:17 GMT

hi I use the logic analyzer to captures data from IIC interface.As shown as in the picture,there are restarting about 389ms.

The following is the last data operation before restarting.It write 0x03 to BUCKSWCTRLSEL(0xf) register.

RE: npm1300 reset when read bulk register

Andy Sinclair — Tue, 23 Jul 2024 10:48:02 GMT

Hello.

Can you clarify what you mean by 'the npm1300 will reset'?
Do you have a scope trace or console output you could share?

Thanks
Andy
