MCU Boot high current in a custom board

RE: MCU Boot high current in a custom board

PabloL — Thu, 26 Jun 2025 14:29:07 GMT

UPDATE:

It was also necessary to disable some peripherals in a overlay file for the MCU Boot to avoid high current (2mA) when FOTA was included.

RE: MCU Boot high current in a custom board

PabloL — Sun, 27 Oct 2024 23:06:31 GMT

Update:

I solved the high power consumption when adding MCU Boot by disabling the qspi in the overlay file.

&qspi {
status = "disabled";
};

RE: MCU Boot high current in a custom board

PabloL — Fri, 27 Sep 2024 19:18:30 GMT

Great! Thanks!

RE: MCU Boot high current in a custom board

Amanda Hsieh — Fri, 27 Sep 2024 18:36:56 GMT

You can place them under app/child_image/mcuboot/boards

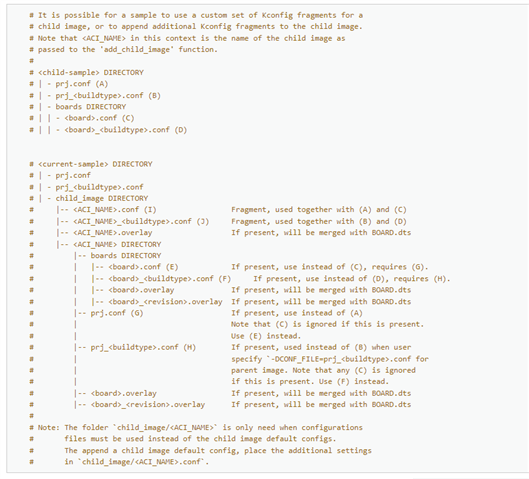

The folder structure to build with child_image in v2.5.0 looks like this:

RE: MCU Boot high current in a custom board

PabloL — Fri, 27 Sep 2024 14:25:00 GMT

Thank you!

Just another related question,

Where should be the config and overlay files for the MCUBoot in ncs 2.5.0?

RE: MCU Boot high current in a custom board

Amanda Hsieh — Fri, 27 Sep 2024 13:24:12 GMT

Check out Power optimization recommendations doc.

RE: MCU Boot high current in a custom board

PabloL — Thu, 26 Sep 2024 22:47:31 GMT

Hello Amanda,

That's a smart answer!😉

Let me put it another way.

Is there any configuration for the bootloader, example: disable uart (BLE update only), gpio initialization, etc. related to power comsumption during boot?

Thanks!

RE: MCU Boot high current in a custom board

Amanda Hsieh — Tue, 24 Sep 2024 12:49:50 GMT

Hi,

[quote user=""]What could be causing the high current draw in the Fanstel module due to the addition of the MCU Boot? [/quote]

Please contact Fanstel for the answer.

Regards,
Amanda H.

RE: MCU Boot high current in a custom board

PabloL — Mon, 23 Sep 2024 17:24:49 GMT

Hi,

I tested both a custom board with BC40M and EV-BC40M. Same result.

Thanks!

RE: MCU Boot high current in a custom board

nordicator_prim3 — Mon, 23 Sep 2024 17:08:12 GMT

Hi,

Are you using a bare BC40M, or are you using the evaluation kit (EV-BC40M)?
