Enabling USB functionality in nrf 5340 Soc

RE: Enabling USB functionality in nrf 5340 Soc

Turbo J — Wed, 23 Oct 2024 07:13:38 GMT

What error do you get?

If its the "device descriptor read failed" code, its because you swapped the D+ and D- data lines in your schematic.

RE: Enabling USB functionality in nrf 5340 Soc

Kazi Afroza Sultana — Wed, 23 Oct 2024 06:45:21 GMT

Hello,

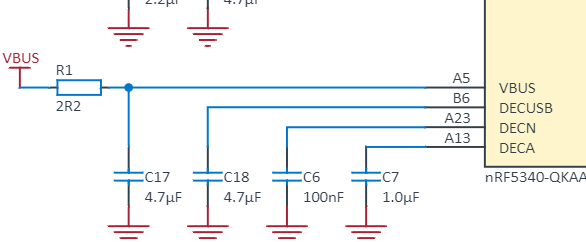

It looks like schematics needs to be finished first. You have to follow the design to make it for hardware supported; data lines, DECUSB and VBUS. For example this is from our schematic.

RE: Enabling USB functionality in nrf 5340 Soc

Barsa — Tue, 15 Oct 2024 18:32:03 GMT

I am using ncs. I am using LDO voltage regulator from maxim's MAX 20353 PMIC to power my MCU. I haven't configured my clock yet.

RE: Enabling USB functionality in nrf 5340 Soc

Kazi Afroza Sultana — Tue, 15 Oct 2024 14:33:08 GMT

Hello,

Are you working on nRF5SDk or NCS? How have you powered the custom board? How is the clock configured?

RE: Enabling USB functionality in nrf 5340 Soc

Barsa — Thu, 03 Oct 2024 14:20:31 GMT

Actually I havent configured anything. I just connected 4 pins: USB,D+,D- and GND from my charging port to MCU. It works normally for nrf 5340 DK, so I thought that much configuration would be enough for USB. I would really appreciate if you would guide me for this.

RE: Enabling USB functionality in nrf 5340 Soc

Kazi Afroza Sultana — Thu, 03 Oct 2024 14:16:47 GMT

Hello Barsha,

How have you configured the VBUS pin? What is the resistance value? Can you please share the config file?

Thanks.

BR
Kazi
