Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

Charlie — Fri, 13 Dec 2024 07:58:31 GMT

Hi Chuan,

[quote user="susepc"] I have used 52840DK instead of 52840dongle as RCP which connected to Pi4 by UART GPIO PIN(TX: P0.06, RX: P0.08)[/quote]

I think this is probably the cause. Not sure why you use RPi4 Pin for UART connection, this may need additionaly configuraiton like you did. If you need to save the USB port for other devices, try adding a USB hub instead.

The default UART connection using USB through the interface IC on board should be more stable.

Another option is to use the native USB on the nRF52840DK. You can find more information on how to connect to the native USB here: https://openthread.io/codelabs/openthread-hardware#connect-to-native-usb_1. The Thread: Co-processor Snippet "usb" will help you to build a firmware using USB.

Best regards,

Charlie

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Fri, 13 Dec 2024 05:22:55 GMT

Charlie

Hi, there are 2 reasons: one is that you said, another is that RCP is unstable(ot-ctl command connection refused seldom).

I have used 52840DK instead of 52840dongle as RCP which connected to Pi4 by UART GPIO PIN(TX: P0.06, RX: P0.08)，when I use UART tool(ex: eaglecom) to open RCP USB cable(power cable) port, it can work fine! But if not open this port by tool, this issue occur.

So I use this method to resolve this issue, but I still confuse why do I have to open the USB port with tool？

Chuan

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

Charlie — Tue, 10 Dec 2024 12:48:56 GMT

Hi Chuan,

Thanks for updating. I am also confused if you have same setup. I just get some hint from our developer just now. Hope the following infomraiton will also help.

It seems that the controller don't see the service over DNS. Please look at those two section in openthread docs:

https://openthread.io/codelabs/openthread-border-router#5 (Discover the service with a Linux host)

https://openthread.io/codelabs/openthread-border-router#6 (Ping from a Linux/macOS host)

I suggest you to do side by side compareation and coress-check by replacing your device with your colleague devices. Relpace the OTBR may be the first step to try.

Best regards,

Charlie

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Wed, 04 Dec 2024 04:29:07 GMT

Charlie

There's a good news!

My colleague in another site can commission bulb pass, and we use the same RCP/BULB/PI4/CHIP tool version.

So I confuse why I commission fail? I hope this clue will be helpful for your analysis.

Could you need the commission pass syslog? If yes, I'll get it from him, thx!

Chuan

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Wed, 04 Dec 2024 01:17:03 GMT

Charlie

Thanks for your tip, I'll check this first：

“testing on a network without disabling mDNS”

Chuan

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

Charlie — Tue, 03 Dec 2024 14:11:05 GMT

Hi Chuan,

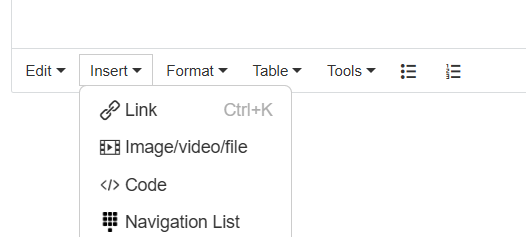

It is no problem for sharing the log with previoues way, but it would be better if you can insert them as code.

I do not need more logs by far unless if you find something different when you confirm you are testing on a network without disabling mDNS.

Best regards,

Charlie

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Tue, 03 Dec 2024 12:10:39 GMT

Charlie

Got it, thanks for your strong support!

I don't know why my network can't upload log files to this web, so I paste text in this page, the log is too long so I only paste the last few parts. Additionally, I'll contact my IT to fix can't upload files problem later!

If you need to see more logs before fixing the problem, I need to paste them here multiple times, do you need it?

Sorry for the inconvenience!

Chuan

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

Charlie — Tue, 03 Dec 2024 11:33:37 GMT

Hi Chuan,

I’ve reviewed your logs but didn’t find a clear indication of the root cause.

My initial suspicion points to mDNS, which is often disabled in certain network setups. Could you check if your network router or switch has mDNS enabled/not disabled?

Additionally, I came across a similar issue handled by my colleague on (+) Matter: mDNS error when pairing immediately after unpair - Nordic Q&A - Nordic DevZone - Nordic DevZone. In this case, pairing worked, but there were challenges with quick re-pairing.

Anyway, I will continue investigating this issue and will update you if I uncover anything new. Please let me know if you find any relevant details on your end.

Best regards,

Charlie

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Tue, 03 Dec 2024 01:28:21 GMT

Charlie

Before this apply, I have checked this issue in DevZone(RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout ), it's solution is the credentials is not correct, but I have checked my credentials before commission that they are all correct.

Furthermore, I want to commission bulb over thread not WIFI, can I check this issue from RE: Error on commissioning step 'FindOperational' while pairing matter sample over ble-wifi ?

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

Charlie — Mon, 02 Dec 2024 12:04:56 GMT

Hi Chuan,

Here are two solutions for the same timeout issue reprots, can you have a try to see if the cause is one of them?

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

RE: Error on commissioning step 'FindOperational' while pairing matter sample over ble-wifi

Best regards,

Charlie

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Mon, 02 Dec 2024 11:49:08 GMT

Bulb syslog:

D: 12563 [DL]OpenThread State Changed (Flags: 0x101fc110)
D: 12568 [DL] Network Name: OpenThread-5051
D: 12572 [DL] PAN Id: 0x5051
D: 12575 [DL] Extended PAN Id: 0x096BD483014E202E
D: 12580 [DL] Channel: 11
D: 12582 [DL] Mesh Prefix: fda3:7a11:e76e:de9::/64
D: 12589 [DL]OpenThread State Changed (Flags: 0x1100100d)
D: 12594 [DL] Device Role: DETACHED
D: 12597 [DL] Thread Unicast Addresses:
D: 12601 [DL] fda3:7a11:e76e:de9:87a3:1b0a:fef6:cf69/64 valid preferred
D: 12608 [DL] fe80::84ff:dd56:cdcc:f963/64 valid preferred
I: 13705 [DL]SRP Client was started, detected server: fda3:7a11:e76e:0de9:595c:5bf4:b4ad:064f
I: 13714 [ZCL]ThreadDiagnosticsDelegate: OnConnectionStatusChanged
D: 13720 [DL]OpenThread State Changed (Flags: 0x200012a4)
D: 13725 [DL] Device Role: CHILD
D: 13728 [DL] Partition Id: 0x44C3ABC5
D: 13733 [DL]OpenThread State Changed (Flags: 0x00000001)
D: 13738 [DL] Thread Unicast Addresses:
D: 13742 [DL] fd85:5aa5:57b8:1:9157:6632:e212:6813/64 valid preferred
D: 13749 [DL] fda3:7a11:e76e:de9:0:ff:fe00:4c01/64 valid preferred rloc
D: 13756 [DL] fda3:7a11:e76e:de9:87a3:1b0a:fef6:cf69/64 valid preferred
D: 13763 [DL] fe80::84ff:dd56:cdcc:f963/64 valid preferred
I: 13771 [EM]<<< [E:56841r S:28517 M:116199229] (S) Msg TX to 1:FFFFFFFB00000000 [8C01] [BLE] --- Type 0001:09 (IM:InvokeCommandResponse)
D: 13784 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 70)
D: 13791 [DL]Using Thread extended MAC for hostname.
I: 13797 [DIS]Advertise operational node F8711E6743B48C01-00000000000004BC
I: 13803 [SVR]Operational advertising enabled
D: 13838 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
E: 15767 [DL]SRP update error: timed out waiting on server response
D: 16448 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
E: 18938 [DL]SRP update error: timed out waiting on server response
D: 18956 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 19058 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 21713 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 24220 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 24323 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
E: 24696 [DL]SRP update error: timed out waiting on server response
D: 26978 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 29485 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 29588 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 32288 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
E: 33668 [DL]SRP update error: timed out waiting on server response
D: 34795 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 34898 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 37598 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 40105 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 40207 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 42863 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 45370 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 45472 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 48128 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
E: 48808 [DL]SRP update error: timed out waiting on server response
D: 50635 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 50737 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 53393 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 55900 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 56002 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 58657 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 58839 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
I: 58847 [EM]>>> [E:56842r S:28517 M:109802342] (S) Msg RX from 1:FFFFFFFB00000000 [8C01] --- Type 0001:08 (IM:InvokeCommandRequest)
I: 58859 [FS]GeneralCommissioning: Received ArmFailSafe (120s)
I: 58866 [EM]<<< [E:56842r S:28517 M:116199230] (S) Msg TX to 1:FFFFFFFB00000000 [8C01] [BLE] --- Type 0001:09 (IM:InvokeCommandResponse)
D: 58878 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 71)
D: 58972 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 61582 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 64089 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 64192 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 66847 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 69354 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 69457 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 72112 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
E: 74497 [DL]SRP update error: timed out waiting on server response
D: 74619 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 74722 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 77377 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 79885 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 79987 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 82687 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 85195 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 85297 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 87952 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 90460 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 90562 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 93217 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 95725 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 95827 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 98347 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 100854 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 100957 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 103612 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 103838 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
I: 103846 [EM]>>> [E:56843r S:28517 M:109802343] (S) Msg RX from 1:FFFFFFFB00000000 [8C01] --- Type 0001:08 (IM:InvokeCommandRequest)
I: 103859 [FS]GeneralCommissioning: Received ArmFailSafe (120s)
I: 103866 [EM]<<< [E:56843r S:28517 M:116199231] (S) Msg TX to 1:FFFFFFFB00000000 [8C01] [BLE] --- Type 0001:09 (IM:InvokeCommandResponse)
D: 103878 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 71)
D: 104017 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 106447 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 108954 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 109057 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
I: 111422 [ZCL]ThreadDiagnosticsDelegate: OnConnectionStatusChanged
I: 111428 [ZCL]ThreadDiagnosticsDelegate: OnNetworkFaultChanged
D: 111434 [DL]OpenThread State Changed (Flags: 0x00002044)
D: 111439 [DL] Device Role: DETACHED
D: 111712 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 114219 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 114321 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 116977 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
I: 118270 [DL]SRP Client was stopped, because current server is no longer detected.
I: 118279 [ZCL]ThreadDiagnosticsDelegate: OnConnectionStatusChanged
D: 118286 [DL]OpenThread State Changed (Flags: 0x100012a5)
D: 118291 [DL] Device Role: LEADER
D: 118295 [DL] Partition Id: 0xDDF1893
D: 118298 [DL] Thread Unicast Addresses:
D: 118302 [DL] fda3:7a11:e76e:de9:0:ff:fe00:fc00/64 valid preferred
D: 118309 [DL] fda3:7a11:e76e:de9:0:ff:fe00:800/64 valid preferred rloc
D: 118316 [DL] fd85:5aa5:57b8:1:9157:6632:e212:6813/64 valid
D: 118322 [DL] fda3:7a11:e76e:de9:87a3:1b0a:fef6:cf69/64 valid preferred
D: 118329 [DL] fe80::84ff:dd56:cdcc:f963/64 valid preferred
D: 118337 [DL]OpenThread State Changed (Flags: 0x00000003)
D: 118342 [DL] Thread Unicast Addresses:
D: 118346 [DL] fda3:7a11:e76e:de9:0:ff:fe00:fc00/64 valid preferred
D: 118353 [DL] fda3:7a11:e76e:de9:0:ff:fe00:800/64 valid preferred rloc
D: 118360 [DL] fd85:5aa5:57b8:1:9157:6632:e212:6813/64 valid
D: 118366 [DL] fda3:7a11:e76e:de9:87a3:1b0a:fef6:cf69/64 valid preferred
D: 118373 [DL] fe80::84ff:dd56:cdcc:f963/64 valid preferred
D: 119485 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 119586 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 122242 [DL]Write request received for CHIPoBLE RX characteristic (ConnId 0x00)
D: 124750 [DL]Sending indication for CHIPoBLE TX characteristic (ConnId 00, len 3)
D: 124851 [DL]Indication for CHIPoBLE TX characteristic done (ConnId 0x00, result 0x00)
D: 125752 [DL]ConnId: 0x00, New CCCD value: 0x0000
D: 125756 [IN]Clearing BLE pending packets.
I: 125760 [BLE]Releasing end point's BLE connection back to application.
I: 125766 [DL]Closing BLE GATT connection (ConnId 00)
I: 125886 [DL]Current number of connections: 0/1
I: 125891 [DL]BLE GAP connection terminated (reason 0x16)
I: 223865 [FS]Fail-safe timer expired
E: 223869 [SVR]Failsafe timer expired
D: 223872 [IN]SecureSession[0x200036a0]: MarkForEviction Type:1 LSID:28517
I: 223879 [SC]SecureSession[0x200036a0, LSID:28517]: State change 'kActive' --> 'kPendingEviction'
D: 223888 [IN]SecureSession[0x200036a0]: Released - Type:1 LSID:28517
E: 223894 [SVR]Commissioning failed (attempt 1): 32
D: 223899 [IN]SecureSession[0x200036a0]: Allocated Type:1 LSID:28519
D: 223905 [DL]CHIPoBLE advertising set to on
I: 223909 [DIS]Updating services using commissioning mode 1
E: 223915 [DIS]Failed to remove advertised services: 3
D: 223919 [DL]Using Thread extended MAC for hostname.
I: 223924 [DIS]Advertise operational node F8711E6743B48C01-00000000000004BC
E: 223931 [DIS]Failed to advertise operational node: 3
D: 223936 [DL]Using Thread extended MAC for hostname.
I: 223941 [DIS]Advertise commission parameter vendorID=65521 productID=32773 discriminator=3840/15 cm=1 cp=0
E: 223950 [DIS]Failed to advertise commissionable node: 3
E: 223955 [DIS]Failed to finalize service update: 3
E: 223960 [ZCL]OpCreds: Got FailSafeTimerExpired
E: 223964 [ZCL]OpCreds: Proceeding to FailSafeCleanup on fail-safe expiry!
D: 223971 [IN]Expiring all sessions for fabric 0x1!!
E: 223976 [FP]Reverting pending fabric data for fabric 0x1
E: 223982 [FP]Warning: metadata not found during delete of fabric 0x1
I: 224045 [FP]Fabric (0x1) deleted.
I: 224048 [ZCL]OpCreds: Fabric index 0x1 was removed
I: 224053 [DIS]Updating services using commissioning mode 1
E: 224058 [DIS]Failed to remove advertised services: 3
D: 224063 [DL]Using Thread extended MAC for hostname.
I: 224068 [DIS]Advertise commission parameter vendorID=65521 productID=32773 discriminator=3840/15 cm=1 cp=0
E: 224078 [DIS]Failed to advertise commissionable node: 3
E: 224083 [DIS]Failed to finalize service update: 3
I: 224198 [TS]Pending Last Known Good Time: 2023-10-14T01:16:48
I: 224204 [TS]Previous Last Known Good Time: 2023-10-14T01:16:48
I: 224210 [TS]Reverted Last Known Good Time to previous value
E: 224216 [FP]Warning: metadata not found during delete of fabric 0x1
E: 224226 [ZCL]OpCreds: failed to delete fabric at index 1: d8
I: 224232 [NP]Reverting Thread operational dataset
E: 224250 [DL]Long dispatch time: 381 ms, for event type 32784
I: 224256 [FS]Fail-safe cleanly disarmed
I: 224261 [DL]CHIPoBLE advertising started
I: 224265 [ZCL]ThreadDiagnosticsDelegate: OnConnectionStatusChanged
I: 224271 [ZCL]ThreadDiagnosticsDelegate: OnNetworkFaultChanged
D: 224277 [DL]OpenThread State Changed (Flags: 0x11002046)
D: 224282 [DL] Device Role: DISABLED
D: 224286 [DL] Thread Unicast Addresses:
D: 224290 [DL] fd85:5aa5:57b8:1:9157:6632:e212:6813/64 valid
D: 224297 [DL]OpenThread State Changed (Flags: 0x10000000)
I: 224303 [DL]NFC Tag emulation started
I: 225049 [TS]Pending Last Known Good Time: 2023-10-14T01:16:48
I: 225055 [TS]Previous Last Known Good Time: 2023-10-14T01:16:48
I: 225061 [TS]Reverted Last Known Good Time to previous value
I: 225067 [DL]Performing factory reset
I: 227096 [DL]Erasing Thread persistent info...

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Mon, 02 Dec 2024 11:47:55 GMT

CHIP tool log:

[1733132454.541537][4669:4671] CHIP:DMG: Received Command Response Data, Endpoint=0 Cluster=0x0000_0030 Command=0x0000_0001
[1733132454.541583][4669:4671] CHIP:CTL: Status of extending fail-safe for CASE retry: 0
[1733132454.541661][4669:4671] CHIP:DMG: ICR moving to [AwaitingDe]
[1733132454.609917][4669:4671] CHIP:DIS: Checking node lookup status after 200 ms
[1733132457.237690][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132459.414036][4669:4671] CHIP:DL: Re-trying resolve
[1733132459.795549][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132459.795730][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132462.502742][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132464.420409][4669:4671] CHIP:DL: Re-trying resolve
[1733132465.063255][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132465.063444][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132467.767874][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132469.425721][4669:4671] CHIP:DL: Re-trying resolve
[1733132470.327078][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132470.327165][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132473.032902][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132474.431388][4669:4671] CHIP:DL: Avahi resolve failed
[1733132475.590969][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132475.591149][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132478.342928][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132480.903112][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132480.903277][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132483.608076][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132486.167059][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132486.167272][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132488.873138][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132491.431482][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132491.431702][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132494.002580][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132496.563248][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132496.563430][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132499.268173][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132499.410773][4669:4671] CHIP:DIS: Checking node lookup status after 45001 ms
[1733132499.410843][4669:4671] CHIP:DIS: OperationalSessionSetup[1:00000000000004BC]: operational discovery failed: src/lib/address_resolve/AddressResolve_DefaultImpl.cpp:119: CHIP Error 0x00000032: Timeout
[1733132499.410867][4669:4671] CHIP:DIS: Retrying operational DNS-SD discovery. Attempts remaining: 1
[1733132499.410893][4669:4671] CHIP:DIS: Resolving F8711E6743B48C01:00000000000004BC ...
[1733132499.412305][4669:4671] CHIP:CTL: Session establishment failed for <00000000000004BC, 1>, error: src/lib/address_resolve/AddressResolve_DefaultImpl.cpp:119: CHIP Error 0x00000032: Timeout. Next retry expected to get a response to Sigma1 or fail within 60 seconds
[1733132499.412357][4669:4671] CHIP:CTL: Arming failsafe (120 seconds)
[1733132499.412419][4669:4671] CHIP:DMG: ICR moving to [AddingComm]
[1733132499.412459][4669:4671] CHIP:DMG: ICR moving to [AddedComma]
[1733132499.412589][4669:4671] CHIP:EM: <<< [E:56843i S:25152 M:109802343] (S) Msg TX to 0:FFFFFFFB00000000 [0000] [BLE] --- Type 0001:08 (IM:InvokeCommandRequest)
[1733132499.413062][4669:4671] CHIP:DMG: ICR moving to [AwaitingRe]
[1733132499.493049][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132499.540354][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132499.540515][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132499.540655][4669:4671] CHIP:EM: >>> [E:56843i S:25152 M:116199231] (S) Msg RX from 0:FFFFFFFB00000000 [0000] --- Type 0001:09 (IM:InvokeCommandResponse)
[1733132499.540695][4669:4671] CHIP:EM: Found matching exchange: 56843i, Delegate: 0x7fdaf8006488
[1733132499.540745][4669:4671] CHIP:DMG: ICR moving to [ResponseRe]
[1733132499.540803][4669:4671] CHIP:DMG: InvokeResponseMessage =
[1733132499.540829][4669:4671] CHIP:DMG: {
[1733132499.540862][4669:4671] CHIP:DMG: suppressResponse = false,
[1733132499.540891][4669:4671] CHIP:DMG: InvokeResponseIBs =
[1733132499.540940][4669:4671] CHIP:DMG: [
[1733132499.540966][4669:4671] CHIP:DMG: InvokeResponseIB =
[1733132499.541016][4669:4671] CHIP:DMG: {
[1733132499.541049][4669:4671] CHIP:DMG: CommandDataIB =
[1733132499.541100][4669:4671] CHIP:DMG: {
[1733132499.541139][4669:4671] CHIP:DMG: CommandPathIB =
[1733132499.541177][4669:4671] CHIP:DMG: {
[1733132499.541215][4669:4671] CHIP:DMG: EndpointId = 0x0,
[1733132499.541251][4669:4671] CHIP:DMG: ClusterId = 0x30,
[1733132499.541286][4669:4671] CHIP:DMG: CommandId = 0x1,
[1733132499.541318][4669:4671] CHIP:DMG: },
[1733132499.541357][4669:4671] CHIP:DMG:
[1733132499.541388][4669:4671] CHIP:DMG: CommandFields =
[1733132499.541425][4669:4671] CHIP:DMG: {
[1733132499.541463][4669:4671] CHIP:DMG: 0x0 = 0 (unsigned),
[1733132499.541501][4669:4671] CHIP:DMG: 0x1 = "" (0 chars),
[1733132499.541536][4669:4671] CHIP:DMG: },
[1733132499.541565][4669:4671] CHIP:DMG: },
[1733132499.541610][4669:4671] CHIP:DMG:
[1733132499.541637][4669:4671] CHIP:DMG: },
[1733132499.541705][4669:4671] CHIP:DMG:
[1733132499.541736][4669:4671] CHIP:DMG: ],
[1733132499.541781][4669:4671] CHIP:DMG:
[1733132499.541810][4669:4671] CHIP:DMG: InteractionModelRevision = 11
[1733132499.541838][4669:4671] CHIP:DMG: },
[1733132499.541949][4669:4671] CHIP:DMG: Received Command Response Data, Endpoint=0 Cluster=0x0000_0030 Command=0x0000_0001
[1733132499.541995][4669:4671] CHIP:CTL: Status of extending fail-safe for CASE retry: 0
[1733132499.542074][4669:4671] CHIP:DMG: ICR moving to [AwaitingDe]
[1733132499.611555][4669:4671] CHIP:DIS: Checking node lookup status after 201 ms
[1733132502.103242][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132504.415079][4669:4671] CHIP:DL: Re-trying resolve
[1733132504.663550][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132504.663710][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132507.368307][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132509.421421][4669:4671] CHIP:DL: Re-trying resolve
[1733132509.927220][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132509.927402][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132512.633320][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132514.426648][4669:4671] CHIP:DL: Re-trying resolve
[1733132515.190744][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132515.190893][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132517.898343][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16387
[1733132519.431740][4669:4671] CHIP:DL: Avahi resolve failed
[1733132520.459636][4669:4670] CHIP:DL: Indication received, conn = 0x7fdb0004b6c0
[1733132520.459786][4669:4671] CHIP:DL: HandlePlatformSpecificBLEEvent 16389
[1733132521.355685][4669:4669] CHIP:CTL: Shutting down the commissioner
[1733132521.355737][4669:4669] CHIP:CTL: Cancelling CASE setup for step 'kFindOperationalForStayActive'
[1733132521.355760][4669:4669] CHIP:DIS: Closing all BLE connections
[1733132521.355788][4669:4669] CHIP:IN: Clearing BLE pending packets.
[1733132521.356179][4669:4669] CHIP:BLE: Auto-closing end point's BLE connection.
[1733132521.356217][4669:4669] CHIP:DL: Closing BLE GATT connection (con 0x7fdb0004b6c0)
[1733132521.356415][4669:4670] CHIP:DL: BluezDisconnect peer=E9:8A:93:2A:4F:3F
[1733132521.500155][4669:4669] CHIP:IN: SecureSession[0x7fdaf800b2d0]: MarkForEviction Type:1 LSID:25152
[1733132521.500210][4669:4669] CHIP:SC: SecureSession[0x7fdaf800b2d0, LSID:25152]: State change 'kActive' --> 'kPendingEviction'
[1733132521.500302][4669:4669] CHIP:IN: SecureSession[0x7fdaf800b2d0]: Released - Type:1 LSID:25152
[1733132521.500354][4669:4669] CHIP:CTL: Shutting down the controller
[1733132521.500387][4669:4669] CHIP:DIS: OperationalSessionSetup[1:00000000000004BC]: Cancelling incomplete address resolution as device is being deleted.
[1733132521.500458][4669:4669] CHIP:IN: Expiring all sessions for fabric 0x1!!
[1733132521.500492][4669:4669] CHIP:FP: Forgetting fabric 0x1
[1733132521.500525][4669:4669] CHIP:TS: Pending Last Known Good Time: 2023-10-26T12:12:01
[1733132521.500698][4669:4669] CHIP:TS: Previous Last Known Good Time: 2023-10-26T12:12:01
[1733132521.500725][4669:4669] CHIP:TS: Reverted Last Known Good Time to previous value
[1733132521.500769][4669:4669] CHIP:CTL: Shutting down the commissioner
[1733132521.500797][4669:4669] CHIP:CTL: Shutting down the controller
[1733132521.500823][4669:4669] CHIP:CTL: Shutting down the System State, this will teardown the CHIP Stack
[1733132521.501006][4669:4669] CHIP:DMG: All ReadHandler-s are clean, clear GlobalDirtySet
[1733132521.501138][4669:4669] CHIP:FP: Shutting down FabricTable
[1733132521.501175][4669:4669] CHIP:TS: Pending Last Known Good Time: 2023-10-26T12:12:01
[1733132521.501315][4669:4669] CHIP:TS: Previous Last Known Good Time: 2023-10-26T12:12:01
[1733132521.501341][4669:4669] CHIP:TS: Reverted Last Known Good Time to previous value
[1733132521.501624][4669:4669] CHIP:DL: writing settings to file (/tmp/chip_counters.ini-mZVvIe)
[1733132521.502178][4669:4669] CHIP:DL: renamed tmp file to file (/tmp/chip_counters.ini)
[1733132521.502240][4669:4669] CHIP:DL: NVS set: chip-counters/total-operational-hours = 0 (0x0)
[1733132521.502271][4669:4669] CHIP:DL: Inet Layer shutdown
[1733132521.502294][4669:4669] CHIP:DL: BLE shutdown
[1733132521.502916][4669:4670] CHIP:DL: Bluez disconnected
[1733132521.502955][4669:4670] CHIP:DL: Bluez notify CHIPoBluez connection disconnected
[1733132521.503733][4669:4669] CHIP:DL: System Layer shutdown
[1733132521.503906][4669:4669] CHIP:TOO: Run command failure: examples/chip-tool/commands/common/CHIPCommand.cpp:617: CHIP Error 0x00000032: Timeout
ss1@nb18020136:~/2.8.0/chip-tool-linux_x64$

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Mon, 02 Dec 2024 11:44:39 GMT

Charlie

I have downloaded NCS 2.8.0 pass, and build FW to test:

NB: Ubuntu 22.04 with WIFI and BT, get CHIP tool from official pre-built (V2.8.0 corresponding version: chip-tool-linux_x64.zip)
DK: nRF52840DK with Light Bulb examples(build from NCS 2.8.0)
Raspberry Pi4 with OTBR configured
DK: nRF52840DK with coprocessor examples(build from NCS 2.8.0)

Unfortunately, I failed to connect to the network whether I used WIFI or mobile hotspot.

Could you view my logs and guide me how to fix this issue?

Chuan

This is my credentials:

pi@raspberrypi:~ $ sudo ot-ctl dataset active -x
0e0800000000000100004a0300000e35060004001fffe00208096bd483014e202e0708fda37a11e76e0de9030f4f70656e5468726561642d3530353101025051041020a0307c03e7703f2c9992c1be24f3a70c0402a0f7f8000300000b051000112233445566778899aabbccddeeff
Done

This is my commission command:

ss1@nb18020136:~/2.8.0/chip-tool-linux_x64$ ./chip-tool-debug pairing ble-thread 1212 hex:0e0800000000000100004a0300000e35060004001fffe00208096bd483014e202e0708fda37a11e76e0de9030f4f70656e5468726561642d3530353101025051041020a0307c03e7703f2c9992c1be24f3a70c0402a0f7f8000300000b051000112233445566778899aabbccddeeff 20202021 3840
[1733132401.347767][4669:4669] CHIP:DL: ChipLinuxStorage::Init: Using KVS config file: /tmp/chip_tool_kvs
[1733132401.348395][4669:4669] CHIP:DL: ChipLinuxStorage::Init: Using KVS config file: /tmp/chip_kvs
[1733132401.348405][4669:4669] CHIP:DL: ChipLinuxStorage::Init: Attempt to re-initialize with KVS config file: /tmp/chip_kvs
[1733132401.348534][4669:4669] CHIP:DL: ChipLinuxStorage::Init: Using KVS config file: /tmp/chip_factory.ini
[1733132401.348598][4669:4669] CHIP:DL: ChipLinuxStorage::Init: Using KVS config file: /tmp/chip_config.ini
[1733132401.348658][4669:4669] CHIP:DL: ChipLinuxStorage::Init: Using KVS config file: /tmp/chip_counters.ini
[1733132401.348806][4669:4669] CHIP:DL: writing settings to file (/tmp/chip_counters.ini-4UB8ig)
[1733132401.349066][4669:4669] CHIP:DL: renamed tmp file to file (/tmp/chip_counters.ini)

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Sun, 01 Dec 2024 02:00:08 GMT

Got it. I'll have a try next week, thanks for your tips!

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

Charlie — Fri, 29 Nov 2024 11:18:51 GMT

Did you test on office network environment?

One more thing I remeber of is that same features are disabled by office network for security reason, you may test with your home router or just a mobilephone hotspot to verify.

Best regards,

Charlie

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Fri, 29 Nov 2024 10:13:46 GMT

Charlie

Thanks for you reply, I'll chose to try NCS 2.8.0 first, thx

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

Charlie — Fri, 29 Nov 2024 10:08:24 GMT

Hi Chuan,

Thank you for reaching out to us about this issue. In case this is a bug that has already been resolved, I recommend trying the latest version of NCS 2.8.0. You can follow the instructions in the updated documentation: Working with the CHIP Tool.

If you need to continue using NCS 2.5.1, I can arrange a similar test next week to assist you further. Please let me know if you can test with NCS 2.8.0 in the meantime and share the results.

Looking forward to your feedback!

Best regards,

Charlie

RE: Matter over Thread commission error with CHIP-Tools: CHIP Error 0x00000032: Timeout

susepc — Fri, 29 Nov 2024 06:13:46 GMT

Addon:

Commission credentials:

pi@raspberrypi:~ $ sudo ot-ctl dataset active -x 0e0800000000000100004a0300001535060004001fffe002083d833e4a9135fd6e0708fd2ff56f7f83b6ed030f4f70656e5468726561642d333337370102337704108d3e128e1e7147d084359703706e5a620c0402a0f7f8000300000b051000112233445566778899aabbccddeeff Done

Commission command:

ss1@nb18020136:~/123/chip-tool-linux_x64$ ./chip-tool-debug pairing ble-thread 122 hex:0e0800000000000100004a0300001535060004001fffe002083d833e4a9135fd6e0708fd2ff56f7f83b6ed030f4f70656e5468726561642d333337370102337704108d3e128e1e7147d084359703706e5a620c0402a0f7f8000300000b051000112233445566778899aabbccddeeff 20202021 3840
