<?xml-stylesheet type="text/xsl" href="https://devzone.nordicsemi.com/cfs-file/__key/system/syndication/rss.xsl" media="screen"?><rss version="2.0" xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:slash="http://purl.org/rss/1.0/modules/slash/" xmlns:wfw="http://wellformedweb.org/CommentAPI/" xmlns:atom="http://www.w3.org/2005/Atom"><channel><title>Can the nrf52840 board also be made into a 2 layer pcb?</title><link>https://devzone.nordicsemi.com/f/nordic-q-a/117101/can-the-nrf52840-board-also-be-made-into-a-2-layer-pcb</link><description>I need to match the 50 ohm impedance for antenna performance. It would be easier to manufacture using 4 layers, but I&amp;#39;m planning to manufacture it in 2 layers due to cost issues. When I calculated it with an impedance calculator when manufacturing in</description><dc:language>en-US</dc:language><generator>Telligent Community 13</generator><lastBuildDate>Thu, 12 Dec 2024 09:43:38 GMT</lastBuildDate><atom:link rel="self" type="application/rss+xml" href="https://devzone.nordicsemi.com/f/nordic-q-a/117101/can-the-nrf52840-board-also-be-made-into-a-2-layer-pcb" /><item><title>RE: Can the nrf52840 board also be made into a 2 layer pcb?</title><link>https://devzone.nordicsemi.com/thread/514673?ContentTypeID=1</link><pubDate>Thu, 12 Dec 2024 09:43:38 GMT</pubDate><guid isPermaLink="false">137ad170-7792-4731-bb38-c0d22fbe4515:b420f3d5-d2a8-4723-91b9-adcf3f85b473</guid><dc:creator>Bendik Heiskel</dc:creator><description>&lt;p&gt;Hi,&lt;/p&gt;
&lt;p&gt;3mm wide transmission line seem way to large. Whats the PCB thickness and transmission line type was used for the calculation?&lt;/p&gt;

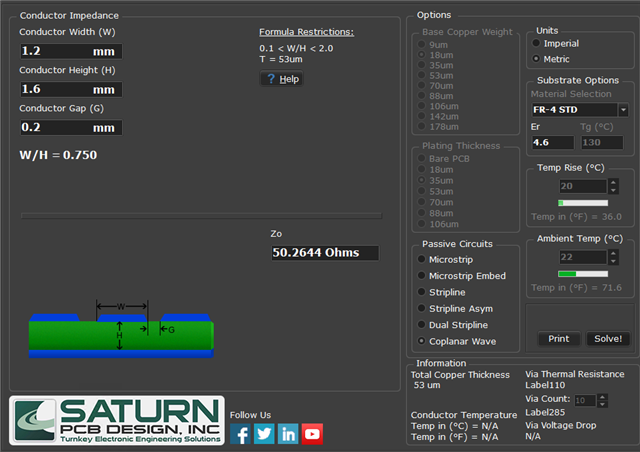

&lt;p&gt;Using a 1.6mm thick board, with standard FR-4 substrate the width of the conductor should be closer to 1.2mm:&lt;/p&gt;
&lt;p&gt;&lt;img style="max-height:240px;max-width:320px;" src="https://devzone.nordicsemi.com/resized-image/__size/640x480/__key/communityserver-discussions-components-files/4/pastedimage1733996459099v1.png" alt=" " /&gt;&lt;/p&gt;
&lt;p&gt;&amp;nbsp;&lt;/p&gt;
&lt;p&gt;Using a 2 layer board fine for the nRF52840, but if you are using the aQFN package you will not be able to use all of the inner row of pins, as it will not be possible to route them out while keeping a good ground layer under the SoC.&lt;/p&gt;
&lt;p&gt;&amp;nbsp;&lt;/p&gt;
&lt;p&gt;The nRF52840 dongle is a 2 layer PCB, you can use it as reference. The design files can be found here:&lt;br /&gt;&lt;a href="https://www.nordicsemi.com/Products/Development-hardware/nRF52840-Dongle/Download"&gt;https://www.nordicsemi.com/Products/Development-hardware/nRF52840-Dongle/Download&lt;/a&gt;&lt;/p&gt;
&lt;p&gt;&amp;nbsp;&lt;/p&gt;
&lt;p&gt;Best regards,&lt;/p&gt;
&lt;p&gt;Bendik&lt;/p&gt;&lt;div style="clear:both;"&gt;&lt;/div&gt;</description></item></channel></rss>
