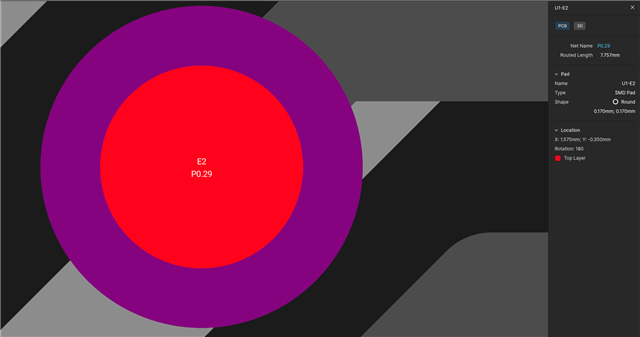

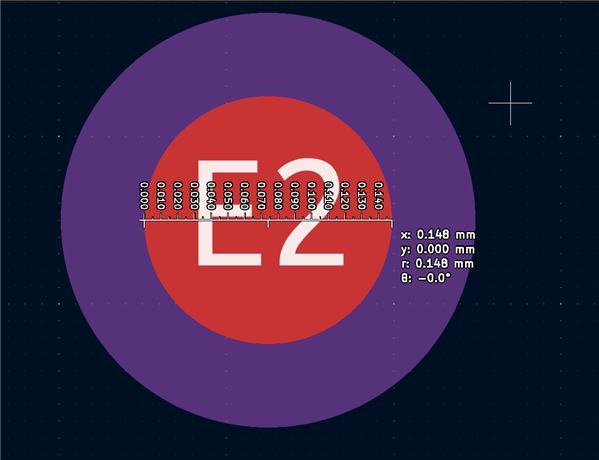

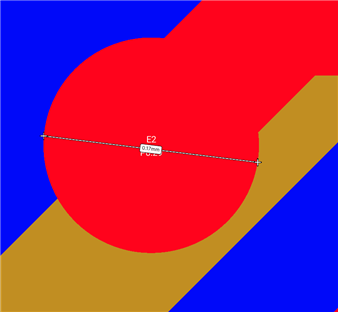

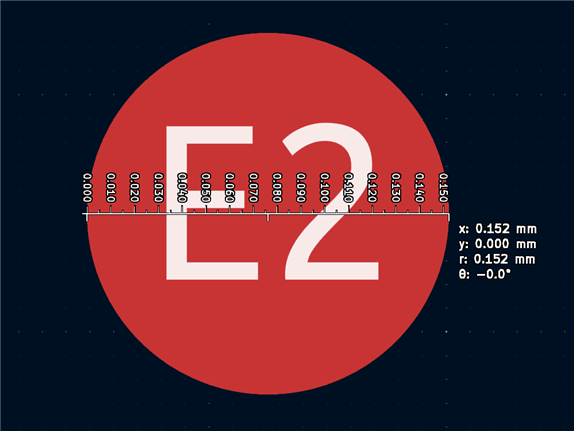

<?xml-stylesheet type="text/xsl" href="https://devzone.nordicsemi.com/cfs-file/__key/system/syndication/rss.xsl" media="screen"?><rss version="2.0" xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:slash="http://purl.org/rss/1.0/modules/slash/" xmlns:wfw="http://wellformedweb.org/CommentAPI/" xmlns:atom="http://www.w3.org/2005/Atom"><channel><title>NRF5340-CLAA WLCSP PCB landing Pad Diameter ?</title><link>https://devzone.nordicsemi.com/f/nordic-q-a/119584/nrf5340-claa-wlcsp-pcb-landing-pad-diameter</link><description>Hi , We are developing a product with NRF5340-CLAA-R WLCSP package IC. While entering the PCB design stage we encountered an Issue with its footprint. First we imported Footprint Models from Digikey, and SamacSys (Mouser and Arrow) the PCB land Pads size</description><dc:language>en-US</dc:language><generator>Telligent Community 13</generator><lastBuildDate>Fri, 07 Mar 2025 12:20:44 GMT</lastBuildDate><atom:link rel="self" type="application/rss+xml" href="https://devzone.nordicsemi.com/f/nordic-q-a/119584/nrf5340-claa-wlcsp-pcb-landing-pad-diameter" /><item><title>RE: NRF5340-CLAA WLCSP PCB landing Pad Diameter ?</title><link>https://devzone.nordicsemi.com/thread/526345?ContentTypeID=1</link><pubDate>Fri, 07 Mar 2025 12:20:44 GMT</pubDate><guid isPermaLink="false">137ad170-7792-4731-bb38-c0d22fbe4515:ee348b06-cf8f-40c7-8ca2-8269e46a4912</guid><dc:creator>Simonr</dc:creator><description>&lt;p&gt;&lt;span&gt;Correct, the nRF5340 CLAA pad size is specified to be minimum&amp;nbsp;&lt;/span&gt;&lt;strong&gt;0.12mm&lt;/strong&gt;&lt;span&gt;&amp;nbsp;and maximum&lt;/span&gt;&lt;strong&gt;&lt;span&gt;&amp;nbsp;&lt;/span&gt;0.18mm.&amp;nbsp;&lt;/strong&gt;Since all pad sizes you refer to in your initial ticket are within these specs they should all be fine.&lt;/p&gt;
&lt;p&gt;Best regards,&lt;/p&gt;
&lt;p&gt;Simon&lt;/p&gt;&lt;div style="clear:both;"&gt;&lt;/div&gt;</description></item><item><title>RE: NRF5340-CLAA WLCSP PCB landing Pad Diameter ?</title><link>https://devzone.nordicsemi.com/thread/526275?ContentTypeID=1</link><pubDate>Fri, 07 Mar 2025 04:23:36 GMT</pubDate><guid isPermaLink="false">137ad170-7792-4731-bb38-c0d22fbe4515:940245cd-2b8f-402c-9a98-62e3a2ae6005</guid><dc:creator>Surya Thanush</dc:creator><description>&lt;p&gt;Hi&amp;nbsp;&lt;a href="https://devzone.nordicsemi.com/members/simonr"&gt;Simonr&lt;/a&gt;&amp;nbsp;, A samll reconfirmation.&lt;br /&gt;So you mean all the Digikey, Mouser and Arrow provided Footprint Libraries for NRF5340-CLAA are good to use ?&lt;br /&gt;No issue with the slight variation in the pad sizes right&amp;nbsp;&lt;br /&gt;&lt;br /&gt;Thank you&lt;br /&gt;Surya Thanush&lt;/p&gt;&lt;div style="clear:both;"&gt;&lt;/div&gt;</description></item><item><title>RE: NRF5340-CLAA WLCSP PCB landing Pad Diameter ?</title><link>https://devzone.nordicsemi.com/thread/526205?ContentTypeID=1</link><pubDate>Thu, 06 Mar 2025 14:35:15 GMT</pubDate><guid isPermaLink="false">137ad170-7792-4731-bb38-c0d22fbe4515:1b5d63ac-fb40-42b5-a7b7-c895b968f728</guid><dc:creator>Simonr</dc:creator><description>&lt;p&gt;Hi&lt;/p&gt;

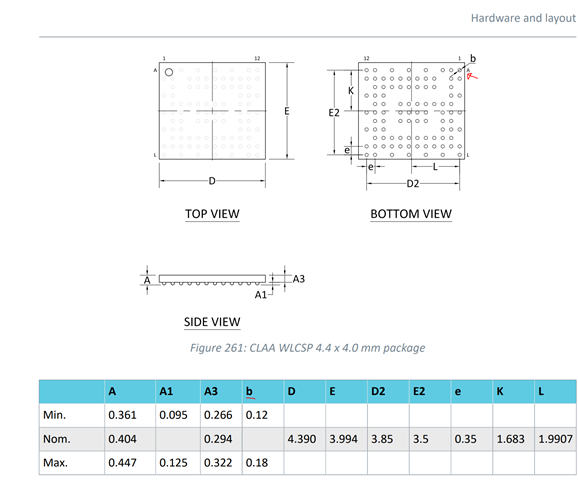

&lt;p&gt;As per the nRF5340 product specification, the nRF5340 CLAA pad size is specified to be minimum &lt;strong&gt;0.12mm&lt;/strong&gt; and maximum&lt;strong&gt; 0.18mm&lt;/strong&gt;, so seemingly all of these values are okay for development.&lt;br /&gt;&lt;img style="max-height:240px;max-width:320px;" src="https://devzone.nordicsemi.com/resized-image/__size/640x480/__key/communityserver-discussions-components-files/4/pastedimage1741271445085v1.png" alt=" " /&gt;&lt;/p&gt;
&lt;p&gt;However, Nordic is using Altium and the footprints in Altium for development, so these are certified &amp;quot;safe&amp;quot; footprints to be working with.&lt;/p&gt;
&lt;p&gt;Best regards,&lt;/p&gt;
&lt;p&gt;Simon&lt;/p&gt;&lt;div style="clear:both;"&gt;&lt;/div&gt;</description></item></channel></rss>
