Question about SPIM00 in NRF54L15-DK

RE: Question about SPIM00 in NRF54L15-DK

hmolesworth — Mon, 23 Jun 2025 14:51:19 GMT

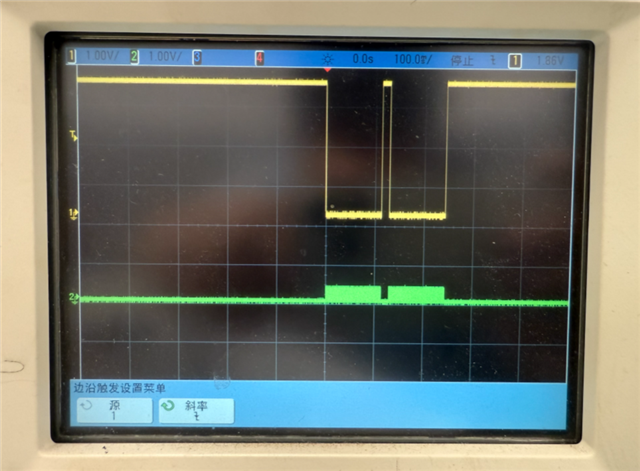

Often the 'scope probes have a x10 switch which allows x1 or x10 voltage measurement; the trace above may simply be due to one probe being set to x1 and the other probe set to x10 - a factor of 10 times difference in the trace display.

Simple test: put both probes on the same signal and observe the display.

RE: Question about SPIM00 in NRF54L15-DK

Simonr — Mon, 23 Jun 2025 12:29:07 GMT

Hi Leo

Can you explain what you mean about getting the CPU clock? The PLL.FREQ is set during system startup to either 128 or 64MHz and is the frequency that the CPU runs on. See the ...\modules\hal\nordic\nrfx\mdk\system_nrf54l.c file for reference.

Best regards,

Simon

RE: Question about SPIM00 in NRF54L15-DK

Leo Mo — Mon, 23 Jun 2025 08:45:06 GMT

Another oscilloscope can catch the data, thank you!

How can I get the CPU clock?

5.5.4.2.1 PLL.FREQ (Retained)

Best regards,

Leo

RE: Question about SPIM00 in NRF54L15-DK

Simonr — Mon, 23 Jun 2025 08:41:09 GMT

Can you zoom in on the SCK graph here so we can see what's happening during these events? Do you also have an image of how you have connected the SPI device to the DK? Additionally, can you confirm whether the SPI communication works as expected or not here?

Best regards,

Simon
