IDLE State Bluetooth Mesh

RE: IDLE State Bluetooth Mesh

Stian Røed Hafskjold — Wed, 27 Jun 2018 14:35:50 GMT

The result seems to be correct. You will see some variation in the current because of refresh spikes, the regulator charging up capacitors regularly to provide power to the chip, however the average current over time will be about 0.4uA

RE: IDLE State Bluetooth Mesh

loubaz — Wed, 27 Jun 2018 09:41:35 GMT

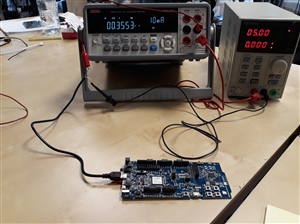

I think I did not use the right method to perform the current measurement. I used a USB cut cable on which I connect the power supply with the ammeter in series like this:

I found this page in the Nordic infocenter about current measurement :

http://infocenter.nordicsemi.com/index.jsp?topic=%2Fcom.nordic.infocenter.nrf52%2Fdita%2Fnrf52%2Fdevelopment%2Fnrf52840_pdk%2Fhw_measure_current.html

So I did an other measure like this :

By following the steps described in the link above.and I found a result that seems more consistent with what is described in the following page:

https://devzone.nordicsemi.com/f/nordic-q-a/15536/nrf52832-system-off-with-wake-on-reset

Can you confirm that the result I obtained is correct? My current value varies between 1.1µA and 0.3 μA when the device is in system off state.

And i conclued that calling : NRF_POWER->SYSTEMOFF =1; or sd_power_system_off(); have the same effect.

thanks,

Louis

RE: IDLE State Bluetooth Mesh

Stian Røed Hafskjold — Tue, 26 Jun 2018 15:10:09 GMT

In system OFF mode the chip will not consume 350uA. Can you try to put NRF_POWER->SYSTEMOFF =1; in top of main and see what happens?

Can you also explain your test setup, how you measure current and which state the switches on the DK are in? Thanks
