Can't find suitable tools to make a project with nRF51822

RE: Can't find suitable tools to make a project with nRF51822

ArtemS — Mon, 04 Mar 2019 01:34:44 GMT

Have you finally managed to build with SES? I'm struggling with it right now.

RE: Can't find suitable tools to make a project with nRF51822

awneil — Mon, 21 Jan 2019 10:22:05 GMT

[quote userid="76387" url="~/f/nordic-q-a/42657/can-t-find-suitable-tools-to-make-a-project-with-nrf51822/166769"]You can close this ticket[/quote]

You're the one who closes it - by verifying the Answer:

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Mon, 21 Jan 2019 10:10:22 GMT

I changed the addresses to the ones you stated above and now the example is working. Thanks for your help.

You can close this ticket.

RE: Can't find suitable tools to make a project with nRF51822

Jørgen Holmefjord — Mon, 21 Jan 2019 09:45:18 GMT

The flash size is given in softdevice migration document, but the RAM size will depend on your application configuration. Default for ble_app_blinky example in SDK 12.3.0 is (from GCC linker script):

FLASH (rx) : ORIGIN = 0x1b000, LENGTH = 0x25000
RAM (rwx) : ORIGIN = 0x20001fe8, LENGTH = 0x6018

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 16:40:29 GMT

How can I see what size the stack has?

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 16:37:57 GMT

FLASH_START=0x1B000

SRAM_START=0x20001870

RE: Can't find suitable tools to make a project with nRF51822

Jørgen Holmefjord — Fri, 18 Jan 2019 16:24:43 GMT

0x04 means NRF_ERROR_NO_MEM. Most likely, there is not enough RAM for the softdevice. What did you put in "Section Placement Macros" configuration?

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 16:14:35 GMT

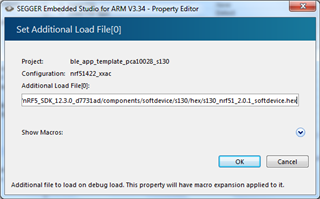

That part I also did: adding the full path of the softdevice to the debug add aditional file, but still doesn't work.

I followed the complete instructions:

Still no success! There is error 04 when main.c calls

err_code = softdevice_enable(&ble_enable_params);

the result is 04 and the error handler resets the controller.

RE: Can't find suitable tools to make a project with nRF51822

Jørgen Holmefjord — Fri, 18 Jan 2019 16:05:56 GMT

In the Segger Embedded Studio tutorial I linked before. Search the page for the headline I wrote below.

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 16:04:04 GMT

where can I find it?

RE: Can't find suitable tools to make a project with nRF51822

Jørgen Holmefjord — Fri, 18 Jan 2019 16:00:02 GMT

You must follow the section of the tutorial with headline "Flashing the SoftDevice with our application".

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 15:47:52 GMT

Thanks for the tip.

I still didn't succeed to save the SES project after I import it from Keil.

I succeeded to compile and run the project! Thanks. Now next problem is the program resets when calling ble_stack_init. Probably the softdevice is not loaded or not enabled? Must I make some special thing to flash the softdevice?

RE: Can't find suitable tools to make a project with nRF51822

Jørgen Holmefjord — Fri, 18 Jan 2019 15:04:26 GMT

Did you follow the instructions in the last part of the blog/this post?

I meant that you should upload the SES project, so I did not have to replicate all your steps to import it from Keil.

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 14:23:25 GMT

My project is the SDK12 example, so it makes no sense to zip because it would mean you would get the SDK12!

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 14:21:39 GMT

There is only one problem now: the example project doesn't compile:

(...)
Generating linker script ‘ble_app_template_pca10028_s130.ld’
Linking ble_app_template_pca10028_s130.elf
Output/nrf51422_xxac/Exe/ble_app_template_pca10028_s130.elf section `.fs_data' will not fit in region `UNPLACED_SECTIONS'
region `UNPLACED_SECTIONS' overflowed by 16 bytes
Output/ble_app_template_pca10028_s130 nrf51422_xxac/Obj/fstorage.o: In function `check_config':
undefined reference to `__start_fs_data'
undefined reference to `__stop_fs_data'
Output/ble_app_template_pca10028_s130 nrf51422_xxac/Obj/fstorage.o: In function `fs_init':
undefined reference to `__stop_fs_data'
undefined reference to `__start_fs_data'
Build failed

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 13:52:47 GMT

Hurra! I discovered the problem! The file extension of ses_nrf51_startup.s file was txt and that's why it was not compiling.

Now I get several errors because a section is not present but I already read how to correct it.

Thanks for your help, without it I wouldn't have made it!

RE: Can't find suitable tools to make a project with nRF51822

Jørgen Holmefjord — Fri, 18 Jan 2019 13:20:55 GMT

ZIP the directory and upload it to your reply like this:

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 13:15:10 GMT

The project I am trying to compile is the SDK12 example ble_app_template_pca10028_s130 wihout any changes.

How can I upload the project? Sorry but I'm new in Nordic....

RE: Can't find suitable tools to make a project with nRF51822

Jørgen Holmefjord — Fri, 18 Jan 2019 12:37:30 GMT

Can you upload your entire project? That way I can check if I see any issues with the configuration.

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 11:22:25 GMT

This is the complete ses_nrf51_startup.s file:

/*****************************************************************************
* Copyright (c) 2013 Rowley Associates Limited. *
* *
* This file may be distributed under the terms of the License Agreement *
* provided with this software. *
* *
* THIS FILE IS PROVIDED AS IS WITH NO WARRANTY OF ANY KIND, INCLUDING THE *
* WARRANTY OF DESIGN, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. *
*****************************************************************************/
.macro ISR_HANDLER name=
.section .vectors, "ax"
.word \name
.section .init, "ax"
.thumb_func
.weak \name
\name:
1: b 1b /* endless loop */
.endm

.macro ISR_RESERVED
.section .vectors, "ax"
.word 0
.endm

.syntax unified
.global reset_handler

.section .vectors, "ax"
.code 16
.global _vectors

_vectors:
.word __stack_end__
.word reset_handler
ISR_HANDLER NMI_Handler
ISR_HANDLER HardFault_Handler
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_HANDLER SVC_Handler
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_HANDLER PendSV_Handler
ISR_HANDLER SysTick_Handler
/* External Interrupts */
ISR_HANDLER POWER_CLOCK_IRQHandler
ISR_HANDLER RADIO_IRQHandler
ISR_HANDLER UART0_IRQHandler
ISR_HANDLER SPI0_TWI0_IRQHandler
ISR_HANDLER SPI1_TWI1_IRQHandler
ISR_RESERVED /*Reserved */
ISR_HANDLER GPIOTE_IRQHandler
ISR_HANDLER ADC_IRQHandler
ISR_HANDLER TIMER0_IRQHandler
ISR_HANDLER TIMER1_IRQHandler
ISR_HANDLER TIMER2_IRQHandler
ISR_HANDLER RTC0_IRQHandler
ISR_HANDLER TEMP_IRQHandler
ISR_HANDLER RNG_IRQHandler
ISR_HANDLER ECB_IRQHandler
ISR_HANDLER CCM_AAR_IRQHandler
ISR_HANDLER WDT_IRQHandler
ISR_HANDLER RTC1_IRQHandler
ISR_HANDLER QDEC_IRQHandler
ISR_HANDLER LPCOMP_IRQHandler
ISR_HANDLER SWI0_IRQHandler
ISR_HANDLER SWI1_IRQHandler
ISR_HANDLER SWI2_IRQHandler
ISR_HANDLER SWI3_IRQHandler
ISR_HANDLER SWI4_IRQHandler
ISR_HANDLER SWI5_IRQHandler
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */
ISR_RESERVED /*Reserved */

.section .init, "ax"
.thumb_func

reset_handler:

// turn on RAM blocks
.equ NRF_POWER_RAMON_ADDRESS, 0x40000524
.equ NRF_POWER_RAMONB_ADDRESS, 0x40000554
.equ NRF_POWER_RAMONx_RAMxON_ONMODE_Msk, 0x3

/* Make sure ALL RAM banks are powered on */
MOVS R1, #NRF_POWER_RAMONx_RAMxON_ONMODE_Msk

LDR R0, =NRF_POWER_RAMON_ADDRESS
LDR R2, [R0]
ORRS R2, R1
STR R2, [R0]

LDR R0, =NRF_POWER_RAMONB_ADDRESS
LDR R2, [R0]
ORRS R2, R1
STR R2, [R0]

#ifndef __NO_SYSTEM_INIT
ldr r0, =__SRAM_segment_end__
mov sp, r0
bl SystemInit
#endif

b _start

#ifndef __NO_SYSTEM_INIT
.thumb_func
.weak SystemInit
SystemInit:
bx lr
#endif

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 11:06:37 GMT

The reset handler is defined in the assembly file ses_nrf51_startup.s and, in my view, it is defined. However, no matter what SDK example I load, all give the same error. The point is how to remove this error, as I have no clue how to do it.

This is a part of the file where I believe it is defined:

.section .vectors, "ax"
.code 16
.global _vectors

_vectors:
.word __stack_end__
.word reset_handler
ISR_HANDLER NMI_Handler

So, in my opinion the error is in the ses_nrf51_startup.s file.

It is also strange that compiling gives only a warning, not an error, but doesn't build, although the setting "treat warnings as errors" is set to No!

Note that the file ses_nrf51_startup.s is original, so I made no change.

RE: Can't find suitable tools to make a project with nRF51822

awneil — Fri, 18 Jan 2019 10:56:33 GMT

You said you had 20 years experience.

So you should be able to have a good guess at what a "reset handler" is going to be. Looking at where it's called from should also help.

Try a search through all the SDK source files to see if you can find one.

Possibly also the source files in the SES installation ...

Again, this is where looking at a working example would help.

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 10:39:14 GMT

Thanks. Right now I am almost there with SES, only 1 error to solve. But thanks anyway.

RE: Can't find suitable tools to make a project with nRF51822

Sergio T — Fri, 18 Jan 2019 10:35:31 GMT

I did include the ses_nrf51_startup.s file, in fact I made all the steps in the guide. Where and how can I "provide an entry for reset_handler"?

RE: Can't find suitable tools to make a project with nRF51822

Jørgen Holmefjord — Fri, 18 Jan 2019 09:15:20 GMT

Did you remember to include the file ses_nrf51_startup.s in your project?
