Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Mon, 11 Mar 2019 00:06:36 GMT

Hi, Berg-san

Thank you for your support!

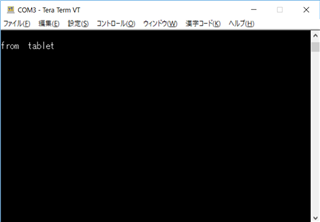

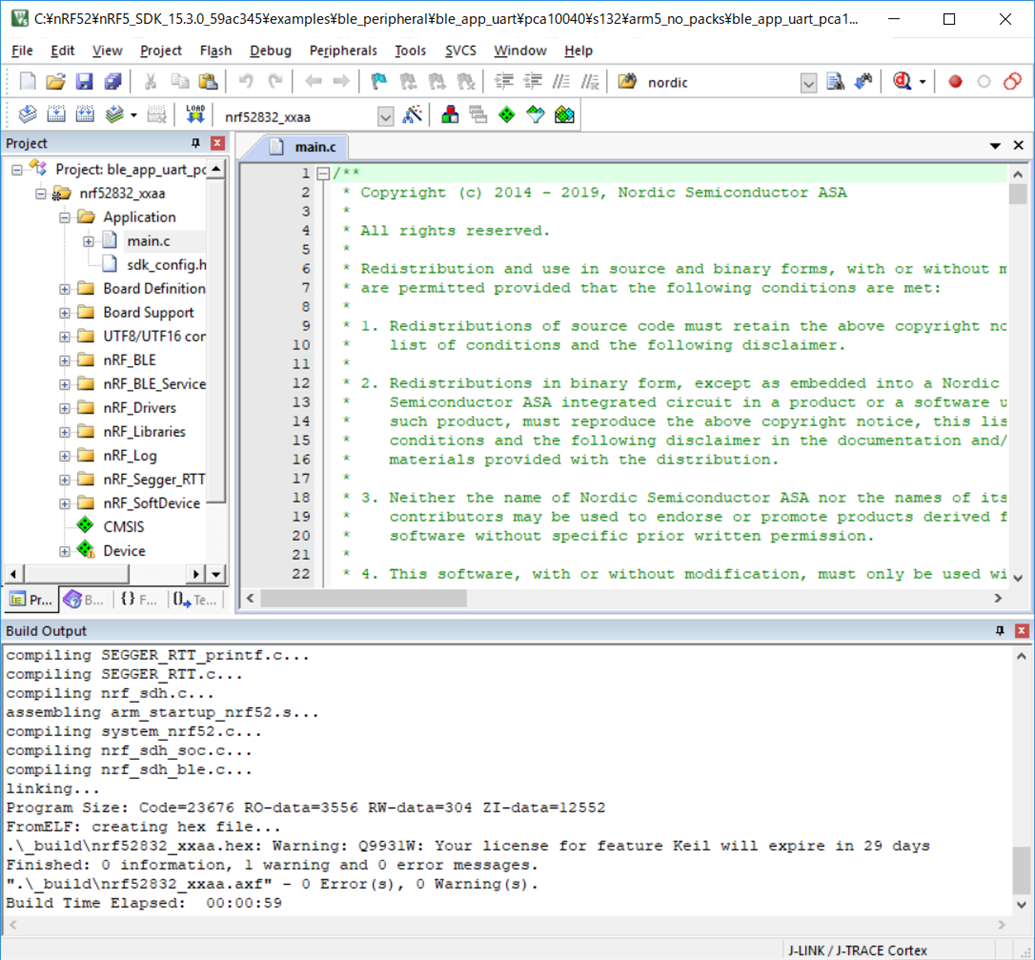

I tried programming the latest SDK(nRF5_SDK_15.3.0_59ac345) without modifying it.

So, my tablet was able to connect with the BLE module.

I have programmed according to the Taiyoyuden's Manual.

I think that it is caused by adding the header file of "custom_board.h".

Thank you again. m(_ _)m

Best regars,

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Thu, 07 Mar 2019 09:55:10 GMT

Hi, Berg-san

Thank you for your support!

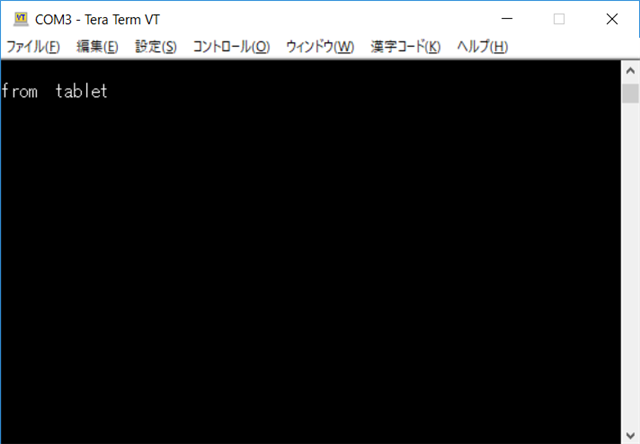

I tried programming the latest SDK(nRF5_SDK_15.3.0_59ac345) without modifying it.

So, my tablet was able to connect with the BLE module.

I have programmed according to the Taiyoyuden's Manual.

I think that it is caused by adding the header file of "custom_board.h".

Thank you again. m(_ _)m

Best regars,

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

Vidar Berg — Thu, 07 Mar 2019 07:35:42 GMT

Hi,

I suggest that you try programming another BLE example without modifying it and see if you are able to discover with the nrf connect app. The UART example should have worked.

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Wed, 06 Mar 2019 11:38:40 GMT

Hi, Berg-san

I flashed an older version of SDK "nRF5_SDK_14.0.0_3bcc1f7" to the device.

SoftwareDevice: s132_nrf52_5.5.0

My tablet was able to find the device.

Does this mean that the new version of the example program does not work?

Best regards,

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Wed, 06 Mar 2019 11:14:25 GMT

Hi, Berg-san

Yes, I use the "nRF Toolbox" and "nRF UART v2.0".

Neither of them could find the device.

Best regards,

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

Vidar Berg — Wed, 06 Mar 2019 11:08:59 GMT

Have you tried scanning for the device through the nRF connect app?

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Wed, 06 Mar 2019 10:50:32 GMT

Hi, Berg-san

Thank you for your reply.

I closed the debug mode, and I tried to find a device from my tablet.

It could not find the device.

If it can find the device, I will see "Nordic_UART" on it.

Best regards,

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

Vidar Berg — Wed, 06 Mar 2019 08:38:06 GMT

Hi,

This error is coming from the Softdevice. It can happen if you single step or halt the CPU after enabling the Softdevice since it has real-time requirements. Are you able to discover the device from your phone now?

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Tue, 05 Mar 2019 09:17:41 GMT

Hi, Berg-san

I tried the new memory setting.

Then I saw new error code(0x0000057D).

I examined the error code, but I idn't understand it.

What does it mean?

Best regards,

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

Vidar Berg — Tue, 05 Mar 2019 07:58:47 GMT

Hi,

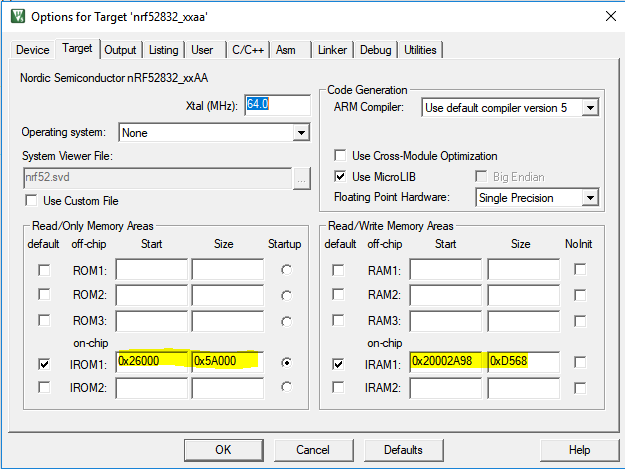

The error information indicates that the IRAM1 base is set too low (softdevice returns "no mem" error). Try with the settings below.

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Tue, 05 Mar 2019 06:02:38 GMT

Hi, Berg-san,

Thank you for your information.

I got the evaluation license (No limitation, 30days) and continued debugging.

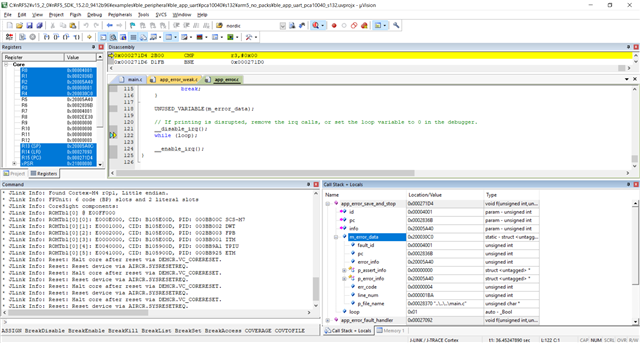

I saw the "0x00000004" of error code.

This seems to be an error related to memory.

I will continue investigating to resolve this error code.

Thank you for your supports.

Best regards,

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

Vidar Berg — Mon, 04 Mar 2019 12:42:25 GMT

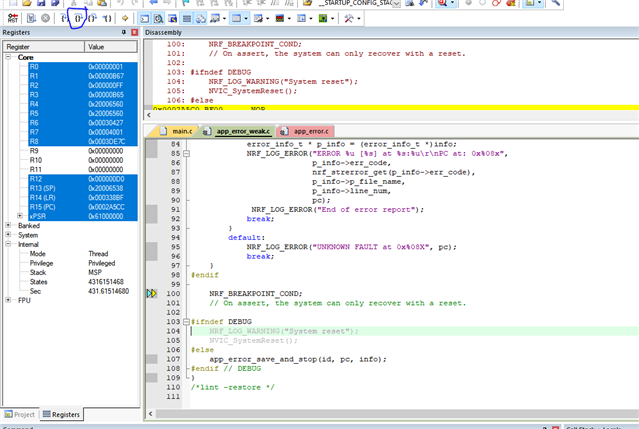

The program ends up in the SDKs error handler meaning that there was an error after reaching main(). You can use the error handler to determine where the error occurred.

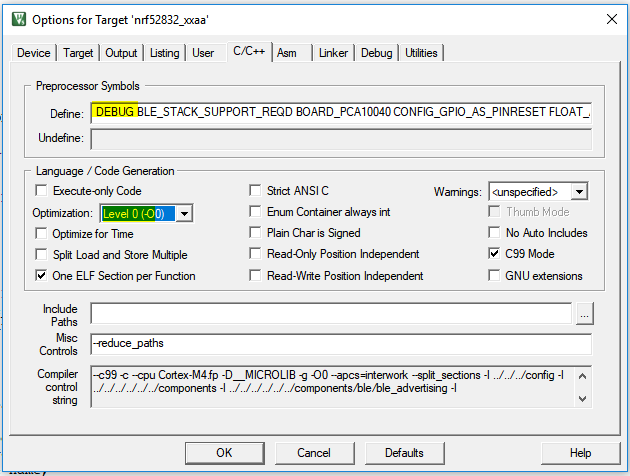

1. Re-compile the project with the highlighted settings below for improved debugging experience

2. Step over the flash breakpoint

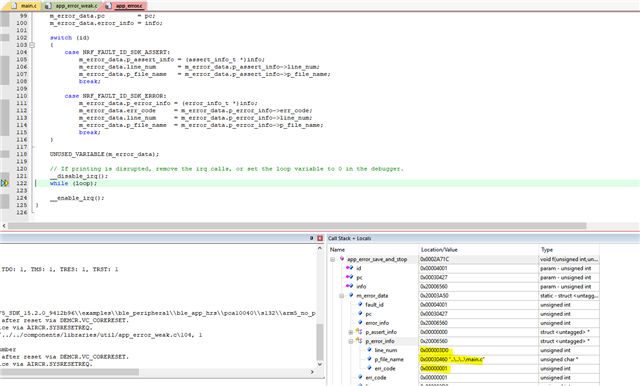

3. Read out the error code, line number and file name to find out where and why the error occurred. Common error codes are listed in nrf_error.h

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Mon, 04 Mar 2019 03:00:45 GMT

Hi,Berg-san

Thank you for your reply.

I was taking a weekend holiday.

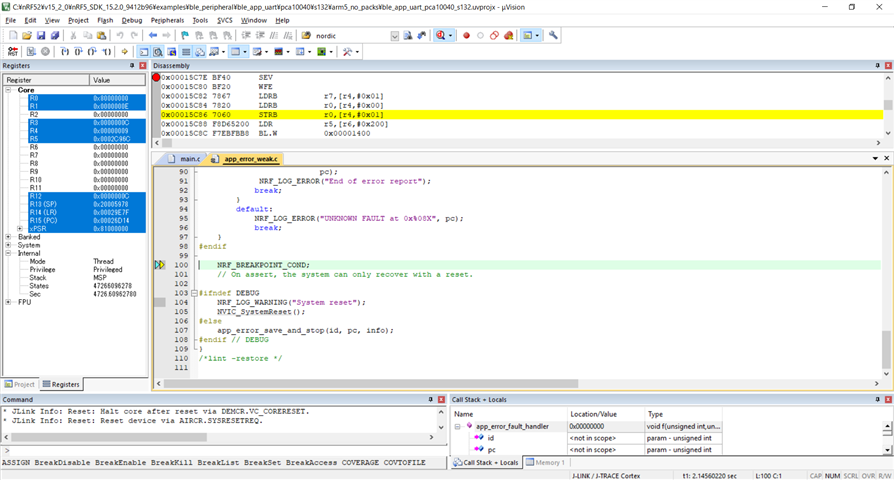

I set a break point and ran the program as shown below.

But my program did not stop at a break point.

I stopped at a different point.

Does this mean that an error occurred before the program reached the main()?

Best Regards,

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

Vidar Berg — Fri, 01 Mar 2019 12:04:12 GMT

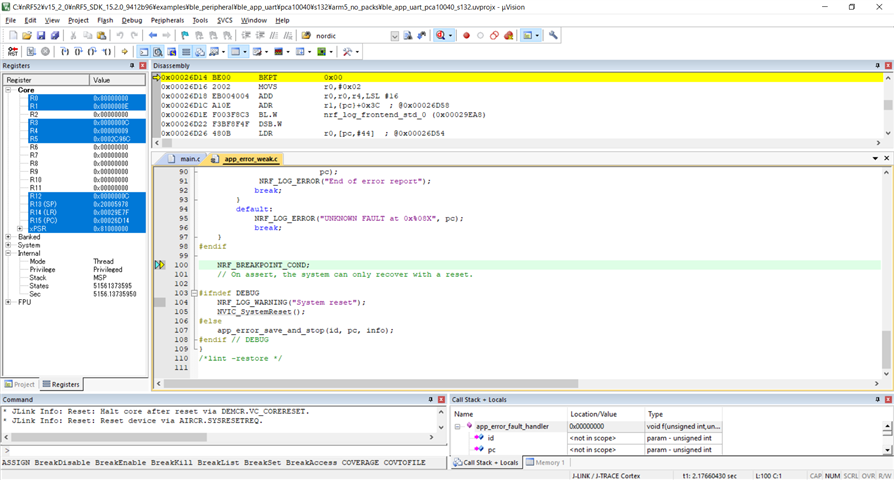

Yes, thanks. The program reaches main(), which means that both app and Softdevice has been programmed correctly. Please try let the program run for a couple of seconds as well, then stop it and check if it ends up at the address shown in the screenshot below and not in the application's error handler.

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Fri, 01 Mar 2019 11:09:16 GMT

Hi, Awneil-san

Thanks for your advice.
I also posted in the same procedure but the screenshot becomes not clear.
Screenshots are clear on my PC.
Why? why? why?

Best,regards,

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

awneil — Fri, 01 Mar 2019 10:53:06 GMT

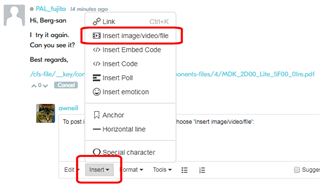

To post images, use the 'Insert' menu, and choose 'Insert image/video/file':

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

awneil — Fri, 01 Mar 2019 10:49:33 GMT

[quote userid="4240" url="~/f/nordic-q-a/44268/setting-up-keil-mdk-for-dk-nrf52832-sdk-15-2-0-ble_app_uart/173620"]the free MDK-Lite edition is restricted to 32KB code size if I'm not mistaken[/quote]

You are correct.

[quote userid="4240" url="~/f/nordic-q-a/44268/setting-up-keil-mdk-for-dk-nrf52832-sdk-15-2-0-ble_app_uart/173620"]so there are several BLE examples that you will not be able to build[/quote]

Indeed.

[quote userid="4240" url="~/f/nordic-q-a/44268/setting-up-keil-mdk-for-dk-nrf52832-sdk-15-2-0-ble_app_uart/173620"]I would recommend Segger embedded studio[/quote]

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Fri, 01 Mar 2019 10:37:21 GMT

Hi, Berg-san

I try it again.
Can you see it?

Best regards,

/cfs-file/__key/communityserver-discussions-components-files/4/MDK_2D00_Lite_5F00_01re.pdf

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Fri, 01 Mar 2019 10:23:39 GMT

Hi, Berg-san

I posted it again.
Can you see it?

Best regards,

/resized-image/__size/640x480/__key/communityserver-discussions-components-files/4/Keil-MDK_2D00_Lite_5F00_1re.png

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

Vidar Berg — Fri, 01 Mar 2019 10:03:32 GMT

Hi,

Unfortunately, I'm unable to read the text in your screenshot. Can you increase the resolution and try to re-upload it?

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

PAL_fujita — Fri, 01 Mar 2019 09:56:19 GMT

Hi,

Thank you for your reply.

I judged that it was not moving because I could not find the device with nRF TOOLBOX (for Android).

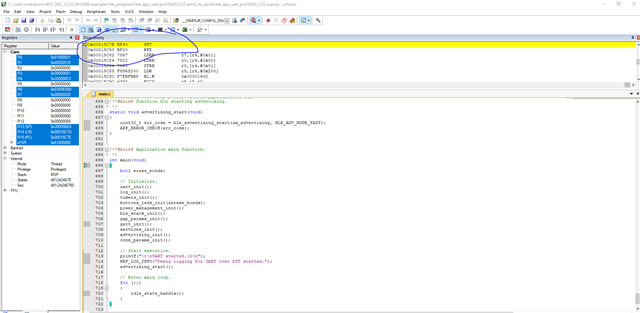

Screenshot of IDE saved.

Is my CPU running?

Best regards,

/resized-image/__size/320x240/__key/communityserver-discussions-components-files/4/Keil-MDK_2D00_Lite_5F00_1.jpg

RE: Setting up Keil MDK for DK nRF52832 SDK 15.2.0 ble_app_uart

Vidar Berg — Fri, 01 Mar 2019 07:58:38 GMT

Hi,

[quote user=""]But it did not move.[/quote]

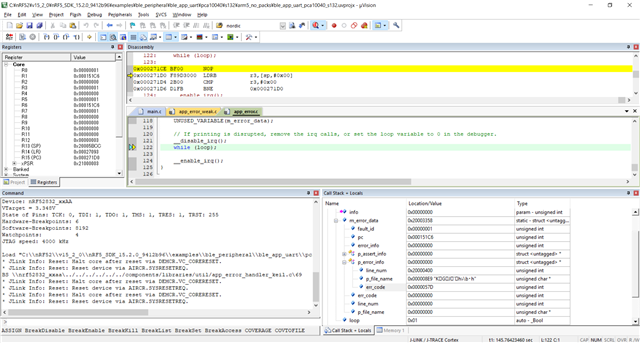

How do you determine that it's not moving? If you are debugging the application in Keil, please pause debugging, then take a screenshot of the CPU registers and post it here.

Not related to the problem, but the free MDK-Lite edition is restricted to 32KB code size if I'm not mistaken, so there are several BLE examples that you will not be able to build. I would recommend Segger embedded studio if you are not considering to buy the full version of Keil (Segger embedded studio -getting started).
