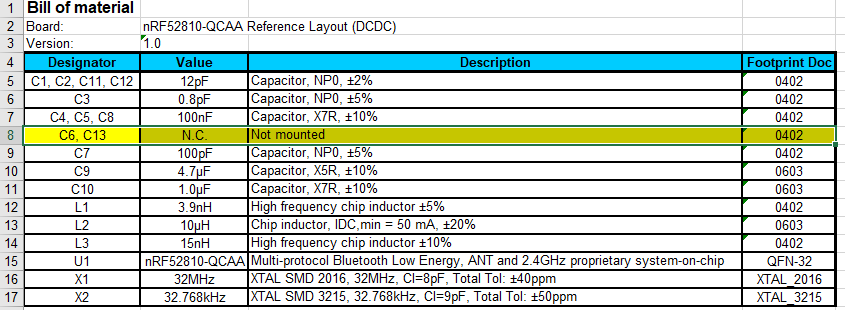

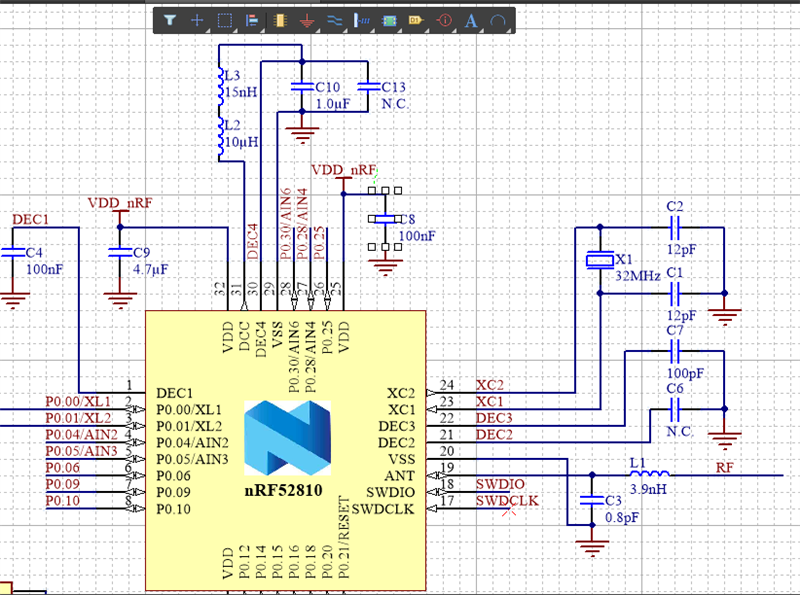

https://devzone.nordicsemi.com/f/nordic-q-a/48334/c6-and-c13-values-and-function-in-nrf52810-reference-designHi. I&#39;m using the nRF52810-QCAA (DCDC) Reference Design, but I&#39;ve noticed that C6 and C13 are labeled as No Connected in both the schematic and BOM, but in the PCB model, they are actually mounted, why? Can I safely remove them from my design or doen-USTelligent Community 13Tue, 11 Jun 2019 14:21:45 GMThttps://devzone.nordicsemi.com/thread/192120?ContentTypeID=1Tue, 11 Jun 2019 14:21:45 GMT137ad170-7792-4731-bb38-c0d22fbe4515:1241ab20-ca80-4a4d-bfa6-4985837e9a16Diego Garcia<p>Thank you a lot Kaja!<br />I&#39;ll be aware of the values of C13. For the meanwhile, I&#39;ll proceed to remove C6 of my design.</p><div style="clear:both;"></div>https://devzone.nordicsemi.com/thread/192008?ContentTypeID=1Tue, 11 Jun 2019 10:19:17 GMT137ad170-7792-4731-bb38-c0d22fbe4515:b7817337-7471-4fe6-a342-0b0580d3e66bKaja<p>Hi Diego,&nbsp;<br /><br /></p> <p>they are just illustrated as mounted in the design files, so that you get the solder pads for the capacitor on the pcb.&nbsp; The N.C capacitor on DEC2 are put there for historical reasons, as there have been instances in earlier chips where the capacitor have been needed. So you can safely skip that, but when it comes to C13 that is still recommended to have. I can ask around for a specific values, but I would keep that one on the design.&nbsp;<br /><br />Best regards,<br />Kaja</p><div style="clear:both;"></div>
