Proximity Example SAADC reading

RE: Proximity Example SAADC reading

ketiljo — Mon, 09 Mar 2020 09:31:16 GMT

Sorry, wrong link

https://infocenter.nordicsemi.com/topic/ug_nrf52840_dk/UG/nrf52840_DK/direct_supply.html

RE: Proximity Example SAADC reading

Nicholas_Nuti — Fri, 06 Mar 2020 17:34:20 GMT

Like which way? There were multiple psu configurations on that page.

RE: Proximity Example SAADC reading

ketiljo — Fri, 06 Mar 2020 13:12:52 GMT

Try connecting it like this: https://infocenter.nordicsemi.com/index.jsp?topic=%2Fug_nrf52840_dk%2FUG%2Fnrf52840_DK%2Fhw_power_supply.html

RE: Proximity Example SAADC reading

Nicholas_Nuti — Thu, 05 Mar 2020 15:52:19 GMT

Yes, it's incorrect if I place the battery in the battery holder. I tested this by sending the voltage value over bluetooth.

RE: Proximity Example SAADC reading

ketiljo — Tue, 03 Mar 2020 09:15:33 GMT

Is it still incorrect of you connect the battery directly as in the link?

RE: Proximity Example SAADC reading

Nicholas_Nuti — Mon, 02 Mar 2020 17:58:39 GMT

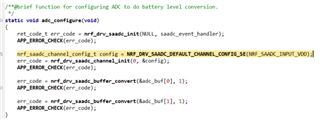

I currently have it measuring the INPUT_VDD. I have directly measured the battery @ 3.0V.

RE: Proximity Example SAADC reading

ketiljo — Mon, 02 Mar 2020 11:21:14 GMT

Try connecting the battery directly and make sure you setup the ADC to measure VDD

RE: Proximity Example SAADC reading

Nicholas_Nuti — Fri, 28 Feb 2020 19:56:15 GMT

Yes, this is measured on the DK. I'm also sending voltage values measured by the SAADC over bluetooth. The voltages sent over bluetooth while running on the battery are wrong. Is there something I need to add to the proximity example to get accurate battery input voltages?

RE: Proximity Example SAADC reading

ketiljo — Fri, 28 Feb 2020 13:14:15 GMT

Is this measured on the DK? The ADC reads the voltage on the VDD pin. VBUS will be regulated and fed to VDD via REG0. You can find a description of the power supply here> infocenter.nordicsemi.com/.../hw_power_supply.html
