Open the SDK nrf52840 on SEGGER

RE: Open the SDK nrf52840 on SEGGER

Rian Mol — Tue, 07 Jul 2020 13:37:20 GMT

Thanks Simon, Now It's worked perfectly :D

RE: Open the SDK nrf52840 on SEGGER

Simon — Mon, 06 Jul 2020 22:25:15 GMT

Okay. Now I see more clearly, the video helped. The fact that you're using an nRF52840 Dongle changes things. I will try to clear out some different stuff such that you'll understand things better:

nRF52840 does not have a programmer

The nRF52840 does not have a programmer (Interface MCU) on the board, so you can not flash the program onto the chip and you can not debug the application. The nRF52840, on the other hand, does have one, so the approach you showed in the video should work for that.

SEGGER Embedded Studio (SES) vs. SEGGER Embedded Studio Nordic Edition

If you're using the nRF5 SDK (e.g. nRF5 SDK 16.0.0 or nRF5 SDK 17.0.0) you should use the original version of SES. The one that can be downloaded from here and the one used in this video series
- It may work to use the Nordic Edition anyway, but I don't think it is the intention
If you're using the nRF Connect SDK, you should use SES Nordic Edition. Which is the one that is included with the Toolchain Manager

Whether you should use the nRF5 SDK or the nRF Connect SDK is another discussion. You may open a new case/search in Devzone if you have questions about this choice.

How to generate the hex file and program the nRF52840 Dongle

As mentioned earlier, the dongle doesn't have a programmer. But is shipped with an Open USB bootloader which makes it possible to program it through DFU, and the Programmer app in nRF Connect for Desktop can perform this DFU. Let me show, step by step how to do this:

Install SEGGER Embedded Studio
- Follow this video series for guidance on how to do this
Open your project:

Build your project:

The hex file is now located here:

Connect the nRF5840 Dongle and Press the reset button to put the Dongle in DFU mode.
Open the programmer app select the device and drag the file ble_app_blinky_pca10059_s140.hex into the app
If not already present on the dongle, add the SoftDevice as well, it is located in nRF5_SDK_17.0.0_9d13099\components\softdevice\s140\hex\s140_nrf52_7.0.1_softdevice.hex
Eventually click "Write":

After you've downloaded it a message "Nordic DFU Trigger Interface was not found.." might show up. But don't worry about it
You can now see the device advertising as "Nordic_Blinky" e.g. by using the nRF Connect app on the phone

Some other useful links:

How to program the nRF52840 Dongle using the nRF Connect SDK: https://devzone.nordicsemi.com/f/nordic-q-a/62373/not-able-to-load-hex-to-nrf52840-dongle-makerdiary-via-nrf-connect-programmer
nRF52840 Dongle Programming Tutorial: https://devzone.nordicsemi.com/nordic/short-range-guides/b/getting-started/posts/nrf52840-dongle-programming-tutorial

Best regards,

Simon

RE: Open the SDK nrf52840 on SEGGER

Rian Mol — Thu, 02 Jul 2020 13:09:41 GMT

I forgot to mention, but I'm using the nRF52840 Dongle PCB, and a option(Download ) show another message.
I'll send a video, show what I need to do.

devzone.nordicsemi.com/.../2020_2D00_07_2D00_02-09_2D00_52_2D00_48.mp4
(Sorry for my english, isn't my mother language, so if you don't understand something you can ask and I try to explain)

RE: Open the SDK nrf52840 on SEGGER

Simon — Wed, 01 Jul 2020 21:55:40 GMT

You don't need to flash the sample using the programmer app (however, it is still possible if preferable for some reason). You can both build/compile and flash your sample using SEGGER.

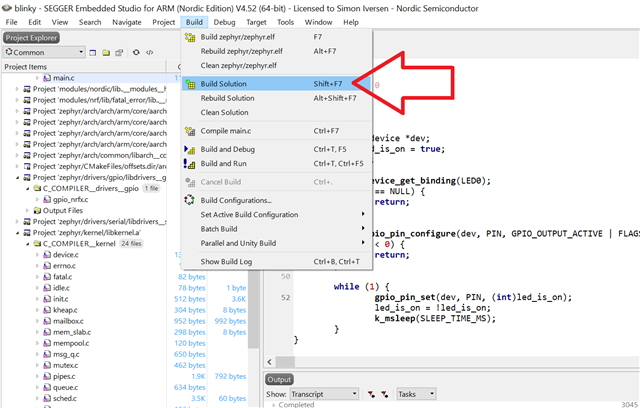

To build/compile:

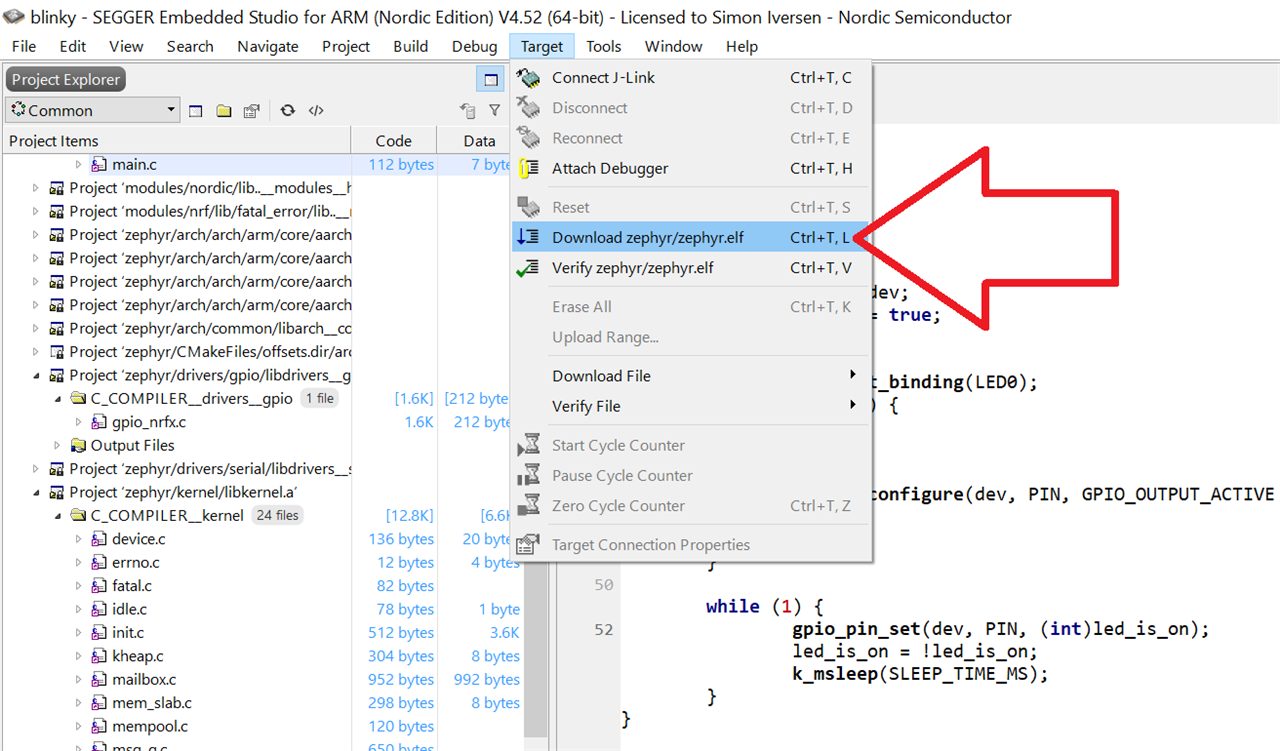

To program/flash (assuming you've connected the nRF52840 DK to your computer and turned it on):

Best regards,

Simon

RE: Open the SDK nrf52840 on SEGGER

Rian Mol — Tue, 30 Jun 2020 18:03:46 GMT

It worked, but now how can I get a .HEX file on Segger? I can compile, but I have no acess to .HEX file to upload a code on my nRF52840 through nRFConnect Programmer app.

RE: Open the SDK nrf52840 on SEGGER

Simon — Tue, 30 Jun 2020 00:39:38 GMT

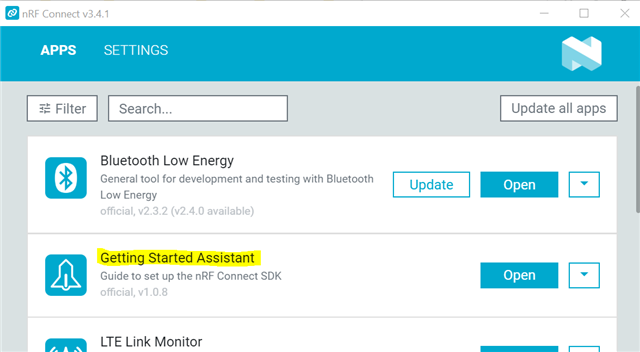

I assume you're talking about the getting started assistant app:

However, don't use this.

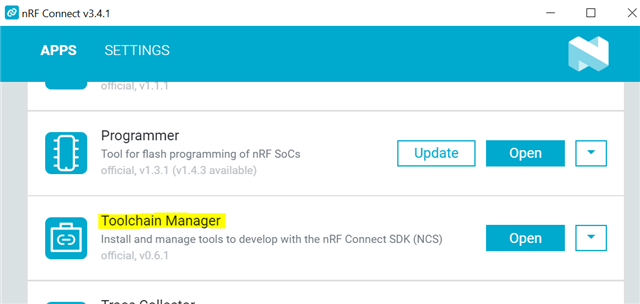

Use the Toolchain Manager app instead:

This app (Toolchain Manager) is supported on both MacOS and Windows. So hopefully you're using one of them.

RE: Open the SDK nrf52840 on SEGGER

Rian Mol — Mon, 29 Jun 2020 23:13:38 GMT

So, I used this method. I had installed the Toolchain, the nRF Connect and followed everything like "Getting Started Assistant" said, but when I will open the SDK this message appears. I checked with "verify" all things on the list, and all of them are green, but didn't worked yet

RE: Open the SDK nrf52840 on SEGGER

Simon — Mon, 29 Jun 2020 20:12:27 GMT

If you're new with the Nordic products and are going to use NCS, I highly recommend you to use the Toolchain Manager:

Installing the Toolchain manager
Installing the nRF Connect SDK

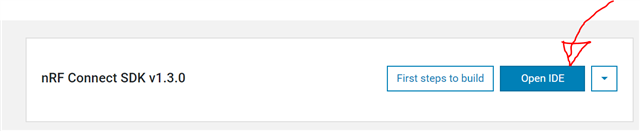

When you've done that, click on Open IDE:

Then click on File-->Open nRF Connect SDK project and choose the appropriate options. E.g:

Best regards,

Simon
