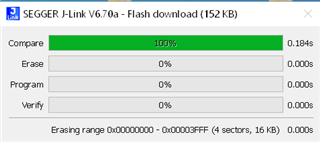

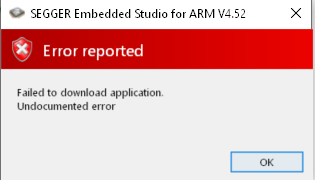

Issue when programming NRF52840 dongle with DK and segger

RE: Issue when programming NRF52840 dongle with DK and segger

campestring — Wed, 22 Jul 2020 11:46:23 GMT

It works for the blinky example at least, but I can't upload the ble_blinky example... the led pulse red...

RE: Issue when programming NRF52840 dongle with DK and segger

campestring — Wed, 22 Jul 2020 08:55:42 GMT

But gnd_detect is pulled low with the green wire connect to the gnd of the Dk, I have change the connexion from vbus to vdd out, I can start the debug but the led continue to pulse red and the Dongle isn't programmed.

RE: Issue when programming NRF52840 dongle with DK and segger

haakonsh — Wed, 22 Jul 2020 08:37:15 GMT

[quote user="haakonsh"]I think you're missing the ground connection, GND_DETECT is not actually ground, but an input pin to the debugger to check for the presence of an external device. i.e if GND_DETECT is pulled low there's an external device connected.[/quote][quote user="campestring"]He gnd_detect is a black wire on the picture it's difficult to see it but it's here.[/quote]

I know, read my statement again.

You need to connect to VDD_OUT, not VBUS. Otherwise, the two devices won't have the same logic levels.

RE: Issue when programming NRF52840 dongle with DK and segger

campestring — Wed, 22 Jul 2020 08:31:19 GMT

THe gnd_detect is a black wire on the picture it's difficult to see it but it's here. and my VDD jumper goes on the Vbus not on the VDD_Out.

RE: Issue when programming NRF52840 dongle with DK and segger

haakonsh — Wed, 22 Jul 2020 08:26:42 GMT

I think you're missing the ground connection, GND_DETECT is not actually ground, but an input pin to the debugger to check for the presence of an external device. i.e if GND_DETECT is pulled low there's an external device connected.

You need another jumper wire from dongle ground to DK ground.

-edit:
It also looks like your VDD jumper is connected to GND on your breadboard, move it over to VDD_OUT.

RE: Issue when programming NRF52840 dongle with DK and segger

campestring — Wed, 22 Jul 2020 06:54:58 GMT

Yes !

RE: Issue when programming NRF52840 dongle with DK and segger

haakonsh — Tue, 21 Jul 2020 15:23:05 GMT

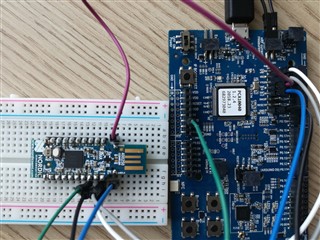

Can you share a picture of how you've wired it up?

RE: Issue when programming NRF52840 dongle with DK and segger

campestring — Tue, 21 Jul 2020 09:15:10 GMT

the dongle isn't connected to usb, I directly connected to the pin on the schematics, so directly to VDD, GND,SWDCLK and SWDIO.

RE: Issue when programming NRF52840 dongle with DK and segger

haakonsh — Tue, 21 Jul 2020 08:22:29 GMT

How did you connect to the dongle? Via the 10-pin tag-connect, 10-pin j-link , or directly to VDD, GND, SWDCLK, and SWDIO?

Was the dongle connected via USB while programming?
