Question about set GPIO pin status

RE: Question about set GPIO pin status

Leogean — Tue, 15 Dec 2020 17:07:41 GMT

Ah, I understand, thanks a lot for the detailed explanation.

RE: Question about set GPIO pin status

Jørgen Holmefjord — Tue, 15 Dec 2020 10:32:47 GMT

Hi,

The state of the pin is not reflected in the PIN_CFG register, you need to read the IN register to get the state of pins configured as inputs. To read state of pins configured as outputs, you can read the OUTSET register.

nrf_gpio_pin_write() will only call nrf_gpio_pin_clear() or nrf_gpio_pin_set(), depending on the second argument (0 will clear, 1 or above will set).

Best regards,
Jørgen

RE: Question about set GPIO pin status

Henry_Chou — Tue, 15 Dec 2020 06:40:33 GMT

The code is okay. And the debug message told you it's output. However, I think your debug break-point is wrong. Because the main loop should for(;;) or while(1) loop. Even through you trace the function. You should make the break-point with some command.

For example:

void system_io_init(void)
{
nrf_gpio_cfg_output(LNA_ENABLE_PIN);
nrf_gpio_pin_set(LNA_ENABLE_PIN);
//nrf_gpio_pin_clear(LNA_ENABLE_PIN);
}

int main()

{

system_io_init();

ble_stack_init();

db_discovery_init();
gatt_c_init();

// Start scanning for peripherals and initiate connection to devices which
// advertise.
scan_start();

for (;;)
{
if (NRF_LOG_PROCESS() == false)
{
// Wait for BLE events.

nrf_gpio_pin_set(LNA_ENABLE_PIN);
power_manage();

nrf_gpio_pin_clear(LNA_ENABLE_PIN);
}
else
{
nrf_gpio_pin_clear(LNA_ENABLE_PIN);

my_delay(50);// Break-point here
}
}

}

RE: Question about set GPIO pin status

Leogean — Tue, 15 Dec 2020 06:15:43 GMT

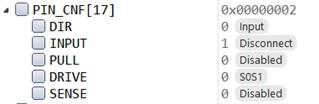

Thanks very much for your fast response. The picture shows all my main function in my project. I do not configure this pin anywhere else, even in the sdk_config.h. But when I checking the register, the output is not clear after "nrf_gpio_pin_clear(19)", and you can see I cannot even set the breakpoint to check the "nrf_gpio_pin_write" (no arrow mark on the left). Do I miss something in order to change the status of the gpio pin?

RE: Question about set GPIO pin status

Henry_Chou — Tue, 15 Dec 2020 05:07:28 GMT

#define LNA_ENABLE_PIN 17 //P0.17

nrf_gpio_cfg_output(LNA_ENABLE_PIN);
nrf_gpio_pin_set(LNA_ENABLE_PIN);

also yours nrf_gpio_pin_write(17, 1); is okay

output low:nrf_gpio_pin_clear(LNA_ENABLE_PIN); or nrf_gpio_pin_write(17, 0);

Your question 1. You try the code configuration P0.17 but fail.

I think the most reasons are assigned the configuration by the other application. You may check your sdk_config.h

Maybe you can find P0.17 for other functions as input.

RE: Question about set GPIO pin status

Leogean — Tue, 15 Dec 2020 03:56:07 GMT

By the way, what I am doing is like:

First: nrf_gpio_cfg_output(17);

Then: nrf_gpio_pin_write(17, 3);

Is this process is correct?
