SHT20 twi scanner device not found

RE: SHT20 twi scanner device not found

DD_ — Wed, 24 Mar 2021 09:12:26 GMT

Dear awneil,

Awaiting for your response. Any update. Below you found nRF connection. Thanks.

RE: SHT20 twi scanner device not found

DD_ — Mon, 22 Mar 2021 12:39:57 GMT

Please find attachment below

RE: SHT20 twi scanner device not found

awneil — Mon, 22 Mar 2021 12:36:48 GMT

That doesn't show how you're connecting to the nRF chip

RE: SHT20 twi scanner device not found

DD_ — Mon, 22 Mar 2021 12:14:06 GMT

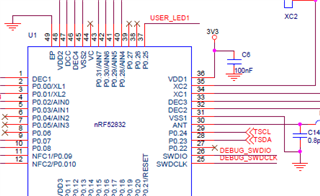

Please find attached schematic below,

I connected these two test point of SDA and SCL pin with arduino. In that case it's working. That's why confused whether it's an hardware issue.

RE: SHT20 twi scanner device not found

awneil — Mon, 22 Mar 2021 11:29:59 GMT

awaiting your replies to outstanding questions.

RE: SHT20 twi scanner device not found

DD_ — Mon, 22 Mar 2021 10:55:25 GMT

Dear Awneil,

Please update on this issue. Awaiting for your response.

RE: SHT20 twi scanner device not found

DD_ — Fri, 19 Mar 2021 10:32:30 GMT

Please find attached schematic below,

I connected these two test point of SDA and SCL pin with arduino. In that case it's working. That's why confused whether it's an hardware issue.

RE: SHT20 twi scanner device not found

awneil — Fri, 19 Mar 2021 10:31:57 GMT

[quote userid="97660" url="~/f/nordic-q-a/72969/sht20-twi-scanner-device-not-found"]SmartX [/quote]

This: https://www.smartx-europe.eu/ ?

RE: SHT20 twi scanner device not found

awneil — Fri, 19 Mar 2021 10:29:48 GMT

You really need to see what's happening on the wires - after all, that is the only thing that the sensor sees!

There's no point poring through the software if this is a hardware issue!

As you say that the TWI Scanner doesn't even find your device - that does rather suggest that it is a hardware issue.

How about posting a schematic of your setup.

Some good, clear, in-focus photographs may also help.

RE: SHT20 twi scanner device not found

DD_ — Fri, 19 Mar 2021 10:01:13 GMT

Awneil,

Unfortunately oscilloscope not working properly. Could you help me with other solutions. Thanks.

Regards,
SmartX

RE: SHT20 twi scanner device not found

awneil — Fri, 19 Mar 2021 08:46:35 GMT

Static voltage tells you nothing; you need to look at the activity on the I2C lines - that's what the oscilloscope is for.

Again, what do the oscilloscope traces (Arduino and Nordic) show you? See how they differ.

RE: SHT20 twi scanner device not found

DD_ — Fri, 19 Mar 2021 06:28:18 GMT

When we flash TWI scanner code from nRF SDK example voltage 3V3 appearing. But device not found. But when I flash I2C scanner code in arduino device address is showing. That's the exact problem we are facing. Sensor is uprunning but not responding to nordic example code. please help us regarding.

RE: SHT20 twi scanner device not found

awneil — Thu, 18 Mar 2021 18:07:34 GMT

So what did the scope show you?

Post a trace ...

Compare scope traces for the working and non-working versions.

[quote userid="93591" url="~/f/nordic-q-a/72969/sht20-twi-scanner-device-not-found/300720#300720"]Is there any initialization needed for this particular sensor?[/quote]

Specific requirements of the Sensor will be detailed in its datasheet.

RE: SHT20 twi scanner device not found

DD_ — Thu, 18 Mar 2021 14:32:55 GMT

Hi Awneil,

Yes We used 3.3V in arduino. I found no problem there. I2C line working properly after flashing code I checked voltage levels and in oscilloscope also. But we found same issue. Is there any initialization needed for this particular sensor? Please help us regarding.

Regards,
SmartX

RE: SHT20 twi scanner device not found

awneil — Thu, 18 Mar 2021 14:25:55 GMT

nRF52832 is a 3V device - 4.7k may be a bit high for a 3V bus ?

Did you use a 3V Arduino?

What you really need to do is to look at the I2C lines with an oscilloscope (or analyser) - then you can see exactly what's happening.

See: https://www.avrfreaks.net/comment/3074021#comment-3074021
