Send data using GPIO UART from mobile phone

RE: Send data using GPIO UART from mobile phone

Jared — Mon, 10 May 2021 09:20:51 GMT

The amount of concurrent connections that is supported depends on the used Softdevice. S140 which is commonly used with nRF52840 supports up to 20 concurrent connections.

RE: Send data using GPIO UART from mobile phone

shyam9092 — Mon, 10 May 2021 05:21:45 GMT

Hello Jared,

How many mobile devices using nRF connect can be concurrently connected to a single nRF52840 DK loaded with ble_app_uart example?

RE: Send data using GPIO UART from mobile phone

Jared — Tue, 20 Apr 2021 08:02:55 GMT

Hi,

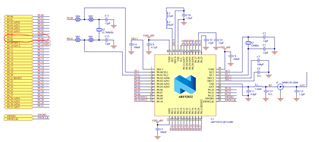

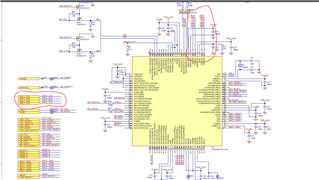

Yes, the nRF sends the data over UART to the interface chip that is on the DK, which again sends it over USB to whatever that is connected to the USB peripheral on the Development kit.

[quote user="shyam9092"] I want to send data to another micro-controller by using jumper wires connected to GPIO pins. How can I do that?[/quote]

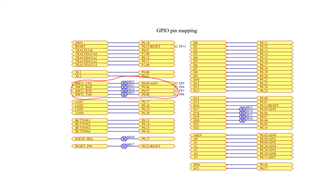

Just change the pins that are used by the UART module. The pins are set during the initialization of the UART module, by default they use the pins P0.08 and P0.07 that are connected to the interface chip:

static void uart_init(void)
{
    uint32_t                     err_code;
    app_uart_comm_params_t const comm_params =
    {
        .rx_pin_no    = RX_PIN_NUMBER,
        .tx_pin_no    = TX_PIN_NUMBER,
        .rts_pin_no   = RTS_PIN_NUMBER,
        .cts_pin_no   = CTS_PIN_NUMBER,
        .flow_control = APP_UART_FLOW_CONTROL_DISABLED,
        .use_parity   = false,
#if defined (UART_PRESENT)
        .baud_rate    = NRF_UART_BAUDRATE_115200
#else
        .baud_rate    = NRF_UARTE_BAUDRATE_115200
#endif
    };

    APP_UART_FIFO_INIT(&comm_params,
                       UART_RX_BUF_SIZE,
                       UART_TX_BUF_SIZE,
                       uart_event_handle,
                       APP_IRQ_PRIORITY_LOWEST,
                       err_code);
    APP_ERROR_CHECK(err_code);
}

regards

Jared

RE: Send data using GPIO UART from mobile phone

shyam9092 — Tue, 20 Apr 2021 03:13:11 GMT

Hello Jared,

Please correct me if I'm wrong. I have not gone through the code thoroughly, but based on cursory readings, ble_app_uart emulates a serial port and data is send over through that serial port (i.e. using USB). I want to send data to another micro-controller by using jumper wires connected to GPIO pins. How can I do that?

RE: Send data using GPIO UART from mobile phone

Jared — Mon, 19 Apr 2021 13:09:47 GMT

Hi,

We already have an example in the SDK that does this, it's called ble_app_uart. You can find the documentation for the example here.

regards

Jared
