strange power profile from power-on vs. debugger

RE: strange power profile from power-on vs. debugger

Hung Bui — Wed, 12 May 2021 07:41:50 GMT

Hi Allen,

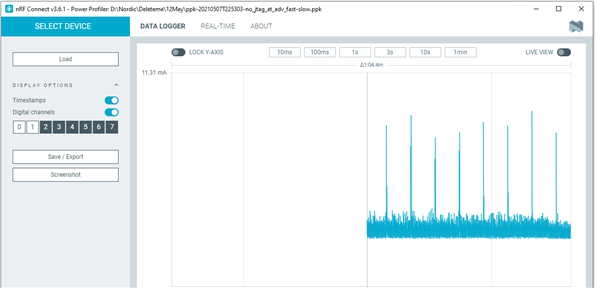

Im not sure I received the full trace but this is the no_jtag trace in my computer:

It doesn't look right to me. The constant high frequency at 3mA is not normal. Could you try measuring something very simple like the RTC example or the ble_app_pwr_profiling ? We need to see the base line sleep current of 3-4uA.

RE: strange power profile from power-on vs. debugger

Allen — Tue, 11 May 2021 20:43:45 GMT

devzone.nordicsemi.com/.../ppk_2D00_20210507T225303_2D00_no_5F00_jtag_5F00_at_5F00_adv_5F00_fast_2D00_slow.ppk.zip devzone.nordicsemi.com/.../ppk_2D00_20210507T225132_2D00_dbg_5F00_then_5F00_disconnect.ppk.zip

RE: strange power profile from power-on vs. debugger

Allen — Tue, 11 May 2021 20:42:02 GMT

Hello H,

The concern is not the current draw when the debugger is attached. All the plots provided are the the debugger "detached". The only difference is that in the first plot, the program was started using the debugger. The second graph, is a normal power-on startup. Because of the noise, the power is higher in the power-on scenario.

RE: strange power profile from power-on vs. debugger

Hung Bui — Tue, 11 May 2021 09:25:20 GMT

Hi Allen,

Could you send us the trace ? Preferably with some BLE activity. You can test using the ble_app_pwr_profiling.
When you connect the debugger (and you actually run the debugger) the HFCLK will be kept running and it might explain why you see higher current. And the CPU wouldn't enter sleep mode as it should.
The base current when sleeping (System ON CPU Idle) should be around 2-3 uA (not mA).

RE: strange power profile from power-on vs. debugger

Allen — Tue, 11 May 2021 04:09:09 GMT

Hello,

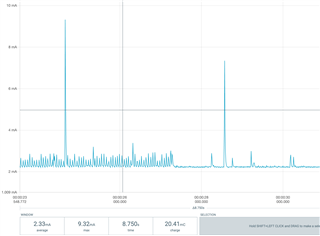

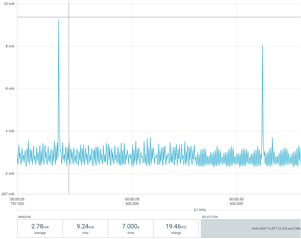

My computer is an iMac with an Intel i7. And the PPK is connected via a hub. See the images below. The base current is 1.3mA. I am pretty sure sleep is working.

Is there any place in the processor startup code that differs when run with the debugger? I am not sure what to look for.

RE: strange power profile from power-on vs. debugger

Hung Bui — Mon, 10 May 2021 12:39:02 GMT

Hi Allen,
Could you export the trace and send us ?
We experienced that the PPK2 has some incompatible issue with AMD Ryzen mainboard/CPU. And found that if you connect the PPK2 to a USB hub it can give more stable result.

I would suggest to test with very simple application, for example just sleep and wake up to toggle GPIO with a RTC timer. So that we make sure we can get to the base sleep current.
