<?xml-stylesheet type="text/xsl" href="https://devzone.nordicsemi.com/cfs-file/__key/system/syndication/rss.xsl" media="screen"?><rss version="2.0" xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:slash="http://purl.org/rss/1.0/modules/slash/" xmlns:wfw="http://wellformedweb.org/CommentAPI/" xmlns:atom="http://www.w3.org/2005/Atom"><channel><title>Layout of Bluetooth antenna &amp;amp; Tunning Circuit</title><link>https://devzone.nordicsemi.com/f/nordic-q-a/78639/layout-of-bluetooth-antenna-tunning-circuit</link><description>Hello,

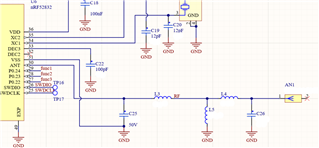

 my question concerns the layout of a bluetooth antenna &amp;amp; tuning circuitry for an nRF52832. Specifically, about two separate concerns:
 1) Due to the shape of the PCB, the antenna is intended to be placed on an extruding part of the board,</description><dc:language>en-US</dc:language><generator>Telligent Community 13</generator><lastBuildDate>Mon, 16 Aug 2021 13:20:29 GMT</lastBuildDate><atom:link rel="self" type="application/rss+xml" href="https://devzone.nordicsemi.com/f/nordic-q-a/78639/layout-of-bluetooth-antenna-tunning-circuit" /><item><title>RE: Layout of Bluetooth antenna &amp; Tunning Circuit</title><link>https://devzone.nordicsemi.com/thread/325142?ContentTypeID=1</link><pubDate>Mon, 16 Aug 2021 13:20:29 GMT</pubDate><guid isPermaLink="false">137ad170-7792-4731-bb38-c0d22fbe4515:d589d418-c619-440e-922a-c3996111fadc</guid><dc:creator>Kaja</dc:creator><description>&lt;p&gt;Hi,&lt;br /&gt;&lt;br /&gt;the radio matching network should be placed close to the radio and the antenna matching network should be placed close to the antenna:&lt;br /&gt;&lt;img alt=" " src="https://devzone.nordicsemi.com/resized-image/__size/320x240/__key/communityserver-discussions-components-files/4/3683.impedanceGe.png" /&gt;&lt;/p&gt;
&lt;p&gt;The transmission line between the two matching network should be a 50 Ohm coplanar wave guide:&amp;nbsp;&lt;br /&gt;&lt;img src="https://devzone.nordicsemi.com/resized-image/__size/320x240/__key/communityserver-discussions-components-files/4/pastedimage1629119862427v1.png" alt=" " /&gt;&lt;br /&gt;&lt;br /&gt;The length, L, does not matter in theory, but a very long RF path is not optimal, but 15-20 mm is not a problem.&lt;br /&gt;&lt;br /&gt;The reference design, is under &lt;a href="https://www.nordicsemi.com/Products/nRF52832/Download#infotabs"&gt;downloads &lt;/a&gt;on the product page; &lt;a href="https://www.nordicsemi.com/-/media/Software-and-other-downloads/Reference-Layouts/nRF52832QFAxRefLayoutv11.zip"&gt;QFN&lt;/a&gt;.&lt;br /&gt;&lt;br /&gt;&lt;br /&gt;&lt;/p&gt;
&lt;p&gt;We are happy to do HW review of your design, if you want it to be private, create a private ticket, with the topic HW review.&amp;nbsp;&lt;br /&gt;&lt;br /&gt;Best regards,&lt;br /&gt;Kaja&lt;/p&gt;&lt;div style="clear:both;"&gt;&lt;/div&gt;</description></item></channel></rss>
