BLE transmission data loss from 5 peripherals to 1 central device

RE: BLE transmission data loss from 5 peripherals to 1 central device

masterLee — Wed, 20 Oct 2021 12:24:45 GMT

Thanks!

One last question.

In theory, for one peripheral the LE data packet transmission time (@2Mbps) is 1.4msec. Let's say 2msec for convenience. So for five devices the Connection Interval should be minimum 10 msec.

In a previous post, you suggested me to set minimum and maximum interval to 20msec, and gap event length to 3. Would it be wrong to make the connection interval somewhere closer to 10 msec?

It is not a problem for me to set it to 20msec I just want to understand the reason you suggested 20 msec in case I think of something the wrong way

Thank you for your time!

RE: BLE transmission data loss from 5 peripherals to 1 central device

Kenneth — Wed, 20 Oct 2021 11:26:55 GMT

The connection event length extension will have no effect in this case, it will only adjust the amount of time that should be allocated locally, it will have no effect on the peer (phone).

Kenneth

RE: BLE transmission data loss from 5 peripherals to 1 central device

Kenneth — Wed, 20 Oct 2021 11:24:18 GMT

Nice illustration, your understanding is correct.

Kenneth

RE: BLE transmission data loss from 5 peripherals to 1 central device

masterLee — Wed, 20 Oct 2021 10:56:23 GMT

Also, How can I activate the Connection Event Length Extension?

RE: BLE transmission data loss from 5 peripherals to 1 central device

masterLee — Wed, 20 Oct 2021 08:31:15 GMT

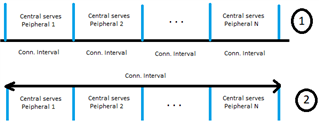

Ok, I think I got it. Also I think I figured out one more misconception of mine. I thought that in case of multiple peripherals the central serves only one device per connection interval and then the next peripheral on the next connection interval and so on. But from your explanation I understand that the central tries to serve all peripherals in one connection interval. I thought that graph 1 was correct while graph 2 is the correct one

RE: BLE transmission data loss from 5 peripherals to 1 central device

Kenneth — Wed, 20 Oct 2021 07:17:25 GMT

You are missing one important point, and that is that it take time to exchange data, let's assume ~3ms. This means that if you configure a 8ms connection interval, then the radio resources in the phone will be allocated already 3/8*100%=37.5% for that specific link. If you add 2more peripherals then you it's (3+3+3)/8*100%=112.5%, which does not compute, so it will start losing packet. Adding more devices (e.g. 5 in total) will make it even worse.

Kenneth

RE: BLE transmission data loss from 5 peripherals to 1 central device

masterLee — Tue, 19 Oct 2021 13:12:29 GMT

Just a quick notice. The connection interval I use is not 8 msec. It is 10msec (8 * 1.25msec).

[quote userid="2111" url="~/f/nordic-q-a/80780/ble-transmission-data-loss-from-5-peripherals-to-1-central-device/334827#334827"]A Bluetooth radio can only serve one peer at a time, typically the radio will need to acquire the radio for severval ms each time it want to communicate with a peer device. So if you try to configure 8ms there simply isn't time to handle them all.[/quote]

Please tell me if I understand correctly the following

1. A connection interval is the time between two connection events where the two peers can exchange data.

2. A connection interval of 10 msec corresponds to the communication of one peripheral and the central. You mean that this amount of time is not enough for the central to communicate with one peripheral and it should be >=20 msec.

3. A connection interval of 10 msec corresponds to one peripheral. So for 5 peripherals the central device must give 50 msec of its time to serve all five devices. Why do you say that the central cannot handle them all in 10msec since it is only for one device and not all of them?

4. The connection event length extension is the time added at the end of one Connection Interval before the next connection event of the peripheral taking place in the communication

5. How do I calculate the event length extension time and should I activate it somehow in firmware?

Thank you

RE: BLE transmission data loss from 5 peripherals to 1 central device

Kenneth — Tue, 19 Oct 2021 10:55:04 GMT

Hello,

A Bluetooth radio can only serve one peer at a time, typically the radio will need to acquire the radio for severval ms each time it want to communicate with a peer device. So if you try to configure 8ms there simply isn't time to handle them all. That is why you need to use a longer connection interval, and how much longer is difficult to say without detailed in-depth knowledge of the link layer of the OS in question and the number of links it must handle (and possible also other radio activity that it must handle (e.g. Wifi that use the same radio in many cases), I would expect this to be somewhere around 30ms in most cases. You are right that the max throughput will drop if you use 30ms compared to 8ms, but it it can't handle 8ms with multiple peers due to the above, then that is more of a theoritical question.

Kenneth

RE: BLE transmission data loss from 5 peripherals to 1 central device

masterLee — Tue, 19 Oct 2021 08:07:31 GMT

I think I have not understood the theory here. I thought that with tighter Connection Interval there is more time for the central to serve more devices in a connection event.

I really lost it with the "suggested intervals and windows" article

1. Why it is not possible to schedule five peripherals with 8 msec ? How have you calculated the 20msec?

2. Won't this connection interval (20msec) drop the throughput from each peripheral in comparison to 8msec?

Is there any guide like "suggested intervals and windows" that explains things a little more simple?

Thank you!

RE: BLE transmission data loss from 5 peripherals to 1 central device

Kenneth — Tue, 19 Oct 2021 07:12:05 GMT

It's not possible to schedule 5 peripheral devices with 8ms connection interval. I suggest to set minimum and maximum interval to 20ms, and gap event length to 3. You may also need to try 30ms

Kenneth

RE: BLE transmission data loss from 5 peripherals to 1 central device

masterLee — Mon, 18 Oct 2021 14:15:05 GMT

Hi Kenneth,

all peripheral devices have the same connection parameters.

#define APP_BLE_OBSERVER_PRIO           3

#define APP_ADV_INTERVAL               256

#define APP_ADV_DURATION                      0 //18000

#define MIN_CONN_INTERVAL                     MSEC_TO_UNITS(8, UNIT_1_25_MS)
#define MAX_CONN_INTERVAL              MSEC_TO_UNITS(11, UNIT_1_25_MS)
#define SLAVE_LATENCY                  0
#define CONN_SUP_TIMEOUT               MSEC_TO_UNITS(4000, UNIT_10_MS)

#define FIRST_CONN_PARAMS_UPDATE_DELAY APP_TIMER_TICKS(5000)
#define NEXT_CONN_PARAMS_UPDATE_DELAY   APP_TIMER_TICKS(30000)
#define MAX_CONN_PARAMS_UPDATE_COUNT    3

-------------sdk_config.h-----------------------------

#ifndef NRF_SDH_BLE_GAP_DATA_LENGTH
#define NRF_SDH_BLE_GAP_DATA_LENGTH 251
#endif

// <o> NRF_SDH_BLE_PERIPHERAL_LINK_COUNT - Maximum number of peripheral links.
#ifndef NRF_SDH_BLE_PERIPHERAL_LINK_COUNT
#define NRF_SDH_BLE_PERIPHERAL_LINK_COUNT 1
#endif

// <o> NRF_SDH_BLE_CENTRAL_LINK_COUNT - Maximum number of central links.
#ifndef NRF_SDH_BLE_CENTRAL_LINK_COUNT
#define NRF_SDH_BLE_CENTRAL_LINK_COUNT 0
#endif

// <o> NRF_SDH_BLE_TOTAL_LINK_COUNT - Total link count.
// <i> Maximum number of total concurrent connections using the default configuration.

#ifndef NRF_SDH_BLE_TOTAL_LINK_COUNT
#define NRF_SDH_BLE_TOTAL_LINK_COUNT 1
#endif

// <o> NRF_SDH_BLE_GAP_EVENT_LENGTH - GAP event length.
// <i> The time set aside for this connection on every connection interval in 1.25 ms units.

#ifndef NRF_SDH_BLE_GAP_EVENT_LENGTH
#define NRF_SDH_BLE_GAP_EVENT_LENGTH 18
#endif

// <o> NRF_SDH_BLE_GATT_MAX_MTU_SIZE - Static maximum MTU size.
#ifndef NRF_SDH_BLE_GATT_MAX_MTU_SIZE
#define NRF_SDH_BLE_GATT_MAX_MTU_SIZE 247
#endif

Thank you for your help!

RE: BLE transmission data loss from 5 peripherals to 1 central device

Kenneth — Mon, 18 Oct 2021 12:25:29 GMT

Can you provide the connection parameters used for the various connections and also the scanning parameters while scanning/establish connection?

Also read this if you haven't:
https://infocenter.nordicsemi.com/topic/sds_s140/SDS/s1xx/multilink_scheduling/multilink_scheduling.html

In specific check out:
https://infocenter.nordicsemi.com/topic/sds_s140/SDS/s1xx/multilink_scheduling/suggested_intervals_windows_s132.html

Kenneth
