<?xml-stylesheet type="text/xsl" href="https://devzone.nordicsemi.com/cfs-file/__key/system/syndication/rss.xsl" media="screen"?><rss version="2.0" xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:slash="http://purl.org/rss/1.0/modules/slash/" xmlns:wfw="http://wellformedweb.org/CommentAPI/" xmlns:atom="http://www.w3.org/2005/Atom"><channel><title>nRF9160 DK PCB layers stack manager</title><link>https://devzone.nordicsemi.com/f/nordic-q-a/82966/nrf9160-dk-pcb-layers-stack-manager</link><description>Hi,
 How are you?
 Could help someone with a ask?

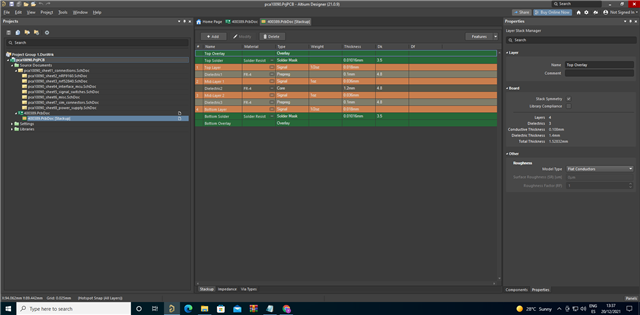

 I am designing a plate and I am using like guia the nRF9160 DK. The Layer Stack Manager has configured the Top Layer in Weight like 1/2oz, in my case I am using 1oz. Will that be a problem at the moment</description><dc:language>en-US</dc:language><generator>Telligent Community 13</generator><lastBuildDate>Tue, 21 Dec 2021 11:42:48 GMT</lastBuildDate><atom:link rel="self" type="application/rss+xml" href="https://devzone.nordicsemi.com/f/nordic-q-a/82966/nrf9160-dk-pcb-layers-stack-manager" /><item><title>RE: nRF9160 DK PCB layers stack manager</title><link>https://devzone.nordicsemi.com/thread/344576?ContentTypeID=1</link><pubDate>Tue, 21 Dec 2021 11:42:48 GMT</pubDate><guid isPermaLink="false">137ad170-7792-4731-bb38-c0d22fbe4515:a90c791b-7e9a-4057-9316-b31d82816294</guid><dc:creator>ketiljo</dc:creator><description>&lt;p&gt;If you have transmission lines on the PCB, you can re-calculate the width with your parameters. You can use for instance Appcad&amp;nbsp;&lt;a href="http://www.hp.woodshot.com/"&gt;http://www.hp.woodshot.com/&lt;/a&gt;&amp;nbsp;Select &amp;quot;coplanar waveguide&amp;quot; and insert your measurements. Remember to set the PCB material to RF4.&lt;/p&gt;&lt;div style="clear:both;"&gt;&lt;/div&gt;</description></item></channel></rss>
