Zephyr SPI MISO returns 0 for 52840dk

RE: Zephyr SPI MISO returns 0 for 52840dk

DougMortime — Wed, 02 Feb 2022 12:46:42 GMT

Hi Simonr,

Its late here but fortunately I saw your message to comment. You are indeed correct, it is the SPI device, I unluckily have two damaged adxl345s which is why it wasn’t working!!

Thanks for confirming the code, I tested it on a different board and it worked so I guess I’ll be ordering new chips tomorrow morning.

Regards

RE: Zephyr SPI MISO returns 0 for 52840dk

Simonr — Wed, 02 Feb 2022 11:41:21 GMT

Agreed, sorry I didn't read into the spi_test_send() function closely enough. You should indeed see something return on the MISO pin. Can you double check that your SPI device is connected to the correct pins and that it is correctly powered, and so on. I can't see a reason in your code that you shouldn't get any data in return, so my initial thought would be that the SPI device is not working as expected.

Best regards,

Simon

RE: Zephyr SPI MISO returns 0 for 52840dk

DougMortime — Tue, 01 Feb 2022 13:55:26 GMT

Hello,

Below is the register in question.

Regards

RE: Zephyr SPI MISO returns 0 for 52840dk

DougMortime — Tue, 01 Feb 2022 13:44:30 GMT

Hello Simonr,

The write_test function uses spi_test_send() which calls spi_transceive(spi_dev, &spi_cfg, &tx, &rx).

If I write 0xC0 followed by dummy data shouldn't that mean that I've accessed the register 0x00 for reading? 0x00 | 0x80 | 0x40 (0x80 for read and 0x40 for multibyte mode).

Isn't spi_transceive mean't to send values and receive values back simultaneously from the slave device? So if I write as above I expect there to be a returned value on the MISO line (0xE5 is the value, deviceid of the adxl345).

Regards

RE: Zephyr SPI MISO returns 0 for 52840dk

Simonr — Tue, 01 Feb 2022 12:59:05 GMT

I'm not sure what you are expecting to see from the MISO when you're not trying to read anything from the SPI device. Are you expecting something in return to confirm the writes or what? I think you should see activity on the MISO pin if you do a "read test" function as well.

Best regards,

Simon

RE: Zephyr SPI MISO returns 0 for 52840dk

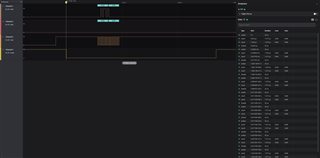

DougMortime — Mon, 31 Jan 2022 17:03:38 GMT

Minor correction, dummy value is 0x00, not 0xff. No changes to the outcome.
