CRC on the nrf52840

RE: CRC on the nrf52840

kongstrupp — Mon, 25 Apr 2022 08:06:04 GMT

Thanks a lot Edvin!!!

This is great, When doing the crc32_compute I got 3 ticks which is less than 1 µs, do you think this is legit? It seems really really fast.

If its legit it means that the algorithm is really fast in itself, but then it becomes a question if it could be used on received packets in the radio an how long that takes.

Just posting the code that I used:

uint32_t crc32_compute(uint8_t const * p_data, uint32_t size, uint32_t const * p_crc)

{

uint32_t crc;

crc = (p_crc == NULL) ? 0xFFFFFFFF : ~(*p_crc);

for (uint32_t i = 0; i < size; i++)

{

crc = crc ^ p_data[i];

for (uint32_t j = 8; j > 0; j--)

{

crc = (crc >> 1) ^ (0xEDB88320 & -(crc & 1));

}

return ~crc;

}

void test_timer(void)

{

uint32_t sample_1;

uint32_t sample_2;

// Configure and start timer:

NRF_TIMER3->BITMODE = TIMER_BITMODE_BITMODE_32Bit << TIMER_BITMODE_BITMODE_Pos;

NRF_TIMER3->MODE = TIMER_MODE_MODE_Timer << TIMER_MODE_MODE_Pos;

NRF_TIMER3->PRESCALER = 0;

NRF_TIMER3->TASKS_START = 1;

uint8_t packetCRC[43];

for (uint8_t i = 0; i < sizeof(packetCRC) - 1; i++) {

packetCRC[i + 1] = 0xCC;

}

NRF_TIMER3->TASKS_CAPTURE[0] = 1; // Take first timestamp

crc32_compute(packetCRC,sizeof(packetCRC),NULL); // Do something that takes time

NRF_TIMER3->TASKS_CAPTURE[1] = 1; // Take second timestamp

sample_1 = NRF_TIMER3->CC[0]; // Read out first timestamp

sample_2 = NRF_TIMER3->CC[1]; // Read out second timestamp

uint32_t diff_time = sample_2 - sample_1; // Calculate diff

printk("test_timer used %d ticks.", diff_time); // Note that clock ticks at 16 000 000 Hz

}

void main(void)

{

test_timer();

}

RE: CRC on the nrf52840

Edvin — Fri, 22 Apr 2022 14:02:25 GMT

I see that you created a new ticket, where a colleague of mine answered one way to measure the time. However, this will work for ms (seconds/1000), but you probably want a higher resolution.

I am not sure whether there are any libraries in Zephyr that you can use to measure µs, but you can use the TIMER peripheral.

Try running this function from the hello world sample:

void test_timer(void)
{
    uint32_t sample_1;
    uint32_t sample_2;
    // Configure and start timer:
    NRF_TIMER3->BITMODE     = TIMER_BITMODE_BITMODE_32Bit << TIMER_BITMODE_BITMODE_Pos;
    NRF_TIMER3->MODE        = TIMER_MODE_MODE_Timer << TIMER_MODE_MODE_Pos;
    NRF_TIMER3->PRESCALER   = 0;
    NRF_TIMER3->TASKS_START = 1;

    NRF_TIMER3->TASKS_CAPTURE[0] = 1;   // Take first timestamp
    k_sleep(K_MSEC(1000));              // Do something that takes time
    NRF_TIMER3->TASKS_CAPTURE[1] = 1;   // Take second timestamp

    sample_1 = NRF_TIMER3->CC[0];       // Read out first timestamp
    sample_2 = NRF_TIMER3->CC[1];       // Read out second timestamp

    uint32_t diff_time = sample_2 - sample_1;   // Calculate diff

    LOG_INF("test_timer used %d ticks.", diff_time);    // Note that clock ticks at 16 000 000 Hz
}

Just copy this function and call it from main.c.

As I wrote in the last comment in this snippet, note that the TIMER is running at 16MHz, so 1 second = 16000000 ticks, which means that 1µs would be 16 ticks. This is the highest resolution you can get with a timer onboard the nRF52840.

BR,

Edvin

RE: CRC on the nrf52840

kongstrupp — Fri, 22 Apr 2022 12:03:34 GMT

No I think the libraries does not support it. I am currently looking into a soft way of doing it, I need some kind of function that would help me do what is described above. Yes that is one way of doing it, I will have to look into it more

RE: CRC on the nrf52840

Edvin — Fri, 22 Apr 2022 11:57:31 GMT

This can be one way of doing it.

[quote user="kongstrupp"]

this could to be a way of doing it, but it does not seem to work in nrf connect extension in VScode.

What do you suggest?

[/quote]

Why does it not work? Does it not compile? Is it not able to calculate the time?

I am not that familiar with the time libraries in NCS. Another simple way to test this is to toggle a pin before and after the calculations (crc32_compute()), and then monitor this using a logic analyzer or an oscilloscope.

RE: CRC on the nrf52840

kongstrupp — Fri, 22 Apr 2022 11:39:20 GMT

Yes there is a CRC after each of the green sections, Yes, the total length of the downlink is 52 bytes. Which means the CRC will be calculated on the 43 bytes of the downlink since preamble and syncword does not count (5 bytes) and i assume that you dont count CRC on CRC. So 52-9 = 43

Here you can see a picture of an uplink (the green slots in the picture above) and after that a D_GUARD which is 8 us

How do you test this in a sufficent way? I assume that you would just use the crc32_compute() function. So maybe generate a hello_world program and do something like this:

#include <stdio.h>

#include <time.h> // for time()

#include <unistd.h> // for sleep()

// main function to find the execution time of a C program

int main()

{

time_t begin = time(NULL);

crc32_compute() // some bytes to do CRC on

sleep(3);

time_t end = time(NULL);

// calculate elapsed time by finding difference (end - begin)

printf("The elapsed time is %d seconds", (end - begin));

return 0;

}

this could to be a way of doing it, but it does not seem to work in nrf connect extension in VScode.

What do you suggest?

Best regards

RE: CRC on the nrf52840

Edvin — Fri, 22 Apr 2022 10:45:09 GMT

Is there a CRC after each of the green sections (before the red sections)? Or is it a CRC after the entire thing in the picture? And is the CRC dependent on the downlink, or can you generate it before the downlink?

[quote user="kongstrupp"]This guard interval is 8 us, which means that the master (considering this software solution) needs to be able to calculate a 4 byte CRC within LESS than 8 us[/quote]

I did not forget to answer this, but I don't know how long it takes. You would need to test this. I guess it depends on what else the nRF is doing at the time, and even if it is doing this as the highest priority I don't know how long this function call will take. It probably depends on the length of what you need to generate the CRC of. Before you ask, I don't know how large a packet you could generate a 4byte CRC below 8µs is either. You need to test.

RE: CRC on the nrf52840

kongstrupp — Fri, 22 Apr 2022 10:11:21 GMT

I see, I will try to summarize the timing scheme within the IO-Link Wireless protocol as much as I can.

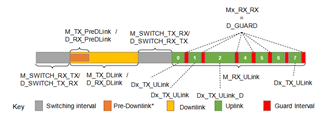

Down below a picture of a sub-cycle between master and slave is shown. This is a scheme that show a complete communication exchange between master and slave.

As you can see the yellow part is the downlink (master to slave), and the green parts are the uplinks (slave to master). So a downlink is sent from the master and received by all slaves, and then, the uplinks are returned in a special order to the master.

At the end of each uplink and downlink the IO-Link Wireless protocol requires a 4 byte CRC. Note that between each green slot, there is a red interval to avoid collision on air (guard interval). This guard interval is 8 us, which means that the master (considering this software solution) needs to be able to calculate a 4 byte CRC within LESS than 8 us

So, we are very interested in knowing if the CPU is able to do this. Can it calculate a 4 byte CRC this fast? Is there a way to measure the processors execution time? I looked online and it seems to be a bit more complicated that I thought. Please let me know if this information that I have just provided is not sufficient for you to be able to determine weather or not this is possible.

Thanks a lot Edvin for you inputs really means a grate deal for us

RE: CRC on the nrf52840

Edvin — Thu, 21 Apr 2022 13:54:10 GMT

I was thinking about writing something about timing in my reply yesterday, but I skipped it 🙂

I don't know anything about this protocol that you want to use, other than that it has a 4 byte CRC. But what I know from BLE is that in this case, a SW based CRC would probably not work, since the timing requirements are very strict, and the peripheral/server/slave needs to modify the reply packet based on the incoming packet, and then generate a CRC in a very short time. So whether it will work or not probably depends on timing. I guess you just need to test and see.

Best regards,

Edvin

RE: CRC on the nrf52840

kongstrupp — Thu, 21 Apr 2022 13:41:18 GMT

Well we really need to know how this shortcut of 4 bytes CRC would do in terms of timing and how effective it would be, since you said that it would be possible to add this extra CRC on received packets in the radio on the nrf52840.

RE: CRC on the nrf52840

Edvin — Thu, 21 Apr 2022 13:18:34 GMT

Actually, I don't think it is as effective as you may assume. I too need to look up things to be able to answer questions. Was there something in particular you wanted to ask?

BR,

Edvin

RE: CRC on the nrf52840

kongstrupp — Thu, 21 Apr 2022 12:15:45 GMT

Hello Edvin, Can we have a live meeting with you on Zoom? That would mean a great deal for us if you could, This is pretty hard to discuss in a forum like this

Thanks a lot

Best regards!

RE: CRC on the nrf52840

Edvin — Tue, 19 Apr 2022 07:18:12 GMT

Hello,

I see. So just to clarify, you can not use the Bluetooth stack (Softdevice) for this. But if you were to implement your own radio protocol, you can implement a 4 byte CRC and attach it to the end of your payload. If you do this, please remember to disable the radio's built in CRC, by setting the NRF_RADIO->CRCCNF register to 0x00000000, which will exclude the HW CRC from the packet.

[quote user="kongstrupp"]or maybe, the software CRC can complement the hardware CRC?[/quote]

That is more complicated. I wouldn't recommend that.

Best regards,

Edvin

RE: CRC on the nrf52840

kongstrupp — Wed, 13 Apr 2022 12:40:12 GMT

Okay I think there is some confusion but I will try to clarify a bit.

So, IO-Link Wireless, uses a 4 byte CRC for each packet, it sends packets back and forth between slave and master and they both use a 4 byte CRC on each packet, when looking at the radio peripherals in the specification each received packet and transmitted packet uses the hardware module CRC which only support 3 bytes, consider this package down below, this is what is called a "configuration downlink" in the IO-Link Wireless specification, it is a communication exchange from a master to a slave, it is used for configuration purposes.

Now the big question, can you configure the radio it in such a way that it can still support 4 bytes CRC via software? So hypothetically you implement an IO-Link Wireless stack on the nrf52840 board and use a 4 byte CRC but it works via software and NOT via the hardware module, or maybe, the software CRC can complement the hardware CRC? so that is becomes 4 byte CRC. Do you think that that is possible? and if so, how can you do that?

Best regards

RE: CRC on the nrf52840

Edvin — Tue, 12 Apr 2022 20:58:55 GMT

That depends on how the IO-Link Wireless does this. To be fair, I don't think that everyone using this protocol has written their own Bluetooth stacks (but they could of course be using some sort of open source stack. I don't know). If they use 4 bytes instead of 3, they will also be breaking the specification, so they will not be able to certify it with Bluetooth SIG.

Are you sure that the 4 byte CRC is not just added to the Bluetooth payload packet (and then the standard 3 byte CRC follows after that)? I am not familiar with IO link (in fact I never heard of it before now), and a quick google search didn't really make me a lot smarter on that topic. Either way, if your question is whether it is possible to increase the CRC from 3 to 4 bytes inside our Bluetooth stack, then I am afraid the answer is no.

But if that is the case, I doubt that there exists another wireless protocol that is an exact copy of the Bluetooth Low Energy standard, with the only difference being one extra byte of CRC, so in that case, I guess it wouldn't work anyway.

It may be that I don't understand this fully, but perhaps you can ask the developers/owners of IO-Link whether that is actually the case (that they are equivalent to BLE apart from the amount of CRC bytes)

Best regards,

Edvin

RE: CRC on the nrf52840

kongstrupp — Tue, 12 Apr 2022 14:35:44 GMT

Okay fair enough, What we are trying to figure out is whether the nrf52840 will be able to support an industrial communication protocol called IO-Link Wireless. This protocol builds upon Bluetooth Low Energy version 4.2, but it requires 4 bytes CRC instead of 3. With that information, do you conclude that the nrf52840 board will not be able to support IO-Link Wireless since it has this specification?

RE: CRC on the nrf52840

Edvin — Tue, 12 Apr 2022 13:34:11 GMT

Depends on what you intend to use it for. Yes. The nRF52840 can generate a 4 byte CRC. No, it can not use this 4 byte CRC instead of the 3 byte CRC in the end of Bluetooth Low Energy packets, because the Bluetooth stack uses a 3 byte CRC. But I suspect you are not using Bluetooth, since you are using a 4 byte CRC?

Best regards,

Edvin

RE: CRC on the nrf52840

kongstrupp — Mon, 11 Apr 2022 14:46:30 GMT

So to clarify what you are suggesting, the nrf52840 is capable of a 4-byte crc? Do you just need to configure it in such a way?

Am I understanding you correctly?

RE: CRC on the nrf52840

Edvin — Mon, 11 Apr 2022 13:03:18 GMT

Hello,

The 3 byte CRC is first and foremost the standard of Bluetooth Low Energy, and not specific for the nRF52840.

For a 4 byte CRC, check out the function crc32_compute() found in nRF5 SDK 17.1.0\components\libraries\crc32\crc32.c

If you are using a different nRF5 SDK version, you will probably find something similar. If you are using NCS (and not the nRF5 SDK), there is probably something similar to that as well. In that case, please let me know if you can't find it.

Best regards,

Edvin
