Connecting hardware to the Thingy91

RE: Connecting hardware to the Thingy91

Kazi Afroza Sultana — Thu, 05 May 2022 12:09:07 GMT

Hello,

There is a devzone post where you can fin details description of connecting Thingy:91 to external sensor though UART Thingy91 UART External communication - Nordic Q&A - Nordic DevZone - Nordic DevZone (nordicsemi.com).

Thanks.

Best Regards,

Kazi Afroza Sultana

RE: Connecting hardware to the Thingy91

JohnStaveley — Fri, 29 Apr 2022 12:20:51 GMT

I installed the latest version when I received the device according to the get started guide. I don't see how this is related to my query about hardware

RE: Connecting hardware to the Thingy91

Kazi Afroza Sultana — Fri, 29 Apr 2022 11:05:29 GMT

Hello ,

Here you can see what does the version mean Nordic Thingy:91 - Downloads - nordicsemi.com.

Thanks.

Best Regards,

Kazi Afroza Sultana

RE: Connecting hardware to the Thingy91

JohnStaveley — Wed, 27 Apr 2022 06:48:02 GMT

<sigh> No it doesn't. The board markings are not shown at all on that page. I am using the Thingy91 with the orange cover. What do P1, P2, 1D, 2D, P6 etc relate to?

RE: Connecting hardware to the Thingy91

Kazi Afroza Sultana — Tue, 26 Apr 2022 21:44:27 GMT

Hello,

Which version of thingy:91 do you use?

Here is the pin mapping documented https://infocenter.nordicsemi.com/topic/ug_thingy91/UG/thingy91/hw_description/pin_maps.html?cp=14_0_2_4.

Thanks.

Best Regards,

Kazi Afroza Sultana

RE: Connecting hardware to the Thingy91

JohnStaveley — Sat, 23 Apr 2022 07:31:47 GMT

In the pin map it says there are pins which are externally available. However given the pin map and the board don't use the same numbering system, this doesn't really help me ,does it? Where is the mapping documented?

RE: Connecting hardware to the Thingy91

Kazi Afroza Sultana — Fri, 22 Apr 2022 18:50:38 GMT

Hello,

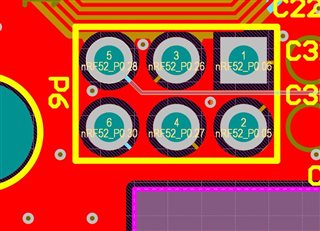

The pins externally available are labeled in the pin map you linked. You can see some pins are labeled as ''Digital GPIO externally available'' which you can use to connect extra connectors on the thingy 91. P7 is connected to some spare MOSFETs on the thingy 91, while P6 are the externally available GPIO pins. Here you can see which GPIO pins of the nRF52840 is connected to P6.

Thanks.

Best Regards,

Kazi Afroza Sultana

RE: Connecting hardware to the Thingy91

JohnStaveley — Fri, 22 Apr 2022 09:27:05 GMT

Thanks, so I see lots of comments about test points, great. What about the pins which I could potentially connect to. Where are these documented?

RE: Connecting hardware to the Thingy91

asprenger — Fri, 22 Apr 2022 09:05:22 GMT

We had a similar issue. May this helps:

devzone.nordicsemi.com/.../spi-and-i2c-pins-on-the-thingy-91
