Unable to measure the current of the nrf5340 using the power profile kit.

RE: Unable to measure the current of the nrf5340 using the power profile kit.

Cong Ma — Wed, 27 Jul 2022 10:07:08 GMT

Thanks, this has helped me a lot, I have managed to cut off the SB40 and successfully measured the power, but now a new problem has arisen. I need help.(+) I cut the SB40 bridge, then the Bluetooth throughput of the NRF5340 drops dramatically. - Nordic Q&A - Nordic DevZone - Nordic DevZone (nordicsemi.com)

Many thanks

Cong

RE: Unable to measure the current of the nrf5340 using the power profile kit.

Sigurd Hellesvik — Tue, 26 Jul 2022 13:31:38 GMT

Cutting the SB40 is what you need to do.

Schematics found under nRF5340-> Downloads -> Hardware files.

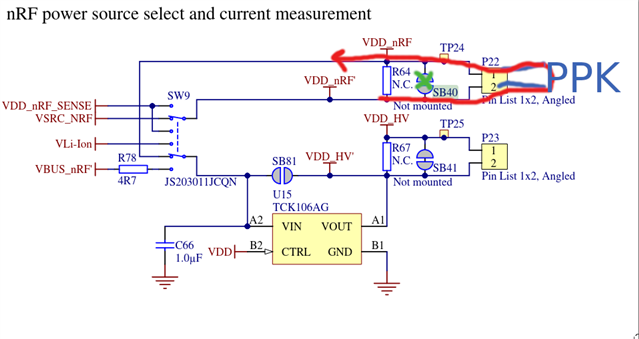

If you do not cut SB40, the current will not go through the PPK, as such:

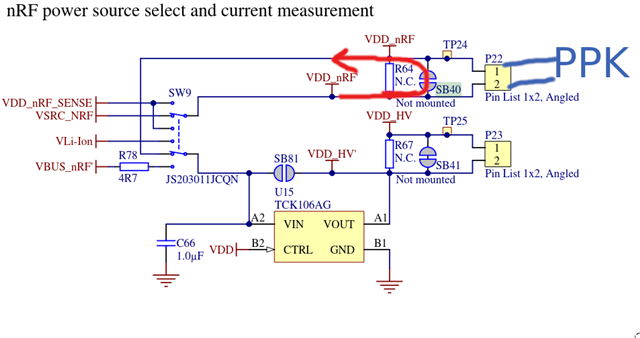

If you cut SB40, the current will go through the PPK, as such:

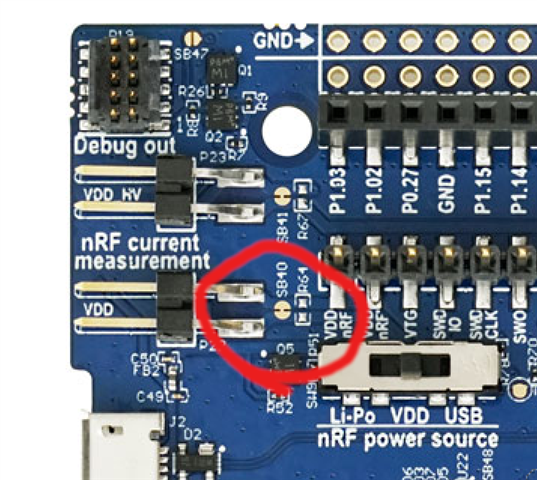

To cut the SB40, you need to first find the bridge on the DK:

Then cut it using a sharp objecy, so that you can no longer see the small copper thread connecting the half circles:

Does that make sense?

Regards,
Sigurd Hellesvik

RE: Unable to measure the current of the nrf5340 using the power profile kit.

Cong Ma — Mon, 25 Jul 2022 23:15:11 GMT

I think it is the SB40 that is causing the 0 current on the PPK, but I don't know what "cut the PCB track shorting solder bridge SB40" is supposed to do. How should I proceed in the lab?

RE: Unable to measure the current of the nrf5340 using the power profile kit.

Cong Ma — Mon, 25 Jul 2022 10:08:48 GMT

I have read Prepare the NRF5340DK and for preparing the development board I cannot understand how to do "cut the PCB track shorting solder bridge SB40" ?......I don't know how to operate.

Many thanks

Cong

RE: Unable to measure the current of the nrf5340 using the power profile kit.

Cong Ma — Fri, 22 Jul 2022 14:04:41 GMT

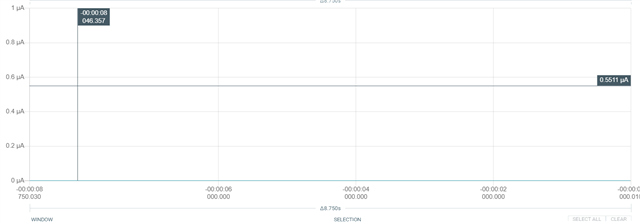

Hi, I watched the tutorial on YouTube (46) Power Profiler Kit and nRF Connect for Desktop - Getting started - YouTube and it doesn't look like it needs to be done this way. I don't understand why it doesn't work on my board.

Many thanks

Cong

RE: Unable to measure the current of the nrf5340 using the power profile kit.

Cong Ma — Fri, 22 Jul 2022 12:09:22 GMT

Hi , what I use is the nRF6707 to measure current. Now I am watching Prepare the NRF5340DK.

Many Thanks

Cong

RE: Unable to measure the current of the nrf5340 using the power profile kit.

Sigurd Hellesvik — Fri, 22 Jul 2022 11:57:17 GMT

Hi Cong,

Have a look at Get your Power Profiler Kit II up and running.

Did you remember to Prepare the NRF5340DK?

Regards,
Sigurd Hellesvik
