Trying to see DongleBLE in linux with NCS

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Tue, 07 Feb 2023 09:27:26 GMT

VBUS is required for the USBD peripheral to function properly. Please check if you have 5V on this pin.

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Tue, 07 Feb 2023 08:55:04 GMT

This work well with the nrf52840 then

I saw this thing :

Maybe there is a difference for Vbus beetween bt840 xe and the nrf52840.

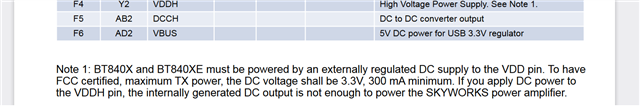

5v is needed for vbus, what do you think about this ? maybe i need to do another board with this change ?

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Tue, 07 Feb 2023 08:49:55 GMT

[quote user="Piwy"]

Yes it's ohmed and the board is not connected with a cable but directly.

My project work well with the same board with nrf52840 instead of the bt840xe.

the hex file :

,2210.zephyr.hex

[/quote]

I tested this, and the USB enumerates as expected on a nRF52840-DK here:

[1729349.003717] usb 1-9: New USB device found, idVendor=1915, idProduct=c00a, bcdDevice= 3.00
[1729349.003721] usb 1-9: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[1729349.003722] usb 1-9: Product: nRF52 Connectivity
[1729349.003724] usb 1-9: Manufacturer: Nordic Semiconductor
[1729349.003725] usb 1-9: SerialNumber: FE4BD24741C65D87
[1729349.009528] cdc_acm 1-9:1.0: ttyACM0: USB ACM device
[1729351.044419] usb 1-4: reset high-speed USB device number 4 using xhci_hcd

Opening the ttyACM interface shows this log:

[00:00:00.005,218] <dbg> usb_nrfx: usbd_work_process_pwr_events: USB Suspend state

[00:00:00.005,249] <dbg> usb_cdc_acm: cdc_acm_dev_status_cb: cfg 0x200018c4 status 5

[00:00:00.005,249] <inf> usb_cdc_acm: Device suspended


baud_rate = 115200


Wait for dtr !

--- 628 messages dropped ---
[00:00:00.147,888] <dbg> usb_nrfx: usbd_event_handler: RESUMING from suspend

[00:00:00.147,918] <dbg> usb_nrfx: usbd_work_handler: USBD reset event
...

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Mon, 06 Feb 2023 15:26:04 GMT

i use this config, you have the DK to test it ?

# Disable DCDC and use 32k RC
CONFIG_BOARD_ENABLE_DCDC=n
CONFIG_BOARD_ENABLE_DCDC_HV=y
CONFIG_CLOCK_CONTROL_NRF_K32SRC_RC=y
# disable nrf5 bootloader
CONFIG_BOARD_HAS_NRF5_BOOTLOADER=n

RE: Trying to see DongleBLE in linux with NCS

Piwy — Mon, 06 Feb 2023 15:22:14 GMT

Yes it's ohmed and the board is not connected with a cable but directly.

My project work well with the same board with nrf52840 instead of the bt840xe.

the hex file :

,devzone.nordicsemi.com/.../2210.zephyr.hex

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Mon, 06 Feb 2023 15:15:07 GMT

Have you ohmed the connection from the device USB connector to the D+/D- pins on the board itself? Could the cable be the problem?

Could you share the .hex file, so I can try to run it on a DK?

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Mon, 06 Feb 2023 15:04:00 GMT

there is nothing in dmesg that show the device, i can't see it with lsusb or in /dev/ also

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Mon, 06 Feb 2023 14:48:58 GMT

Hi,

[quote user="Piwy"]00> Wait for dtr ![/quote]

You will need to open the device (ie. the ttyACM device) for the firmware to continue after this.

Is there anything in dmesg that shows any issues or errors?

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Mon, 06 Feb 2023 14:37:45 GMT

1) Here is the board :

2) I use example thaét use shell module with usb, the project attach to this post

3) My full log :

00> [00:00:00.000,000] <dbg> usb_cdc_acm: cdc_acm_init: Device dev 0x65440 dev_data 0x20000bb4 cfg 0x200018b4 added to devlist 0x20005f50
00> [00:00:00.000,762] <dbg> usb_nrfx: usb_dc_ep_check_cap: ep 0x81, mps 16, type 3
00> [00:00:00.000,762] <dbg> usb_nrfx: usb_dc_ep_check_cap: ep 0x82, mps 64, type 2
00> [00:00:00.000,793] <dbg> usb_nrfx: usb_dc_ep_check_cap: ep 0x01, mps 64, type 2
00> *** Booting Zephyr OS build v3.0.99-ncs1 ***
00>
00>
00> My_device_ID: ebd9c439fa33a65f
00>
00> [00:00:00.000,976] <dbg> usb_nrfx: usb_dc_ep_enable: EP enable: 0x00
00> [00:00:00.001,007] <dbg> usb_nrfx: usb_dc_ep_enable: EP enable: 0x80
00> Wait for dtr !
00>
I add all dbg that i could

4) i had the same board with nrf52840 and it's working very well , the only difference is that there is a bt840 xe instead

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Mon, 06 Feb 2023 14:16:07 GMT

Could you share details about your build:

1. What board are you building for?

2. Which example are you targeting?

3. Can you share the full log?

4. Does the bt840xe module have D+/D- routed to a new USB connector?

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Mon, 06 Feb 2023 13:19:11 GMT

Hi,

I relance this post, i use the exact same board as descibed in this post but i have a bt840xe instead of nrf52840 and i'm not able to see the device in /dev//tty or with lsusb and i don't know why..

I'm always in wait the dtr with the bt840xe and not with the nrf52840

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Thu, 13 Oct 2022 09:10:56 GMT

Hi,

[quote user="Piwy"]And is it possible to use a nrf5 bootloader to update over BLE a device with nrf5 software to an RTOS ? It's my last question, after i will close the ticket.[/quote]

You can technically use the nrf5 usb bootloader to run any firmware of your choosing, but you cannot use the nrf5 BLE DFU to go to zephyr.

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Thu, 13 Oct 2022 06:46:50 GMT

it will work for my custom device usb if reset is routed with a GPIO.

And is it possible to use a nrf5 bootloader to update over BLE a device with nrf5 software to an RTOS ? It's my last question, after i will close the ticket.

Thanks you for everything.

Regards,

Pierre-Yves

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Wed, 12 Oct 2022 14:41:51 GMT

[quote user="Piwy"]I have a question about bootloader, is it possible to use my software with a nrf5 bootloader dfu to update my software ? If it's possible how can i do it ?[/quote]

You must have a to both reset, and atleast one GPIO routed together, as explained here:

https://infocenter.nordicsemi.com/index.jsp?topic=%2Fsdk_nrf5_v17.1.0%2Flib_dfu_trigger_usb.html

If you do not have this, then it is not possible to use the nrf5 usb bootloader.

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Wed, 12 Oct 2022 12:23:04 GMT

Indeed with this configuration RTT works fine, really thanks you.

I have a question about bootloader, is it possible to use my software with a nrf5 bootloader dfu to update my software ? If it's possible how can i do it ?

I ask this to know if it's possible tio upgrade device with software NRF5 with a RTOS

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Tue, 11 Oct 2022 14:13:56 GMT

[quote user="Piwy"]

Your project work with my custom board,, all shell commands worked it must be the DCDC. really thanks you.

What is the config that you use for disabled any use of DCDC and also uses internal 32k RC oscillator ?

[/quote]

This is great news!

The configurations to disable DCDC and DCDC_HV are the following:

CONFIG_BOARD_ENABLE_DCDC=n
CONFIG_BOARD_ENABLE_DCDC_HV=n

And enabling 32k internal RC oscillator is this one:

CONFIG_CLOCK_CONTROL_NRF_K32SRC_RC=y

Those are set in the boards/nrf52840dongle_nrf52840.conf (and the same in the nRF52840-DK .conf file)

You can try to set the above configurations, in addition to the RTT specific configurations, in hello_world to see if you can get RTT to work now as well.

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Tue, 11 Oct 2022 13:30:45 GMT

Did you create the proper configuration and overlay and include those in your build as described there?

=> Yes i did

Your project work with my custom board,, all shell commands worked it must be the DCDC. really thanks you.

What is the config that you use for disabled any use of DCDC and also uses internal 32k RC oscillator ?

Were you successful with running hci_usb (which is from NCS), or did you run the connectivity firmware (ble_connectivity_s1xx_pca10056.hex) from nRF5 SDK?

Please confirm what you were successful with here.

=> Yes from NRF5 SDK with a patch

Which project did you run with RTT? Did you run the hello_world that I previously recommended you to do?

Yes i run the one that you recommanded me

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Tue, 11 Oct 2022 12:56:38 GMT

[quote user="Piwy"]i Said i will only use shell_module for now on ...i said it 2 times..[/quote]

Yes, but you are inconsistent in your feedback, which does not allow me to check if you applied changes that I recommended, like the device tree overlay and board specific configurations: RE: Trying to see DongleBLE in linux with NCS

Did you create the proper configuration and overlay and include those in your build as described there?

Here's a project where I enabled the above quoted configurations and device tree overlays for nrf52840dk_nrf52840 and nrf52840dongle_nrf52840.

devzone.nordicsemi.com/.../shell_5F00_module_5F00_with_5F00_usb_5F00_for_5F00_dk_5F00_and_5F00_dongle.zip

Please report back explicitly with details on if this project works for your custom board.

Also note that the above project disabled any use of DCDC and also uses internal 32k RC oscillator, as the dongle from us (pca10059) and the nRF52840-DK has DCDC components and external 32k source.

[quote user="Piwy"]fireware hci_usb pca10056 from sdk15.3[/quote]

Were you successful with running hci_usb (which is from NCS), or did you run the connectivity firmware (ble_connectivity_s1xx_pca10056.hex) from nRF5 SDK?

Please confirm what you were successful with here.

If you were successful running a nRF5 SDK firmware, and not any NCS example, it indicates that you have a hardware difference.

For instance the DCDC components not in-place, but this should be confirmed if the attached .zip project works for you.

[quote user="Piwy"]and with rtt viewer i have nothing also, i connect to my device.[/quote]

Which project did you run with RTT? Did you run the hello_world that I previously recommended you to do?

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Tue, 11 Oct 2022 11:54:24 GMT

i Said i will only use shell_module for now on ...i said it 2 times..

And shell_module sample with overlay_usb.conf works fine with the dongle_ble but not with my device.

With dongle _ble i could send command and he respond. I used minicom to connect to it on y linux and it works perfectly.

I just take the sample and add overlay_usb.conf in Kconfig fragments in VS code with ncs 2.0 and with nrf528470_donglenrf52840

I tried entering debug mode but i have this message :

and with rtt viewer i have nothing also, i connect to my device.

This hardware was used and works with connectivity fireware hci_usb pca10056 from sdk15.3 with the patch from pc_ble_driver. But others software didn't run succeffully on it...

The reset pin isn't routed, i use GPIO to reboot. The device can be accessed only from a rasspberry.

This card was addapted from the Dongle_ble nordic to be commanded by the rasberry.

The purpose is to use the new sdk ncs with bluetooth shell commands instead of pc_ble_driver.

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Tue, 11 Oct 2022 10:07:40 GMT

I am unable to help you if you do not provide detailed information.

Please spend a bit of time and answer the below questions.

"It works on hardware xyz" is not sufficient information - what works? As previously stated, please share logs, screenshots, any information on how you program, run, and logs.

Which project(s) are you trying to flash?

What specific "board" are you building for? By "board" here, I mean the listed board in ncs/zephyr/boards/arm/ directory.

Have you tried entering debug mode, if yes; please share the detailed information on what is observed. Screenshots, logs, etc.

You mention that logging does not work. How did you enable RTT logging? By default, UART logging is used.

As a minimalistic test: Run "hello_world", configured as board "nrf52840dk_nrf52840" (ie. not configured as nrf52840dongle), with these in prj.conf:

CONFIG_USE_SEGGER_RTT=y
CONFIG_UART_CONSOLE=n
CONFIG_RTT_CONSOLE=y
CONFIG_LOG=y
CONFIG_LOG_BACKEND_UART=n
CONFIG_LOG_BACKEND_RTT=y

And open up the RTT viewer, and share the output.

[quote user="Piwy"]The HW is pretty the same as the dongle USB+ and USB- are linked to D+ and D- , USB part is the same.[/quote]

Can you run anything successfully on your custom hardware? Hello world, blinky, etc?

Do you have the nRESET pin (P0.18) routed to anything?

Can you please share information related to the nRF only? For instance, what is the 32M xtal and its loading caps? Same for the 32k oscillator.

[quote user="Piwy"]I thought i needed to use an USB bootloader to open the usb port but maybe i misunderstanding it.[/quote]

No, you do not need a usb bootloader on your custom hardware. You have a debugger/programmer, meaning that you can access the device directly using SWD.

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Tue, 11 Oct 2022 09:23:32 GMT

Hi,

My fireware works perfectly with Dongle Ble From nordics.

I tried adding : CONFIG_BOARD_HAS_NRF5_BOOTLOADER=n

This don't work on my custom device. I can't debug it because i can't see RTT unfortunatly after flashing the device.

I can't share it because it's condifdential...

The HW is pretty the same as the dongle USB+ and USB- are linked to D+ and D- , USB part is the same.

With the Dongle_ble nordic the usb port opened but not with my device, the usb not opened ...i tried debug to saw it but it's not working. I thought i needed to use an USB bootloader to open the usb port but maybe i misunderstanding it.

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Tue, 11 Oct 2022 07:53:14 GMT

Hi,

[quote user="Piwy"]Now i will only use the shell module from Zephyr. I build it with overlay-usb.conf and i have always the same issue, when i put the software in dongle_ble nordic=> no issue, this work.[/quote]

What do you mean by "no issue, this works"? Please share logs or similar showing the working behavior.

[quote user="Piwy"]But not in my custom device..., there is a difference beetween them and it's not hw[/quote]

As previously mentioned, you must configure a project for a nRF52840 custom device without DFU, and this is done by adding:

CONFIG_BOARD_HAS_NRF5_BOOTLOADER=n

Since you can program a device, you shall also be able to debug it with VSCode, have you tried this?

Could you share the schematic of your custom device?

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Mon, 10 Oct 2022 15:25:56 GMT

I tried to use debug RTT but when i put my fireware in my custom device i can't connect to it after that unfortunatly.... that's why i can't have log output.

Now i will only use the shell module from Zephyr. I build it with overlay-usb.conf and i have always the same issue, when i put the software in dongle_ble nordic=> no issue, this work.

But not in my custom device..., there is a difference beetween them and it's not hw

RE: Trying to see DongleBLE in linux with NCS

Håkon Alseth — Mon, 10 Oct 2022 14:06:54 GMT

Hi,

I understand that you want this to enumerate in your operating system as a COM port device, ie. a cdc_acm device.

When firmware is the problematic component, you need to focus on that.

What you need to do is to enter debug mode on your device, and see where it gets stuck. Similarly, if you do not have a uart pinout, you can use RTT to see what the log output is.

[quote user="Piwy"]I provided you also my prj.conf and my main.c.[/quote]

Always share your full project, not only two files.

If your firmware worked before when transmitting shell over uart, and the only change that you did was the kconfig and device-tree overlay as I described in this answer:

RE: Trying to see DongleBLE in linux with NCS

Then it will route your shell to use USB instead of UART. You can try to add this to for instance the shell_module sample in zephyr (../ncs/zephyr/samples/subsys/shell/shell_module)

Kind regards,

Håkon

RE: Trying to see DongleBLE in linux with NCS

Piwy — Mon, 10 Oct 2022 13:45:38 GMT

I will try to describe the best that i can.

As i say, there isn't log in my issue...

Firt of all, I experimented a custom board nrf52840 with a FT232 Bridge USB to UART. My firware use Bluetooth Shell commands and others shell commands. This device will be used as a central. I succed to use this device with a raspberry pi and to command it with an external program in my rasspberry ( using sockets).

I use a modified version of bluetooth shell. I comunicateed with this board with Uart.

I succed to connect with putty in windows and with minicom in linux.

But this was just an experimentation, now i need to custom board without the FT232 bridge, i need to use only USB. We create another custom card based on the Dongle BLE and i try to do the same as before with the USB.

The custom board is powered by the usb , the old custom boad with FT232 was powered by a battery.

I do all this thing to have a pc-ble-driver's like with NCS. It's even better because i can customise shell commands and use more functionnalities.

I provided you also my prj.conf and my main.c.

After i first try to add usb enable by using cdc_acm sample in my software. And I try to use it with dongle BLE from nordic. As i said before, it was a succes. But not with my custom board. The HW is really the same as the Dongle BLE. the only difference beetween them is the bootloader that's all and i don't understand why this isn't working

is it clearer now ?

Regards,

Pierre-Yves
