Max17055 Fuel Gauge not working With nRF9160

RE: Max17055 Fuel Gauge not working With nRF9160

runsiv — Wed, 08 Mar 2023 06:40:18 GMT

Good to hear that you found the problem, what was it?

Regards

Runar

RE: Max17055 Fuel Gauge not working With nRF9160

Waqar Ahmed — Tue, 07 Mar 2023 16:36:22 GMT

Thanks,
Isuue resolved

RE: Max17055 Fuel Gauge not working With nRF9160

Waqar Ahmed — Tue, 07 Mar 2023 14:26:59 GMT

Yes,
it respond on other microcontroller.

We have the max evolution kit as well, that kit is working fine with PC (the Max software).bit not working with nrf9160 dk.
please find the attached image

RE: Max17055 Fuel Gauge not working With nRF9160

runsiv — Tue, 07 Mar 2023 14:23:22 GMT

Hi, does the sensor respond with the same address when you talked to it with another board? I saw in the datasheet for the sensor that it can respond to either 0x6C or 0x36 for 7 MSbit address

Runar

RE: Max17055 Fuel Gauge not working With nRF9160

Waqar Ahmed — Tue, 07 Mar 2023 13:01:09 GMT

Hi,
nRF COnnect sdk1.9.0

Yes,i verified on logic anaylzer
I tried the driver as well.
yes,Temp sensor Shtx and on I2C.
yes,

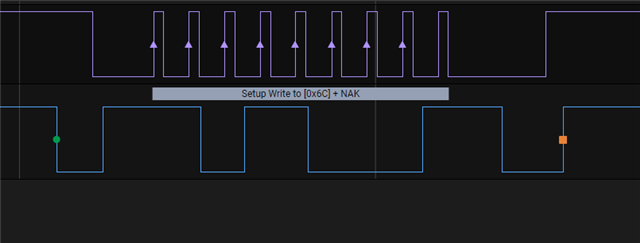

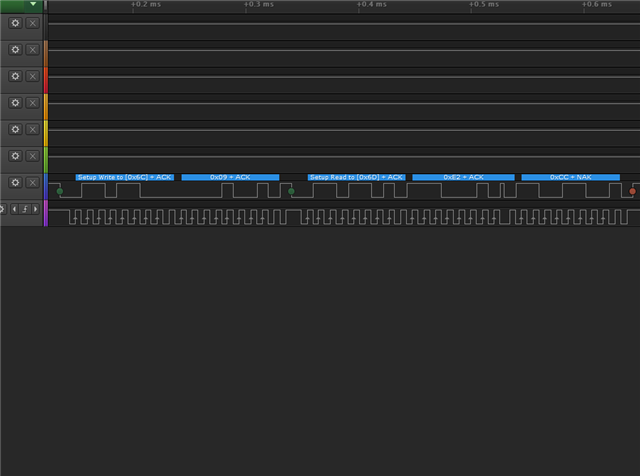

following is the Overlay file nRF9160 dk and logic anylzer data

&i2c2 {

status = "okay";

clock-frequency = <I2C_BITRATE_STANDARD>;

max17055@6c {

compatible = "maxim,max17055";

label = "MAX17055";

reg = <0x6c>;

design-voltage = <3600>;

desired-voltage = <4100>;

desired-charging-current = <2000>;

design-capacity = <10200>;

v-empty=<3000>;

i-chg-term = < 100 >;

rsense-mohms = < 10 >;

status = "okay";

};

RE: Max17055 Fuel Gauge not working With nRF9160

runsiv — Tue, 07 Mar 2023 12:52:01 GMT

In order to try to help you I have a few questions:

What version of nRF Connect SDK are you using?

Do you have a logic analyzer available?

Are you using the zephyr driver for the Max17055?

You say that the nrf1960 is working with Sensor, what sensor is this and are you using i2c to communicate with it?

Have you verified that you have wired the i2c correctly?

Regards

Runar
