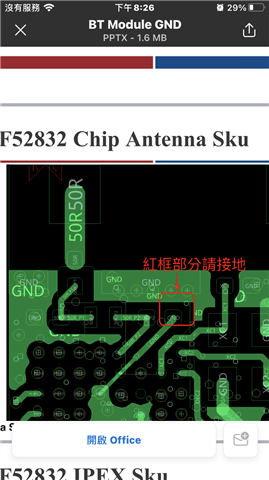

<?xml-stylesheet type="text/xsl" href="https://devzone.nordicsemi.com/cfs-file/__key/system/syndication/rss.xsl" media="screen"?><rss version="2.0" xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:slash="http://purl.org/rss/1.0/modules/slash/" xmlns:wfw="http://wellformedweb.org/CommentAPI/" xmlns:atom="http://www.w3.org/2005/Atom"><channel><title>nrf52832 pcb layout</title><link>https://devzone.nordicsemi.com/f/nordic-q-a/97743/nrf52832-pcb-layout</link><description>Hi

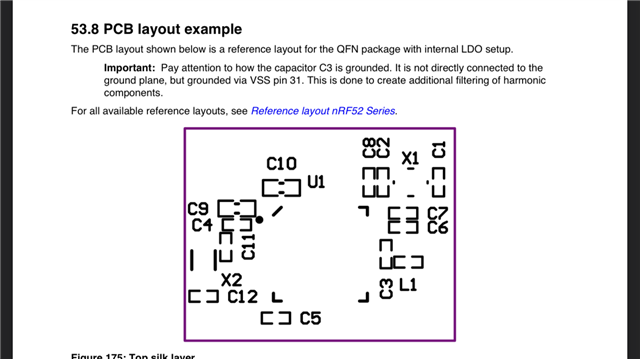

 Our pcb follows the layout example. C3 is grounded. It is not directly connected to the ground plane, but grounded via VSS pin 31. But I have measured poor performance. I connect C3 GND directly to the Ground plane and it will be normal efficacy</description><dc:language>en-US</dc:language><generator>Telligent Community 13</generator><lastBuildDate>Wed, 15 Mar 2023 15:31:20 GMT</lastBuildDate><atom:link rel="self" type="application/rss+xml" href="https://devzone.nordicsemi.com/f/nordic-q-a/97743/nrf52832-pcb-layout" /><item><title>RE: nrf52832 pcb layout</title><link>https://devzone.nordicsemi.com/thread/415535?ContentTypeID=1</link><pubDate>Wed, 15 Mar 2023 15:31:20 GMT</pubDate><guid isPermaLink="false">137ad170-7792-4731-bb38-c0d22fbe4515:37ccbc43-6900-47b9-a75f-9c4c6d72e1ea</guid><dc:creator>ketiljo</dc:creator><description>&lt;p&gt;This note only applies to the QFN package. The CSP, which you are using, has a different design:&amp;nbsp;&lt;/p&gt;
&lt;p&gt;&lt;img style="max-height:240px;max-width:320px;" src="https://devzone.nordicsemi.com/resized-image/__size/640x480/__key/communityserver-discussions-components-files/4/3122.nRF52832-CIAA-matching-network.png" alt=" " /&gt;&lt;/p&gt;
&lt;p&gt;The two are not interchangeable.&amp;nbsp;&lt;/p&gt;&lt;div style="clear:both;"&gt;&lt;/div&gt;</description></item></channel></rss>
