nRF9160 Custom board debug issue

[Vincent44]

Hello DevZone

I am facing an issue debugging my custom board, that embeds an nRF9160. I use a JLink Base to debug the board.
I used to be able to debug with no problem, but it no longer works. Since, I am not sure why exactly (jlink updates ? VS Code ? SDK ? Toolchain ?), I started from scratch and created a dummy project, just for this troubleshoot.

I am using SDK and toolchain 2.4.2.

I created a new project, with a basic main that loop forever.
I created 2 build configurations

• One using the existing nrf9160dk_ns board.
• One using a custom board, selecting the SoC nRF9160 NON SECURE.
    I only added the following lines in prj.conf to get the compilation to succeed
      CONFIG_TRUSTED_EXECUTION_NONSECURE=y
      CONFIG_BUILD_WITH_TFM=y

In both cases, I can compile the firmware and flash my board. This means that both my JLink and PCB are working.
Trouble starts when I want to start a debug session ...

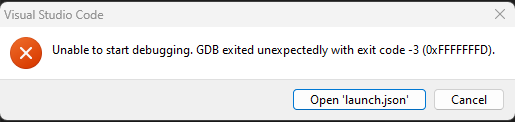

Using the build configuration of my custom board results in the following error.


If I select the build configuration with nrf9160dk_ns, I am able to launch a debug. However, this is not what I want, since this configuration contains the device tree corresponding to the DK.

Support info:

myTestApp.zip

[Vincent44]

Support info:

IMPORTANT: The data below could contain sensitive or confidential information about your environment.
If you do not wish this to be seen by others, please make sure to remove it before sharing.
