case about nRF52840 example twi_master_with_twis_slave Minimum interval between read slave machines

[peter.min]

Hi,

1. How can the read slave interval be reduced to less than 2ms: twi_master_with_twis_slave

2. Test environment:

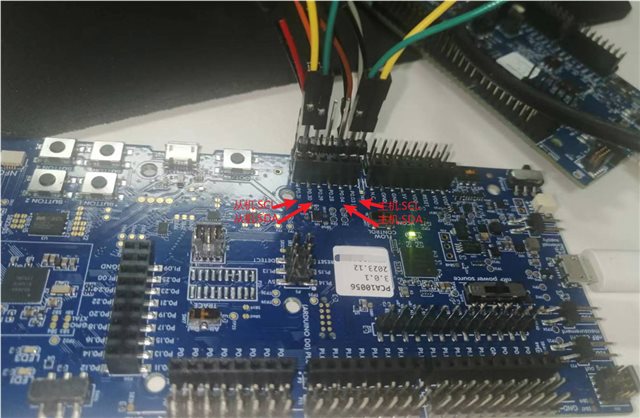

DK: pca10056

SDK:nRF5_SDK_17.1.0_ddde560\examples\peripheral\twi_master_with_twis_slave

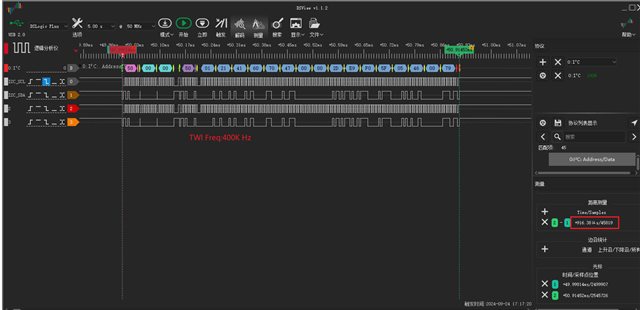

3. Measure the screenshot: It takes time to read 16 bytes

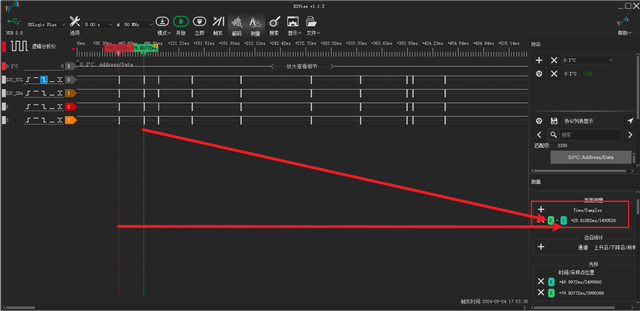

4. The expected time exceeds 5ms. Screenshot, give the reason why the interval for reading 16 bytes exceeds 5ms.

It was expected that 16bit of data could be read in 5ms, but it actually took 29.81ms



5.log:
