How to configure the nRF9160's internal flash storage_partition

Hi,

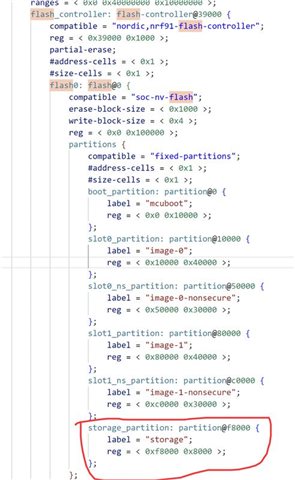

I want to configure the nRF9160's internal flash storage_partition, it has 32KB currently, I want to change it to 100KB. How to do that? Using nrf9160dk_nrf9160_ns.overlay or other method?

Thanks,

Liza

Parents
  • Hello Liza,

    Which NCS version are you on? Could you also post a pristine build log?

    Best regards,

    Michal

  • Hi Michal,

    Here is my NCS version:

        SDK: 2.5.0

        IDE: vs code

        board: nRF9160dk

    Here is my pristine build log:
