Thingy91X SWD debugging broken (SDK 3.0.1, VSCode, Windows 11)

[cellular_iot]

1st issue: Tingy91X doesnt build at all with debug -Og enabled:

Because of all the strange issues of Thingy91 (nRF9151) and "not to be used in new products) we ordered a couple of the latest and greatest Thingy91X. How surprised was I to see that the vanilla sample lwm2m_client without any modifications doesn't build with debug options (-Og) enabled. How can this be fixed asap?

c:/ncs/toolchains/0b393f9e1b/opt/zephyr-sdk/arm-zephyr-eabi/bin/../lib/gcc/arm-zephyr-eabi/12.2.0/../../../../arm-zephyr-eabi/bin/ld.exe: address 0x38943 of bin\tfm_s.axf section `.ER_TFM_CODE' is not within region `FLASH'
c:/ncs/toolchains/0b393f9e1b/opt/zephyr-sdk/arm-zephyr-eabi/bin/../lib/gcc/arm-zephyr-eabi/12.2.0/../../../../arm-zephyr-eabi/bin/ld.exe: address 0x3b960 of bin\tfm_s.axf section `.TFM_UNPRIV_CODE' is not within region `FLASH'
c:/ncs/toolchains/0b393f9e1b/opt/zephyr-sdk/arm-zephyr-eabi/bin/../lib/gcc/arm-zephyr-eabi/12.2.0/../../../../arm-zephyr-eabi/bin/ld.exe: address 0x3fc40 of bin\tfm_s.axf section `.gnu.sgstubs' is not within region `FLASH'
c:/ncs/toolchains/0b393f9e1b/opt/zephyr-sdk/arm-zephyr-eabi/bin/../lib/gcc/arm-zephyr-eabi/12.2.0/../../../../arm-zephyr-eabi/bin/ld.exe: bin\tfm_s.axf section `.TFM_DATA' will not fit in region `FLASH'
c:/ncs/toolchains/0b393f9e1b/opt/zephyr-sdk/arm-zephyr-eabi/bin/../lib/gcc/arm-zephyr-eabi/12.2.0/../../../../arm-zephyr-eabi/bin/ld.exe: address 0x38943 of bin\tfm_s.axf section `.ER_TFM_CODE' is not within region `FLASH'
c:/ncs/toolchains/0b393f9e1b/opt/zephyr-sdk/arm-zephyr-eabi/bin/../lib/gcc/arm-zephyr-eabi/12.2.0/../../../../arm-zephyr-eabi/bin/ld.exe: address 0x3b960 of bin\tfm_s.axf section `.TFM_UNPRIV_CODE' is not within region `FLASH'
c:/ncs/toolchains/0b393f9e1b/opt/zephyr-sdk/arm-zephyr-eabi/bin/../lib/gcc/arm-zephyr-eabi/12.2.0/../../../../arm-zephyr-eabi/bin/ld.exe: address 0x3fc40 of bin\tfm_s.axf section `.gnu.sgstubs' is not within region `FLASH'
c:/ncs/toolchains/0b393f9e1b/opt/zephyr-sdk/arm-zephyr-eabi/bin/../lib/gcc/arm-zephyr-eabi/12.2.0/../../../../arm-zephyr-eabi/bin/ld.exe: region `FLASH' overflowed by 32116 bytes
Memory region Used Size Region Size %age Used
FLASH: 64372 B 32256 B 199.57%
RAM: 15460 B 40 KB 37.74%
collect2.exe: error: ld returned 1 exit status

[cellular_iot]

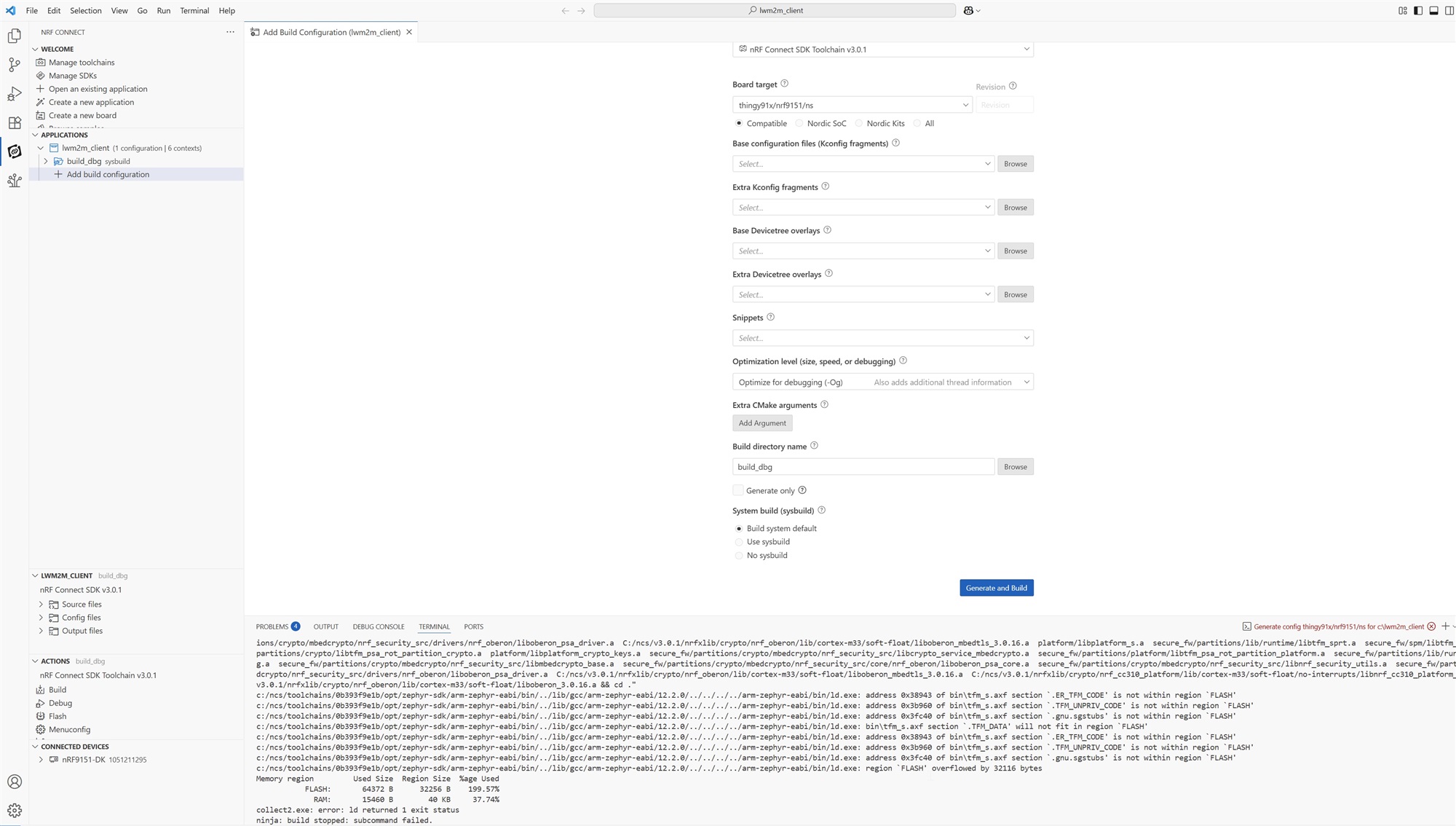

In my other ticket "cannot debug Thingy91" Dejan asked me to add "CONFIG_TFM_CMAKE_BUILD_TYPE_MINSIZEREL=y" which fixed the issue on the Thingy91.

Here on the Thingy91X it helps me to resolve the linker error from above - the project builds with debug options.

BUT -

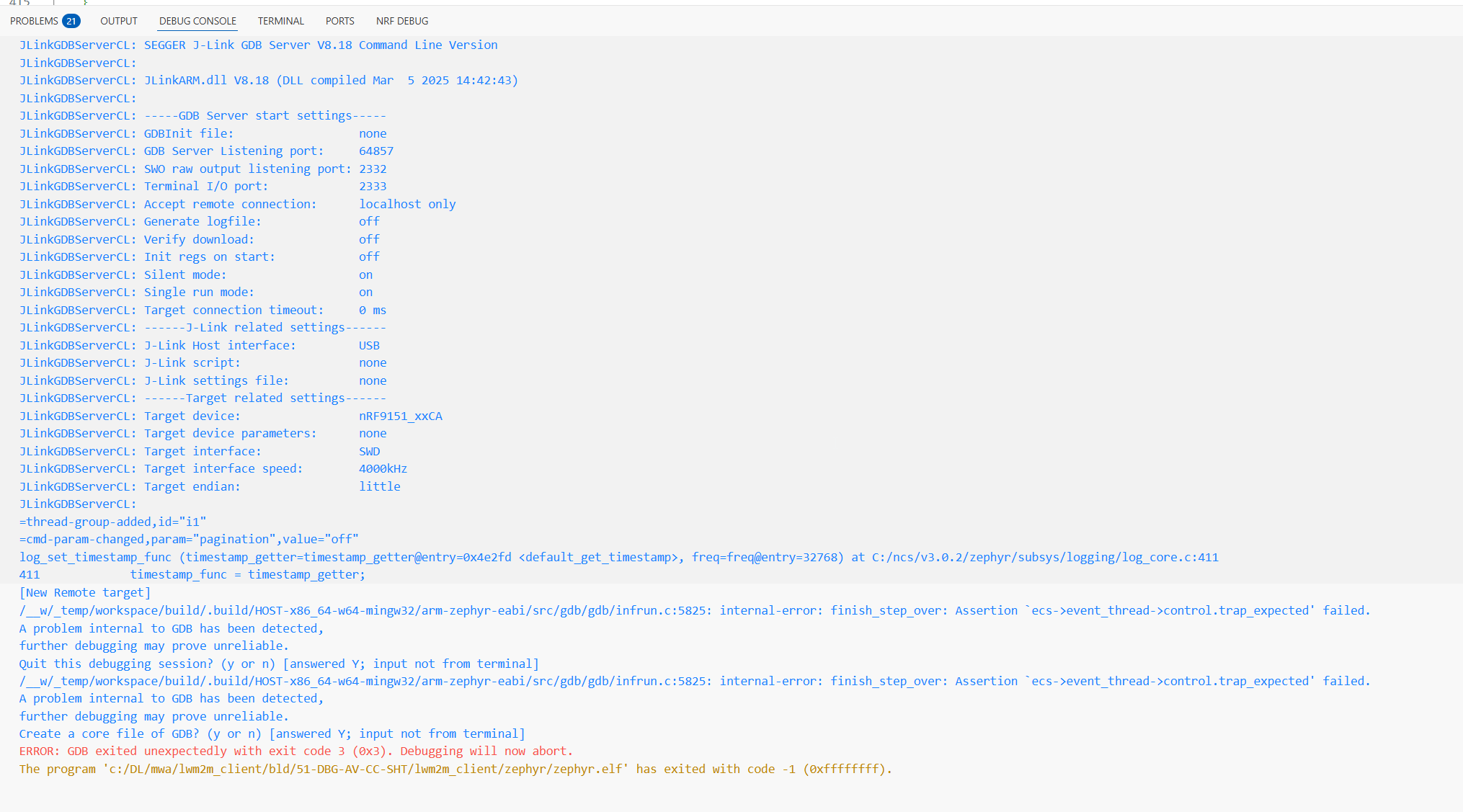

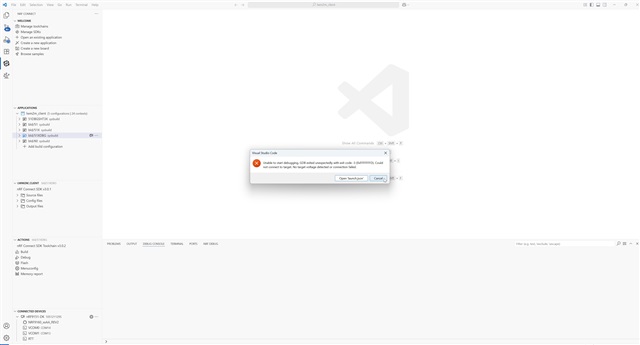

2nd issue The debugger is not starting on any sample on the Thingy91X - after hitting "debug" and west flashed the image I always get a popup: "Unable to start debugging. GDB exitet unexpectedly with exit code -3. Could not connect to targt."

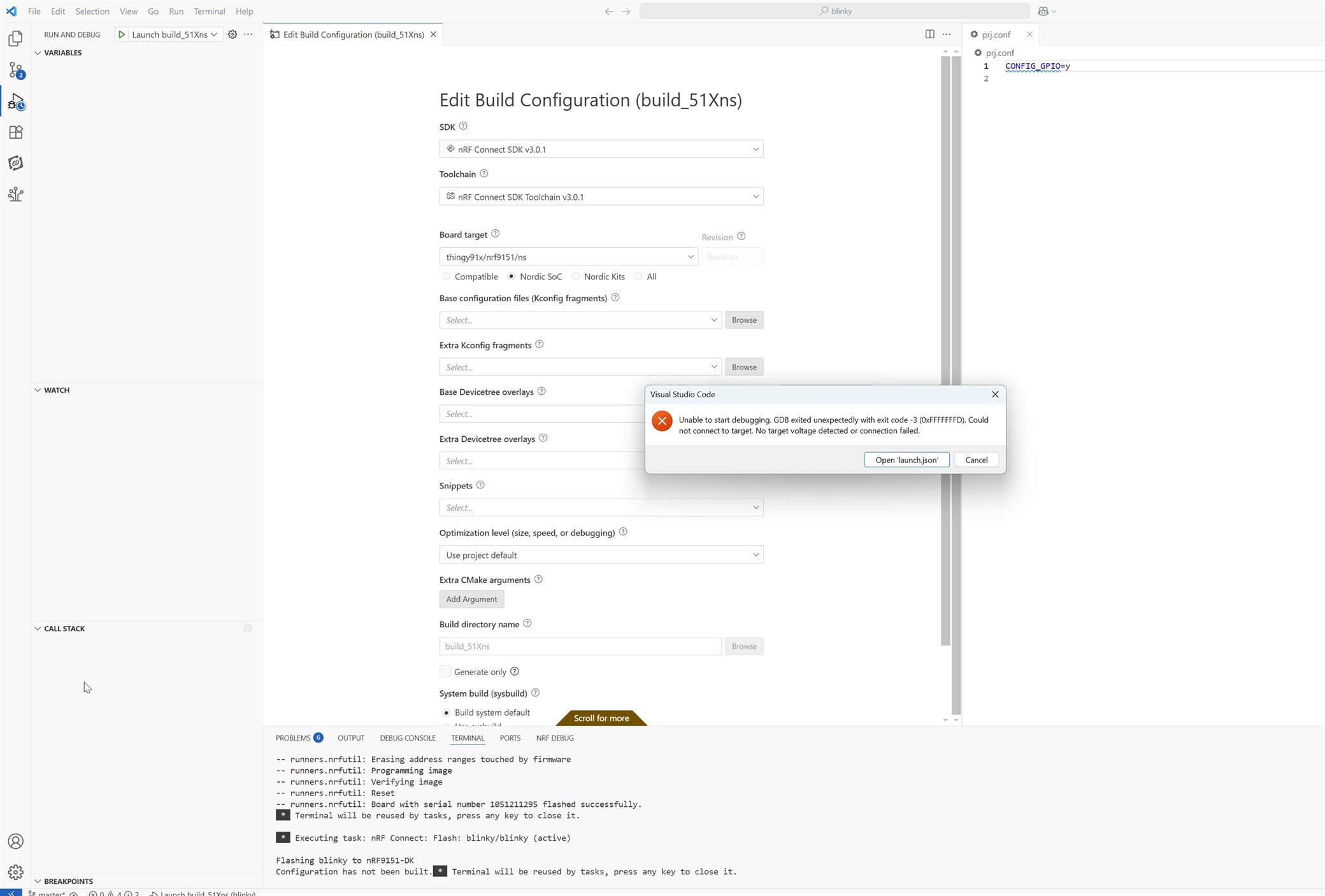

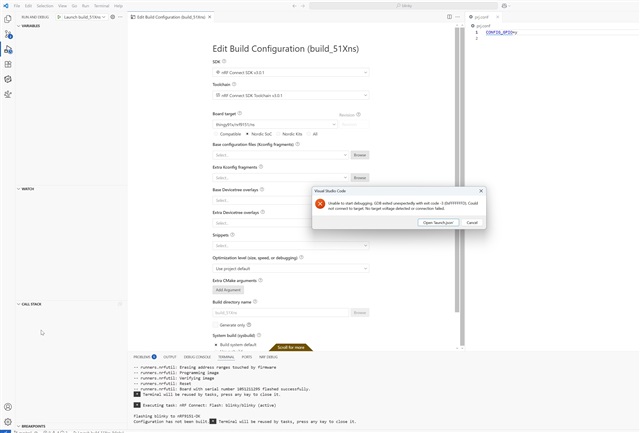

Even the simplest blinky sample can SWD flash but cannot start the debugger:

[Hakon]

Hello,

what version of JLink are you using?

[cellular_iot]

I just de-installed all older JLink versions (7.xx, 8.16, 8.3) and isntalled latest V8.44.

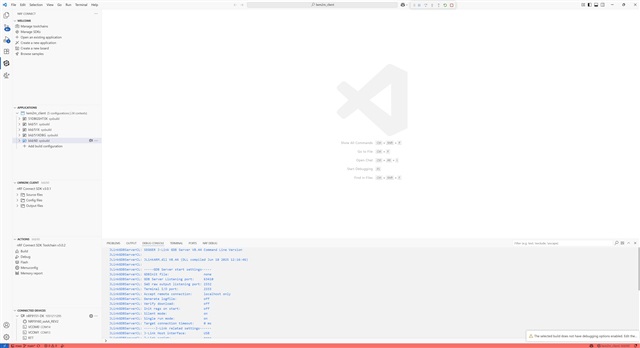

Below find my setup of the exact same project, different build configs for Thingy91 and Thingy91X

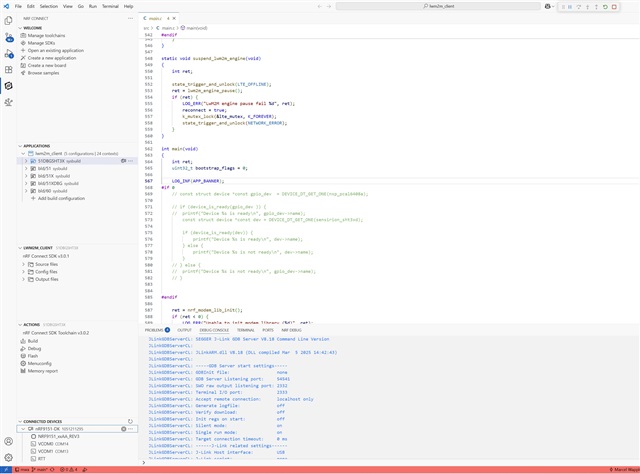

Working:Thingy91 connected to nRF9151DK port DEBUG OUT. Actions/Debuger/Attach debugger to target/debugger working


Not working:Thingy91X connected to nRF9151DK port DEBUG OUT. Actions/Debuger/Attach debugger to target/Error

[Hakon]

cellular_iot said:

I just de-installed all older JLink versions (7.xx, 8.16, 8.3) and isntalled latest V8.44.

The documentation tells you to use v8.18, anything newer is not tested and might not work properly.

https://docs.nordicsemi.com/bundle/ncs-latest/page/nrf/installation/recommended_versions.html#j-link_software_and_documentation_pack

[cellular_iot]

Ok, followed your guidance, deinstalled Jlink V8.44, and installed v8.18. Same issue. I can debug nRF9151DK but not Thingy91X:

[Hakon]

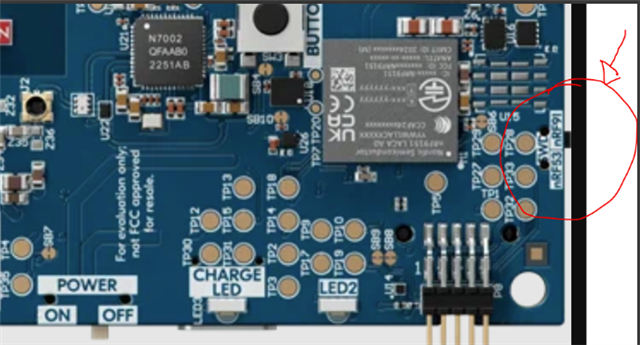

Did you set the debug switch to nrf91?

[cellular_iot]

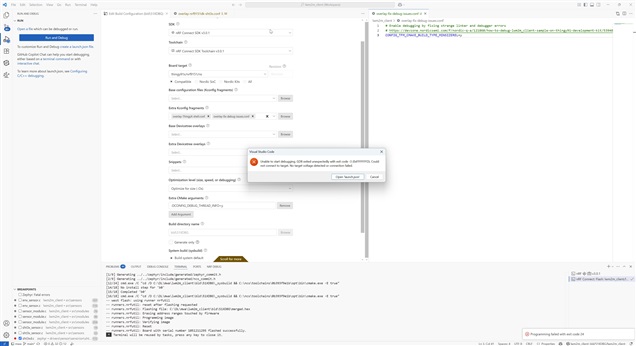

Yes - and the firmware is flashed via JLINK SWD. You can see this in the terminal tab in the 2nd and 3rd image I uploaded - or here again:

[Hakon]

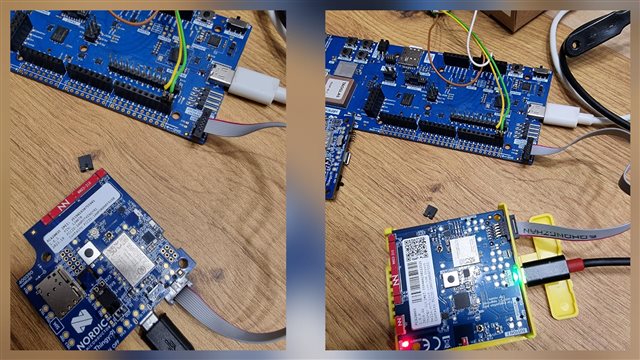

Do you have another thingy91x available? You mentioned that you ordered a couple of thingy91x. Then you can test if it works with the other one.

Also, are you using the same setup in all cases? Like using the same 10 pin cable etc. If you have a another one, you can try that one in case it's broken somehow.
