use saadc AIN2 on the custom board, read value is differ from nrf52 dk.

[TTN]

Hi,

We use mdbt42v(nrf52832) to design a custom board and we encounter a strange issue.

We use ain2(P0.04) to measure a Variable Resistor value, the code working fine in the nrf52 DK, but value strange always 4x~5x.

the custom circult is  in below picture.

seems like this problem ,but we can't use this solution.

any suggestion?

SDK 14.2 test code is the same as saadc example.

/**
 * Copyright (c) 2014 - 2017, Nordic Semiconductor ASA
 *
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without modification,
 * are permitted provided that the following conditions are met:
 *
 * 1. Redistributions of source code must retain the above copyright notice, this
 *    list of conditions and the following disclaimer.
 *
 * 2. Redistributions in binary form, except as embedded into a Nordic
 *    Semiconductor ASA integrated circuit in a product or a software update for
 *    such product, must reproduce the above copyright notice, this list of
 *    conditions and the following disclaimer in the documentation and/or other
 *    materials provided with the distribution.
 *
 * 3. Neither the name of Nordic Semiconductor ASA nor the names of its
 *    contributors may be used to endorse or promote products derived from this
 *    software without specific prior written permission.
 *
 * 4. This software, with or without modification, must only be used with a
 *    Nordic Semiconductor ASA integrated circuit.
 *
 * 5. Any software provided in binary form under this license must not be reverse
 *    engineered, decompiled, modified and/or disassembled.
 *
 * THIS SOFTWARE IS PROVIDED BY NORDIC SEMICONDUCTOR ASA "AS IS" AND ANY EXPRESS
 * OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
 * OF MERCHANTABILITY, NONINFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE ARE
 * DISCLAIMED. IN NO EVENT SHALL NORDIC SEMICONDUCTOR ASA OR CONTRIBUTORS BE
 * LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
 * CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
 * GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
 * HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
 * LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT
 * OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 */
/** @file
 * @defgroup nrf_adc_example main.c
 * @{
 * @ingroup nrf_adc_example
 * @brief ADC Example Application main file.
 *
 * This file contains the source code for a sample application using ADC.
 *
 * @image html example_board_setup_a.jpg "Use board setup A for this example."
 */

#include <stdbool.h>
#include <stdint.h>
#include <stdio.h>
#include <string.h>
#include "nrf.h"
#include "nrf_drv_saadc.h"
#include "nrf_drv_ppi.h"
#include "nrf_drv_timer.h"
#include "boards.h"
#include "app_error.h"
#include "nrf_delay.h"
#include "app_util_platform.h"
#include "nrf_pwr_mgmt.h"
#include "nrf_drv_power.h"


#include "nrf_log.h"
#include "nrf_log_ctrl.h"
#include "nrf_log_default_backends.h"
#include "SEGGER_RTT.h"


#define SAMPLES_IN_BUFFER 5
volatile uint8_t state = 1;

static const nrf_drv_timer_t m_timer = NRF_DRV_TIMER_INSTANCE(0);
static nrf_saadc_value_t     m_buffer_pool[2][SAMPLES_IN_BUFFER];
static nrf_ppi_channel_t     m_ppi_channel;
static uint32_t              m_adc_evt_counter;


void timer_handler(nrf_timer_event_t event_type, void * p_context)
{

}


void saadc_sampling_event_init(void)
{
    ret_code_t err_code;

    err_code = nrf_drv_ppi_init();
    APP_ERROR_CHECK(err_code);

    nrf_drv_timer_config_t timer_cfg = NRF_DRV_TIMER_DEFAULT_CONFIG;
    timer_cfg.bit_width = NRF_TIMER_BIT_WIDTH_32;
    err_code = nrf_drv_timer_init(&m_timer, &timer_cfg, timer_handler);
    APP_ERROR_CHECK(err_code);

    /* setup m_timer for compare event every 400ms */
    uint32_t ticks = nrf_drv_timer_ms_to_ticks(&m_timer, 400);
    nrf_drv_timer_extended_compare(&m_timer,
                                   NRF_TIMER_CC_CHANNEL0,
                                   ticks,
                                   NRF_TIMER_SHORT_COMPARE0_CLEAR_MASK,
                                   false);
    nrf_drv_timer_enable(&m_timer);

    uint32_t timer_compare_event_addr = nrf_drv_timer_compare_event_address_get(&m_timer,
                                                                                NRF_TIMER_CC_CHANNEL0);
    uint32_t saadc_sample_task_addr   = nrf_drv_saadc_sample_task_get();

    /* setup ppi channel so that timer compare event is triggering sample task in SAADC */
    err_code = nrf_drv_ppi_channel_alloc(&m_ppi_channel);
    APP_ERROR_CHECK(err_code);

    err_code = nrf_drv_ppi_channel_assign(m_ppi_channel,
                                          timer_compare_event_addr,
                                          saadc_sample_task_addr);
    APP_ERROR_CHECK(err_code);
}


void saadc_sampling_event_enable(void)
{
    ret_code_t err_code = nrf_drv_ppi_channel_enable(m_ppi_channel);

    APP_ERROR_CHECK(err_code);
}


void saadc_callback(nrf_drv_saadc_evt_t const * p_event)
{
    if (p_event->type == NRF_DRV_SAADC_EVT_DONE)
    {
        ret_code_t err_code;

        err_code = nrf_drv_saadc_buffer_convert(p_event->data.done.p_buffer, SAMPLES_IN_BUFFER);
        APP_ERROR_CHECK(err_code);

        int i;
        NRF_LOG_INFO("ADC event number: %d", (int)m_adc_evt_counter);
				SEGGER_RTT_printf(0,"ADC event number: %d\n", (int)m_adc_evt_counter);

        for (i = 0; i < SAMPLES_IN_BUFFER; i++)
        {
            NRF_LOG_INFO("%d", p_event->data.done.p_buffer[i]);
						SEGGER_RTT_printf(0,"%d\n", p_event->data.done.p_buffer[i]);
        }
        m_adc_evt_counter++;
    }
}


void saadc_init(void)
{
    ret_code_t err_code;
    nrf_saadc_channel_config_t channel_config =
        NRF_DRV_SAADC_DEFAULT_CHANNEL_CONFIG_SE(NRF_SAADC_INPUT_AIN2);

    err_code = nrf_drv_saadc_init(NULL, saadc_callback);
    APP_ERROR_CHECK(err_code);

    err_code = nrf_drv_saadc_channel_init(0, &channel_config);
    APP_ERROR_CHECK(err_code);

    err_code = nrf_drv_saadc_buffer_convert(m_buffer_pool[0], SAMPLES_IN_BUFFER);
    APP_ERROR_CHECK(err_code);

    err_code = nrf_drv_saadc_buffer_convert(m_buffer_pool[1], SAMPLES_IN_BUFFER);
    APP_ERROR_CHECK(err_code);




}


/**
 * @brief Function for main application entry.
 */
int main(void)
{
    uint32_t err_code = NRF_LOG_INIT(NULL);
    APP_ERROR_CHECK(err_code);

    NRF_LOG_DEFAULT_BACKENDS_INIT();

    err_code = nrf_drv_power_init(NULL);
    APP_ERROR_CHECK(err_code);

    ret_code_t ret_code = nrf_pwr_mgmt_init();
    APP_ERROR_CHECK(ret_code);

    //NRF_LOG_INFO("SAADC HAL simple example.");
		SEGGER_RTT_printf(0,"SAADC HAL simple example.");
		//SEGGER_RTT_printf
		saadc_init();
    saadc_sampling_event_init();
    saadc_sampling_event_enable();

		nrf_gpio_cfg_output(25);
		nrf_gpio_pin_set(25);
//		nrf_gpio_pin_clear(25);

    while (1)
    {
        nrf_pwr_mgmt_run();
        NRF_LOG_FLUSH();
    }
}


/** @} */

[hmolesworth]

Incorrect use of the 2N7002; have a close look at the data sheet and then try a different type of FET as the 2N7002 will not do what you expect in this configuration. I would also consider not using a FET if the nRF52 uses VDD for a supply; instead remove the FET and connect P0.25 to the top of R6 which is what Martin is suggesting

[TTN]

Thanks for reply, will review the data sheet again,maybe try another fet, which i want to close the fet when i not measure the potentiometer voltage, trying to save battery consume.

for now i can control the fet open when set P0.25 high and close when clear.

I have tried measure voltage without the MOSFET and connect VDD and GND to the potentiometer.

ADC input Range 0~1.6(with fet)
                             0~VDD(without fet)

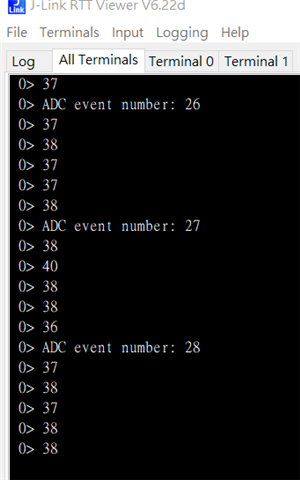

I always gets values like below pitcure.

[MartinBL]

Are these still not the values you expect? If so, what values do you expect?

[TTN]

I expect the value that i got from saadc's change trend looks normal, can be changed when i change the potentiometer, not always the values in the picture.

EX:

input    saadc value

1v        1024

2V        2048

3V        3072
