Power profiling on nRF52840 DK as DUT

[Sridhar Jonnavittula]

Hi,

I have gone through PPK user guide but it is not working out.

In my setup I am using

• One DK as external SEGGER JLink
• One PPK as standalone power profiler
• One PDK with SB40 cut runs some BLE firmware(DUT)

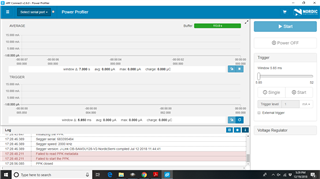

Setup figure

Issues observed

• BLE firmware is not running(LED 1 should glow but all LEDs are glowing).

Questions

• Is my setup correct?
• Can I connect two small wires between PPK's external DUT and DUT PDK nRF current measurement header(P22)? If not then what type of connectors can be used?
• It is mentioned in PPK userguide that standalone PPK require v1.1 python based software. Is there any user guide for this? Or can I use v2.6.0 nRF connect desktop?
• What devices can I keep as DUT? What is the minimal pin out on DUT?

Thanks,

Sridhar

[Jørgen Holmefjord]

Hi,

Can you try connecting the PPK's "External DUT" lines to "External supply" of the DK, and put the VEXT->nRF switch in ON position? You should also power the DK with a USB cable, to provide enough current for the Segger J-Link IC.

Best regards,
Jørgen

[Sridhar Jonnavittula]

Hi,

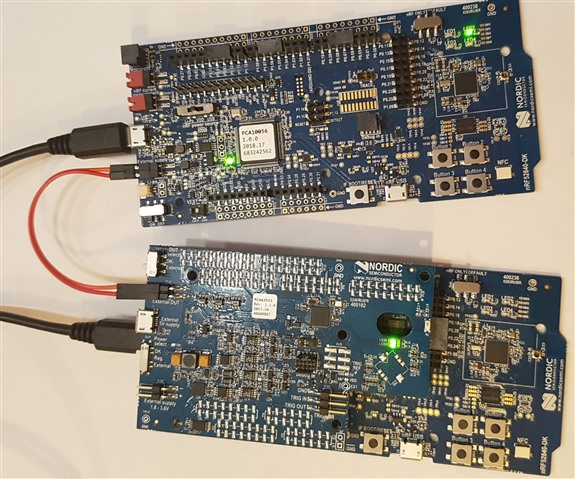

Thanks for setup image. With the same setup tested external JLINK too.

Thanks,

Sridhar
