I am working on nRF51822 QFAB custom Board. I loaded nRF51822 Beacon v1.1.1 Precompiled hex file in custom board. But the nRF51822 board crystal and bluetooth is enabled. Please suggest me

[bhaskarch]

Working on nRF51822 QFAB custom board.

I loaded nRF51822 Beacon v1.1.1 Precompiled hex file in custom board.

Keil 5 Uvision iDE

Windows 7

But I loaded examples programs ble_app_beacon codes. But Crystal and Bluetooth is not enabled.

Please suggest is it hardware issue or software issue.

[Einar Thorsrud]

Hi,

The precompiled beacon kit firmware is configured to use the optional 32 kHz crystal oscillator. If this is not present in HW, the device will wait indefinitely for the clock to start, which is why you do not see any activity. You need to change the 32 kHz clock source by adjusting the call to SOFTDEVICE_HANDLER_INIT() in ble_stack_init() in <nRF51822 Beacon v1.1.1>\Source Code\nrf51_beacon\ble_app_beacon\main.c to for instance the following:

SOFTDEVICE_HANDLER_INIT(NRF_CLOCK_LFCLKSRC_RC_250_PPM_4000MS_CALIBRATION, true);

[bhaskarch]

Thank s Einar Thorsrud,

I changed above instruction. but Crystal and Bluetooth is not enabled.

i compiled program. it is showing Zero errors and zero warnings.

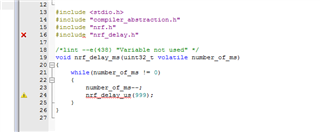

But in nrf_delay.c  it is showing. delay also not working

suggest me

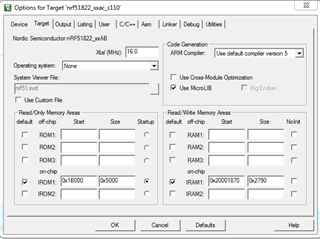

i am sending IDE settings Please suggest me.

[Einar Thorsrud]

Hi,

You should not get any errors if you use an unmodified beacon kit reference firmware (with the only change being using the clock configuration in the call to SOFTDEVICE_HANDLER_INIT). What other changes have you done? Can you upload the output from the build process? (you have to do a full rebuild to see warnings as files with warnings are not compiled again otherwise).

Have you done any debugging to see what happens on the target? Are any error checks hit? Is there a function which does not return, or similar?

The screenshot you have added does not match with anything I can find in the nRF51822 Beacon v1.1.1 source code. Please clarify exactly which SDK or reference design etc. you are using.

[bhaskarch]

I am not getting Errors

But nrf_delay library it is showing error mark.

I check with crystal pins. external crystal is not enabled.

Bluetooth also not showing on Mobile

[bhaskarch]

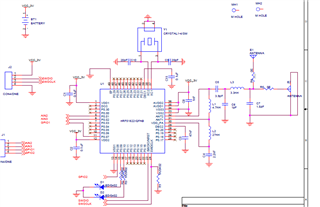

[bhaskarch]

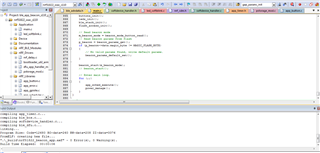

But no errors showing after build process

[Einar Thorsrud]

OK. If not errors are shown during compilation, then we can probably ignore this.

Regarding the main issue (beacon not working): Have you done any debugging to try to understand what is happening on the nRF? Also, just to double check: have you remembered to flash the SoftDevice in addition to the application?

[bhaskarch]

Hello Einar Thorsrud,

first I am not loaded any softdevice hex file(s110_nrf51822_7.1.0_softdevice .hex) in fresh nRf51822 board.

I loaded only nrf51822_beacon_app.hex

Without soft device hex file , nRf51822 will work or Not.

Please justify my  question.

how to  set memory locations in keil for loading the Soft device hex file (s110_nrf51822_7.1.0_softdevice .hex)
