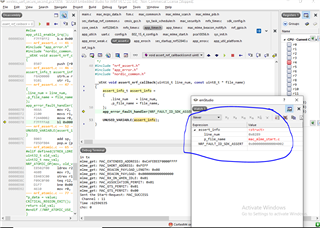

NRF_FAULT_ID_SDK_ASSEART using 802_15_4 ( wireless_uart ).

Hello,

I started working on 802_15_4 to create a TSCH ( Time SYNC channel hopping ), and it is working as expected. The problem is when i integrated the TSCH TX and TSCH RX in a single program it shows an ERROR, while debug i came across NRF_FAULT_ID_SDK_ASSEART. when i comment out the RX part of the code TX is working as expected. When i test both RX and TX the TX part the code is giving an error. Using SEGGER Embedded Studio with windows 10.The error s shown in the below picture.

The TSCH TX code as follows:

#ifdef __cplusplus
extern "C" {
#endif
#include "802_15_4_config.h"

#include "nrf_log.h"
#include "nrf_log_ctrl.h"
#include "nrf_log_default_backends.h"
#include "ral_irq_handlers.h"

#include "nrf_drv_clock.h"

#include "boards.h"
#include "mac_mcps_data.h"
#include "sys_init.h"
#include "sys_task_scheduler.h"

#include "mac_common.h"
#include "mac_mlme_beacon_notify.h"
#include "mac_mlme_comm_status.h"
#include "mac_mlme_pib.h"
#include "mac_mlme_associate.h"
#include "mac_mlme_poll.h"
#include "mac_mlme_scan.h"
#include "mac_mlme_start.h"
#include "mac_security.h"
#include "nrf_delay.h"
#include "time.h"
#ifdef __cplusplus
}
#endif

#include "SEGGER_RTT.h"
#include "SEGGER_RTT_Conf.h"

#define CONFIG_POOL_SIZE 0x2000
static __ALIGN(ALIGN_VALUE) uint8_t m_heap[CONFIG_POOL_SIZE];
#define CONFIG_ERROR_PIN LED_4

#define C11 (1 << 11)
#define C12 (1 << 12)
#define C13 (1 << 13)
#define C14 (1 << 14)
#define C15 (1 << 15)
#define C16 (1 << 16)
#define C17 (1 << 17)
#define C18 (1 << 18)
#define C19 (1 << 19)
#define C20 (1 << 20)
#define C21 (1 << 21)
#define C22 (1 << 22)
#define C23 (1 << 23)
#define C24 (1 << 24)
#define C25 (1 << 25)
#define C26 (1 << 26)

static void out_of_memory_callback(const void* data);
static void memory_freed_callback(const void* data);

#ifdef __cplusplus
constexpr sys_event_desc_t gen_sys_event_desc_t(sys_event_id_t event_id,
                                                void(callback)(const void*)) {
    return sys_event_desc_t{sys_queue_item_t{}, event_id, callback};
}
static sys_event_desc_t m_out_of_memory_desc =
    gen_sys_event_desc_t(SYS_EVENT_OUT_OF_MEMORY, out_of_memory_callback);
static sys_event_desc_t m_memory_freed_desc =
    gen_sys_event_desc_t(SYS_EVENT_MEMORY_FREED, memory_freed_callback);
#else
static sys_event_desc_t m_out_of_memory_desc = {
    .event_id = SYS_EVENT_OUT_OF_MEMORY, .callback = out_of_memory_callback};
static sys_event_desc_t m_memory_freed_desc = {
    .event_id = SYS_EVENT_MEMORY_FREED, .callback = memory_freed_callback};
#endif

void wait_ms(const uint32_t count) {
    SEGGER_RTT_printf(0, "dummy wait: ");
    for(volatile uint32_t i=0; i<2432u*count; i++) {
        uint32_t j = i%(2432u*100u);
        if(j == 0) {
            SEGGER_RTT_printf(0, ".", j);
        }
    }
    SEGGER_RTT_printf(0, "\n");
}

static void out_of_memory_callback(const void* data) {
    LEDS_ON(BIT(CONFIG_ERROR_PIN));
}

static void memory_freed_callback(const void* data) {
    LEDS_OFF(BIT(CONFIG_ERROR_PIN));
}

static void app_task_init(void) {
    LEDS_CONFIGURE(LEDS_MASK);
    LEDS_OFF(LEDS_MASK);

    sys_init(m_heap, CONFIG_POOL_SIZE);

    sys_event_subscribe(&m_out_of_memory_desc);
    sys_event_subscribe(&m_memory_freed_desc);
}

static void clock_init(void) {
    ret_code_t err_code = nrf_drv_clock_init();
    ASSERT((err_code == NRF_SUCCESS) ||
           (err_code == NRF_ERROR_MODULE_ALREADY_INITIALIZED));

    nrf_drv_clock_hfclk_request(NULL);
    while (!nrf_drv_clock_hfclk_is_running()) {
        // spin lock
    }

    nrf_drv_clock_lfclk_request(NULL);
    while (!nrf_drv_clock_lfclk_is_running()) {
        // spin lock
    }
}

void print_mac_status(const mac_status_t status) {
    switch (status) {
        case MAC_NO_BEACON:
            SEGGER_RTT_printf(0, "MAC_NO_BEACON");
            break;
        case MAC_SUCCESS:
            SEGGER_RTT_printf(0, "MAC_SUCCESS");
            break;
        case MAC_LIMIT_REACHED:
            SEGGER_RTT_printf(0, "MAC_LIMIT_REACHED");
            break;
        default:
            SEGGER_RTT_printf(0, "0x%x", status);
            break;
    }
}

void print_addr(const mac_addr_t* addr, const mac_addr_mode_t addr_mode,
                const char* field) {
    SEGGER_RTT_printf(0, "%s: ", field);
    switch (addr_mode) {
        case MAC_ADDR_NONE:
            SEGGER_RTT_printf(0, "NONE");
            break;
        case MAC_ADDR_SHORT:
            SEGGER_RTT_printf(0, "0x%04x (short)", addr->short_address);
            break;
        case MAC_ADDR_LONG:
        default:
            SEGGER_RTT_printf(0, "0x%08x%08x (long)",
                              (uint32_t)(addr->long_address >> 32),
                              (uint32_t)(addr->long_address));
            break;
    }
}

void print_pan_desc(const mac_pan_descriptor_t* pan) {
    SEGGER_RTT_printf(0, "{coord_pan_id: 0x%04x, ", pan->coord_pan_id);
    print_addr(&(pan->coord_address), pan->coord_addr_mode, "address");
    SEGGER_RTT_printf(0,
                      ", logical_channel: %u, timestamp: 0x%x, link_quality: "
                      "%u, superframe_spec: 0x%x, gts: %s}",
                      pan->logical_channel, pan->timestamp, pan->link_quality,
                      pan->superframe_spec, pan->gts_permit ? "true" : "false");
}

void print_scan_conf(const mlme_scan_conf_t* sc) {
    SEGGER_RTT_printf(0, "{status: ");
    print_mac_status(sc->status);
    SEGGER_RTT_printf(0, ", scan_type: ");
    switch (sc->scan_type) {
        case ED_SCAN:
            SEGGER_RTT_printf(0, "ED_SCAN");
            break;
        case ACTIVE_SCAN:
            SEGGER_RTT_printf(0, "ACTIVE_SCAN");
            break;
        case PASSIVE_SCAN:
            SEGGER_RTT_printf(0, "PASSIVE_SCAN");
            break;
        case ORPHAN_SCAN:
            SEGGER_RTT_printf(0, "ORPHAN_SCAN");
            break;
        default:
            SEGGER_RTT_printf(0, "Unknown(%x)", sc->scan_type);
            break;
    }
    SEGGER_RTT_printf(0, ", unscanned_channels: %x", sc->unscanned_channels);
    SEGGER_RTT_printf(0, ", result_list_size: %u, results: {",
                      sc->result_list_size);
    for (size_t i = 0; i < sc->result_list_size; i++) {
        const mac_pan_descriptor_t* pan = &(sc->pan_descriptor_list[i]);
        SEGGER_RTT_printf(0, "Result %u: {pan_descriptor: ", i);
        print_pan_desc(pan);

        //for an active scan, the content of the energy_detect_list must not be read.
        //const uint8_t energy = sc->energy_detect_list[i];
        //(void)energy;
        //SEGGER_RTT_printf(0, ", energy: %x",  energy);
        SEGGER_RTT_printf(0, "}, ");
    }
    SEGGER_RTT_printf(0, "}\n");
}

bool callback_called = false;
void scan_callback(mlme_scan_conf_t* sc) { callback_called = true; };
void start_callback(mlme_start_conf_t* sc) { callback_called = true; };

mlme_scan_req_t gen_mac_scan_req_t(
    mac_scan_type_t scan_type, uint32_t scan_channels, uint8_t scan_duration,
    mac_pan_descriptor_t* pan_desc_buf, size_t pan_desc_size,
    uint8_t* energy_detect_buf, size_t energy_detect_size) {

    mlme_scan_req_t ret;
    ret.scan_type = scan_type;
    ret.scan_channels = scan_channels;
    ret.scan_duration = scan_duration;
    ret.pan_descriptors_buf = pan_desc_buf;
    ret.pan_descriptors_buf_size = pan_desc_size;
    ret.energy_detect_buf = energy_detect_buf;
    ret.energy_detect_buf_size = energy_detect_size;
    return ret;
}

const mlme_scan_conf_t* scan_req(mac_scan_type_t scan_type,
                                 uint32_t scan_channels,
                                 uint8_t scan_duration) {
#define _ENERGY_DET_SIZE 8
#define _PAN_DESC_SIZE 8
    static mac_pan_descriptor_t pd[_PAN_DESC_SIZE];
    static uint8_t ed[_ENERGY_DET_SIZE];

    static mlme_scan_req_t scan_req;
    scan_req = gen_mac_scan_req_t(scan_type, scan_channels, scan_duration, pd,
                                  _PAN_DESC_SIZE, ed, _ENERGY_DET_SIZE);

    callback_called = false;

    mlme_scan_req(&scan_req, scan_callback);

    while (!callback_called) {
        sys_task_run();
    }

    return &scan_req.confirm;
}

void gen_mac_key_descr_t(mac_key_descr_t* key_descr) {
    mac_table_init(&key_descr->id_lookup_list);
    mac_table_init(&key_descr->key_device_list);
    mac_table_init(&key_descr->key_usage_list);
}

mac_device_descr_t gen_mac_device_descr_t(uint16_t pan_id,
                                          uint16_t short_address,
                                          uint64_t extended_address,
                                          uint32_t frame_counter, bool exempt) {
    mac_device_descr_t ret;
    ret.pan_id = pan_id;
    ret.short_address = short_address;
    ret.extended_address = extended_address;
    ret.frame_counter = frame_counter;
    ret.exempt = exempt;
    return ret;
}

mac_security_level_descr_t gen_mac_security_level_descr_t(
    uint8_t frame_type, uint8_t cmd_frame_id, uint8_t security_min,
    uint8_t override_min) {
    mac_security_level_descr_t ret;
    ret.security_min = security_min;
    ret.override_min = override_min;
    ret.frame_type = frame_type;
    ret.cmd_frame_id = cmd_frame_id;
    return ret;
}

mac_key_id_lookup_descr_t gen_mac_key_id_lookup_descr_t(
    mac_key_lookup_size_t size) {
    mac_key_id_lookup_descr_t ret;
    ret.size = size;
    return ret;
}

mac_key_device_descr_t gen_mac_key_device_descr_t(uint8_t device_handle,
                                                  uint8_t unique_device,
                                                  uint8_t blacklisted) {
    mac_key_device_descr_t ret;
    ret.device_handle = device_handle;
    ret.blacklisted = blacklisted;
    ret.unique_device = unique_device;
    return ret;
}

mac_key_usage_descr_t gen_mac_key_usage_descr_t(uint8_t frame_type,
                                                uint8_t cmd_frame_id) {
    mac_key_usage_descr_t ret;
    ret.frame_type = frame_type;
    ret.cmd_frame_id = cmd_frame_id;
    return ret;
}

pib_id_t gen_pib_id_t_plme(plme_pib_attr_id_t id) {
    pib_id_t ret;
    ret.plme_id = id;
    return ret;
}

pib_id_t gen_pib_id_t(mlme_pib_attr_id_t id) {
    pib_id_t ret;
    ret.mlme_id = id;
    return ret;
}

const char* pib_id_str(pib_id_t id) {
    switch(id.mlme_id) {
        case MAC_PAN_ID:
            return "MAC_PAN_ID";
        case MAC_PAN_COORD_EXTENDED_ADDRESS:
            return "MAC_PAN_COORD_EXTENDED_ADDRESS";
        case MAC_PROMISCUOUS_MODE:
            return "MAC_PROMISCUOUS_MODE";
        case MAC_EXTENDED_ADDRESS:
            return "MAC_EXTENDED_ADDRESS";
        case MAC_SHORT_ADDRESS:
            return "MAC_SHORT_ADDRESS";
        case MAC_BEACON_PAYLOAD_LENGTH:
            return "MAC_BEACON_PAYLOAD_LENGTH";
        case MAC_BEACON_PAYLOAD:
            return "MAC_BEACON_PAYLOAD";
        case MAC_BEACON_ORDER:
            return "MAC_BEACON_ORDER";
        case MAC_RX_ON_WHEN_IDLE:
            return "MAC_RX_ON_WHEN_IDLE";
        case MAC_BATT_LIFE_EXT:
            return "MAC_BATT_LIFE_EXT";
        case MAC_IS_PAN_COORD:
            return "MAC_IS_PAN_COORD";
        case MAC_ASSOCIATION_PERMIT:
            return "MAC_ASSOCIATION_PERMIT";
        case MAC_GTS_PERMIT:
            return "MAC_GTS_PERMIT";
        case PHY_CURRENT_CHANNEL_ID:
            return "PHY_CURRENT_CHANNEL";
        default:
            return "**************UNKNOWN****************";
    }
}

void print_pib_get_request(const uint8_t* value, uint16_t size,
                           const char* name) {
    SEGGER_RTT_printf(0, "mlme_get: %s: 0x", name);
    for (uint16_t i = 0; i < size; i++) {
        SEGGER_RTT_printf(0, "%02x", value[i]);
    }
    SEGGER_RTT_printf(0, "\n");
}

const uint8_t* pib_get_request(pib_id_t id) {
    static uint8_t value[256];
    mac_status_t res = mlme_get(id, 0, value);
    const char* name = pib_id_str(id);
    if (res != MAC_SUCCESS) {
        SEGGER_RTT_printf(0, "failure in pib-get request(%s): ", name);
        print_mac_status(res);
        SEGGER_RTT_printf(0, "\n");

        return NULL;
    }
    print_pib_get_request(value, mlme_pib_attr_size_calc(id, 0), name);
    return value;
}

void pib_set_request(pib_id_t id, void * data) {
    mac_status_t state = mlme_set(id, 0, data);
    if (state != MAC_SUCCESS) {
        SEGGER_RTT_printf(0, "failure in pib-set request(%s): ", pib_id_str(id));
        print_mac_status(state);
        SEGGER_RTT_printf(0, "\n");

    }
}

const uint8_t* pib_set_get_request(pib_id_t id, void * data) {
    pib_set_request(id, data);
    return pib_get_request(id);
}

void print_beacon_notify_ind(const mlme_beacon_notify_ind_t* ind) {
    SEGGER_RTT_printf(0, "{bsn: %u, pan_descriptor: ", ind->bsn);
    print_pan_desc(&(ind->pan_descriptor));
    SEGGER_RTT_printf(0, ", sdu_length: %u, sdu: 0x", ind->sdu_length);
    for (size_t i = 0u; i < ind->sdu_length; i++) {
        SEGGER_RTT_printf(0, "%02x", ind->sdu.p_payload[i]);
    }
    SEGGER_RTT_printf(0, ", pend_addr_spec: %x}\n", ind->pend_addr_spec);
}

//void print_data_ind(const mcps_data_ind_t* ind) {
//    SEGGER_RTT_printf(0, "{src_pan_id: 0x%04x, ", ind->src_pan_id);
//    print_addr(&(ind->src_addr), ind->src_addr_mode, "src_addr");
//    SEGGER_RTT_printf(0, ", dst_pan_id: 0x%04x, ", ind->dst_pan_id);
//    print_addr(&(ind->dst_addr), ind->dst_addr_mode, "dst_addr");
//    SEGGER_RTT_printf(0, ", msdu_length: %u, sdu: 0x", ind->msdu_length);
//    for (size_t i = 0u; i < ind->msdu_length; i++) {
//        SEGGER_RTT_printf(0, "%02x", ind->msdu.p_payload[i]);
//    }
//    SEGGER_RTT_printf(0, ", mpdu_link_quality: %u", ind->mpdu_link_quality);
//    SEGGER_RTT_printf(0, ", dsn: %u", ind->dsn);
//    SEGGER_RTT_printf(0, ", timestamp: %u}\n", ind->timestamp);
//    SEGGER_RTT_printf(0, "\n");
//}
//
//void mlme_beacon_notify_ind(mlme_beacon_notify_ind_t* _ind) {
//    SEGGER_RTT_printf(0, "Received Beacon:\n");
//    print_beacon_notify_ind(_ind);
//}

void mlme_poll_ind(mlme_poll_ind_t* _ind) {
    SEGGER_RTT_printf(0, "Received Poll:\n");
}


//void mcps_data_ind(mcps_data_ind_t* _ind) {
//    SEGGER_RTT_printf(0, "Received Data:\n");
//    print_data_ind(_ind);
//}

void mlme_associate_ind(mlme_associate_ind_t* _ind) {
    SEGGER_RTT_printf(0, "Received Association:\n");
}

void dummy_wait() {
    SEGGER_RTT_printf(0, "dummy wait: ...");
    for(volatile size_t i=0; i<1024*1024*8; i++) {
        uint32_t j = (i + 10 )%(1024*1024*2);
        if(j+44 == 88) {
            SEGGER_RTT_printf(0, "%d,", j);
        }
    }
    SEGGER_RTT_printf(0, "\n");
}


uint32_t asn = 0;
uint8_t asn_f[4],time_sync_f[8];
uint8_t ch_offsetsel[] = {0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15}; // ChannelOffset
uint8_t beacon_payload[8];
uint64_t current_time=0,pervious_time=0;
uint32_t time_sync;
static uint8_t beacon_payload_length = sizeof(beacon_payload);
static const uint8_t ext_addr[] = {0xcau, 0xfeu, 0xbeu, 0xefu, 0x00u, 0x00u, 0xffu, 0xffu};
int i=0,k=0;


int main(void) {
    ral_irq_handler_import();

    SEGGER_RTT_Init();
    uint8_t rtt_buf_out[256u];
    SEGGER_RTT_ConfigUpBuffer(0, "OUT", rtt_buf_out, 256u,
                              SEGGER_RTT_MODE_NO_BLOCK_TRIM);

    app_task_init();
    sys_task_post(APP_TASK_ID);

    clock_init();

    SEGGER_RTT_printf(0, "....RESET COORD....\n");
#if (CONFIG_SECURE == 1)
    SEGGER_RTT_printf(0, "Compiled with CONFIG_SECURE\n");
#endif

    static uint8_t mac_association_permit = true;

    #define BEACON_ORDER 0x9u        // beacon interval = 7.68 sec
    #define SUPERFRAME_ORDER 0x0u


    static uint8_t mac_gts_permit = false;
    static uint8_t rx_on_when_idle = true;

    //static uint8_t beacon_payload[] = {0xabu, 0xabu, 0xabu, 0xabu, 0xbbu, 0xbbu, 0xbbu, 0xbbu,0x11,0x22,0x33,0xabu, 0xabu, 0xabu, 0xabu, 0xbbu, 0xbbu, 0xbbu, 0xbbu,0x11,0x22,0x33,0xabu, 0xabu, 0xabu, 0xabu, 0xbbu, 0xbbu, 0xbbu, 0xbbu,0x11,0x22,0x33,0xabu, 0xabu, 0xabu, 0xabu, 0xbbu, 0xbbu, 0xbbu, 0xbbu,0x11,0x22,0x33,12,12,12};
   // uint8_t hop_sequence[] = {11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26}; // available channels
   uint8_t hop_sequence[]= {16,17,23,18,26,15,25,22,19,11,12,13,24,14,20,21}; //channels hop sequence is given by kaumudi singh
//    uint8_t ch_offset=ch_offsetsel[rand()%16];
    uint8_t ch_offset = 0;
    uint8_t ch_select;


    static uint16_t ext_addr_only = MAC_EXTENDED_ADDRESS_ONLY;


    pib_set_get_request(gen_pib_id_t(MAC_EXTENDED_ADDRESS), (void *)ext_addr);
    pib_set_get_request(gen_pib_id_t(MAC_SHORT_ADDRESS), &ext_addr_only);
    pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD_LENGTH), &beacon_payload_length);
    pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD), (void*)beacon_payload);
    pib_set_get_request(gen_pib_id_t(MAC_RX_ON_WHEN_IDLE), &rx_on_when_idle);
    pib_set_get_request(gen_pib_id_t(MAC_ASSOCIATION_PERMIT), &mac_association_permit);
    pib_get_request(gen_pib_id_t(MAC_GTS_PERMIT));
    pib_set_get_request(gen_pib_id_t(MAC_GTS_PERMIT), &mac_gts_permit);

 // start superframe structure
    static mlme_start_req_t start_req =
	{
			.pan_id  = 0x1111,
			.logical_channel = 11,
			.start_time = 0x000000,
			.beacon_order = BEACON_ORDER,
			.superframe_order = SUPERFRAME_ORDER,
			.pan_coordinator = true,
			.battery_life_extension = false,
			.coord_realignment = false,
#if (CONFIG_SECURE == 1)
            .coord_realign_security_level = false,
            .beacon_security_level = false,
#endif
	};

    callback_called = false;
	mlme_start_req(&start_req, start_callback);
    while (!callback_called) {
        sys_task_run();
    }


    SEGGER_RTT_printf(0, "Sent the Start-Request: ");
    print_mac_status(start_req.confirm.status);
    SEGGER_RTT_printf(0, "\n");
    SEGGER_RTT_printf(0, " Channel : %u\n",start_req.logical_channel);
    SEGGER_RTT_printf(0,"Time :%u\n",sys_time_get());



  while(true)
  {
   SEGGER_RTT_printf(0, "cho: %d\n",ch_offset);
    for (i=0;;i++)
     {
          //channel = (ASN + ChannelOffset) % N , ASN-Absolute Slot Number,N-number of channels

          ch_select = ((asn+ch_offset)%(16));
          start_req.logical_channel = hop_sequence[ch_select];

          callback_called = false;
	  mlme_start_req(&start_req, start_callback);
          while (!callback_called) {
                   sys_task_run();
          }


          SEGGER_RTT_printf(0, "Sent the Start-Request: ");
          print_mac_status(start_req.confirm.status);
          SEGGER_RTT_printf(0, "\n");
          asn=asn+505;

          asn_f[0]=((asn >> 24 ) & 0xFF);
          asn_f[1]=((asn >> 16 ) & 0xFF);
          asn_f[2]=((asn >> 8 ) & 0xFF);
          asn_f[3]=((asn ) & 0xFF);

          SEGGER_RTT_printf(0, " Channel : %u\n",start_req.logical_channel);
          printf("channel_select %u , asn %u , channel offset %u\n",ch_select,asn,ch_offset);
          printf("asn_f = %x%x%x%x\n",asn_f[0],asn_f[1],asn_f[2],asn_f[3]);

           current_time=sys_time_get();
           SEGGER_RTT_printf(0,"Time0 :%u\n",current_time);
           time_sync=current_time-pervious_time;
           SEGGER_RTT_printf(0,"Time_sy :%u\n",time_sync);
           pervious_time=current_time;
//           SEGGER_RTT_printf(0,"Time_pr :%u\n",pervious_time);

          SEGGER_RTT_printf(0, "\n");

          time_sync_f[0]=((time_sync >> 24) & 0xFF);
          time_sync_f[1]=((time_sync >> 16) & 0xFF);
          time_sync_f[2]=((time_sync >> 8) & 0xFF);
          time_sync_f[3]=((time_sync) & 0xFF);


          beacon_payload[0] =asn_f[0];
          beacon_payload[1] =asn_f[1];
          beacon_payload[2] =asn_f[2];
          beacon_payload[3] =asn_f[3];
          beacon_payload[4] =time_sync_f[0];
          beacon_payload[5] =time_sync_f[1];
          beacon_payload[6] =time_sync_f[2];
          beacon_payload[7] =time_sync_f[3];

          pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD_LENGTH), &beacon_payload_length);
          pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD), (void*)beacon_payload);


     }


  }


  while(true)
  {
     sys_task_run();
  }
}

The following code contains both TX and RX in a single program.

#ifdef __cplusplus
extern "C" {
#endif
#include "802_15_4_config.h"

#include "nrf_log.h"
#include "nrf_log_ctrl.h"
#include "nrf_log_default_backends.h"
#include "ral_irq_handlers.h"

#include "nrf_drv_clock.h"

#include "boards.h"
#include "mac_mcps_data.h"
#include "sys_init.h"
#include "sys_task_scheduler.h"

#include "mac_common.h"
#include "mac_mlme_beacon_notify.h"
#include "mac_mlme_comm_status.h"
#include "mac_mlme_pib.h"
#include "mac_mlme_scan.h"
#include "mac_security.h"
#include "app_timer.h"
#include "nrf_drv_clock.h"
#include "nrfx_timer.h"
#ifdef __cplusplus
}
#endif

//for tx
#include "mac_mlme_associate.h"
#include "mac_mlme_poll.h"
#include "mac_mlme_start.h"
#include "nrf_delay.h"
#include "time.h"


#include "SEGGER_RTT.h"
#include "SEGGER_RTT_Conf.h"

#define CONFIG_POOL_SIZE 0x30000
static __ALIGN(ALIGN_VALUE) uint8_t m_heap[CONFIG_POOL_SIZE];
#define CONFIG_ERROR_PIN LED_4

#define NRF_PWR_MGMT_ENABLED 1

#define C11 (1 << 11)
#define C12 (1 << 12)
#define C13 (1 << 13)
#define C14 (1 << 14)
#define C15 (1 << 15)
#define C16 (1 << 16)
#define C17 (1 << 17)
#define C18 (1 << 18)
#define C19 (1 << 19)
#define C20 (1 << 20)
#define C21 (1 << 21)
#define C22 (1 << 22)
#define C23 (1 << 23)
#define C24 (1 << 24)
#define C25 (1 << 25)
#define C26 (1 << 26)

static int stat;
uint8_t sdu_length;
int scan_dur=-5; //scan_duration = scan network for 77ms
long int no_beacon_sleep=100; //1.82sec
long int beacon_sleep=7000000; //1.91sec
//int beacon_recieved=0;
uint8_t k;	//No. of frames received
uint32_t channel_hop_seq[] = {C16,C17,C23,C18,C26,C15,C25,C22,C19,C11,C12,C13,C24,C14,C20,C21};
//uint32_t channel_hop_seq[] = {16,17,23,18,26,15,25,22,19,11,12,13,24,14,20,21};
uint32_t channel_id=C16;



static void out_of_memory_callback(const void* data);
static void memory_freed_callback(const void* data);


#ifdef __cplusplus
constexpr sys_event_desc_t gen_sys_event_desc_t(sys_event_id_t event_id,
                                                void(callback)(const void*)) {
    return sys_event_desc_t{sys_queue_item_t{}, event_id, callback};
}
static sys_event_desc_t m_out_of_memory_desc =
    gen_sys_event_desc_t(SYS_EVENT_OUT_OF_MEMORY, out_of_memory_callback);
static sys_event_desc_t m_memory_freed_desc =
    gen_sys_event_desc_t(SYS_EVENT_MEMORY_FREED, memory_freed_callback);
#else
static sys_event_desc_t m_out_of_memory_desc = {
    .event_id = SYS_EVENT_OUT_OF_MEMORY, .callback = out_of_memory_callback};
static sys_event_desc_t m_memory_freed_desc = {
    .event_id = SYS_EVENT_MEMORY_FREED, .callback = memory_freed_callback};
#endif

//tx
void wait_ms(const uint32_t count) {
    SEGGER_RTT_printf(0, "dummy wait: ");
    for(volatile uint32_t i=0; i<2432u*count; i++) {
        uint32_t j = i%(2432u*100u);
        if(j == 0) {
            SEGGER_RTT_printf(0, ".", j);
        }
    }
    SEGGER_RTT_printf(0, "\n");
}
//end

//change

void timer2init(long int n)
{
    NRF_TIMER2->TASKS_STOP  = 1;
    NRF_TIMER2->MODE = TIMER_MODE_MODE_Timer << TIMER_MODE_MODE_Pos; //choose mode between timer and counter
    NRF_TIMER2->TASKS_CLEAR = 1;
    NRF_TIMER2->BITMODE =TIMER_BITMODE_BITMODE_32Bit << TIMER_BITMODE_BITMODE_Pos;
    NRF_TIMER2->PRESCALER =4 << TIMER_PRESCALER_PRESCALER_Pos;
    NRF_TIMER2->CC[0]=n;  //compare event to cc[0] register
    NRF_TIMER2->INTENSET = TIMER_INTENSET_COMPARE0_Enabled << TIMER_INTENSET_COMPARE0_Pos ;//enable interrupt
    NRF_TIMER2->SHORTS = TIMER_SHORTS_COMPARE0_STOP_Enabled <<TIMER_SHORTS_COMPARE0_STOP_Pos ;//shortcut path between tasks and local events
    NRF_TIMER2->TASKS_START = 1;
    NVIC_SetPriority( TIMER2_IRQn, 7);
    __DSB();
    NVIC_EnableIRQ(TIMER2_IRQn);
}

/*
void timer3init(long int n)
{
    NRF_TIMER3->TASKS_STOP  = 1;
    NRF_TIMER3->MODE = TIMER_MODE_MODE_Timer << TIMER_MODE_MODE_Pos;
    NRF_TIMER3->TASKS_CLEAR = 1;
    NRF_TIMER3->BITMODE =TIMER_BITMODE_BITMODE_32Bit << TIMER_BITMODE_BITMODE_Pos;
    NRF_TIMER3->PRESCALER =4 << TIMER_PRESCALER_PRESCALER_Pos;
    NRF_TIMER3->CC[0]=n;
    NRF_TIMER3->INTENSET = TIMER_INTENSET_COMPARE0_Enabled << TIMER_INTENSET_COMPARE0_Pos ;
    NRF_TIMER3->SHORTS = TIMER_SHORTS_COMPARE0_STOP_Enabled <<TIMER_SHORTS_COMPARE0_STOP_Pos ;
    NRF_TIMER3->TASKS_START = 1;
   // NVIC_SetPriority( TIMER3_IRQn, 3);
   // __DSB();
   NVIC_EnableIRQ(TIMER3_IRQn);
}
*/
// Transmitter code start

uint8_t sdu_data[4];
uint32_t sdu_data_dec,asn;
uint8_t ch_offset=0,slotoffest=201;
int z;

static void out_of_memory_callback(const void* data) {
    LEDS_ON(BIT(CONFIG_ERROR_PIN));
}

static void memory_freed_callback(const void* data) {
    LEDS_OFF(BIT(CONFIG_ERROR_PIN));
}

static void app_task_init(void) {
    LEDS_CONFIGURE(LEDS_MASK);
    LEDS_OFF(LEDS_MASK);

    sys_init(m_heap, CONFIG_POOL_SIZE);

    sys_event_subscribe(&m_out_of_memory_desc);
    sys_event_subscribe(&m_memory_freed_desc);
}

static void clock_init(void) {
    ret_code_t err_code = nrf_drv_clock_init();
    ASSERT((err_code == NRF_SUCCESS) ||
           (err_code == NRF_ERROR_MODULE_ALREADY_INITIALIZED));

    nrf_drv_clock_hfclk_request(NULL);
    while (!nrf_drv_clock_hfclk_is_running()) {
        // spin lock
    }

    nrf_drv_clock_lfclk_request(NULL);
    while (!nrf_drv_clock_lfclk_is_running()) {
        // spin lock
    }
}

void print_mac_status(const mac_status_t status) {
    switch (status) {
        case MAC_NO_BEACON:
            SEGGER_RTT_printf(0, "MAC_NO_BEACON");
            break;
        case MAC_SUCCESS:
            SEGGER_RTT_printf(0, "MAC_SUCCESS");
            break;
        case MAC_LIMIT_REACHED:
            SEGGER_RTT_printf(0, "MAC_LIMIT_REACHED");
            break;
        default:
            SEGGER_RTT_printf(0, "0x%x", status);
            break;
    }
}


void print_addr(const mac_addr_t* addr, const mac_addr_mode_t addr_mode,
                const char* field) {
    SEGGER_RTT_printf(0, "%s: ", field);
    switch (addr_mode) {
        case MAC_ADDR_NONE:
            SEGGER_RTT_printf(0, "NONE");
            break;
        case MAC_ADDR_SHORT:
            SEGGER_RTT_printf(0, "0x%04x (short)", addr->short_address);
            break;
        case MAC_ADDR_LONG:
        default:
            SEGGER_RTT_printf(0, "0x%08x%08x (long)",
                              (uint32_t)(addr->long_address >> 32),
                              (uint32_t)(addr->long_address));
            break;
    }
}

void print_pan_desc(const mac_pan_descriptor_t* pan) {
    SEGGER_RTT_printf(0, "{coord_pan_id: 0x%04x, ", pan->coord_pan_id);
    print_addr(&(pan->coord_address), pan->coord_addr_mode, "address");
    SEGGER_RTT_printf(0,
                      ", logical_channel: %u, timestamp: 0x%x, link_quality: "
                      "%u, superframe_spec: 0x%x, gts: %s}",
                      pan->logical_channel, pan->timestamp, pan->link_quality,
                      pan->superframe_spec, pan->gts_permit ? "true" : "false");
}

int print_scan_conf_rx(const mlme_scan_conf_t* sc) {
    if((sc->status)==MAC_SUCCESS)
    return 1;
    else
    return 0;
}

//tx
void print_scan_conf(const mlme_scan_conf_t* sc) {
    SEGGER_RTT_printf(0, "{status: ");
    print_mac_status(sc->status);
    SEGGER_RTT_printf(0, ", scan_type: ");
    switch (sc->scan_type) {
        case ED_SCAN:
            SEGGER_RTT_printf(0, "ED_SCAN");
            break;
        case ACTIVE_SCAN:
            SEGGER_RTT_printf(0, "ACTIVE_SCAN");
            break;
        case PASSIVE_SCAN:
            SEGGER_RTT_printf(0, "PASSIVE_SCAN");
            break;
        case ORPHAN_SCAN:
            SEGGER_RTT_printf(0, "ORPHAN_SCAN");
            break;
        default:
            SEGGER_RTT_printf(0, "Unknown(%x)", sc->scan_type);
            break;
    }
    SEGGER_RTT_printf(0, ", unscanned_channels: %x", sc->unscanned_channels);
    SEGGER_RTT_printf(0, ", result_list_size: %u, results: {",
                      sc->result_list_size);
    for (size_t i = 0; i < sc->result_list_size; i++) {
        const mac_pan_descriptor_t* pan = &(sc->pan_descriptor_list[i]);
        SEGGER_RTT_printf(0, "Result %u: {pan_descriptor: ", i);
        print_pan_desc(pan);

        //for an active scan, the content of the energy_detect_list must not be read.
        //const uint8_t energy = sc->energy_detect_list[i];
        //(void)energy;
        //SEGGER_RTT_printf(0, ", energy: %x",  energy);
        SEGGER_RTT_printf(0, "}, ");
    }
    SEGGER_RTT_printf(0, "}\n");
}
//end

bool callback_called = false;
void scan_callback(mlme_scan_conf_t *sc) { callback_called = true;};
void start_callback(mlme_start_conf_t *sc) { callback_called = true;};

mlme_scan_req_t gen_mac_scan_req_t(
    mac_scan_type_t scan_type, uint32_t scan_channels, uint8_t scan_duration,
    mac_pan_descriptor_t* pan_desc_buf, size_t pan_desc_size,

    uint8_t* energy_detect_buf, size_t energy_detect_size) {
    mlme_scan_req_t ret;
    ret.scan_type = scan_type;
    ret.scan_channels = scan_channels;
    ret.scan_duration = scan_duration;
    ret.pan_descriptors_buf = pan_desc_buf;
    ret.pan_descriptors_buf_size = pan_desc_size;
    ret.energy_detect_buf = energy_detect_buf;
    ret.energy_detect_buf_size = energy_detect_size;
    return ret;
}
//changed to int from uint8_t for scan_duration
const mlme_scan_conf_t* scan_req(mac_scan_type_t scan_type,
                                 uint32_t scan_channels,
                                 int scan_duration) {
#define _ENERGY_DET_SIZE 8
#define _PAN_DESC_SIZE 8
    static mac_pan_descriptor_t pd[_PAN_DESC_SIZE];
    static uint8_t ed[_ENERGY_DET_SIZE];
    mcps_data_ind_t* ind;

    static mlme_scan_req_t scan_req;
    scan_req = gen_mac_scan_req_t(scan_type, scan_channels, scan_duration, pd,
                                  _PAN_DESC_SIZE, ed, _ENERGY_DET_SIZE);

    callback_called = false;

    mlme_scan_req(&scan_req, scan_callback);


    while (!callback_called) {
        sys_task_run();
        }
   return &scan_req.confirm;
}

void gen_mac_key_descr_t(mac_key_descr_t* key_descr) {
    mac_table_init(&key_descr->id_lookup_list);
    mac_table_init(&key_descr->key_device_list);
    mac_table_init(&key_descr->key_usage_list);
}

mac_device_descr_t gen_mac_device_descr_t(uint16_t pan_id,
                                          uint16_t short_address,
                                          uint64_t extended_address,
                                          uint32_t frame_counter, bool exempt) {
    mac_device_descr_t ret;
    ret.pan_id = pan_id;
    ret.short_address = short_address;
    ret.extended_address = extended_address;
    ret.frame_counter = frame_counter;
    ret.exempt = exempt;
    return ret;
}

mac_security_level_descr_t gen_mac_security_level_descr_t(
    uint8_t frame_type, uint8_t cmd_frame_id, uint8_t security_min,
    uint8_t override_min) {
    mac_security_level_descr_t ret;
    ret.security_min = security_min;
    ret.override_min = override_min;
    ret.frame_type = frame_type;
    ret.cmd_frame_id = cmd_frame_id;
    return ret;
}

mac_key_id_lookup_descr_t gen_mac_key_id_lookup_descr_t(
    mac_key_lookup_size_t size) {
    mac_key_id_lookup_descr_t ret;
    ret.size = size;
    return ret;
}

mac_key_device_descr_t gen_mac_key_device_descr_t(uint8_t device_handle,
                                                  uint8_t unique_device,
                                                  uint8_t blacklisted) {
    mac_key_device_descr_t ret;
    ret.device_handle = device_handle;
    ret.blacklisted = blacklisted;
    ret.unique_device = unique_device;
    return ret;
}

mac_key_usage_descr_t gen_mac_key_usage_descr_t(uint8_t frame_type,
                                                uint8_t cmd_frame_id) {
    mac_key_usage_descr_t ret;
    ret.frame_type = frame_type;
    ret.cmd_frame_id = cmd_frame_id;
    return ret;
}

pib_id_t gen_pib_id_t_plme(plme_pib_attr_id_t id) {
    pib_id_t ret;
    ret.plme_id = id;
    return ret;
}

pib_id_t gen_pib_id_t(mlme_pib_attr_id_t id) {
    pib_id_t ret;
    ret.mlme_id = id;
    return ret;
}

const char* pib_id_str(pib_id_t id) {
    switch(id.mlme_id) {
        case MAC_PAN_ID:
            return "MAC_PAN_ID";
        case MAC_PAN_COORD_EXTENDED_ADDRESS:
            return "MAC_PAN_COORD_EXTENDED_ADDRESS";
        case MAC_PROMISCUOUS_MODE:
            return "MAC_PROMISCUOUS_MODE";
        case MAC_EXTENDED_ADDRESS:
            return "MAC_EXTENDED_ADDRESS";
        case MAC_SHORT_ADDRESS:
            return "MAC_SHORT_ADDRESS";
        case MAC_BEACON_PAYLOAD_LENGTH:
            return "MAC_BEACON_PAYLOAD_LENGTH";
        case MAC_BEACON_PAYLOAD:
            return "MAC_BEACON_PAYLOAD";
        case MAC_BEACON_ORDER:
            return "MAC_BEACON_ORDER";
        case MAC_RX_ON_WHEN_IDLE:
            return "MAC_RX_ON_WHEN_IDLE";
        case MAC_BATT_LIFE_EXT:
            return "MAC_BATT_LIFE_EXT";
        case MAC_IS_PAN_COORD:
            return "MAC_IS_PAN_COORD";
        case MAC_ASSOCIATION_PERMIT:
            return "MAC_ASSOCIATION_PERMIT";
        case MAC_GTS_PERMIT:
            return "MAC_GTS_PERMIT";
        case PHY_CURRENT_CHANNEL_ID:
            return "PHY_CURRENT_CHANNEL";
        default:
            return "**************UNKNOWN****************";
    }
}

void print_pib_get_request(const uint8_t* value, uint16_t size,
                           const char* name) {
    SEGGER_RTT_printf(0, "mlme_get: %s: 0x", name);
    for (uint16_t i = 0; i < size; i++) {
        SEGGER_RTT_printf(0, "%02x", value[i]);
    }
    SEGGER_RTT_printf(0, "\n");
}

const uint8_t* pib_get_request_tx(pib_id_t id) {
    static uint8_t value[256];
    mac_status_t res = mlme_get(id, 0, value);
    const char* name = pib_id_str(id);
    if (res != MAC_SUCCESS) {
        SEGGER_RTT_printf(0, "failure in pib-get request(%s): ", name);
        print_mac_status(res);
        SEGGER_RTT_printf(0, "\n");

        return NULL;
    }
    print_pib_get_request(value, mlme_pib_attr_size_calc(id, 0), name);
    return value;
}

const uint8_t* pib_get_request(pib_id_t id, const char* name) {
    static uint8_t value[256];
    mac_status_t res = mlme_get(id, 0, value);
    if (res != MAC_SUCCESS) {
        SEGGER_RTT_printf(0, "failure in pib-get request: ");
        print_mac_status(res);
        SEGGER_RTT_printf(0, "\n");
        return NULL;
    }
    print_pib_get_request(value, mlme_pib_attr_size_calc(id, 0), name);
    return value;
}

void pib_set_request(pib_id_t id, void * data) {
    mac_status_t state = mlme_set(id, 0, data);
    if (state != MAC_SUCCESS) {
        SEGGER_RTT_printf(0, "failure in pib-set request(%s): ", pib_id_str(id));
        print_mac_status(state);
        SEGGER_RTT_printf(0, "\n");

    }
}

const uint8_t* pib_set_get_request(pib_id_t id, void * data) {
    pib_set_request(id, data);
    return pib_get_request_tx(id);
}

void print_beacon_notify_ind(const mlme_beacon_notify_ind_t* ind) {
    SEGGER_RTT_printf(0, "{bsn: %u, pan_descriptor: ", ind->bsn);
    print_pan_desc(&(ind->pan_descriptor));
    SEGGER_RTT_printf(0, ", sdu_length: %u, sdu: 0x", ind->sdu_length);
    for (size_t i = 0u; i < ind->sdu_length; i++) {
        SEGGER_RTT_printf(0, "%02x", ind->sdu.p_payload[i]);
    }
    SEGGER_RTT_printf(0, ", pend_addr_spec: %x}\n", ind->pend_addr_spec);

}

void print_data_ind_tx(const mcps_data_ind_t* ind) {
    SEGGER_RTT_printf(0, "{src_pan_id: 0x%04x, ", ind->src_pan_id);
    print_addr(&(ind->src_addr), ind->src_addr_mode, "src_addr");
    SEGGER_RTT_printf(0, ", dst_pan_id: 0x%04x, ", ind->dst_pan_id);
    print_addr(&(ind->dst_addr), ind->dst_addr_mode, "dst_addr");
    SEGGER_RTT_printf(0, ", msdu_length: %u, sdu: 0x", ind->msdu_length);
    for (size_t i = 0u; i < ind->msdu_length; i++) {
        SEGGER_RTT_printf(0, "%02x", ind->msdu.p_payload[i]);
    }
    SEGGER_RTT_printf(0, ", mpdu_link_quality: %u", ind->mpdu_link_quality);
    SEGGER_RTT_printf(0, ", dsn: %u", ind->dsn);
    SEGGER_RTT_printf(0, ", timestamp: %u}\n", ind->timestamp);
    SEGGER_RTT_printf(0, "\n");
}


void mlme_beacon_notify_ind(mlme_beacon_notify_ind_t* _ind) {
    SEGGER_RTT_printf(0, "Received Beacon:\n");
    print_beacon_notify_ind(_ind);
}

void mlme_poll_ind(mlme_poll_ind_t* _ind) {
    SEGGER_RTT_printf(0, "Received Poll:\n");
}

void mcps_data_ind_tx(mcps_data_ind_t* _ind) {
    SEGGER_RTT_printf(0, "Received Data:\n");
    print_data_ind_tx(_ind);
}

void mlme_associate_ind(mlme_associate_ind_t* _ind) {
    SEGGER_RTT_printf(0, "Received Association:\n");
}
//end


void dummy_wait() {
    SEGGER_RTT_printf(0, "dummy wait: ...");
    for(volatile size_t i=0; i<1024*1024*8; i++) {
        uint32_t j = (i + 10 )%(1024*1024*2);
        if(j+44 == 88) {
            SEGGER_RTT_printf(0, "%d,", j);
        }
    }
    SEGGER_RTT_printf(0, "\n");
}


static uint8_t security_enabled = true;
    static uint16_t pan_id = 0x1111;   // same as that of the transmitter
    static uint16_t other_address = 0xFFFEU;
    static uint64_t pan_external = 0x1122334455667788ULL;
    static uint8_t promiscuous_mode = true;   // receive all packets which are sent wirelessly
    static uint8_t rx_on_when_idle = true;
//    static uint32_t channel_id = C12;          // channel to receive packets
    static uint8_t key[MAC_SECURITY_KEY_SIZE] = {
        0x12u, 0x34u, 0x56u, 0x78u, 0x9Au, 0xBCu, 0xDEu, 0xF0u,
        0x00u, 0x00u, 0x00u, 0x00u, 0x00u, 0x00u, 0x00u, 0x00u};
    static const uint8_t key_lookup_data[KEY_LOOKUP_SIZE_NINE_VAL] = {
        0x33, 0x33, 0x33, 0x33, 0x33, 0x33, 0x33, 0x33, 0x03};
    static uint8_t default_source[KEY_LOOKUP_SIZE_NINE_VAL - 1] = {
        0x33, 0x33, 0x33, 0x33, 0x33, 0x33, 0x33, 0x33};
    static uint8_t auto_request_security_level = MAC_SEC_OFF;
    static mac_security_level_descr_t sec_level_descr;
    static mac_key_id_lookup_descr_t key_id_lookup_descr;
    static mac_key_device_descr_t key_device_descr;
    static mac_device_descr_t device_descr;
    static mac_key_usage_descr_t key_usage_descr;
    static mac_key_descr_t key_descr;



void recieving_handle(void)
{
    sec_level_descr = gen_mac_security_level_descr_t(MAC_DATA, MAC_CMD_DATA_REQ,
                                                     MAC_SEC_OFF, false);


    key_id_lookup_descr = gen_mac_key_id_lookup_descr_t(KEY_LOOKUP_SIZE_NINE);
    memcpy(key_id_lookup_descr.data, key_lookup_data, KEY_LOOKUP_SIZE_NINE_VAL);
    key_device_descr = gen_mac_key_device_descr_t(0, false, false);
    key_device_descr.table_service.idx = 0;
    device_descr =
        gen_mac_device_descr_t(pan_id, other_address, pan_external, 0, false);
    key_usage_descr = gen_mac_key_usage_descr_t(MAC_DATA, MAC_CMD_DATA_REQ);

    // build the key_descr-table:
    gen_mac_key_descr_t(&key_descr);

    mac_status_t ret1 = mac_table_item_set(&key_descr.id_lookup_list,
                                           &key_id_lookup_descr.table_service,
                                           MAC_KEY_ID_LOOKUP_LIST, 0);

    mac_status_t ret2 = mac_table_item_set(&key_descr.key_device_list,
                                           &key_device_descr.table_service,
                                           MAC_KEY_DEVICE_LIST, 0);

    mac_status_t ret3 = mac_table_item_set(&key_descr.key_usage_list,
                                           &key_usage_descr.table_service,
                                           MAC_KEY_USAGE_LIST, 0);

    SEGGER_RTT_printf(0, "\n");

    memcpy(key_descr.key, key, MAC_SECURITY_KEY_SIZE);
//    channel_id=16u;

repeat:
// scan channel
while(true)
{//change
    {
//        NVIC_EnableIRQ( RADIO_IRQn );

        SEGGER_RTT_printf(0, "\n\nstarting the scan\n");
        stat=print_scan_conf_rx(scan_req(ACTIVE_SCAN,channel_id,scan_dur));// scan duration formula=[aBaseSuperframeDuration * (2^n + 1)]
        SEGGER_RTT_printf(0, "Stat: %d\n",stat);
        SEGGER_RTT_printf(0, "channel: %u\n",channel_id);
        SEGGER_RTT_printf(0, "finished the scan\n");
//        NVIC_DisableIRQ( RADIO_IRQn );
        __DSB();
        if(stat)
          break;
        else if (sdu_length>=18)
          goto subrepeat;
        else
        {
         // NVIC_DisableIRQ( RADIO_IRQn );
         // __DSB();
          timer2init(no_beacon_sleep);
          //send system to sleep mode if beacon is not detected
          __SEV();        //sleep
          __WFE();               //mode
          __WFE();                        //called
          scan_dur=-5;     //scan channel for 77ms if scan_dur=2

        }
    }
}

//NVIC_EnableIRQ( RADIO_IRQn );

{
    {
        mac_status_t state = mlme_set(gen_pib_id_t(MAC_PAN_ID), 0, &pan_id);
      /*  if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/
        pib_get_request(gen_pib_id_t(MAC_PAN_ID), "MAC_PAN_ID");
    }
    {
        mac_status_t state = mlme_set(
            gen_pib_id_t(MAC_PAN_COORD_EXTENDED_ADDRESS), 0, &pan_external);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/
        pib_get_request(gen_pib_id_t(MAC_PAN_COORD_EXTENDED_ADDRESS),
                        "MAC_PAN_COORD_EXTENDED_ADDRESS");
    }
    {
        mac_status_t state =
            mlme_set(gen_pib_id_t(MAC_PROMISCUOUS_MODE), 0, &promiscuous_mode);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/
        pib_get_request(gen_pib_id_t(MAC_PROMISCUOUS_MODE),
                        "MAC_PROMISCOUS_MODE");
    }



    {
        mac_status_t state =
            mlme_set(gen_pib_id_t(MAC_RX_ON_WHEN_IDLE), 0, &rx_on_when_idle);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/
        pib_get_request(gen_pib_id_t(MAC_RX_ON_WHEN_IDLE),
                        "MAC_RX_ON_WHEN_IDLE");
    }
    {
        mac_status_t state =
            mlme_set(gen_pib_id_t_plme(PHY_CURRENT_CHANNEL_ID), 0, &channel_id);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/
        pib_get_request(gen_pib_id_t_plme(PHY_CURRENT_CHANNEL_ID),
                        "PHY_CURRENT_CHANNEL_ID");
    }
    {
        mac_status_t state =
            mlme_set(gen_pib_id_t(MAC_KEY_TABLE), 0, &key_descr);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/

    }
    {
        mac_status_t state =
            mlme_set(gen_pib_id_t(MAC_DEVICE_TABLE), 0, &device_descr);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/
    }
    {
        mac_status_t state = mlme_set(gen_pib_id_t(MAC_SECURITY_LEVEL_TABLE), 0,
                                      &sec_level_descr);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/
    }

    {
        mac_status_t state =
            mlme_set(gen_pib_id_t(MAC_DEFAULT_KEY_SOURCE), 0, &default_source);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/
    }
    {
        mac_status_t state =
            mlme_set(gen_pib_id_t(MAC_AUTO_REQUEST_SECURITY_LEVEL), 0,
                     &auto_request_security_level);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }

*/
    }
    {
        mac_status_t state =
            mlme_set(gen_pib_id_t(MAC_SECURITY_ENABLED), 0, &security_enabled);
/*        if (state != MAC_SUCCESS) {
            SEGGER_RTT_printf(0, "failure in pib-set request: ");
            print_mac_status(state);
            SEGGER_RTT_printf(0, "\n");
        }
*/
        pib_get_request(gen_pib_id_t(MAC_SECURITY_ENABLED),
                        "MAC_SECURITY_ENABLED");
    }


    // received data
    mcps_data_ind_t* _ind;
    mcps_data_ind(_ind);
//change
subrepeat:
    while (true)
    {
        sys_task_run();
        //send system to sleep mode if sdu_length is detected
        if((sdu_length>=18))// && (k>=3))
        {
        //NVIC_DisableIRQ( RADIO_IRQn );
        //__DSB();
        timer2init(beacon_sleep);
        __SEV();
        __WFE();
        __WFE();
        sdu_length=0;
        scan_dur=-5;
        goto repeat; //go back to scanning the network
        }

    }

}
}
//tx

//uint32_t asn = 0;
uint8_t asn_f[4],time_sync_f[8];
uint8_t ch_offsetsel[] = {0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15}; // ChannelOffset
uint8_t beacon_payload[8];
uint64_t current_time=0,pervious_time=0;
uint32_t time_sync;
static uint8_t beacon_payload_length = sizeof(beacon_payload);
static const uint8_t ext_addr[] = {0xcau, 0xfeu, 0xbeu, 0xefu, 0x00u, 0x00u, 0xffu, 0xffu};
int i=0,w=0;
uint8_t hop_sequence[]= {16,17,23,18,26,15,25,22,19,11,12,13,24,14,20,21}; //channels hop sequence is given by kaumudi singh
uint8_t ch_offset_tx = 0;
uint8_t ch_select;

void tx_main()
{


    static uint8_t mac_association_permit = true;
    static uint8_t mac_gts_permit = false;
    static uint8_t rx_on_when_idle = true;
    static uint16_t ext_addr_only = MAC_EXTENDED_ADDRESS_ONLY;

    pib_set_get_request(gen_pib_id_t(MAC_EXTENDED_ADDRESS), (void *)ext_addr);
    pib_set_get_request(gen_pib_id_t(MAC_SHORT_ADDRESS), &ext_addr_only);
    pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD_LENGTH), &beacon_payload_length);
    pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD), (void*)beacon_payload);
    pib_set_get_request(gen_pib_id_t(MAC_RX_ON_WHEN_IDLE), &rx_on_when_idle);
    pib_set_get_request(gen_pib_id_t(MAC_ASSOCIATION_PERMIT), &mac_association_permit);
    pib_get_request_tx(gen_pib_id_t(MAC_GTS_PERMIT));
    pib_set_get_request(gen_pib_id_t(MAC_GTS_PERMIT), &mac_gts_permit);

    #define BEACON_ORDER 0x9u        // beacon interval = 7.68 sec
    #define SUPERFRAME_ORDER 0x0u

 // start superframe structure
    static mlme_start_req_t start_req =
	{
			.pan_id  = 0x1111,
			.logical_channel = 11,
			.start_time = 0x000000,
			.beacon_order = BEACON_ORDER,
			.superframe_order = SUPERFRAME_ORDER,
			.pan_coordinator = true,
			.battery_life_extension = false,
			.coord_realignment = false,
#if (CONFIG_SECURE == 1)
            .coord_realign_security_level = false,
            .beacon_security_level = false,
#endif
	};

    callback_called = false;
	mlme_start_req(&start_req, start_callback);
    while (!callback_called) {
        sys_task_run();
    }


    SEGGER_RTT_printf(0, "Sent the Start-Request: ");
    print_mac_status(start_req.confirm.status);
    SEGGER_RTT_printf(0, "\n");
    SEGGER_RTT_printf(0, " Channel : %u\n",start_req.logical_channel);
    SEGGER_RTT_printf(0,"Time :%u\n",sys_time_get());


while(true)
{
 SEGGER_RTT_printf(0, "cho: %d\n",ch_offset_tx);
  for (i=0;;i++)
     {
          //channel = (ASN + ChannelOffset) % N , ASN-Absolute Slot Number,N-number of channels

          ch_select = ((asn+ch_offset_tx)%(16));
          start_req.logical_channel = hop_sequence[ch_select];

          callback_called = false;
	  mlme_start_req(&start_req, start_callback);
          while (!callback_called) {
                   sys_task_run();
          }

//          nrf_delay_us(7864324);

          SEGGER_RTT_printf(0, "Sent the Start-Request: ");
          print_mac_status(start_req.confirm.status);
          SEGGER_RTT_printf(0, "\n");
          if(i==0)
          {
          SEGGER_RTT_printf(0, "i=%d",i);
          asn=asn+202;
          }
          else{
          SEGGER_RTT_printf(0, "i=%d",i);
          asn=asn+505;
          }

          asn_f[0]=((asn >> 24 ) & 0xFF);
          asn_f[1]=((asn >> 16 ) & 0xFF);
          asn_f[2]=((asn >> 8 ) & 0xFF);
          asn_f[3]=((asn ) & 0xFF);

          SEGGER_RTT_printf(0, " Channel : %u\n",start_req.logical_channel);
          printf("channel_select %u , asn %u , channel offset %u\n",ch_select,asn,ch_offset);
//          printf("asn_f = %x%x%x%x\n",asn_f[0],asn_f[1],asn_f[2],asn_f[3]);

           current_time=sys_time_get();
           time_sync=current_time-pervious_time;
           SEGGER_RTT_printf(0,"Time_sy :%u\n",time_sync);
           pervious_time=current_time;

          SEGGER_RTT_printf(0, "\n");

          time_sync_f[0]=((time_sync >> 24) & 0xFF);
          time_sync_f[1]=((time_sync >> 16) & 0xFF);
          time_sync_f[2]=((time_sync >> 8) & 0xFF);
          time_sync_f[3]=((time_sync) & 0xFF);


          beacon_payload[0] =asn_f[0];
          beacon_payload[1] =asn_f[1];
          beacon_payload[2] =asn_f[2];
          beacon_payload[3] =asn_f[3];
          beacon_payload[4] =time_sync_f[0];
          beacon_payload[5] =time_sync_f[1];
          beacon_payload[6] =time_sync_f[2];
          beacon_payload[7] =time_sync_f[3];

          pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD_LENGTH), &beacon_payload_length);
          pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD), (void*)beacon_payload);

     }
}
while(true)
{
  sys_task_run();
}
}

void print_data_ind(const mcps_data_ind_t* ind) {
    SEGGER_RTT_printf(0, "{src_pan_id: 0x%04x, ", ind->src_pan_id);
    print_addr(&(ind->src_addr), ind->src_addr_mode, "src_addr");
    SEGGER_RTT_printf(0, ", dst_pan_id: 0x%04x, ", ind->dst_pan_id);
    print_addr(&(ind->dst_addr), ind->dst_addr_mode, "dst_addr");
    SEGGER_RTT_printf(0, ", msdu_length: %u, sdu: 0x", ind->msdu_length);
    sdu_length=ind->msdu_length;
    for (size_t i = 0u; i < ind->msdu_length; i++) {
        SEGGER_RTT_printf(0, "%02x", ind->msdu.p_payload[i]);
    }
     for(z=0;z<12;z++)
     {
        sdu_data[z]=ind->msdu.p_payload[z+17];
     }
    SEGGER_RTT_printf(0, ", mpdu_link_quality: %u", ind->mpdu_link_quality);
    SEGGER_RTT_printf(0, ", dsn: %u", ind->dsn);
    SEGGER_RTT_printf(0, ", timestamp: %u}\n", ind->timestamp);
    SEGGER_RTT_printf(0, "\n");
    SEGGER_RTT_printf(0, "Time: %u ",sys_time_get());
    SEGGER_RTT_printf(0,"sud_data: %x%x%x%x\n",sdu_data[0],sdu_data[1],sdu_data[2],sdu_data[3]);

    sdu_data_dec=sdu_data[3];
    sdu_data_dec=sdu_data_dec | (sdu_data[2] <<8);
    sdu_data_dec=sdu_data_dec | (sdu_data[1] <<16);
    sdu_data_dec=sdu_data_dec | (sdu_data[0] <<24);

    SEGGER_RTT_printf(0,"sud_data in dec: %d\n",sdu_data_dec);


    memset(ind->msdu.p_payload, 0, sizeof(ind->msdu.p_payload)); //Clearing the recieved data from the msdu.p_payload
    SEGGER_RTT_printf(0,"sdu: %02x", ind->msdu.p_payload);
    SEGGER_RTT_printf(0, "\t k: %d ",k);
    SEGGER_RTT_printf(0, "\n");
    nrf_gpio_pin_toggle(LED_3);
    k+=1;	//Everytime a frame is received, value is incremented.
    if(k>=1 | k<4)
    {
      asn=sdu_data_dec+505;
      channel_id=((asn+ch_offset)%16);
      channel_id= channel_hop_seq[channel_id];
//      channel_id = channel_hop_seq[rand()%sizeof(channel_hop_seq)];
      no_beacon_sleep=7800000;
    }
// for restarting board when RAM is full
    if(k>=4)
    {
//     NRF_TIMER2->TASKS_STOP=1;
     SEGGER_RTT_printf(0, "in tx\n");
     nrf_delay_us(7864324);
     tx_main();

    }

}

void mcps_data_ind(mcps_data_ind_t* _ind) {
//    SEGGER_RTT_printf(0, "Received Data: \n");
    print_data_ind(_ind);
}

int main(void) {
    ral_irq_handler_import();

    SEGGER_RTT_Init();
    uint8_t rtt_buf_out[1024u];
    SEGGER_RTT_ConfigUpBuffer(0, "OUT", rtt_buf_out, 1024u,
                              SEGGER_RTT_MODE_NO_BLOCK_TRIM);

    app_task_init();
    sys_task_post(APP_TASK_ID);

    clock_init();

    SEGGER_RTT_printf(0, "....RESET....\n");
#if (CONFIG_SECURE == 1)
    SEGGER_RTT_printf(0, "Compiled with CONFIG_SECURE\n");
#endif

recieving_handle();
tx_main();
SEGGER_RTT_printf(0, "out of first reciever handle \n");

while(true)
{
sys_task_run();
}


}
//change

//Timer 2 interrupt function
void TIMER2_IRQHandler(void)
{

            if (NRF_TIMER2->EVENTS_COMPARE[0] == 1)
            {
//              SEGGER_RTT_printf(0, "in interrupt 2\n");
              //NVIC_EnableIRQ( RADIO_IRQn );     //Enable radio interrupt to start receiving data again
             // SEGGER_RTT_printf(0, "Time: %u ",sys_time_get());
              NRF_TIMER2->EVENTS_COMPARE[0] = 0;
            }
}

/*void TIMER3_IRQHandler(void)
{

            if (NRF_TIMER3->EVENTS_COMPARE[0] == 1)
            {
              SEGGER_RTT_printf(0, "in interrupt 3\n");
              NVIC_EnableIRQ( RADIO_IRQn );
              NRF_TIMER3->EVENTS_COMPARE[0] = 0;


            }
}
*/

The experiment setup as follows:

  • The TX will be transmitting the packets for every 7.8 Sec. This is an continues process.( TX code)
  • The RX will be in scan mode, once the packet is received the RX follows the TX for 3 channel hops ( TX and RX code). Then the TX part comes and transmit the packets for 7.8 Sec, this part is giving as issue. The line of code which gives error is mlme_start_req(&start_req, start_callback) which is uesd in for loop in TX code.

Any solution to solve the problem.

Thanks in Advance

Parents
  • Hi,

    Thanks for replying. I will check the call back function. To recreate the assert error you should use 2 nRF52840. one will be the TX and the other one will be the RX. For TX use the above inserted code which is named as TSCH TX and for the RX the us the code which is named as both TX and RX.

    Should I use the same code (the one in the 'first' folder) on both TX and RX board? No the codes are not same for TX and RX , use the same folder to program both TX and RX with the codes mentioned above in bold, all the necessary header files are add to it.

    The set as follows:

    1. Flash the nRF52840 DK with the TX code as mentioned above. ( TSCH TX Board 1)

    2. Flash the another nRF52840 with the RX code as mentioned above.( both TX and RX Board 2)

    3. The board 2 will channel hop for 4 times and enters the TX mode at this point the assert error will occur. To see the error, board 2 should be in Debug mode.

    Note: The board 2 will Be scanning for the channel 16 ( C16 ), You can change it to C11. If you don't want to wait for long period of time.

    uint32_t channel_id=C16; change this to uint32_t channel_id=C11;

    Sorry if i have not explained properly how to setup things. If you face any problem in recreating the problem Please let me know.

    Thank You.

  • Hi,

    Please let me know if you have any update ?

    Thank You.

  • Hi,

    Sorry for the late reply. I am still not able to reproduce the assert. I did the following:

    1. Made 2 copies of the project you attached here.

    2. Copied the TX only code inside one of the projects. The other project runs RX/TX. I also modified the RX/TX code so you start scanning on channel 11 as you said.

    3. Flash one nRF52840 DK with the TX code in debug mode (board 1).

    4. Flash another nRF52840 DK with the RX/TX code in debug mode (board 2).

    The RX/TX code seems to stop doing anything in roughly the same place as you do, but it does not go into an assert. It seems like it's stucked somewhere in the infinite for loop after calling mlme_start_req(). If you place a breakpoint in mlme_start_req in line 865 I see that the function is called two times and then nothing else happens. Can you explain more in detail what you want to achieve with this part of the code?

    while(true)
    {
     SEGGER_RTT_printf(0, "cho: %d\n",ch_offset_tx);
      for (i=0;;i++)
         {
              //channel = (ASN + ChannelOffset) % N , ASN-Absolute Slot Number,N-number of channels

              ch_select = ((asn+ch_offset_tx)%(16));
              start_req.logical_channel = hop_sequence[ch_select];

              callback_called = false;
    	  mlme_start_req(&start_req, start_callback);
              while (!callback_called) {
                       sys_task_run();
              }

    //          nrf_delay_us(7864324);

              SEGGER_RTT_printf(0, "Sent the Start-Request: ");
              print_mac_status(start_req.confirm.status);
              SEGGER_RTT_printf(0, "\n");
              if(i==0)
              {
              SEGGER_RTT_printf(0, "i=%d",i);
              asn=asn+202;
              }
              else{
              SEGGER_RTT_printf(0, "i=%d",i);
              asn=asn+505;
              }

              asn_f[0]=((asn >> 24 ) & 0xFF);
              asn_f[1]=((asn >> 16 ) & 0xFF);
              asn_f[2]=((asn >> 8 ) & 0xFF);
              asn_f[3]=((asn ) & 0xFF);

              SEGGER_RTT_printf(0, " Channel : %u\n",start_req.logical_channel);
              printf("channel_select %u , asn %u , channel offset %u\n",ch_select,asn,ch_offset);
    //          printf("asn_f = %x%x%x%x\n",asn_f[0],asn_f[1],asn_f[2],asn_f[3]);

               current_time=sys_time_get();
               time_sync=current_time-pervious_time;
               SEGGER_RTT_printf(0,"Time_sy :%u\n",time_sync);
               pervious_time=current_time;

              SEGGER_RTT_printf(0, "\n");

              time_sync_f[0]=((time_sync >> 24) & 0xFF);
              time_sync_f[1]=((time_sync >> 16) & 0xFF);
              time_sync_f[2]=((time_sync >> 8) & 0xFF);
              time_sync_f[3]=((time_sync) & 0xFF);


              beacon_payload[0] =asn_f[0];
              beacon_payload[1] =asn_f[1];
              beacon_payload[2] =asn_f[2];
              beacon_payload[3] =asn_f[3];
              beacon_payload[4] =time_sync_f[0];
              beacon_payload[5] =time_sync_f[1];
              beacon_payload[6] =time_sync_f[2];
              beacon_payload[7] =time_sync_f[3];

              pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD_LENGTH), &beacon_payload_length);
              pib_set_get_request(gen_pib_id_t(MAC_BEACON_PAYLOAD), (void*)beacon_payload);

         }
    }
    while(true)
    {
      sys_task_run();
    }

    I have to say I don't have so much experience with TSCH-based protocols, but what I am expecting to happen is that the transmitter application should transmit a frame periodically changing channels, and then the receiver should scan a single channel and wait until the transmitter hits this channel and then follow the transmitter channel hopping sequence and receive each frame. Do you also plan to send the frames received by the receiver?

    Attach the modified code you sent:

    802_15_4_tsch_devzone.zip

    -M

  • Hello,

    Thanks for replying.

    If you place a breakpoint in mlme_start_req in line 865 I see that the function is called two times and then nothing else happens. Can you explain more in detail what you want to achieve with this part of the code?

    I used mlme_start_req 2 times instated of 1 because the TX will transmit 2 beacons within in an interval of few milliseconds so i used 2 mlme_start_req to avoid this from happening.

    the transmitter application should transmit a frame periodically changing channels, and then the receiver should scan a single channel and wait until the transmitter hits this channel and then follow the transmitter channel hopping sequence and receive each frame

    Yes, this is correct. I was able to achieve this for 1 TX and 1 RX.

    Do you also plan to send the frames received by the receiver?

    NO.

    My aim is to do multiple TX and 1 RX . I want all the TX to be in TIME SYNC.

    So I am trying to do the RX first and this is in TIME SYNC with the TX. After N channel hops, the Receiver should act as Transmitter ( Like BLE central to BLE peripheral ). So I can make sure the second TX is TIME SYNC with first TX.

    I tried Debugging your code it was in an infinite loop as you said, so I debugged the code line by line I found that it was going to the assert error which is the problem I am facing right now.

    To see the error I am adding a screenshot to follow.

    1. Place a break point at line number 865.

    2.Once it reaches to line number 865, do setp in ( press F11 ).

    3. Step 2 starts line by line debugging ( opens Disassembly window ).

    4.Press F11 for 18 times and check the assembly code ( cbz r2, 0x00004E86 , the address might vary for you).

    5.You can see that condition of the the above code is not satisfied.

     Step 1 & 2

    Step 4

    Step 5

    Thank you.

    Hoping to hear from you soon.

  • Hi,

    Sorry for the late reply. Do you have any more new information about your issue? Are you still struggling with this assert?

    Are you waiting for the Sucess callback after calling mlme_start_req again?

    BR,

    Marjeris

  • Hi,

    Sorry for the late reply. I was able to solve the problem yesterday, i am currently testing the code. Thanks for your support and guiding me to solve the issue.

    Thanks.

Reply Children
No Data
Related
