Zigbee TX Pulse

[Sushil.30]

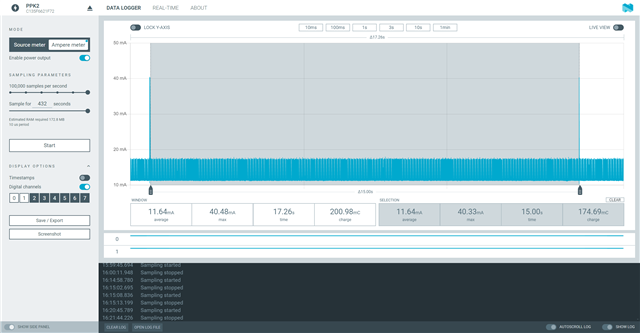

We are using PPK II with nRF52840-DK and in zigbee case we are getting two different kinds of reparative pulses

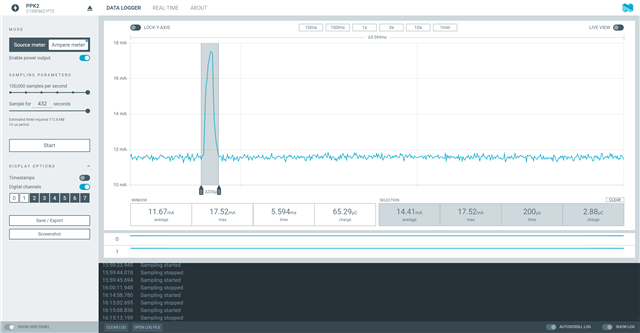

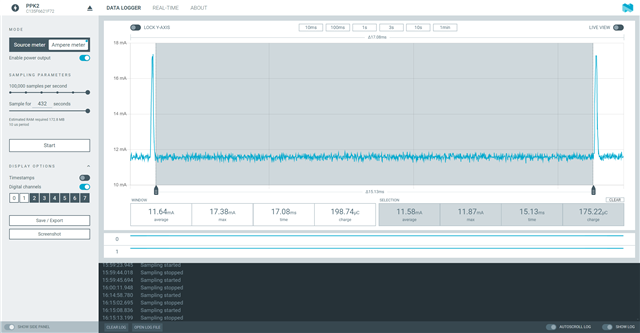

1. Pluse_1 -> Amplitude = 17.52mA ; Ton = 200us & Toff = 15ms

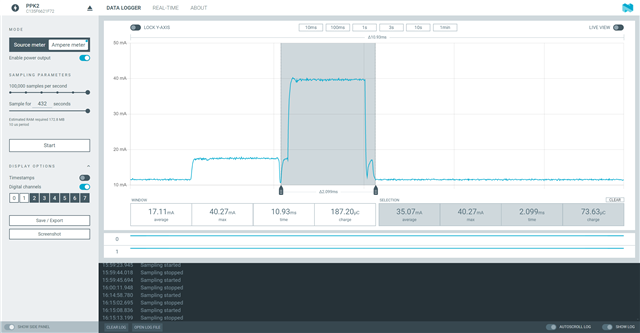

2. Pulse_2 -> Amplitude = 40.27mA ; Ton = 2ms & Toff = 15s

What is the significance of these pulses?

Why Pulse_2 generated with such a large amplitude & Ton time?



[Håkon Alseth]

Hi,



You seem to have a 10 mA offset. Could you share pictures of your physical setup?



Kind regards,

Håkon
