Libuarte + GSM Communication

[Muqarrab]

Hi,

I am communicating SIM808 with nRF52840. I have made changes in libuarte example and send AT commands to send SMS. I have the following question.

1. How can I know that I have received complete data?
2. How can I send (char) 26 (termination character) at the end of SMS?
3. Is there any library available for sending sms and MQTT communication?

Thanks!

/**
 * Copyright (c) 2018 - 2020, Nordic Semiconductor ASA
 *
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without modification,
 * are permitted provided that the following conditions are met:
 *
 * 1. Redistributions of source code must retain the above copyright notice, this
 *    list of conditions and the following disclaimer.
 *
 * 2. Redistributions in binary form, except as embedded into a Nordic
 *    Semiconductor ASA integrated circuit in a product or a software update for
 *    such product, must reproduce the above copyright notice, this list of
 *    conditions and the following disclaimer in the documentation and/or other
 *    materials provided with the distribution.
 *
 * 3. Neither the name of Nordic Semiconductor ASA nor the names of its
 *    contributors may be used to endorse or promote products derived from this
 *    software without specific prior written permission.
 *
 * 4. This software, with or without modification, must only be used with a
 *    Nordic Semiconductor ASA integrated circuit.
 *
 * 5. Any software provided in binary form under this license must not be reverse
 *    engineered, decompiled, modified and/or disassembled.
 *
 * THIS SOFTWARE IS PROVIDED BY NORDIC SEMICONDUCTOR ASA "AS IS" AND ANY EXPRESS
 * OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
 * OF MERCHANTABILITY, NONINFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE ARE
 * DISCLAIMED. IN NO EVENT SHALL NORDIC SEMICONDUCTOR ASA OR CONTRIBUTORS BE
 * LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
 * CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
 * GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
 * HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
 * LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT
 * OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 */
/** @file
 * @defgroup libuarte_example_main main.c
 * @{
 * @ingroup libuarte_example
 * @brief Libuarte Example Application main file.
 *
 * This file contains the source code for a sample application using libuarte.
 *
 */

#include <stdbool.h>
#include <stdint.h>
#include <stdio.h>
#include <string.h>

#include "nrf_libuarte_async.h"
#include "nrf_drv_clock.h"
#include <bsp.h>
#include "nrf_log_ctrl.h"
#include "nrf_log_default_backends.h"
#include "nrf_queue.h"
#include "nrf_delay.h"




NRF_LIBUARTE_ASYNC_DEFINE(libuarte, 0, 0, 0, NRF_LIBUARTE_PERIPHERAL_NOT_USED, 255, 3);

static uint8_t text[] = "UART example started5.\r\nLoopback:\r\n";
static uint8_t text_size = sizeof(text);
static volatile bool m_loopback_phase;

static uint8_t command[]="123456789012345123456534623465351235412344123412341234";

unsigned char received_data[50];
int count_data=0;

bool data_completed=false;


typedef struct {
    uint8_t * p_data;
    uint32_t length;
} buffer_t;

NRF_QUEUE_DEF(buffer_t, m_buf_queue, 10, NRF_QUEUE_MODE_NO_OVERFLOW);

void uart_event_handler(void * context, nrf_libuarte_async_evt_t * p_evt)
{
    nrf_libuarte_async_t * p_libuarte = (nrf_libuarte_async_t *)context;
    ret_code_t ret;

    switch (p_evt->type)
    {
        case NRF_LIBUARTE_ASYNC_EVT_ERROR:
            bsp_board_led_invert(0);
            break;
        case NRF_LIBUARTE_ASYNC_EVT_RX_DATA:


            //if(((unsigned char)*(p_evt->data.rxtx.p_data)>=0x20&(unsigned char)*(p_evt->data.rxtx.p_data)<=0xFE))
            if((unsigned char)*(p_evt->data.rxtx.p_data)!=0)
            {
                  received_data[count_data]=(unsigned char)*(p_evt->data.rxtx.p_data);
                  count_data=count_data+1;
            }
            //else
            //{

            //              printf("%d\n",(unsigned char)*(p_evt->data.rxtx.p_data));
            //}

            //if(received_data[count_data-2]==13 &received_data[count_data-1]==10)
            //    printf("Carriage\n");
            //  //data_completed=true;

            m_loopback_phase = true;
//            printf("Rx Called\n");
            break;
        case NRF_LIBUARTE_ASYNC_EVT_TX_DONE:
            if (m_loopback_phase)
            {
                nrf_libuarte_async_rx_free(p_libuarte, p_evt->data.rxtx.p_data, p_evt->data.rxtx.length);
                if (!nrf_queue_is_empty(&m_buf_queue))
                {
                    buffer_t buf;
                    ret = nrf_queue_pop(&m_buf_queue, &buf);
                    APP_ERROR_CHECK(ret);
                    UNUSED_RETURN_VALUE(nrf_libuarte_async_tx(p_libuarte, buf.p_data, buf.length));
                }
            }
            bsp_board_led_invert(2);
           // printf("Tx Called\n");
            break;
        default:
            break;
    }
}

/**
 * @brief Function for main application entry.
 */

bool send_command(char cmd[],int size_cmd)
{
    ret_code_t err_code;
    count_data=0;

    for (int i=0;i<25;i++)
    {
      received_data[i]=0;
    }

    printf("Sending  : ");
    printf(cmd);

    memset(command, 0, sizeof(command));

    for (int i=0;i<size_cmd;i++)
    {
      command[i]=cmd[i];
    }
    do {
        err_code = nrf_libuarte_async_tx(&libuarte, command,sizeof(command));
        }
    while (err_code == NRF_ERROR_BUSY);

    APP_ERROR_CHECK(err_code);

    nrf_delay_ms(1000);
    printf("Received : %s\n",received_data);

    //char *ret;
    //ret = strstr(received_data, "OK");
    //printf("Response is: %s\n", ret);
    printf("-----------------------------------------------------\n");
}
int main(void)
{
    bsp_board_init(BSP_INIT_LEDS);

    ret_code_t ret = nrf_drv_clock_init();
    APP_ERROR_CHECK(ret);

    nrf_drv_clock_lfclk_request(NULL);

    ret_code_t err_code = NRF_LOG_INIT(app_timer_cnt_get);
    APP_ERROR_CHECK(err_code);

    NRF_LOG_DEFAULT_BACKENDS_INIT();

    nrf_libuarte_async_config_t nrf_libuarte_async_config = {
            .tx_pin     = TX_PIN_NUMBER,
            .rx_pin     = RX_PIN_NUMBER,
            .baudrate   = NRF_UARTE_BAUDRATE_9600,
            .parity     = NRF_UARTE_PARITY_EXCLUDED,
            .hwfc       = NRF_UARTE_HWFC_DISABLED,
            .timeout_us = 100,
            .int_prio   = APP_IRQ_PRIORITY_LOW
    };

    err_code = nrf_libuarte_async_init(&libuarte, &nrf_libuarte_async_config, uart_event_handler, (void *)&libuarte);

    APP_ERROR_CHECK(err_code);

    nrf_libuarte_async_enable(&libuarte);

    //send_command("AT\n",sizeof("AT\n"));
    //send_command("AT+GSN\n",sizeof("AT+GSN\n"));
    //send_command("AT+CSQ\n",sizeof("AT+CSQ\n"));
    //send_command("AT+CCID\n",sizeof("AT+CCID\n"));
    //send_command("AT+CREG?\n",sizeof("AT+CREG?\n"));
    //send_command("AT+CMGF=1\n",sizeof("AT+CMGF=1\n"));
    //send_command("AT+CMGR=1\n",sizeof("AT+CMGR=1\n"));

    //sim.println("AT+CMGS=\"" + Auth_Number + "\"\r"); //Mobile phone number to send message
    //delay(1000);
    //sim.print(BLE_Feedback);
    //delay(100);
    //sim.println((char)26);// ASCII code of CTRL+Z


    send_command("AT\n",sizeof("AT\n"));
    send_command("AT+GSN\n",sizeof("AT+GSN\n"));
    send_command("AT+CSQ\n",sizeof("AT+CSQ\n"));
    //send_command("AT+CCID\n",sizeof("AT+CCID\n"));
    //send_command("AT+CREG?\n",sizeof("AT+CREG?\n"));
    send_command("AT+CMGF=1\n",sizeof("AT+CMGF=1\n"));
    //send_command("AT+CSCS=\"GSM\"\r\n",sizeof("AT+CSCS=\"GSM\"\r\n"));
    send_command("AT+CMGS=\"[phone]\"\r\n",sizeof("AT+CMGS=\"[phone]\"\r\n"));
    send_command("Hello World\n",sizeof("Hello World\n"));
    //send_command("\x1a",sizeof("\x1a"));

nrf_serial_write()

    while (true)
    {
        NRF_LOG_FLUSH();
    }
}


/** @} */

[Øyvind]

Hello, I assume you are using the nRF5 SDK v17.0.2

How can I know that I have received complete data?

 Looking through the libuarte library documentation, there is a TX done event which should give an indication.



How can I send (char) 26 (termination character) at the end of SMS?

 I'm afraid I do not have that information. This sounds like information that should be stated in the modem, SIM808.



Is there any library available for sending sms and MQTT communication?

 Have you tried looking at our nRF Connect SDK? In the Zephyr repository there is a Generic GSM modem sample, tested with SIM808. This should also easily be combined with one of the MQTT samples available in the samples.

Kind regards,
Øyvind

[Muqarrab]

Thanks, @Øyvind for your reply.

Øyvind said:

I assume you are using the nRF5 SDK v17.0.2

Yes, I am using this.

Øyvind said:

Have you tried looking at our nRF Connect SDK? In the Zephyr repository there is a Generic GSM modem sample, tested with SIM808. This should also easily be combined with one of the MQTT samples available in the samples.

I have already developed an application as a peripheral.  I have to add this communication part in that application later. Can I use that example to add to my application?

Thanks

[Øyvind]

Muqarrab said:

Is there any GSM example in nRF5 SDK?

No, not that I'm aware of. There might be something in the forum from other customers.

[Muqarrab]

Hi,

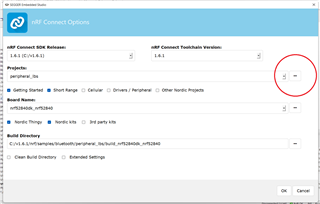

I have installed nRF Connect SDK and open MQTT_simple and run code and getting the following error.

Does any Solution please?

[Øyvind]

What version of NCS are you running? Have tried to customize the code in any way? Building the mqtt_simple from NCS v1.6.1 does not provide any errors on my side using Segger Embedded Studio Nordic Edition 5.50c.

Please make sure to use an official tag of NCS, with NCS 1.6.1 being latest, but the release candidate for 1.7.0 is also available. The latest/master branch tends to be more unstable as this may have new features under testing.

How did you install NCS? Please try with the Toolchain Manager found in the nRF Connect for Desktop software.

Kind regards,
Øyvind

[Muqarrab]

Øyvind said:

What version of NCS are you running?

I am running 1.6.1. I have not changed anything.

[Øyvind]

That is strange, you should not receive any errors when building the mqtt_simple sample. When installing v1.6.1 via Toolchain Manager, please make sure that you are not behind a firewall which can block certain files.

Also, we have seen strange behavior with the build system, when the path is too long. To which path did you install the SDK environment?

When opening the project via "Open nRF Connect SDK project" in SES, can you please take a screenshot of the settings that you use? I.e. board name, build directory, etc.

Thank you.

Kind  regards,
Øyvind

[Muqarrab]

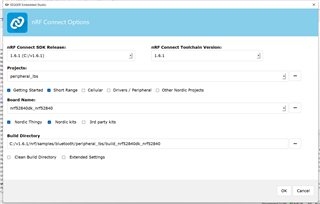

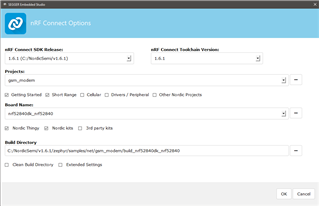

I have selected these settings.

I have tried with both option(clean build directory)

[Øyvind]

I think I see the what may be causing the error. The mqtt_simple is designed for use with the nRF9160, and not the nRF52840. If possible, I would recommend looking at the nRF9160 which includes an LTE IoT modem.

[Muqarrab]

Actually, I have nRF52840 and SIM808 and perform MQTT using both. What can I do?

[Øyvind]

Muqarrab said:

Actually, I have nRF52840 and SIM808 and perform MQTT using both.

Can you please elaborate what you are trying to achieve? You will need to port your application from nRF5 SDK to NCS, based Generic GSM Modem sample add the MQTT library.

[Muqarrab]

Actually, I have nRF52840 and SIM808. And I want to connect with cloudmqtt and send and receive messages using the PUB/SUB method.
