which TX Power value is maximum ?

[yoyou]

Hello,

nRF21540DK

which TX Power value is maximum for long rang?

void set_tx_power(uint8_t handle_type, uint16_t handle, int8_t tx_pwr_lvl)
{
    struct bt_hci_cp_vs_write_tx_power_level *cp;
    struct bt_hci_rp_vs_write_tx_power_level *rp;
    struct net_buf *buf, *rsp = NULL;
    int err;

    buf = bt_hci_cmd_create(BT_HCI_OP_VS_WRITE_TX_POWER_LEVEL,sizeof(*cp));
    if (!buf) {
         printk("Unable to allocate command buffer\n");
         return;
    }

    cp = net_buf_add(buf, sizeof(*cp));
    cp->handle = sys_cpu_to_le16(handle);
    cp->handle_type = handle_type;
    cp->tx_power_level = tx_pwr_lvl;

    err = bt_hci_cmd_send_sync(BT_HCI_OP_VS_WRITE_TX_POWER_LEVEL,buf, &rsp);
    if (err) {
        uint8_t reason = rsp ?
            ((struct bt_hci_rp_vs_write_tx_power_level *)
              rsp->data)->status : 0;
        printk("Set Tx power err: %d reason 0x%02x\n", err, reason);
        return;
    }

    rp = (void *)rsp->data;
    printk("RADIO Tx Power: %d + PA_GAIN(%d) = %d\n", rp->selected_tx_power, CONFIG_MPSL_FEM_NRF21540_TX_GAIN_DB, rp->selected_tx_power + CONFIG_MPSL_FEM_NRF21540_TX_GAIN_DB);

    net_buf_unref(rsp);
}

void main()
{
...
	// set TX power
	set_tx_power(BT_HCI_VS_LL_HANDLE_TYPE_ADV, 0, RADIO_TXPOWER_TXPOWER_Pos8dBm);
...
}



Best Regards

[ketiljo]

The nRF21549 have 20 dB gain, so you will have max output power when the input power is 0 dBm.

[yoyou]

Hi,

nRF21540DK

with periodic_adv project, your means ?

set_tx_power(BT_HCI_VS_LL_HANDLE_TYPE_ADV, 0, RADIO_TXPOWER_TXPOWER_0dBm);



but i test RADIO_TXPOWER_TXPOWER_Pos8dBm is maximum distance.



thanks

Best Regards

[ketiljo]

What difference in range do you see between 0 dBm and 8 dBm?

[yoyou]

Hi,

distance difference :

RADIO_TXPOWER_TXPOWER_0dBm         30M

RADIO_TXPOWER_TXPOWER_Pos8dBm   50M

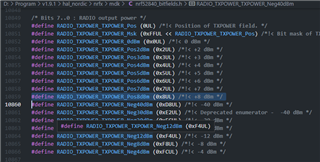

another,why 5340 and 52840 define difference ?

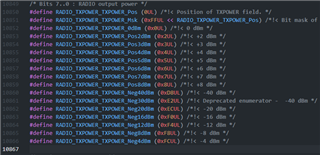

5340 don't have  [+8 dBm]

i only want to furthest distance,

5340DK / 52840DK / 21540DK,

What is their maximum power option?





thanks

Best Regards

[ketiljo]

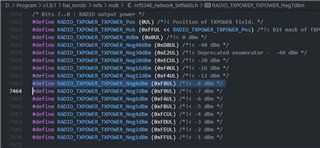

nRF5340 doesn't have 8 dBm, that's correct. Max ix 3 dBm for this.

The range you measure seems very short. Have you configured the PA correctly? 50 m is much shorter than what you will see with only 8 dBm

BTW, make sure you can actually use more than 10 dBm where you intend to use this device. BLE is usually max 10 dBm.

[yoyou]

Hi,

thanks for reply,

for nRF21540DK

nrf21540dk_nrf52840.conf

CONFIG_BT_CTLR_ADV_EXT=y
CONFIG_BT_CTLR_ADV_PERIODIC=y
# CONFIG_BT_LL_SW_SPLIT=y
# CONFIG_BT_CTLR_PHY_CODED=y
#CONFIG_BT_USER_PHY_UPDATE=y


# ------------FEM-------------------------------
CONFIG_MPSL_FEM=y
CONFIG_BT_CTLR_ADVANCED_FEATURES=y
CONFIG_BT_CTLR_TX_PWR_MINUS_20=y
CONFIG_BT_CTLR_TX_PWR_DYNAMIC_CONTROL=n
CONFIG_MPSL_FEM_NRF21540_RX_GAIN_DB=0
CONFIG_MPSL_FEM_NRF21540_TX_GAIN_DB=20



prj.conf

CONFIG_I2S=y
CONFIG_LOG=y
CONFIG_I2S_LOG_LEVEL_DBG=y
CONFIG_I2S_LOG_LEVEL_INF=y

CONFIG_BT=y
CONFIG_BT_EXT_ADV=y
CONFIG_BT_PER_ADV=y
CONFIG_BT_DEBUG_LOG=y
CONFIG_BT_DEVICE_NAME="PerAdv"

CONFIG_NEWLIB_LIBC=y
# CONFIG_NEWLIB_LIBC_FLOAT_PRINTF=y

CONFIG_HEAP_MEM_POOL_SIZE=8192
CONFIG_MAIN_STACK_SIZE=8192

CONFIG_GPIO=y

# CONFIG_BT_LL_SW_SPLIT=y
# CONFIG_BT_USER_PHY_UPDATE=y


# Allow for large Bluetooth data packets.
# Increase maximum data length of PDU supported in the Controller
CONFIG_BT_L2CAP_TX_MTU=252
CONFIG_BT_CTLR_ADV_DATA_LEN_MAX=244
CONFIG_BT_CTLR_DATA_LENGTH_MAX=251
CONFIG_BT_BUF_ACL_TX_SIZE=251
CONFIG_BT_BUF_ACL_RX_SIZE=502

i want to set maximum statically only. TX Power and GAIN

is the PA correctly?

and nRF21540DK without external antenna the distance can large than 200M？



Best Regards

[ketiljo]

It might be the example you are using that causes this. Try one of the examples here instead: https://developer.nordicsemi.com/nRF_Connect_SDK/doc/latest/zephyr/samples/bluetooth/bluetooth.html
