Hello, I'm working currently on an nrf52805 module and I'm creating a board with it, for now, I managed to do the ble app uart for this module and improve to code a little bit.
My goal, for now, is to create an ADC measurement of voltage, and I'm struggling with this. If someone could help me with this that would be great to give a code that would be good with it or an idea (i'm kinda new with BLE)
So I tried to use the example: github.com/.../ble_app_uart__saadc_timer_driven__scan_mode

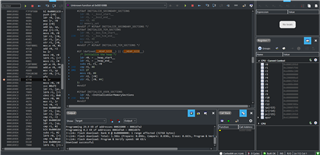

I'm trying to readapt the example to my board and thanks to the datasheet i saw that The nRF52805 only has 10 PPI channels (0-9) and The nRF52805 also only has 3 timers (TIMER0-TIMER2) but when I'm trying to taking off this in the code i get this error after :
