Mechanical Information

[tmarera]

May you please provide a .txt or .excel file of the location for each pin on the nRF52805 or the nRF52810.

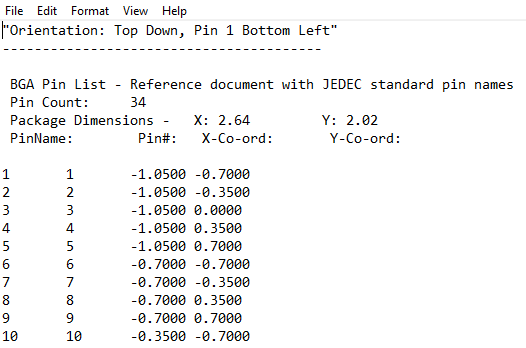

Like the sample below for your reference. This will help us accurately confirm the coordinate position of each pad by importing this file.

Example:

[Amanda Hsieh]

Hi,

You can download the reference layout on the web:

https://www.nordicsemi.com/Products/nRF52805/Download?lang=en#infotabs

https://www.nordicsemi.com/Products/nRF52810/Download?lang=en#infotabs

Regards,
Amanda

[tmarera]

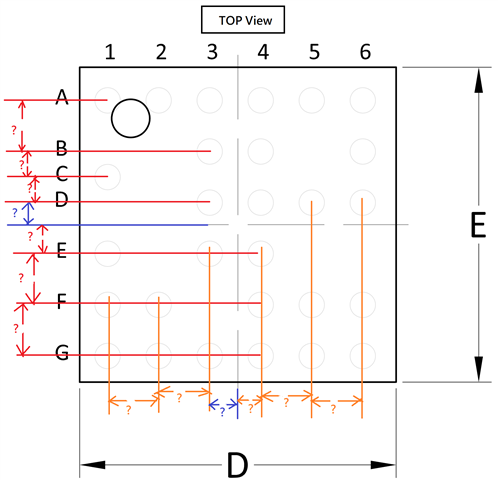

Hi Amanda, the files still do not give the relative position of the BGA balls. Any chance you can provide the information as below:

[Amanda Hsieh]

Hi,

Sorry. It's in the nRF52805 PS Mechanical specifications and nRF52810 Mechanical specifications.

-Amanda
