Technical drawings for nrf52840DK

[Platinumer]

Hello everybody,

i need the technical drawings for the nrf52840DK.

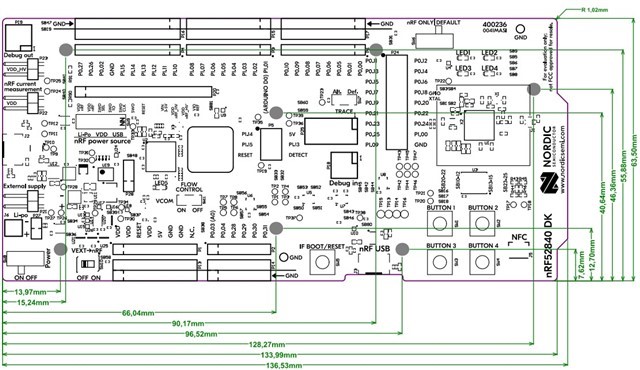

All i can find are some dimensions from the board itself ,see figure, but i want to make my own board like the Qorvo DWM3000EVB but with another Chip.

So i make my own curcuit board which i can stick on the nrf52840DK. For that i need the dimensions of the pin arrangement.

Are their available somewhere?

Thanks,

Tano

[Frank Viganske]

Hi,

Layouts and schematics can be downloaded here: https://www.nordicsemi.com/Products/Development-hardware/nRF52840-DK/Download#infotabs

Files are in Altium designer format.

Best regards

Frank
