Mbedtls - Using keys handled by PSA Crypto

[Darko]

Hello,

I need to implement the code that calculates the ECDSA signature, using the mbedtls library.
Development environment:

• nRF53DK
• nRF Connect SDK 2.3.0

Currently, the process is implemented as follows:

• The private key is generated using openssl, and stored to flash memory in DER format.
• The signature is calculated by loading the mentioned key in mbedtls_pk_context using mbedtls_pk_parse_key, and passing such context to the mbedtls_ecdsa_write_signature function.

As a next step, it is necessary to implement key generation within the firmware and use it for signature so that the code itself does not need access to the key content.

I was able to generate the key using psa_generate_key.
The plan is to load the generated key to the corresponding mbedtls_pk_context using mbedtls_pk_setup_opaque as a next step.
This should be the only change from the current state (after configuring the mbedtls_pk_context, mbedtls_ecdsa_write_signature is called as before).

However, the problem is that, despite researching similar forum posts, and corresponding mbedtls configuration requests, I am still not able to use the mbedtls_pk_setup_opaque function because it looks like MBEDTLS_USE_PSA_CRYPTO is not defined.

The following security modules are included in the prj file (here there are certainly those that are not needed for the mentioned ECDSA signing, but remained in the project for the needs of tests of various mbedtls functionalities):

CONFIG_NRF_SECURITY=y

CONFIG_MBEDTLS_LIBRARY_NRF_SECURITY=y
CONFIG_MBEDTLS_USE_PSA_CRYPTO=y
CONFIG_MBEDTLS_PSA_CRYPTO_C=y
CONFIG_MBEDTLS_PSA_CRYPTO_STORAGE_C=y

CONFIG_MBEDTLS_PK_C=y
CONFIG_MBEDTLS_RSA_C=y
CONFIG_MBEDTLS_PKCS1_V15=y
CONFIG_MBEDTLS_SHA256_C=y
CONFIG_MBEDTLS_ECP_C=y
CONFIG_MBEDTLS_ECDSA_C=y
CONFIG_MBEDTLS_ECDH_C=y
CONFIG_MBEDTLS_CTR_DRBG_C=y
CONFIG_MBEDTLS_ENTROPY_C=y
CONFIG_MBEDTLS_PK_PARSE_C=y

CONFIG_MBEDTLS_TLS_LIBRARY=y
CONFIG_MBEDTLS_X509_LIBRARY=y
CONFIG_MBEDTLS_PK_WRITE_C=y
CONFIG_MBEDTLS_X509_CREATE_C=y
CONFIG_MBEDTLS_X509_CSR_WRITE_C=y
CONFIG_MBEDTLS_LEGACY_CRYPTO_C=y
CONFIG_MBEDTLS_PSA_CRYPTO_EXTERNAL_RNG=n

Do you have any idea what could be the cause of this behavior?
Is this a regular approach for implementing not exposing secret key material to the users of mbedtls API?

Thanks.

[Sigurd Hellesvik]

Hi,

I need to implement the code that calculates the ECDSA signature, using the mbedtls library.

If you want to rule out an XY Problem, you can tell me what the use-case is. If not I will help you as best I can with what you ask for.

it looks like MBEDTLS_USE_PSA_CRYPTO is not defined.

I suggest that you use the VS Code Kconfig tool or "menuconfig" (west build -t menuconfig) to check which dependencies unset CONFIG_MBEDTLS_USE_PSA_CRYPTO.

If I build the nrf/samples/crypto/ecdsa sample with your above configs except for EXTERNAL_RNG (it makes the build fail), I get MBEDTLS_USE_PSA_CRYPTO=y

Does this help you?

Regards,
Sigurd Hellesvik

[Darko]

Hello,

I upgraded the existing persistent_key_usage example with mbedtls functionality, in order to additionally describe the problem.

In the code below, I tried to generate a CSR using a key generated with the "PSA_KEY_LIFETIME_PERSISTENT" attribute (in the posts above I mentioned the ECDSA signature, but for the simplicity of this example I chose to present the problem through generating a CSR).

Here is the original code from the demo with added generate_csr function:

/*
 * Copyright (c) 2021 Nordic Semiconductor ASA
 *
 * SPDX-License-Identifier: LicenseRef-Nordic-5-Clause
 */

#include <zephyr/kernel.h>
#include <zephyr/sys/printk.h>
#include <zephyr/logging/log.h>
#include <stdio.h>
#include <psa/crypto.h>
#include <psa/crypto_extra.h>
#include <pk.h>
#include <mbedtls/x509_csr.h>
#include <mbedtls/ctr_drbg.h>
#include <mbedtls/entropy.h>

#ifdef CONFIG_BUILD_WITH_TFM
#include <tfm_ns_interface.h>
#endif

#define APP_SUCCESS		(0)
#define APP_ERROR		(-1)
#define APP_SUCCESS_MESSAGE "Example finished successfully!"
#define APP_ERROR_MESSAGE "Example exited with error!"

#define PRINT_HEX(p_label, p_text, len)\
	({\
		LOG_INF("---- %s (len: %u): ----", p_label, len);\
		LOG_HEXDUMP_INF(p_text, len, "Content:");\
		LOG_INF("---- %s end  ----", p_label);\
	})

LOG_MODULE_REGISTER(persistent_key_usage, LOG_LEVEL_DBG);

#define SEC_LIB_CSR_SUBJECT_NAME        "C=US,O=Test,OU=Test,CN=Test"
uint8_t m_csr_buffer[4096];
static 	mbedtls_pk_context m_private_key_context;
static 	psa_key_handle_t key_handle;

/* ====================================================================== */
/*			Global variables/defines for the persistent key  example	  */

/* The key id for the persistent key. The macros PSA_KEY_ID_USER_MIN and
 * PSA_KEY_ID_USER_MAX define the range of freely available key ids.
 */
#define SAMPLE_PERS_KEY_ID PSA_KEY_ID_USER_MIN



/* ====================================================================== */

int crypto_init(void)
{
	psa_status_t status;

	/* Initialize PSA Crypto */
	status = psa_crypto_init();
	if (status != PSA_SUCCESS)
		return APP_ERROR;

	return APP_SUCCESS;
}

int crypto_finish(void)
{
	psa_status_t status;

	/* Destroy the key handle */
	status = psa_destroy_key(key_handle);
	if (status != PSA_SUCCESS) {
		LOG_INF("psa_destroy_key failed! (Error: %d)", status);
		return APP_ERROR;
	}

	return APP_SUCCESS;
}

int generate_prersistent_key(void)
{
	psa_status_t status;

	LOG_INF("Generating random persistent AES key...");

	/* Configure the key attributes */
	psa_key_attributes_t key_attributes = PSA_KEY_ATTRIBUTES_INIT;

	psa_set_key_usage_flags(&key_attributes, PSA_KEY_USAGE_SIGN_MESSAGE | PSA_KEY_USAGE_DERIVE);
    psa_set_key_lifetime(&key_attributes, PSA_KEY_LIFETIME_VOLATILE);
    psa_set_key_algorithm(&key_attributes, PSA_ALG_ECDSA(PSA_ALG_SHA_256));
    psa_set_key_type(&key_attributes, PSA_KEY_TYPE_ECC_KEY_PAIR(PSA_ECC_FAMILY_SECP_R1));
    psa_set_key_bits(&key_attributes, 256);

    /* Persistent key specific settings */
	psa_set_key_lifetime(&key_attributes, PSA_KEY_LIFETIME_PERSISTENT);
	psa_set_key_id(&key_attributes, SAMPLE_PERS_KEY_ID);

	// Try to destroy key (in case it previously created).
	psa_destroy_key(SAMPLE_PERS_KEY_ID);

	/* Generate a random AES key with persistent lifetime. The key can be used for
	 * encryption/decryption using the key_handle.
	 */
	status = psa_generate_key(&key_attributes, &key_handle);
	if (status != PSA_SUCCESS) {
		LOG_INF("psa_generate_key failed! (Error: %d)", status);
		return APP_ERROR;
	}

	/* After the key handle is acquired the attributes are not needed */
	psa_reset_key_attributes(&key_attributes);

	LOG_INF("Persistent key generated successfully!");

	return APP_SUCCESS;
}

int generate_csr(void)
{
	int status;
	int16_t lenght_of_csr;

	mbedtls_x509write_csr csr_ctx;
	mbedtls_entropy_context     m_entropy_ctx;
	mbedtls_ctr_drbg_context    m_ctr_drbg_ctx;

	// Initialize mbedtls_pk_context and "load" previously created key into it.
	mbedtls_pk_init(&m_private_key_context);
	mbedtls_pk_setup_opaque(&m_private_key_context, key_handle);

	// Initialize drbg context.
	mbedtls_entropy_init(&m_entropy_ctx);
    mbedtls_ctr_drbg_init(&m_ctr_drbg_ctx);
    status = mbedtls_ctr_drbg_seed(&m_ctr_drbg_ctx, mbedtls_entropy_func, &m_entropy_ctx, NULL, 0);
    if(status != 0)
    {
        return APP_ERROR;
    }

	// Prepare CSR context.
	mbedtls_x509write_csr_init(&csr_ctx);
    mbedtls_x509write_csr_set_key_usage(&csr_ctx, MBEDTLS_X509_KU_DIGITAL_SIGNATURE);
    mbedtls_x509write_csr_set_subject_name(&csr_ctx, SEC_LIB_CSR_SUBJECT_NAME);
    mbedtls_x509write_csr_set_md_alg(&csr_ctx, MBEDTLS_MD_SHA256);
    mbedtls_x509write_csr_set_key(&csr_ctx, &m_private_key_context);

	// Create CSR.
    lenght_of_csr = mbedtls_x509write_csr_der(&csr_ctx, m_csr_buffer, sizeof(m_csr_buffer), mbedtls_ctr_drbg_random, &m_ctr_drbg_ctx);
	if(lenght_of_csr < 0)
	{
		return APP_ERROR;
	}

	return APP_SUCCESS;
}

int main(void)
{
	int status;

	LOG_INF("Starting persistent key example...");

	status = crypto_init();
	if (status != APP_SUCCESS) {
		LOG_INF(APP_ERROR_MESSAGE);
		return APP_ERROR;
	}

	status = generate_prersistent_key();
	if (status != APP_SUCCESS) {
		LOG_INF(APP_ERROR_MESSAGE);
		return APP_ERROR;
	}

	status = generate_csr();
	if (status != APP_SUCCESS) {
		LOG_INF(APP_ERROR_MESSAGE);
		return APP_ERROR;
	}

	status = crypto_finish();
	if (status != APP_SUCCESS) {
		LOG_INF(APP_ERROR_MESSAGE);
		return APP_ERROR;
	}

	LOG_INF(APP_SUCCESS_MESSAGE);

	return APP_SUCCESS;
}

# The Zephyr CMSIS emulation assumes that ticks are ms, currently
CONFIG_SYS_CLOCK_TICKS_PER_SEC=1000

CONFIG_MAIN_STACK_SIZE=4096
CONFIG_HEAP_MEM_POOL_SIZE=4096

# Enable loging using RTT and UART
CONFIG_CONSOLE=y
CONFIG_LOG=y
CONFIG_USE_SEGGER_RTT=y
CONFIG_LOG_BACKEND_RTT=y
CONFIG_LOG_BACKEND_UART=y
CONFIG_LOG_BUFFER_SIZE=15360
CONFIG_SEGGER_RTT_BUFFER_SIZE_UP=15360

# Enable nordic security backend and PSA APIs
CONFIG_NRF_SECURITY=y
CONFIG_MBEDTLS_PSA_CRYPTO_C=y

# Enable persistent storage APIs
CONFIG_MBEDTLS_PSA_CRYPTO_STORAGE_C=y
CONFIG_PSA_NATIVE_ITS=y

CONFIG_MBEDTLS_ENABLE_HEAP=y
CONFIG_MBEDTLS_HEAP_SIZE=8192
CONFIG_PSA_CRYPTO_DRIVER_OBERON=n
CONFIG_PSA_CRYPTO_DRIVER_CC3XX=y


CONFIG_NRF_SECURITY=y

CONFIG_MBEDTLS_LIBRARY_NRF_SECURITY=y
CONFIG_MBEDTLS_USE_PSA_CRYPTO=y
CONFIG_MBEDTLS_PSA_CRYPTO_C=y
CONFIG_MBEDTLS_PSA_CRYPTO_STORAGE_C=y

CONFIG_MBEDTLS_PK_C=y
CONFIG_MBEDTLS_RSA_C=y
CONFIG_MBEDTLS_PKCS1_V15=y
CONFIG_MBEDTLS_SHA256_C=y
CONFIG_MBEDTLS_ECP_C=y
CONFIG_MBEDTLS_ECDSA_C=y
CONFIG_MBEDTLS_ECDH_C=y
CONFIG_MBEDTLS_CTR_DRBG_C=y
CONFIG_MBEDTLS_ENTROPY_C=y
CONFIG_MBEDTLS_PK_PARSE_C=y

CONFIG_MBEDTLS_TLS_LIBRARY=y
CONFIG_MBEDTLS_X509_LIBRARY=y
CONFIG_MBEDTLS_PK_WRITE_C=y
CONFIG_MBEDTLS_X509_CREATE_C=y
CONFIG_MBEDTLS_X509_CSR_WRITE_C=y
CONFIG_MBEDTLS_LEGACY_CRYPTO_C=y
CONFIG_MBEDTLS_PSA_CRYPTO_EXTERNAL_RNG=n

With the configuration from the prj file mentioned in the first post I got the following errors:
- "undefined reference to `mbedtls_pk_setup_opaque" - MBEDTLS_USE_PSA_CRYPTO was not defined in pk.h, although it was enabled with CONFIG_MBEDTLS_USE_PSA_CRYPTO=y.
- The key generation (psa_generate_key) failing because in psa_validate_key_persistence MBEDTLS_PSA_CRYPTO_STORAGE_C was not defined (also enabled with the CONFIG_MBEDTLS_PSA_CRYPTO_STORAGE_C=y)

I solved both problems only when I included in nrf-config-user.h:

#define MBEDTLS_PSA_CRYPTO_STORAGE_C 1
#define MBEDTLS_USE_PSA_CRYPTO 1

Sigurd Hellesvik said:

If I build the nrf/samples/crypto/ecdsa sample with your above configs except for EXTERNAL_RNG (it makes the build fail), I get MBEDTLS_USE_PSA_CRYPTO=y

If I understood you correctly, you didn't have to additionally include MBEDTLS_USE_PSA_CRYPTO through the nrf-config-user.h file?

Currently, there is the following problem with the mbedtls_x509write_csr_der function, that I haven't solved yet:

Such function returns the value PSA_ERROR_NOT_SUPPORTED (from the inside call psa_driver_wrapper_export_public_key).

Can you help me find what is missing in the configuration?

Thanks.

[Sigurd Hellesvik]

Here are what I got:

"

There are multiple issues here, one of them being the lack of ability to convert CSR related configs in 2.3 Ask them to remove MBEDTLS_LEGACY_CRYPTO_C in their prj.conf and add MBEDTLS_X509_CREATE_C and MBEDTS_X509_CSR_WRITE_C here: https://github.com/nrfconnect/sdk-nrfxlib/blob/6d0f58448fae164cfa4d28c494d6bddf5d0d0224/nrf_security/configs/nrf-config.h#L396

This file gets copied during build when the system is using PSA crypto APIs

Additionally they are using legacy crypto APIs for RNG for the CSR. I've removed quite a bit (entropy and ctr_drbg).

"

And here is an example for some pointers:

I hope this can be useful for you to dig into this issue.

[Darko]

Hello Sigurd,

Thank you for that information. I was not aware of the fact that it is necessary to adjust the file nrf-config.h in the sdk.
I'm trying currently to solve the issue on my side by using the details you mentioned above.

[Darko]

Hello Sigurd,

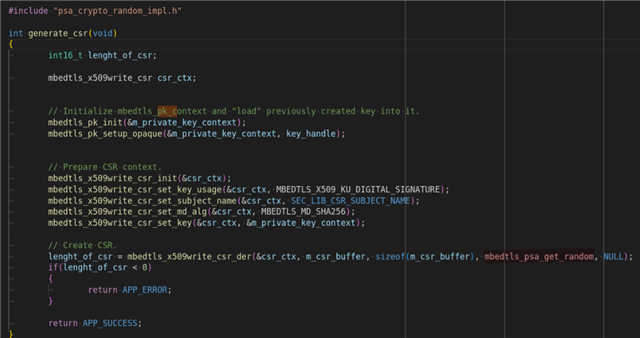

Just to confirm I'm now able to generate CSR using a key loaded through mbedtls_pk_setup_opaque function.

Thank you for your help.

[Darko]

Hello Sigurd,

Is there a way to enable MBEDTLS_X509_CREATE_C and MBEDTS_X509_CSR_WRITE_C by avoiding changing the file from SDK?

It would be good practice to distribute all the specifics of my project through the project itself.
Otherwise, it will be necessary for me to require anyone who wants to build the project to change the SDK on his side as an additional requirement.

It looks like it should be achievable through from User-provided Mbed TLS configuration header.
However, following such a guide I got an error:
custom_name_nrf_config.h: No such file or directory

even though the path to the file is added to target_include_directories.

I'm not sure whether this can be applied to the NCS v2.3.0?

Regards,
Darko

[Sigurd Hellesvik]

I see that the X509 options is commented out for the PSA crypto config: nrf/subsys/nrf_security/cmake/psa_crypto_config.cmake.

I will ask our crypto developers what the reason for this is.

[Sigurd Hellesvik]

They say:

"

Hey. It was commented out as it is not needed in TF-M build. Previously there was a false dependency on TLS/DTLS and X.509 libraries inside TF-M. But when we started optimizing we finally removed that dependency (TF-M just tried to consume Mbed TLS as a whole thing, while they really only needed the crypto toolbox functionality)

The easiest thing to do is to just add it into the template files, but I would guard it with #if !defined(MBEDTLS_PSA_CRYPTO_SPM) to ensure that it isn't enabled inside the TF-M image.

Likely the user-configurable header file was easier to get to work when we were using the builtin Mbed TLS. We have gravitated away from that with PSA core from Oberon. We have no way of converting header file into CMake, so we won't pull in the right files in the compilation... (or set up the right linking rules) We need to remove this chapter from the documentation (of which we appologize).

"

[Darko]

Hello Sigurd,

Thanks for those details.

Regards.
