Error when flashing nrf5340 custom board in HV DC/DC mode with 3V0 set using a segger jlink plus

lcj

I've been able to flash consistently but I finally got my nrf5340 custom board working using Hight Voltage DC/DC by setting it to UICR_VREGHVOUT_VREGHVOUT_3V0, but when I tried to flash again with my Segger JLink after making some changes I get this:

-- west flash: using runner nrfjprog
-- runners.nrfjprog: reset after flashing requested
-- runners.nrfjprog: Flashing file: /Users/********/Projects/GitHub/********/pcb_test/build_dj_291/merged.hex
[error] [ Client] - Encountered error -220: Command erase_file executed for 30136 milliseconds with result -220
[error] [  nRF53] - Failed while performing Erase operation on target address 340.
-220: NVMC controller never gets ready.
[error] [  nRF53] - Failed while erasing device. -220: NVMC controller never gets ready.
[error] [ Worker] - NVMC controller never gets ready.
ERROR: Operation failed due to timeout. Check the log messages for more details.
NOTE: For additional output, try running again with logging enabled (--log).
NOTE: Any generated log error messages will be displayed.
FATAL ERROR: command exited with status 64: nrfjprog --program /Users/********/Projects/GitHub/********/pcb_test/build_dj_291/merged.hex --sectorerase --verify -f NRF53 --coprocessor CP_APPLICATION --snr *********

When I connect using jlinkexe I get:

Device "NRF5340_XXAA_APP" selected.


Connecting to target via SWD
ConfigTargetSettings() start
ConfigTargetSettings() end - Took 23us
InitTarget() start
InitTarget() end - Took 1.74ms
Found SW-DP with ID 0xFBB03477
DPIDR: 0x6BA22677
CoreSight SoC-400 or earlier
AP map detection skipped. Manually configured AP map found.
AP[0]: AHB-AP (IDR: Not set, ADDR: 0x00000000)
AP[1]: AHB-AP (IDR: Not set, ADDR: 0x00000000)
AP[2]: MEM-AP (IDR: Not set, ADDR: 0x00000000)
AP[3]: MEM-AP (IDR: Not set, ADDR: 0x00000000)
AP[0]: Core found
AP[0]: AHB-AP ROM base: 0xE20FE200
CPUID register: 0x430FD216. Implementer code: 0x43 (???)
Feature set: Mainline
Cache: No cache
Found Cortex-M33 r0p6, Little endian.
FPUnit: 8 code (BP) slots and 2 literal slots
Security extension: implemented
Secure debug: enabled
CoreSight components:
ROMTbl[0] @ E20FE200
Memory zones:
  Zone: "Default" Description: Default access mode
Cortex-M33 identified.

I did have logging running another time this is a segment of it:

[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - read_u32
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_connect_to_device
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - is_connected_to_device
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_read_u32
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_invalidate_cache
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_ExecCommand("InvalidateCache", ...).
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.004ms returns 0x00
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_ReadMemU32(0x50039400, 0x1 Items)
[2025-Jun-08 15:23:02] [trace] [  JLink] - CPU_ReadMem(4 bytes @ 0x50039400)
[2025-Jun-08 15:23:02] [trace] [  JLink] - Data:  03 02 02 02
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 1.129ms returns 1 (0x1)
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - read_u32
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_connect_to_device
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - is_connected_to_device
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_read_u32
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_invalidate_cache
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_ExecCommand("InvalidateCache", ...).
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.003ms returns 0x00
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_ReadMemU32(0x50039400, 0x1 Items)
[2025-Jun-08 15:23:02] [trace] [  JLink] - CPU_ReadMem(4 bytes @ 0x50039400)
[2025-Jun-08 15:23:02] [trace] [  JLink] - Data:  03 02 02 02
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.811ms returns 1 (0x1)
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [error] [ Client] - Encountered error -220: Command erase_file executed for 30153 milliseconds with result -220
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - read_u32
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_connect_to_device
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - is_connected_to_device
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_read_u32
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_invalidate_cache
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_ExecCommand("InvalidateCache", ...).
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.003ms returns 0x00
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_ReadMemU32(0x50039400, 0x1 Items)
[2025-Jun-08 15:23:02] [trace] [  JLink] - CPU_ReadMem(4 bytes @ 0x50039400)
[2025-Jun-08 15:23:02] [trace] [  JLink] - Data:  03 02 02 02
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.969ms returns 1 (0x1)
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [error] [  nRF53] - Failed while performing Erase operation on target address 340.
-220: NVMC controller never gets ready.
[2025-Jun-08 15:23:02] [ info] [  nRF53] - {"amountOfSteps":0,"description":"Erasing non-volatile memory","message":"Failed while performing Erase operation on target address 340. \n-220: NVMC controller never gets ready.","operation":"erase_image","progressPercentage":0,"result":"fail","step":0}
[2025-Jun-08 15:23:02] [error] [  nRF53] - Failed while erasing device. -220: NVMC controller never gets ready.
[2025-Jun-08 15:23:02] [ info] [  nRF53] - {"amountOfSteps":0,"description":"Erase file","message":"Failed while erasing device. -220: NVMC controller never gets ready.","operation":"erase_image","progressPercentage":0,"result":"fail","step":0}
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 2.348ms
[2025-Jun-08 15:23:02] [error] [ Worker] - NVMC controller never gets ready.
[2025-Jun-08 15:23:02] [trace] [ Worker] - Command erase_file executed for 30146 milliseconds with result -220
[2025-Jun-08 15:23:02] [debug] [  nRF53] - close
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - is_connected_to_emu
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_IsOpen()
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.005ms returns 0x01
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_Lock()
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - close
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - disconnect_from_emu
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_disconnect_from_emu
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - is_connected_to_device
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_IsConnected()
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.002ms returns TRUE
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_is_debug_region_powered
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_read_debug_port_register
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_select_debug_port_register
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - Select AP 255, DP Bank 0, AP Bank 255
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_CORESIGHT_WriteAPDPReg(DP reg 0x02, 0x00000000)
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.405ms returns 0
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_CORESIGHT_ReadAPDPReg(DP reg 0x01)
[2025-Jun-08 15:23:02] [trace] [  JLink] - Value=0xF2020242
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.425ms returns 0
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - Disable trace before closing connection.
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_write_u32
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_write_debug_port_register
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_select_debug_port_register
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - Select AP 255, DP Bank 0, AP Bank 255
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_CORESIGHT_WriteAPDPReg(DP reg 0x02, 0x00000000)
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.466ms returns 0
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_CORESIGHT_WriteAPDPReg(DP reg 0x02, 0x00000000)
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.602ms returns 0
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_WriteU32(0xE000EDFC, 0x00000000)
[2025-Jun-08 15:23:02] [trace] [  JLink] - Debug reg: DEMCR
[2025-Jun-08 15:23:02] [trace] [  JLink] - CPU_WriteMem(4 bytes @ 0xE000EDFC)
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.906ms returns 0 (0x00000000)
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_is_debug_region_powered
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - Shortcut, lock is on and debug region is powered.
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - unpower_debug_and_system_regions
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_write_debug_port_register
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_select_debug_port_register
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_CORESIGHT_WriteAPDPReg(DP reg 0x01, 0x00000000)
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.515ms returns 0
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_HasError()
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_is_debug_region_powered
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_read_debug_port_register
[2025-Jun-08 15:23:02] [debug] [SeggerBackend] - ---just_select_debug_port_register
[2025-Jun-08 15:23:02] [trace] [  JLink] - JLINK_CORESIGHT_ReadAPDPReg(DP reg 0x01)
[2025-Jun-08 15:23:02] [trace] [  JLink] - Value=0x02020242
[2025-Jun-08 15:23:02] [trace] [  JLink] - - 0.640ms returns 0
[2025-Jun-08 15:23:02] [trace] [  JLink] - JL


I just got the UICR_VREGHVOUT_VREGHVOUT_3V0 running and am wondering if that could be it. I used this post as a reference which identifies if it is at the right level otherwise sets it using:

NRF_UICR->VREGHVOUT = (UICR_VREGHVOUT_VREGHVOUT_3V3 | ~UICR_VREGHVOUT_VREGHVOUT_Msk);

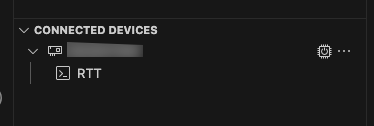

It's not showing as connected like it normally does in vs code:

This is what I get through jlinkexe:

SEGGER J-Link Commander V8.34 (Compiled May 14 2025 16:59:53)
DLL version V8.34, compiled May 14 2025 16:59:11

Connecting to J-Link via USB...O.K.
Firmware: J-Link V11 compiled Apr  1 2025 10:02:30
Hardware version: V11.00
J-Link uptime (since boot): 0d 00h 00m 15s
S/N: ********
License(s): RDI, FlashBP, FlashDL, JFlash, GDB
USB speed mode: High speed (480 MBit/s)
VTref=3.300V (fixed)


Type "connect" to establish a target connection, '?' for help
J-Link>connect
Please specify device / core. <Default>: NRF5340_XXAA_APP
Type '?' for selection dialog
Device>?
Please specify target interface:
  J) JTAG (Default)
  S) SWD
  T) cJTAG
TIF>s
Specify target interface speed [kHz]. <Default>: 4000 kHz
Speed>
Device "NRF5340_XXAA_APP" selected.


Connecting to target via SWD
ConfigTargetSettings() start
ConfigTargetSettings() end - Took 13us
InitTarget() start
InitTarget() end - Took 2.10ms
Found SW-DP with ID 0x********
DPIDR: 0x6BA22677
CoreSight SoC-400 or earlier
AP map detection skipped. Manually configured AP map found.
AP[0]: AHB-AP (IDR: Not set, ADDR: 0x00000000)
AP[1]: AHB-AP (IDR: Not set, ADDR: 0x00000000)
AP[2]: MEM-AP (IDR: Not set, ADDR: 0x00000000)
AP[3]: MEM-AP (IDR: Not set, ADDR: 0x00000000)
AP[0]: Core found
AP[0]: AHB-AP ROM base: 0xE20FE200
CPUID register: 0x430FD216. Implementer code: 0x43 (???)
Feature set: Mainline
Cache: No cache
Found Cortex-M33 r0p6, Little endian.
FPUnit: 8 code (BP) slots and 2 literal slots
Security extension: implemented
Secure debug: enabled
CoreSight components:
ROMTbl[0] @ E20FE200
Memory zones:
  Zone: "Default" Description: Default access mode
Cortex-M33 identified.

I tried changing the TRef to 3000 but it didnt' work:

Connecting to target via SWD
ConfigTargetSettings() start
ConfigTargetSettings() end - Took 11us
InitTarget() start
InitTarget() end - Took 101ms
Failed to attach to CPU. Trying connect under reset.
Found SW-DP with ID 0xFBB03477
SWD speed too high. Reduced from 4000 kHz to 2700 kHz for stability
Failed to power up DAP
ConfigTargetSettings() start
ConfigTargetSettings() end - Took 7us
InitTarget() start
InitTarget() end - Took 2.27ms
Failed to attach to CPU. Trying connect under reset.
Found SW-DP with ID 0x******
SWD speed too high. Reduced from 2687 kHz to 1813 kHz for stability
Failed to power up DAP
Error occurred: Could not connect to the target device.
For troubleshooting steps visit: https://wiki.segger.com/J-Link_Troubleshooting

When I go back to 3300 I can connect but still face the [error] [ nRF53] - Failed while erasing device. -220: NVMC controller never gets ready. error.

I'm using these pins on the Segger, which have been working for me up until this point:

I tried a reset using jlinkexe but got this:

J-Link>reset
Reset delay: 0 ms
Reset type: NORMAL (https://wiki.segger.com/J-Link_Reset_Strategies)
Reset: ARMv8M core with Security Extension enabled detected. Switch to secure domain.
Reset: Halt core after reset via DEMCR.VC_CORERESET.
Reset: Reset device via AIRCR.SYSRESETREQ.
Reset: S_RESET_ST never gets cleared. CPU seems to be kept in reset forever.
Reset: Using fallback: Reset pin.
Reset: Halt core after reset via DEMCR.VC_CORERESET.
Reset: Reset device via reset pin

  • 0

    Hi Leo,

    Sometimes we get similar like these and some times there's an answer in the schematic and components chosen.

    Q1: Would it be possible to share the schematic with us, you can make this ticket private and only visible with us at support.

    Q2: Have you enabled DCDC in FW and have you added the inductors and capacitors to support that?

    Q3: How was the board initially, what worked and what specifically did you change before it stopped responding, you mention that you were able to power it through the HVDD and then program it? Was it then programmed succesfully?

    Q4: What's the voltage used from the debugger/programmer? Is it the same as VDD on the target?

    Best regards

    Asbjørn

  • 0 in reply to Asbjørn
    1. I can share the schematic
    2. I think the board was configured for it
    3. It was programmed successfully
    4. It is 5V power supply. I'm not using the tref. It should be the same as the target. It worked before

    Things seem to be working now and I cannot tell why. I just got them running this morning.

  • +1 in reply to lcj

    Hi Leo,

    ok, if it seems to be working for now, that's good. Give us a ping if you run into issues again.

    Best regards

    Asbjørn

Related
Terms of service
