I am wondering whether this sample can work at nRF54L15.
Thank you!
Hi,

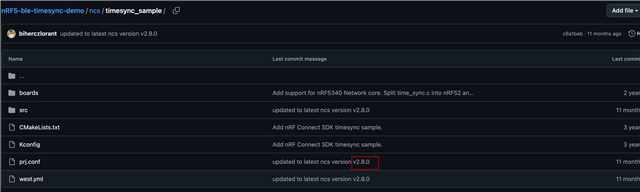

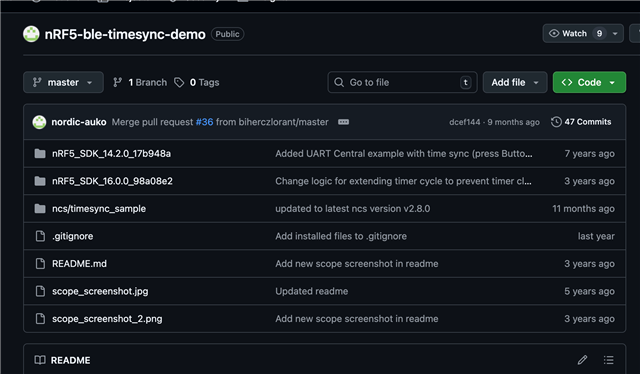

There is a ncs 2.8 version in this github.
And I found this code claim to support nrf52832/nrf52840 and nrf5340. I can only compile nrf52 series. 53's code can not be compiled. What would be the reason?
I am also wondering whether the new nRF54L15 can use this code. I guess some new feature will block this function. Could you help me on this issue?
The main.c is:
/*
* Copyright (c) 2022 Nordic Semiconductor ASA
*
* SPDX-License-Identifier: LicenseRef-Nordic-5-Clause
*/
#include <zephyr/kernel.h>
#include <zephyr/device.h>
#include <zephyr/types.h>
#include <zephyr/drivers/gpio.h>
#include <zephyr/usb/usb_device.h>
#include <zephyr/bluetooth/bluetooth.h>
#include <zephyr/bluetooth/uuid.h>
#include <zephyr/bluetooth/gatt.h>
#include <zephyr/bluetooth/hci.h>
#include <zephyr/shell/shell.h>
#include <bluetooth/services/nus.h>
#include <dk_buttons_and_leds.h>
#include <nrfx_gpiote.h>
#include <bluetooth/services/nus_client.h>
#include <bluetooth/gatt_dm.h>
#include <bluetooth/scan.h>
#if defined(DPPI_PRESENT)
#include <nrfx_dppi.h>
#else
#include <nrfx_ppi.h>
#endif
#include <zephyr/settings/settings.h>
#include <stdio.h>
#include <zephyr/logging/log.h>
#include "time_sync.h"
#define LOG_MODULE_NAME timesync_central
LOG_MODULE_REGISTER(LOG_MODULE_NAME);
#define STACKSIZE CONFIG_BT_NUS_THREAD_STACK_SIZE
#define PRIORITY 7
#define DEVICE_NAME CONFIG_BT_DEVICE_NAME
#define DEVICE_NAME_LEN (sizeof(DEVICE_NAME) - 1)
#define UART_BUF_SIZE CONFIG_BT_NUS_UART_BUFFER_SIZE
#define UART_WAIT_FOR_BUF_DELAY K_MSEC(50)
#define UART_WAIT_FOR_RX CONFIG_BT_NUS_UART_RX_WAIT_TIME
static K_SEM_DEFINE(ble_init_ok, 0, 1);
// static struct bt_conn *current_conn;
// static struct bt_conn *auth_conn;
static struct bt_conn *default_conn;
static struct bt_nus_client nus_client;
static struct bt_gatt_dm_cb discovery_cb;
static bool m_gpio_trigger_enabled;
static bool m_send_sync_pkt;
// static const struct bt_data ad[] = {
// BT_DATA_BYTES(BT_DATA_FLAGS, (BT_LE_AD_GENERAL | BT_LE_AD_NO_BREDR)),
// BT_DATA(BT_DATA_NAME_COMPLETE, DEVICE_NAME, DEVICE_NAME_LEN),
// };
// static const struct bt_data sd[] = {
// BT_DATA_BYTES(BT_DATA_UUID128_ALL, BT_UUID_NUS_VAL),
// };
static const nrfx_gpiote_t gpiote_inst = NRFX_GPIOTE_INSTANCE(NRF_DT_GPIOTE_INST(DT_ALIAS(syncpin), gpios));
static const struct gpio_dt_spec syncpin = GPIO_DT_SPEC_GET(DT_ALIAS(syncpin), gpios);
static nrfx_gpiote_pin_t syncpin_absval;
#if defined(DPPI_PRESENT)
static uint8_t dppi_channel_syncpin;
#endif
static void button_changed(uint32_t button_state, uint32_t has_changed);
// static void connected(struct bt_conn *conn, uint8_t err)
// {
// char addr[BT_ADDR_LE_STR_LEN];
// if (err) {
// LOG_ERR("Connection failed (err %u)", err);
// return;
// }
// bt_addr_le_to_str(bt_conn_get_dst(conn), addr, sizeof(addr));
// LOG_INF("Connected %s", addr);
// current_conn = bt_conn_ref(conn);
// }
// static void disconnected(struct bt_conn *conn, uint8_t reason)
// {
// char addr[BT_ADDR_LE_STR_LEN];
// bt_addr_le_to_str(bt_conn_get_dst(conn), addr, sizeof(addr));
// LOG_INF("Disconnected: %s (reason %u)", addr, reason);
// if (auth_conn) {
// bt_conn_unref(auth_conn);
// auth_conn = NULL;
// }
// if (current_conn) {
// bt_conn_unref(current_conn);
// current_conn = NULL;
// }
// }
/* ========= 吞吐量统计相关变量 ========= */
static uint64_t tp_window_start_ticks;
static uint32_t tp_bytes_in_window;
static bool tp_inited;
/* 每次收到数据时更新吞吐量统计 */
static void throughput_update(uint16_t len)
{
uint64_t now_ticks = ts_timestamp_get_ticks_u64();
uint64_t now_us = TIME_SYNC_TIMESTAMP_TO_USEC(now_ticks);
if (!tp_inited) {
tp_inited = true;
tp_window_start_ticks = now_ticks;
tp_bytes_in_window = 0;
return;
}
tp_bytes_in_window += len;
uint64_t start_us = TIME_SYNC_TIMESTAMP_TO_USEC(tp_window_start_ticks);
uint64_t delta_us = now_us - start_us;
/* 满足约 1 秒窗口就打印一次吞吐量 */
if (delta_us >= 1000000ULL) {
/* bits per second = bytes * 8 / (delta_s) */
uint64_t bps = (uint64_t)tp_bytes_in_window * 8ULL * 1000000ULL / delta_us;
/* 转成 kbps，保留 3 位小数（整数 + 小数部分） */
uint32_t kbps_int = (uint32_t)(bps / 1000ULL);
uint32_t kbps_frac = (uint32_t)(bps % 1000ULL);
uint32_t now_ms = (uint32_t)(now_us / 1000ULL);
printk("[TP] t=%u ms, bytes=%u, tp=%u.%03u kbps\n",
now_ms,
tp_bytes_in_window,
kbps_int, kbps_frac);
/* 开启下一个 1 秒窗口 */
tp_bytes_in_window = 0;
tp_window_start_ticks = now_ticks;
}
}
static void exchange_func(struct bt_conn *conn, uint8_t err, struct bt_gatt_exchange_params *params)
{
if (!err) {
LOG_INF("MTU exchange done");
} else {
LOG_WRN("MTU exchange failed (err %" PRIu8 ")", err);
}
}
static void connected(struct bt_conn *conn, uint8_t conn_err)
{
char addr[BT_ADDR_LE_STR_LEN];
int err;
bt_addr_le_to_str(bt_conn_get_dst(conn), addr, sizeof(addr));
if (conn_err) {
LOG_INF("Failed to connect to %s (err 0x%02x)", addr, conn_err);
if (default_conn == conn) {
bt_conn_unref(default_conn);
default_conn = NULL;
bt_scan_start(BT_SCAN_TYPE_SCAN_ACTIVE);
}
return;
}
LOG_INF("Connected: %s", addr);
default_conn = bt_conn_ref(conn);
static struct bt_gatt_exchange_params exchange_params;
exchange_params.func = exchange_func;
err = bt_gatt_exchange_mtu(conn, &exchange_params);
if (err) {
LOG_WRN("MTU exchange failed (err %d)", err);
}
/* 尝试安全加密并发现 NUS 服务 */
// err = bt_conn_set_security(conn, BT_SECURITY_L2);
// if (err) {
// LOG_WRN("Failed to set security (err %d)", err);
bt_gatt_dm_start(conn, BT_UUID_NUS_SERVICE, &discovery_cb, &nus_client);
// }
err = bt_scan_stop();
if ((!err) && (err != -EALREADY)) {
LOG_ERR("Stop LE scan failed (err %d)", err);
}
}
static void disconnected(struct bt_conn *conn, uint8_t reason)
{
char addr[BT_ADDR_LE_STR_LEN];
bt_addr_le_to_str(bt_conn_get_dst(conn), addr, sizeof(addr));
LOG_INF("Disconnected: %s (reason 0x%02x)", addr, reason);
if (default_conn) {
bt_conn_unref(default_conn);
default_conn = NULL;
}
bt_scan_start(BT_SCAN_TYPE_SCAN_ACTIVE);
}
static void conn_param_updated(struct bt_conn *conn,
uint16_t interval,
uint16_t latency,
uint16_t timeout)
{
printk("Conn params: interval=%.2f ms, latency=%u, timeout=%u ms\n",
interval * 1.25, latency, timeout * 10);
}
BT_CONN_CB_DEFINE(conn_callbacks) = {
.connected = connected,
.disconnected = disconnected,
.le_param_updated = conn_param_updated,
};
static void scan_filter_match(struct bt_scan_device_info *device_info,
struct bt_scan_filter_match *filter_match,
bool connectable)
{
char addr[BT_ADDR_LE_STR_LEN];
bt_addr_le_to_str(device_info->recv_info->addr, addr, sizeof(addr));
LOG_INF("Found target device: %s", addr);
}
static void scan_connecting(struct bt_scan_device_info *device_info,
struct bt_conn *conn)
{
default_conn = bt_conn_ref(conn);
}
static void scan_connecting_error(struct bt_scan_device_info *device_info)
{
LOG_WRN("Connecting failed");
}
BT_SCAN_CB_INIT(scan_cb, scan_filter_match, NULL,
scan_connecting_error, scan_connecting);
static int scan_init(void)
{
int err;
struct bt_scan_init_param scan_init = {
.connect_if_match = 1,
};
bt_scan_init(&scan_init);
bt_scan_cb_register(&scan_cb);
err = bt_scan_filter_add(BT_SCAN_FILTER_TYPE_UUID, BT_UUID_NUS_SERVICE);
if (err) {
LOG_ERR("Scan filter add failed (err %d)", err);
return err;
}
err = bt_scan_filter_enable(BT_SCAN_UUID_FILTER, false);
if (err) {
LOG_ERR("Scan filter enable failed (err %d)", err);
return err;
}
LOG_INF("Scan initialized");
return 0;
}
/* GATT discovery callbacks */
static void discovery_complete(struct bt_gatt_dm *dm, void *context)
{
struct bt_nus_client *nus = context;
LOG_INF("Service discovery completed");
bt_gatt_dm_data_print(dm);
bt_nus_handles_assign(dm, nus);
bt_nus_subscribe_receive(nus);
bt_gatt_dm_data_release(dm);
}
static void discovery_service_not_found(struct bt_conn *conn, void *context)
{
LOG_INF("Service not found");
}
static void discovery_error(struct bt_conn *conn, int err, void *context)
{
LOG_WRN("Error while discovering GATT database: (%d)", err);
}
static struct bt_gatt_dm_cb discovery_cb = {
.completed = discovery_complete,
.service_not_found = discovery_service_not_found,
.error_found = discovery_error,
};
void error(void)
{
dk_set_leds_state(DK_ALL_LEDS_MSK, DK_NO_LEDS_MSK);
while (true) {
/* Spin for ever */
k_sleep(K_MSEC(1000));
}
}
static void configure_gpio(void)
{
int err;
err = dk_buttons_init(button_changed);
if (err) {
LOG_ERR("Cannot init buttons (err: %d)", err);
}
err = dk_leds_init();
if (err) {
LOG_ERR("Cannot init LEDs (err: %d)", err);
}
}
static void ts_gpio_trigger_enable(void)
{
uint64_t time_now_ticks;
uint32_t time_now_msec;
uint32_t time_target;
int err;
if (m_gpio_trigger_enabled) {
return;
}
// Round up to nearest second to next 1000 ms to start toggling.
// If the receiver has received a valid sync packet within this time, the GPIO toggling polarity will be the same.
time_now_ticks = ts_timestamp_get_ticks_u64();
time_now_msec = TIME_SYNC_TIMESTAMP_TO_USEC(time_now_ticks) / 1000;
time_target = TIME_SYNC_MSEC_TO_TICK(time_now_msec) + (1000 * 2);
time_target = (time_target / 1000) * 1000;
#if defined(DPPI_PRESENT)
err = ts_set_trigger(time_target, dppi_channel_syncpin);
__ASSERT_NO_MSG(err == 0);
#else
err = ts_set_trigger(time_target, nrfx_gpiote_out_task_address_get(&gpiote_inst, syncpin_absval));
__ASSERT_NO_MSG(err == 0);
#endif
nrfx_gpiote_set_task_trigger(&gpiote_inst, syncpin_absval);
m_gpio_trigger_enabled = true;
}
static void ts_gpio_trigger_disable(void)
{
m_gpio_trigger_enabled = false;
}
static void ts_event_handler(const ts_evt_t* evt)
{
switch (evt->type)
{
case TS_EVT_SYNCHRONIZED:
ts_gpio_trigger_enable();
LOG_INF("TS_EVT_SYNCHRONIZED");
break;
case TS_EVT_DESYNCHRONIZED:
ts_gpio_trigger_disable();
LOG_INF("TS_EVT_DESYNCHRONIZED");
break;
case TS_EVT_TRIGGERED:
if (m_gpio_trigger_enabled)
{
uint32_t tick_target;
int err;
/* Small increments here are more sensitive to drift.
* That is, an update from the timing transmitter that causes a jump larger than the
* chosen increment, risk having a trigger target_tick that is in the past.
*/
tick_target = evt->params.triggered.tick_target + 2;
#if defined(DPPI_PRESENT)
err = ts_set_trigger(tick_target, dppi_channel_syncpin);
__ASSERT_NO_MSG(err == 0);
#else
err = ts_set_trigger(tick_target, nrfx_gpiote_out_task_address_get(&gpiote_inst, syncpin_absval));
__ASSERT_NO_MSG(err == 0);
#endif
}
else
{
// Ensure pin is low when triggering is stopped
nrfx_gpiote_clr_task_trigger(&gpiote_inst, syncpin_absval);
}
break;
default:
__ASSERT_NO_MSG(false);
break;
}
}
static void button_changed(uint32_t button_state, uint32_t has_changed)
{
uint32_t buttons = button_state & has_changed;
int err;
if (buttons & DK_BTN1_MSK) {
if (m_send_sync_pkt) {
m_send_sync_pkt = false;
m_gpio_trigger_enabled = false;
err = ts_tx_stop();
__ASSERT_NO_MSG(err == 0);
dk_set_led_off(DK_LED1);
LOG_INF("Stopping sync beacon transmission!");
}
else {
m_send_sync_pkt = true;
err = ts_tx_start(TIME_SYNC_FREQ_AUTO);
__ASSERT_NO_MSG(err == 0);
dk_set_led_on(DK_LED1);
ts_gpio_trigger_enable();
LOG_INF("Starting sync beacon transmission!");
}
}
}
static void configure_sync_timer(void)
{
int err;
err = ts_init(ts_event_handler);
__ASSERT_NO_MSG(err == 0);
ts_rf_config_t rf_config = {
.rf_chn = 80,
.rf_addr = { 0xDE, 0xAD, 0xBE, 0xEF, 0x19 }
};
err = ts_enable(&rf_config);
__ASSERT_NO_MSG(err == 0);
}
static nrfx_gpiote_pin_t pin_absval_get(const struct gpio_dt_spec *gpio_spec)
{
if (gpio_spec->port == DEVICE_DT_GET(DT_NODELABEL(gpio0))) {
return NRF_GPIO_PIN_MAP(0, gpio_spec->pin);
}
#if DT_NODE_EXISTS(DT_NODELABEL(gpio1))
if (gpio_spec->port == DEVICE_DT_GET(DT_NODELABEL(gpio1))) {
return NRF_GPIO_PIN_MAP(1, gpio_spec->pin);
}
#endif
__ASSERT(false, "Port could not be determined");
return 0;
}
static void configure_debug_gpio(void)
{
nrfx_err_t nrfx_err;
int err;
nrfx_gpiote_output_config_t gpiote_cfg = {
.drive = NRF_GPIO_PIN_S0S1,
.input_connect = NRF_GPIO_PIN_INPUT_DISCONNECT,
.pull = NRF_GPIO_PIN_NOPULL,
};
nrfx_gpiote_task_config_t task_cfg = {
.polarity = NRF_GPIOTE_POLARITY_TOGGLE,
.init_val = NRF_GPIOTE_INITIAL_VALUE_LOW,
};
syncpin_absval = pin_absval_get(&syncpin);
err = gpio_pin_configure_dt(&syncpin, GPIO_OUTPUT_LOW | syncpin.dt_flags);
__ASSERT_NO_MSG(err == 0);
if (!nrfx_gpiote_init_check(&gpiote_inst)) {
nrfx_err = nrfx_gpiote_init(&gpiote_inst, 5);
__ASSERT_NO_MSG(nrfx_err == NRFX_SUCCESS);
}
nrfx_err = nrfx_gpiote_channel_alloc(&gpiote_inst, &task_cfg.task_ch);
__ASSERT_NO_MSG(nrfx_err == NRFX_SUCCESS);
nrfx_err = nrfx_gpiote_output_configure(&gpiote_inst, syncpin_absval, &gpiote_cfg, &task_cfg);
__ASSERT_NO_MSG(nrfx_err == NRFX_SUCCESS);
nrfx_gpiote_out_task_enable(&gpiote_inst, syncpin_absval);
#if defined(DPPI_PRESENT)
nrfx_err = nrfx_dppi_channel_alloc(&dppi_channel_syncpin);
__ASSERT_NO_MSG(nrfx_err == NRFX_SUCCESS);
nrf_gpiote_subscribe_set(
NRF_GPIOTE, nrfx_gpiote_out_task_get(syncpin_absval), dppi_channel_syncpin);
nrf_dppi_channels_enable(NRF_DPPIC_NS, BIT(dppi_channel_syncpin));
#endif
}
static uint8_t nus_received_cb(struct bt_nus_client *nus, const uint8_t *data, uint16_t len)
{
/* 打印接收到的数据内容（以字符串形式） */
throughput_update(len);
char str_buf[256];
if (len >= sizeof(str_buf)) {
len = sizeof(str_buf) - 1;
}
memcpy(str_buf, data, len);
str_buf[len] = '\0';
// LOG_INF("NUS received (%d bytes): %s", len, str_buf);
// printk("[NUS RX] %s\n", str_buf);
return BT_GATT_ITER_CONTINUE;
}
static void nus_sent_cb(struct bt_nus_client *nus, uint8_t err,
const uint8_t *const data, uint16_t len)
{
LOG_INF("Data sent, err %u, len %u", err, len);
}
/* 定义初始化参数结构体 */
static const struct bt_nus_client_init_param nus_init = {
.cb = {
.received = nus_received_cb,
.sent = nus_sent_cb,
}
};
// int main(void)
// {
// int err = 0;
// configure_gpio();
// configure_debug_gpio();
// configure_sync_timer();
// err = bt_enable(NULL);
// if (err) {
// error();
// }
// LOG_INF("Bluetooth initialized");
// k_sem_give(&ble_init_ok);
// if (IS_ENABLED(CONFIG_SETTINGS)) {
// settings_load();
// }
// // err = bt_nus_init(&nus_cb);
// // if (err) {
// // LOG_ERR("Failed to initialize UART service (err: %d)", err);
// // return 0;
// // }
// // err = bt_le_adv_start(BT_LE_ADV_CONN, ad, ARRAY_SIZE(ad), sd,
// // ARRAY_SIZE(sd));
// // if (err) {
// // LOG_ERR("Advertising failed to start (err %d)", err);
// // return 0;
// // }
// }
int main(void)
{
int err;
configure_gpio();
configure_debug_gpio();
configure_sync_timer();
err = bt_enable(NULL);
if (err) {
error();
}
LOG_INF("Bluetooth initialized");
if (IS_ENABLED(CONFIG_SETTINGS)) {
settings_load();
}
err = bt_nus_client_init(&nus_client, &nus_init);
if (err) {
LOG_ERR("NUS Client init failed (err %d)", err);
}
err = scan_init();
if (err) {
LOG_ERR("Scan init failed (err %d)", err);
}
err = bt_scan_start(BT_SCAN_TYPE_SCAN_ACTIVE);
if (err) {
LOG_ERR("Scan start failed (err %d)", err);
}
LOG_INF("Scanning for peripheral NUS devices...");
/* 保留 Time Sync Shell 功能 */
// while (1) {
// uint64_t t = ts_timestamp_get_ticks_u64();
// uint32_t ms = TIME_SYNC_TIMESTAMP_TO_USEC(t) / 1000;
// printk("Sync time: %u ms\n", ms);
// k_sleep(K_SECONDS(1));
// }
}
#if CONFIG_SHELL
static int cmd_tx_toggle(const struct shell *sh, size_t argc, char **argv)
{
int err;
if (m_send_sync_pkt) {
m_send_sync_pkt = false;
m_gpio_trigger_enabled = false;
err = ts_tx_stop();
__ASSERT_NO_MSG(err == 0);
dk_set_led_off(DK_LED1);
shell_print(sh, "Stopping sync beacon transmission!");
}
else {
m_send_sync_pkt = true;
err = ts_tx_start(TIME_SYNC_FREQ_AUTO);
__ASSERT_NO_MSG(err == 0);
dk_set_led_on(DK_LED1);
ts_gpio_trigger_enable();
shell_print(sh, "Starting sync beacon transmission!");
}
return 0;
}
static int cmd_time_get(const struct shell *sh, size_t argc, char **argv)
{
uint64_t timestamp_ticks;
uint32_t timestamp_msec;
timestamp_ticks = ts_timestamp_get_ticks_u64();
timestamp_msec = TIME_SYNC_TIMESTAMP_TO_USEC(timestamp_ticks) / 1000;
shell_print(sh, "%d msec", timestamp_msec);
return 0;
}
SHELL_CMD_ARG_REGISTER(tx_toggle, NULL, "Time sync TX toggle",
cmd_tx_toggle, 0, 0);
SHELL_CMD_ARG_REGISTER(time_get, NULL, "Time sync time get",
cmd_time_get, 0, 0);
#endif /* CONFIG_SHELL*/
The time sync function is:
/*
* Copyright (c) 2022 Nordic Semiconductor ASA
*
* SPDX-License-Identifier: LicenseRef-Nordic-5-Clause
*/
#include "time_sync.h"
#include <stdbool.h>
#include <stdint.h>
#include <string.h>
#include <stdlib.h>
#include <nrfx.h>
#include <nrfx_ppi.h>
#include <hal/nrf_egu.h>
#include <hal/nrf_power.h>
#include <hal/nrf_ppi.h>
#include <hal/nrf_radio.h>
#include <hal/nrf_timer.h>
#include <zephyr/drivers/clock_control.h>
#include <zephyr/drivers/clock_control/nrf_clock_control.h>
#include <mpsl_timeslot.h>
#include <mpsl.h>
#include <zephyr/kernel.h>
#include <zephyr/logging/log.h>
#include <zephyr/sys/ring_buffer.h>
#define LOG_MODULE_NAME timesync
LOG_MODULE_REGISTER(LOG_MODULE_NAME);
#if defined ( __CC_ARM )
#define TX_CHAIN_DELAY (699 - 235)
#elif defined ( __ICCARM__ )
#define TX_CHAIN_DELAY (703 - 235)
#elif defined ( __GNUC__ )
#define TX_CHAIN_DELAY (704 - 173)
#endif
#if TIME_SYNC_TIMER_MAX_VAL < 10000
#error Timer values below 10000 not supported
#endif
#define SYNC_PKT_QUEUE_LEN 3
#define TS_LEN_US (1000UL)
#define TX_LEN_EXTENSION_US (1000UL)
#define TS_SAFETY_MARGIN_US (200UL) /**< The timeslot activity should be finished with this much to spare. */
#define TS_EXTEND_MARGIN_US (400UL) /**< The timeslot activity should request an extension this long before end of timeslot. */
#if defined(CONFIG_SOC_SERIES_NRF53X)
#define TS_SWI_IRQn NRFX_CONCAT_3(SWI, CONFIG_TIMESYNC_SWI, _IRQn)
#define TS_EGU_IRQn NRFX_CONCAT_3(EGU, CONFIG_TIMESYNC_EGU, _IRQn)
#elif defined(CONFIG_SOC_SERIES_NRF52X)
#define TS_SWI_IRQn NRFX_CONCAT_3(SWI, CONFIG_TIMESYNC_SWI, NRFX_CONCAT_3(_EGU, CONFIG_TIMESYNC_SWI, _IRQn))
#define TS_EGU_IRQn NRFX_CONCAT_3(SWI, CONFIG_TIMESYNC_EGU, NRFX_CONCAT_3(_EGU, CONFIG_TIMESYNC_EGU, _IRQn))
#if CONFIG_TIMESYNC_SWI == CONFIG_TIMESYNC_EGU
#error Cannot use the same instance of EGU and SWI
#endif /* CONFIG_TIMESYNC_SWI == CONFIG_TIMESYNC_EGU */
#endif /* defined(CONFIG_SOC_SERIES_NRF53X) */
#define FREEWHEEL_TIMER NRFX_CONCAT_2(NRF_TIMER, CONFIG_TIMESYNC_FREEWHEEL_TIMER)
#define COUNTER_TIMER NRFX_CONCAT_2(NRF_TIMER, CONFIG_TIMESYNC_COUNTER_TIMER)
#define EGU_INST NRFX_CONCAT_2(NRF_EGU, CONFIG_TIMESYNC_EGU)
static void ppi_sync_timer_adjust_configure(bool shorten);
static void ppi_sync_timer_adjust_enable(void);
static void ppi_sync_timer_clear_configure(void);
static void ppi_sync_timer_clear_disable(void);
static void ppi_radio_rx_disable(void);
static void ppi_radio_rx_configure(void);
static void ppi_radio_tx_configure(void);
static int ppi_sync_trigger_configure(uint32_t ppi_endpoint);
struct {
uint8_t rf_chn;
uint8_t rf_addr[5];
nrf_ppi_channel_t ppi_chns[7];
nrf_ppi_channel_group_t ppi_chgs[2];
} m_params;
#if CONFIG_TIMESYNC_FREEWHEEL_TIMER == CONFIG_TIMESYNC_COUNTER_TIMER
#error Freewheel timer and counter cannot be the same
#endif
__packed struct sync_pkt {
int32_t timer_val;
int32_t rtc_val;
uint32_t counter_val;
};
BUILD_ASSERT(sizeof(struct sync_pkt) == 12);
static atomic_t m_timeslot_session_open;
static atomic_t m_pending_close;
static atomic_t m_pending_tx_stop;
static atomic_t m_blocked_cancelled_count;
static uint32_t m_total_timeslot_length = 0;
static uint32_t m_timeslot_distance = 0;
static uint32_t m_tx_slot_retry_count = 0;
static uint32_t m_usec_since_sync_packet = 0;
static uint32_t m_usec_since_tx_offset_calc = 0;
static atomic_t m_send_sync_pkt = false;
static atomic_t m_timer_update_in_progress = false;
static bool m_synchronized = false;
static volatile int64_t m_master_counter_diff = 0;
static atomic_t m_rcv_count = 0;
static atomic_t mp_curr_adj_pkt;
static atomic_t m_curr_adj_timer;
static atomic_t m_curr_adj_counter;
static ts_evt_handler_t m_callback;
static atomic_t m_tick_target;
static atomic_t m_sync_packet_count = 0;
static atomic_t m_used_packet_count = 0;
static atomic_t m_last_sync = 0;
static atomic_t m_prev_sync_pkt_timer;
static atomic_t m_prev_sync_pkt_counter;
static nrf_ppi_channel_t m_timestamp_trigger_ppi[2];
static bool m_timestamp_trigger_set = false;
static struct onoff_manager *clk_mgr;
static struct onoff_client clk_cli;
/* Simple circular buffer: no free, only take */
static uint8_t m_sync_pkt_ringbuf[10][sizeof(struct sync_pkt)];
static atomic_t m_sync_pkt_ringbuf_idx;
static volatile enum
{
RADIO_STATE_IDLE, /* Default state */
RADIO_STATE_RX, /* Waiting for packets */
RADIO_STATE_TX /* Trying to transmit packet */
} m_radio_state = RADIO_STATE_IDLE;
/**< This will be used when requesting the first timeslot or any time a timeslot is blocked or cancelled. */
static mpsl_timeslot_request_t m_timeslot_req_earliest = {
.request_type = MPSL_TIMESLOT_REQ_TYPE_EARLIEST,
.params.earliest.hfclk = MPSL_TIMESLOT_HFCLK_CFG_XTAL_GUARANTEED,
.params.earliest.priority = MPSL_TIMESLOT_PRIORITY_NORMAL,
.params.earliest.length_us = TS_LEN_US,
.params.earliest.timeout_us = 100000 /* Expect timeslot within 100 ms */
};
/**< This will be used at the end of each timeslot to request the next timeslot. */
static mpsl_timeslot_request_t m_timeslot_req_normal = {
.request_type = MPSL_TIMESLOT_REQ_TYPE_NORMAL,
.params.normal.hfclk = MPSL_TIMESLOT_HFCLK_CFG_XTAL_GUARANTEED,
.params.normal.priority = MPSL_TIMESLOT_PRIORITY_NORMAL,
.params.normal.distance_us = 0,
.params.normal.length_us = TS_LEN_US,
};
static mpsl_timeslot_signal_return_param_t signal_callback_return_param;
static mpsl_timeslot_session_id_t session_id;
/* Ring buffer for handling low priority signals outside of timeslot callback */
RING_BUF_DECLARE(callback_low_priority_ring_buf, 10);
static void timeslot_begin_handler(void);
static void timeslot_end_handler(void);
static void timeslot_radio_handler(void);
static void ppi_counter_timer_triggered_capture_configure(nrf_ppi_channel_t chn[2], uint32_t eep);
static bool sync_timer_offset_compensate(struct sync_pkt * p_pkt);
static struct sync_pkt * tx_buf_get(void);
static void increment_desync_timeout(uint32_t increment_usec);
ISR_DIRECT_DECLARE(swi_isr)
{
static const char *signal_type_str[] = {
"MPSL_TIMESLOT_SIGNAL_START",
"MPSL_TIMESLOT_SIGNAL_TIMER0",
"MPSL_TIMESLOT_SIGNAL_RADIO",
"MPSL_TIMESLOT_SIGNAL_EXTEND_FAILED",
"MPSL_TIMESLOT_SIGNAL_EXTEND_SUCCEEDED",
"MPSL_TIMESLOT_SIGNAL_BLOCKED",
"MPSL_TIMESLOT_SIGNAL_CANCELLED",
"MPSL_TIMESLOT_SIGNAL_SESSION_IDLE",
"MPSL_TIMESLOT_SIGNAL_INVALID_RETURN",
"MPSL_TIMESLOT_SIGNAL_SESSION_CLOSED",
"MPSL_TIMESLOT_SIGNAL_OVERSTAYED",
};
uint8_t signal_type = 0;
while (!ring_buf_is_empty(&callback_low_priority_ring_buf)) {
if (ring_buf_get(&callback_low_priority_ring_buf, &signal_type, 1) == 1) {
int err;
__ASSERT_NO_MSG(signal_type < ARRAY_SIZE(signal_type_str));
// LOG_INF("Signal: %s", signal_type_str[signal_type]);
if (signal_type != MPSL_TIMESLOT_SIGNAL_CANCELLED &&
signal_type != MPSL_TIMESLOT_SIGNAL_BLOCKED) {
LOG_INF("Signal: %s", signal_type_str[signal_type]);
}
switch (signal_type) {
case MPSL_TIMESLOT_SIGNAL_SESSION_IDLE:
err = mpsl_timeslot_session_close(session_id);
if (err) {
LOG_ERR("mpsl_timeslot_session_close=%d", err);
}
break;
case MPSL_TIMESLOT_SIGNAL_SESSION_CLOSED:
atomic_clear(&m_timeslot_session_open);
atomic_clear(&m_pending_close);
break;
case MPSL_TIMESLOT_SIGNAL_BLOCKED:
case MPSL_TIMESLOT_SIGNAL_CANCELLED:
if (!m_pending_close)
{
int err;
/* This is typically caused by a conflict with an active BLE session. */
if (m_send_sync_pkt && m_tx_slot_retry_count < 3)
{
/* Try a few times to skip the next scheduled event, else get earliest possible. */
++m_tx_slot_retry_count;
m_timeslot_req_normal.params.normal.distance_us = m_timeslot_distance * 2;
err = mpsl_timeslot_request(
session_id,
&m_timeslot_req_normal);
if (err) {
LOG_ERR("mpsl_timeslot_request(earliest)=%d", err);
}
}
else
{
err = mpsl_timeslot_request(
session_id,
&m_timeslot_req_earliest);
if (err) {
LOG_ERR("mpsl_timeslot_request(earliest)=%d", err);
}
}
atomic_add(&m_blocked_cancelled_count, 1);
}
break;
default:
__ASSERT_NO_MSG(false);
break;
}
}
}
return 1;
}
ISR_DIRECT_DECLARE(egu_isr)
{
if (nrf_egu_event_check(EGU_INST, NRF_EGU_EVENT_TRIGGERED0))
{
nrf_egu_event_clear(EGU_INST, NRF_EGU_EVENT_TRIGGERED0);
m_master_counter_diff = ((struct sync_pkt *) mp_curr_adj_pkt)->counter_val - m_curr_adj_counter;
atomic_add(&m_used_packet_count, 1);
atomic_set(&m_last_sync, (m_curr_adj_counter - m_master_counter_diff));
nrf_timer_cc_set(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL0, TIME_SYNC_TIMER_MAX_VAL);
nrf_timer_cc_set(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL2, 0);
atomic_clear(&m_timer_update_in_progress);
if (!m_synchronized)
{
m_synchronized = true;
if (m_callback)
{
ts_evt_t evt =
{
.type = TS_EVT_SYNCHRONIZED,
};
m_callback(&evt);
}
}
}
if (nrf_egu_event_check(EGU_INST, NRF_EGU_EVENT_TRIGGERED2))
{
nrf_egu_event_clear(EGU_INST, NRF_EGU_EVENT_TRIGGERED2);
nrf_ppi_channel_disable(NRF_PPI, m_params.ppi_chns[4]);
if (m_callback)
{
ts_evt_t trigger_evt =
{
.type = TS_EVT_TRIGGERED,
.params.triggered.tick_target = m_tick_target,
.params.triggered.last_sync = m_last_sync,
.params.triggered.sync_packet_count = m_sync_packet_count,
.params.triggered.used_packet_count = m_used_packet_count,
};
m_callback(&trigger_evt);
}
}
if (nrf_egu_event_check(EGU_INST, NRF_EGU_EVENT_TRIGGERED3))
{
nrf_egu_event_clear(EGU_INST, NRF_EGU_EVENT_TRIGGERED3);
if (m_synchronized)
{
m_synchronized = false;
if (m_callback)
{
ts_evt_t evt =
{
.type = TS_EVT_DESYNCHRONIZED,
};
m_callback(&evt);
}
}
}
if (nrf_egu_event_check(EGU_INST, NRF_EGU_EVENT_TRIGGERED4))
{
nrf_egu_event_clear(EGU_INST, NRF_EGU_EVENT_TRIGGERED4);
// TODO: Remove this event, as it is not currently used
}
if (nrf_egu_event_check(EGU_INST, NRF_EGU_EVENT_TRIGGERED5))
{
uint64_t timestamp;
uint32_t counter_val;
uint32_t timer_val_cc5;
uint32_t timer_val_cc2;
nrf_egu_event_clear(EGU_INST, NRF_EGU_EVENT_TRIGGERED5);
counter_val = nrf_timer_cc_get(COUNTER_TIMER, NRF_TIMER_CC_CHANNEL5);
timer_val_cc2 = nrf_timer_cc_get(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL2);
timer_val_cc5 = nrf_timer_cc_get(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL5);
if ((timer_val_cc5 <= 5) || (timer_val_cc5 == TIME_SYNC_TIMER_MAX_VAL) ||
(timer_val_cc2 != 0 && timer_val_cc5 == timer_val_cc2))
{
// Check if counter increment was caught
nrf_timer_task_trigger(COUNTER_TIMER, NRF_TIMER_TASK_CAPTURE5);
if (nrf_timer_cc_get(COUNTER_TIMER, NRF_TIMER_CC_CHANNEL5) != counter_val)
{
counter_val = nrf_timer_cc_get(COUNTER_TIMER, NRF_TIMER_CC_CHANNEL5);
}
}
timestamp = counter_val;
timestamp += m_master_counter_diff;
timestamp *= TIME_SYNC_TIMER_MAX_VAL;
timestamp += timer_val_cc5;
if (m_callback)
{
ts_evt_t evt =
{
.type = TS_EVT_TIMESTAMP,
.params.timestamp = timestamp,
};
m_callback(&evt);
}
}
return 1;
}
static mpsl_timeslot_signal_return_param_t *mpsl_timeslot_callback(
mpsl_timeslot_session_id_t session_id,
uint32_t signal_type)
{
(void) session_id; /* unused parameter */
uint8_t input_data = (uint8_t)signal_type;
uint32_t input_data_len;
mpsl_timeslot_signal_return_param_t *p_ret_val = NULL;
switch (signal_type) {
case MPSL_TIMESLOT_SIGNAL_START:
nrf_timer_cc_set(NRF_TIMER0, NRF_TIMER_CC_CHANNEL0,
(TS_LEN_US - TS_SAFETY_MARGIN_US));
nrf_timer_cc_set(NRF_TIMER0, NRF_TIMER_CC_CHANNEL1,
(TS_LEN_US - TS_EXTEND_MARGIN_US));
if (m_send_sync_pkt) {
nrf_timer_int_enable(NRF_TIMER0, NRF_TIMER_INT_COMPARE0_MASK);
} else {
nrf_timer_int_enable(NRF_TIMER0, NRF_TIMER_INT_COMPARE0_MASK | NRF_TIMER_INT_COMPARE1_MASK);
}
nrf_timer_event_clear(NRF_TIMER0, NRF_TIMER_EVENT_COMPARE0);
nrf_timer_event_clear(NRF_TIMER0, NRF_TIMER_EVENT_COMPARE1);
nrf_timer_task_trigger(NRF_TIMER0, NRF_TIMER_TASK_START);
timeslot_begin_handler();
break;
case MPSL_TIMESLOT_SIGNAL_RADIO:
timeslot_radio_handler();
break;
case MPSL_TIMESLOT_SIGNAL_TIMER0:
if (nrf_timer_event_check(NRF_TIMER0, NRF_TIMER_EVENT_COMPARE0)) {
nrf_timer_event_clear(NRF_TIMER0, NRF_TIMER_EVENT_COMPARE0);
nrf_timer_int_disable(NRF_TIMER0, NRF_TIMER_INT_COMPARE0_MASK);
// This is the "timeslot is about to end" timeout
// Schedule next timeslot
if (m_send_sync_pkt)
{
m_timeslot_req_normal.params.normal.distance_us = m_timeslot_distance;
signal_callback_return_param.params.request.p_next =
&m_timeslot_req_normal;
signal_callback_return_param.callback_action =
MPSL_TIMESLOT_SIGNAL_ACTION_REQUEST;
}
else
{
signal_callback_return_param.params.request.p_next =
&m_timeslot_req_earliest;
signal_callback_return_param.callback_action =
MPSL_TIMESLOT_SIGNAL_ACTION_REQUEST;
}
timeslot_end_handler();
p_ret_val = &signal_callback_return_param;
}
if (nrf_timer_event_check(NRF_TIMER0, NRF_TIMER_EVENT_COMPARE1)) {
nrf_timer_event_clear(NRF_TIMER0, NRF_TIMER_EVENT_COMPARE1);
// This is the "try to extend timeslot" timeout
if (m_total_timeslot_length < (128000000UL - 5000UL - TX_LEN_EXTENSION_US) && !m_send_sync_pkt)
{
// Request timeslot extension if total length does not exceed 128 seconds
signal_callback_return_param.params.request.p_next =
&m_timeslot_req_normal;
signal_callback_return_param.callback_action =
MPSL_TIMESLOT_SIGNAL_ACTION_EXTEND;
}
else if (!m_send_sync_pkt)
{
signal_callback_return_param.params.request.p_next =
&m_timeslot_req_earliest;
signal_callback_return_param.callback_action =
MPSL_TIMESLOT_SIGNAL_ACTION_REQUEST;
}
}
break;
case MPSL_TIMESLOT_SIGNAL_EXTEND_SUCCEEDED:
// Extension succeeded: update timer
{
uint32_t cc0_val;
uint32_t cc1_val;
cc0_val = nrf_timer_cc_get(NRF_TIMER0, NRF_TIMER_CC_CHANNEL0);
cc1_val = nrf_timer_cc_get(NRF_TIMER0, NRF_TIMER_CC_CHANNEL1);
nrf_timer_cc_set(NRF_TIMER0, NRF_TIMER_CC_CHANNEL0, cc0_val + TX_LEN_EXTENSION_US - 25);
nrf_timer_cc_set(NRF_TIMER0, NRF_TIMER_CC_CHANNEL1, cc1_val + TX_LEN_EXTENSION_US - 25);
}
// Keep track of total length
m_total_timeslot_length += TX_LEN_EXTENSION_US;
increment_desync_timeout(TX_LEN_EXTENSION_US);
break;
case MPSL_TIMESLOT_SIGNAL_EXTEND_FAILED:
timeslot_end_handler();
increment_desync_timeout(TX_LEN_EXTENSION_US);
p_ret_val = &signal_callback_return_param;
signal_callback_return_param.params.request.p_next =
&m_timeslot_req_earliest;
signal_callback_return_param.callback_action =
MPSL_TIMESLOT_SIGNAL_ACTION_REQUEST;
break;
case MPSL_TIMESLOT_SIGNAL_SESSION_IDLE:
case MPSL_TIMESLOT_SIGNAL_SESSION_CLOSED:
case MPSL_TIMESLOT_SIGNAL_BLOCKED:
case MPSL_TIMESLOT_SIGNAL_CANCELLED:
input_data_len = ring_buf_put(&callback_low_priority_ring_buf, &input_data, 1);
if (input_data_len != 1) {
LOG_ERR("Full ring buffer, enqueue data with length %d", input_data_len);
k_oops();
}
break;
default:
LOG_ERR("unexpected signal: %u", signal_type);
k_oops();
break;
}
#if defined(CONFIG_SOC_SERIES_NRF53X)
NVIC_SetPendingIRQ(TS_SWI_IRQn);
#elif defined(CONFIG_SOC_SERIES_NRF52X)
NVIC_SetPendingIRQ(TS_SWI_IRQn);
#endif
if (p_ret_val == NULL) {
signal_callback_return_param.callback_action =
MPSL_TIMESLOT_SIGNAL_ACTION_NONE;
signal_callback_return_param.params.request.p_next =
&m_timeslot_req_normal;
p_ret_val = &signal_callback_return_param;
}
return p_ret_val;
}
static void increment_desync_timeout(uint32_t increment_usec)
{
if (m_send_sync_pkt)
{
// No desync as transmitter
return;
}
m_usec_since_sync_packet += increment_usec;
if (m_usec_since_sync_packet >= TIME_SYNC_DESYNC_TIMEOUT)
{
nrf_egu_task_trigger(EGU_INST, NRF_EGU_TASK_TRIGGER3);
m_usec_since_sync_packet = 0; // Reset to suppress needless irq generation
}
}
static struct sync_pkt * tx_buf_get(void)
{
uint32_t idx;
idx = atomic_inc(&m_sync_pkt_ringbuf_idx) % ARRAY_SIZE(m_sync_pkt_ringbuf);
return (struct sync_pkt *) m_sync_pkt_ringbuf[idx];
}
static void update_radio_parameters(struct sync_pkt * p_pkt)
{
const nrf_radio_packet_conf_t pkt_conf = {
.lflen = 0,
.s0len = 0,
.s1len = 0,
.maxlen = sizeof(struct sync_pkt),
.statlen = sizeof(struct sync_pkt),
.balen = 4,
.big_endian = true,
.whiteen = true,
#if defined(RADIO_PCNF0_PLEN_Msk)
.plen = NRF_RADIO_PREAMBLE_LENGTH_16BIT,
#endif
#if defined(RADIO_PCNF0_CRCINC_Msk)
.crcinc = false,
#endif
#if defined(RADIO_PCNF0_S1INCL_Msk)
.s1incl = false,
#endif
#if defined(RADIO_PCNF0_CILEN_Msk)
.cilen = 0,
#endif
#if defined(RADIO_PCNF0_TERMLEN_Msk)
.termlen = 0,
#endif
};
nrf_radio_power_set(NRF_RADIO, true);
nrf_radio_txpower_set(NRF_RADIO, NRF_RADIO_TXPOWER_0DBM);
nrf_radio_mode_set(NRF_RADIO, NRF_RADIO_MODE_NRF_2MBIT);
nrf_radio_modecnf0_set(NRF_RADIO, true, RADIO_MODECNF0_DTX_Center);
nrf_radio_crc_configure(NRF_RADIO, 3, NRF_RADIO_CRC_ADDR_INCLUDE, 0x11021UL);
nrf_radio_crcinit_set(NRF_RADIO, 0xFFFFFFUL);
nrf_radio_packet_configure(NRF_RADIO, &pkt_conf);
nrf_radio_packetptr_set(NRF_RADIO, p_pkt);
nrf_radio_base0_set(NRF_RADIO,
m_params.rf_addr[1] << 24 | m_params.rf_addr[2] << 16 |
m_params.rf_addr[3] << 8 | m_params.rf_addr[4]);
nrf_radio_prefix0_set(NRF_RADIO, m_params.rf_addr[0]);
nrf_radio_txaddress_set(NRF_RADIO, 0);
nrf_radio_rxaddresses_set(NRF_RADIO, BIT(0));
nrf_radio_frequency_set(NRF_RADIO, 2400 + m_params.rf_chn);
nrf_radio_event_clear(NRF_RADIO, NRF_RADIO_EVENT_END);
nrf_radio_int_disable(NRF_RADIO, 0xFFFFFFFF);
nrf_radio_int_enable(NRF_RADIO, NRF_RADIO_INT_END_MASK);
NVIC_SetPriority(RADIO_IRQn, MPSL_HIGH_IRQ_PRIORITY);
NVIC_ClearPendingIRQ(RADIO_IRQn);
NVIC_EnableIRQ(RADIO_IRQn);
}
void timeslot_end_handler(void)
{
nrf_radio_task_trigger(NRF_RADIO, NRF_RADIO_TASK_DISABLE);
nrf_radio_int_disable(NRF_RADIO, 0xFFFFFFFF);
ppi_radio_rx_disable();
nrf_radio_power_set(NRF_RADIO, false);
NVIC_DisableIRQ(RADIO_IRQn);
NVIC_ClearPendingIRQ(RADIO_IRQn);
m_radio_state = RADIO_STATE_IDLE;
}
void timeslot_begin_handler(void)
{
struct sync_pkt * p_pkt;
m_total_timeslot_length = 0;
m_tx_slot_retry_count = 0;
if (m_pending_tx_stop)
{
atomic_clear(&m_send_sync_pkt);
atomic_clear(&m_pending_tx_stop);
m_timeslot_distance = 0;
m_synchronized = false;
}
if (!m_send_sync_pkt)
{
if (m_radio_state != RADIO_STATE_RX ||
nrf_radio_state_get(NRF_RADIO) != NRF_RADIO_STATE_RX)
{
p_pkt = tx_buf_get();
update_radio_parameters(p_pkt);
nrf_radio_shorts_enable(NRF_RADIO, NRF_RADIO_SHORT_READY_START_MASK);
nrf_radio_task_trigger(NRF_RADIO, NRF_RADIO_TASK_RXEN);
ppi_radio_rx_configure();
m_radio_state = RADIO_STATE_RX;
}
return;
}
if (m_radio_state == RADIO_STATE_RX)
{
// Packet transmission has now started (state change from RX).
nrf_radio_event_clear(NRF_RADIO, NRF_RADIO_EVENT_DISABLED);
nrf_radio_task_trigger(NRF_RADIO, NRF_RADIO_TASK_DISABLE);
while (!nrf_radio_event_check(NRF_RADIO, NRF_RADIO_EVENT_DISABLED)) {
__NOP();
}
}
p_pkt = tx_buf_get();
ppi_radio_tx_configure();
update_radio_parameters(p_pkt);
nrf_radio_shorts_enable(NRF_RADIO,
NRF_RADIO_SHORT_READY_START_MASK | NRF_RADIO_SHORT_END_DISABLE_MASK);
nrf_radio_task_trigger(NRF_RADIO, NRF_RADIO_TASK_TXEN);
while (!nrf_radio_event_check(NRF_RADIO, NRF_RADIO_EVENT_READY)) {
// PPI is used to trigger sync timer capture when radio is ready
// Radio will automatically start transmitting once ready, so the captured timer value must be copied into radio packet buffer ASAP
__NOP();
}
p_pkt->timer_val = nrf_timer_cc_get(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL1);
p_pkt->counter_val = nrf_timer_cc_get(COUNTER_TIMER, NRF_TIMER_CC_CHANNEL1);
p_pkt->counter_val += m_master_counter_diff;
atomic_add(&m_sync_packet_count, 1);
m_radio_state = RADIO_STATE_TX;
}
static void timeslot_radio_handler(void)
{
nrf_radio_event_clear(NRF_RADIO, NRF_RADIO_EVENT_END);
if (m_radio_state == RADIO_STATE_RX && nrf_radio_crc_status_check(NRF_RADIO)) {
struct sync_pkt * p_pkt;
bool adjustment_procedure_started;
// LOG_INF("RX");
p_pkt = (struct sync_pkt *) nrf_radio_packetptr_get(NRF_RADIO);
if (p_pkt->timer_val <= 2)
{
// Ignore packet due to potential missed counter increment
// TODO: See if this can be tightened
goto resume_radio_rx;
}
adjustment_procedure_started = sync_timer_offset_compensate(p_pkt);
atomic_add(&m_sync_packet_count, 1);
if (adjustment_procedure_started)
{
atomic_set(&m_prev_sync_pkt_timer, p_pkt->timer_val); // TODO: Necessary?
atomic_set(&m_prev_sync_pkt_counter, p_pkt->counter_val); // TODO: Necessary?
p_pkt = tx_buf_get();
nrf_radio_packetptr_set(NRF_RADIO, p_pkt);
m_usec_since_sync_packet = 0;
}
atomic_add(&m_rcv_count, 1);
}
resume_radio_rx:
nrf_radio_task_trigger(NRF_RADIO, NRF_RADIO_TASK_START);
}
static void timestamp_counter_start(void)
{
// COUNTER_TIMER is used in counter mode to count the number of sync timer overflows/resets
// When timestamp API is used, the number of overflows/resets + current value of sync timer must be added up to give accurate timestamp information
nrf_timer_task_trigger(COUNTER_TIMER, NRF_TIMER_TASK_STOP);
nrf_timer_task_trigger(COUNTER_TIMER, NRF_TIMER_TASK_CLEAR);
nrf_timer_prescaler_set(COUNTER_TIMER, NRF_TIMER_FREQ_16MHz);
nrf_timer_mode_set(COUNTER_TIMER, NRF_TIMER_MODE_COUNTER);
nrf_timer_bit_width_set(COUNTER_TIMER, NRF_TIMER_BIT_WIDTH_32);
nrf_timer_task_trigger(COUNTER_TIMER, NRF_TIMER_TASK_START);
}
static void sync_timer_start(void)
{
// FREEWHEEL_TIMER (NRF_TIMER) is the always-running sync timer
// The timing master never adjusts this timer
// The timing slave(s) adjusts this timer whenever a sync packet is received and the logic determines that there is
nrf_timer_task_trigger(FREEWHEEL_TIMER, NRF_TIMER_TASK_STOP);
nrf_timer_task_trigger(FREEWHEEL_TIMER, NRF_TIMER_TASK_CLEAR);
nrf_timer_prescaler_set(FREEWHEEL_TIMER, NRF_TIMER_FREQ_16MHz);
nrf_timer_mode_set(FREEWHEEL_TIMER, NRF_TIMER_MODE_TIMER);
nrf_timer_bit_width_set(FREEWHEEL_TIMER, NRF_TIMER_BIT_WIDTH_32);
nrf_timer_cc_set(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL0, TIME_SYNC_TIMER_MAX_VAL);
nrf_timer_cc_set(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL1, 0xFFFFFFFF);
nrf_timer_cc_set(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL2, 0xFFFFFFFF);
nrf_timer_cc_set(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL3, 0xFFFFFFFF);
nrf_timer_task_trigger(FREEWHEEL_TIMER, NRF_TIMER_TASK_START);
}
int ts_set_trigger(uint32_t target_tick, uint32_t ppi_endpoint)
{
if (!m_timeslot_session_open)
{
return -EBUSY;
}
if (ppi_sync_trigger_configure(ppi_endpoint) != 0)
{
return -EINVAL;
}
atomic_set(&m_sync_packet_count, 0);
atomic_set(&m_used_packet_count, 0);
// TODO: is there a way to check if the target value is plausible?
nrf_timer_cc_set(COUNTER_TIMER, NRF_TIMER_CC_CHANNEL4, (target_tick - m_master_counter_diff));
atomic_set(&m_tick_target, target_tick);
nrf_ppi_channel_enable(NRF_PPI, m_params.ppi_chns[4]); // activate trigger
return 0;
}
int ts_set_timestamp_trigger(uint32_t ppi_event_endpoint)
{
// TODO: Check if other timers can be used also
if (FREEWHEEL_TIMER != NRF_TIMER3 && FREEWHEEL_TIMER != NRF_TIMER4)
{
return -EBUSY;
}
if (COUNTER_TIMER != NRF_TIMER3 && COUNTER_TIMER != NRF_TIMER4)
{
return -EBUSY;
}
if (!m_timestamp_trigger_set)
{
nrfx_err_t err;
for (int i = 0; i < ARRAY_SIZE(m_timestamp_trigger_ppi); ++i)
{
err = nrfx_ppi_channel_alloc(&m_timestamp_trigger_ppi[i]);
if (err != NRFX_SUCCESS)
{
return err;
}
}
}
ppi_counter_timer_triggered_capture_configure(m_timestamp_trigger_ppi, ppi_event_endpoint);
m_timestamp_trigger_set = true;
return 0;
}
static inline bool sync_timer_offset_compensate(struct sync_pkt * p_pkt)
{
uint32_t peer_timer;
uint32_t local_timer;
int32_t timer_offset;
bool wrapped = false;
if (atomic_set(&m_timer_update_in_progress, true))
{
return false;
}
peer_timer = p_pkt->timer_val;
peer_timer += TX_CHAIN_DELAY;
if (peer_timer >= TIME_SYNC_TIMER_MAX_VAL)
{
peer_timer -= TIME_SYNC_TIMER_MAX_VAL;
p_pkt->counter_val += 1;
wrapped = true;
}
local_timer = nrf_timer_cc_get(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL1);
timer_offset = local_timer - peer_timer;
if (local_timer > TIME_SYNC_TIMER_MAX_VAL)
{
// Todo: Investigate if this is a corner case with a root cause that needs to be handled
atomic_clear(&m_timer_update_in_progress);
return false;
}
if (timer_offset == TIME_SYNC_TIMER_MAX_VAL || timer_offset == 0)
{
// Already in sync
atomic_add(&m_used_packet_count, 1);
atomic_clear(&m_timer_update_in_progress);
return false;
}
if (wrapped && (local_timer >= (TIME_SYNC_TIMER_MAX_VAL - 50)))
{
// Too close
// Todo: see if local counter increment can be accounted for
atomic_clear(&m_timer_update_in_progress);
return false;
}
bool shorten_cycle = timer_offset < 0;
nrf_timer_cc_set(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL2, (TIME_SYNC_TIMER_MAX_VAL + timer_offset));
ppi_sync_timer_adjust_configure(shorten_cycle);
atomic_set(&mp_curr_adj_pkt, (uint32_t) p_pkt);
atomic_set(&m_curr_adj_timer, nrf_timer_cc_get(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL1));
atomic_set(&m_curr_adj_counter, nrf_timer_cc_get(COUNTER_TIMER, NRF_TIMER_CC_CHANNEL1));
uint32_t cc_val;
do
{
// Avoid race condition when disabling and re-enabling PPI channel very quickly
nrf_timer_task_trigger(FREEWHEEL_TIMER, NRF_TIMER_TASK_CAPTURE4);
cc_val = nrf_timer_cc_get(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL4);
} while ((cc_val > (TIME_SYNC_TIMER_MAX_VAL - 15)));
if (shorten_cycle)
{
nrf_timer_cc_set(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL0, (TIME_SYNC_TIMER_MAX_VAL + 10));
ppi_sync_timer_adjust_enable();
}
else
{
ppi_sync_timer_adjust_enable();
ppi_sync_timer_clear_disable();
}
return true;
}
static void ppi_sync_timer_adjust_configure(bool shorten)
{
nrf_ppi_channel_t chn0, chn1, chn2;
nrf_ppi_channel_group_t chg0, chg1;
chn0 = m_params.ppi_chns[0];
chn1 = m_params.ppi_chns[1];
chn2 = m_params.ppi_chns[6];
chg0 = m_params.ppi_chgs[0];
chg1 = m_params.ppi_chgs[1];
// PPI channel 0: clear timer when compare[2] value is reached
nrf_ppi_channel_disable(NRF_PPI, chn0);
nrf_ppi_channel_endpoint_setup(NRF_PPI, chn0,
nrf_timer_event_address_get(FREEWHEEL_TIMER, NRF_TIMER_EVENT_COMPARE2),
nrf_timer_task_address_get(FREEWHEEL_TIMER, NRF_TIMER_TASK_CLEAR));
if (shorten)
{
nrf_ppi_fork_endpoint_setup(NRF_PPI, chn0,
nrf_timer_task_address_get(COUNTER_TIMER, NRF_TIMER_TASK_COUNT));
}
else
{
nrf_ppi_fork_endpoint_setup(NRF_PPI, chn0, 0);
}
// PPI channel 1: disable PPI channel 0 such that the timer is only reset once, and trigger software interrupt
nrf_ppi_channel_disable(NRF_PPI, chn1);
nrf_ppi_channel_and_fork_endpoint_setup(NRF_PPI, chn1,
nrf_timer_event_address_get(FREEWHEEL_TIMER, NRF_TIMER_EVENT_COMPARE2),
nrf_ppi_task_group_disable_address_get(NRF_PPI, chg0),
nrf_egu_task_address_get(EGU_INST, NRF_EGU_TASK_TRIGGER0));
nrf_ppi_channel_disable(NRF_PPI, chn2);
if (shorten)
{
nrf_ppi_channel_endpoint_setup(NRF_PPI, chn2, 0, 0);
}
else
{
// PPI channel 2: Re-enable EVENTS_COMPARE[0] after lengthening cycle
nrf_ppi_channel_endpoint_setup(NRF_PPI, chn2,
nrf_timer_event_address_get(FREEWHEEL_TIMER, NRF_TIMER_EVENT_COMPARE2),
nrf_ppi_task_group_enable_address_get(NRF_PPI, chg1));
}
nrf_ppi_group_disable(NRF_PPI, chg0);
nrf_ppi_channels_include_in_group(NRF_PPI,
BIT(chn0) | BIT(chn1) | BIT(chn2),
chg0);
}
static void ppi_radio_rx_configure(void)
{
uint32_t chn;
chn = m_params.ppi_chns[2];
nrf_ppi_channel_and_fork_endpoint_setup(NRF_PPI, chn,
nrf_radio_event_address_get(NRF_RADIO, NRF_RADIO_EVENT_ADDRESS),
nrf_timer_task_address_get(FREEWHEEL_TIMER, NRF_TIMER_TASK_CAPTURE1),
nrf_timer_task_address_get(COUNTER_TIMER, NRF_TIMER_TASK_CAPTURE1));
nrf_ppi_channel_enable(NRF_PPI, chn);
}
static void ppi_radio_tx_configure(void)
{
uint32_t chn;
chn = m_params.ppi_chns[0];
nrf_ppi_channel_and_fork_endpoint_setup(NRF_PPI, chn,
nrf_radio_event_address_get(NRF_RADIO, NRF_RADIO_EVENT_READY),
nrf_timer_task_address_get(FREEWHEEL_TIMER, NRF_TIMER_TASK_CAPTURE1),
nrf_timer_task_address_get(COUNTER_TIMER, NRF_TIMER_TASK_CAPTURE1));
nrf_ppi_channel_enable(NRF_PPI, chn);
}
static void ppi_timestamp_timer_configure(void)
{
uint32_t chn;
chn = m_params.ppi_chns[3];
nrf_ppi_channel_and_fork_endpoint_setup(NRF_PPI, chn,
nrf_timer_event_address_get(FREEWHEEL_TIMER, NRF_TIMER_EVENT_COMPARE0),
nrf_timer_task_address_get(COUNTER_TIMER, NRF_TIMER_TASK_COUNT),
0);
nrf_ppi_channel_enable(NRF_PPI, chn);
}
static void ppi_counter_timer_capture_configure(uint32_t chn)
{
nrf_ppi_channel_and_fork_endpoint_setup(NRF_PPI, chn,
nrf_egu_event_address_get(EGU_INST, NRF_EGU_EVENT_TRIGGERED1),
nrf_timer_task_address_get(FREEWHEEL_TIMER, NRF_TIMER_TASK_CAPTURE3),
nrf_timer_task_address_get(COUNTER_TIMER, NRF_TIMER_TASK_CAPTURE0));
nrf_ppi_channel_enable(NRF_PPI, chn);
}
static void ppi_counter_timer_triggered_capture_configure(nrf_ppi_channel_t chn[2], uint32_t eep)
{
nrf_ppi_channel_and_fork_endpoint_setup(NRF_PPI, chn[0],
eep,
nrf_timer_task_address_get(FREEWHEEL_TIMER, NRF_TIMER_TASK_CAPTURE5),
nrf_timer_task_address_get(COUNTER_TIMER, NRF_TIMER_TASK_CAPTURE5));
nrf_ppi_channel_and_fork_endpoint_setup(NRF_PPI, chn[1],
eep,
nrf_egu_task_address_get(EGU_INST, NRF_EGU_TASK_TRIGGER5),
0);
nrf_ppi_channels_enable(NRF_PPI, BIT(chn[0]) | BIT(chn[1]));
}
static void ppi_counter_timer_capture_disable(uint32_t chn)
{
nrf_ppi_channel_disable(NRF_PPI, chn);
nrf_ppi_channel_and_fork_endpoint_setup(NRF_PPI, chn, 0, 0, 0);
}
static void ppi_radio_rx_disable(void)
{
nrf_ppi_channel_disable(NRF_PPI, m_params.ppi_chns[2]);
}
static void ppi_sync_timer_adjust_enable(void)
{
nrf_ppi_group_enable(NRF_PPI, m_params.ppi_chgs[0]);
}
static void ppi_sync_timer_clear_configure(void)
{
uint32_t chn;
uint32_t chg;
chn = m_params.ppi_chns[5];
chg = m_params.ppi_chgs[1];
nrf_ppi_channel_disable(NRF_PPI, chn);
nrf_ppi_channel_endpoint_setup(NRF_PPI, chn,
nrf_timer_event_address_get(FREEWHEEL_TIMER, NRF_TIMER_EVENT_COMPARE0),
nrf_timer_task_address_get(FREEWHEEL_TIMER, NRF_TIMER_TASK_CLEAR));
nrf_ppi_channel_enable(NRF_PPI, chn);
nrf_ppi_channel_include_in_group(NRF_PPI, chn, chg);
nrf_ppi_group_enable(NRF_PPI, chg);
}
static void ppi_sync_timer_clear_disable(void)
{
nrf_ppi_group_disable(NRF_PPI, m_params.ppi_chgs[1]);
}
int ppi_sync_trigger_configure(uint32_t ppi_endpoint)
{
nrf_ppi_channel_and_fork_endpoint_setup(NRF_PPI, m_params.ppi_chns[4],
nrf_timer_event_address_get(COUNTER_TIMER, NRF_TIMER_EVENT_COMPARE4),
ppi_endpoint,
nrf_egu_task_address_get(EGU_INST, NRF_EGU_TASK_TRIGGER2));
return 0;
}
static void timers_capture(uint32_t * p_sync_timer_val, uint32_t * p_count_timer_val, int32_t * p_peer_counter_diff)
{
static atomic_t m_timestamp_capture_flag = 0;
volatile int32_t peer_counter_diff;
if (atomic_set(&m_timestamp_capture_flag, true) != 0)
{
// Not thread-safe
__ASSERT_NO_MSG(false);
}
nrf_ppi_channel_t ppi_chn;
nrfx_err_t ret = nrfx_ppi_channel_alloc(&ppi_chn);
__ASSERT_NO_MSG(ret == NRFX_SUCCESS);
(void)ret; /* If CONFIG_ASSERT is not set, ret is unused. */
ppi_counter_timer_capture_configure(ppi_chn);
// Loop if adjustment procedure happened close to timer capture
do
{
NVIC_DisableIRQ(TS_EGU_IRQn);
nrf_egu_event_clear(EGU_INST, NRF_EGU_EVENT_TRIGGERED1);
nrf_egu_task_trigger(EGU_INST, NRF_EGU_TASK_TRIGGER1);
while (!nrf_egu_event_check(EGU_INST, NRF_EGU_EVENT_TRIGGERED1))
{
__NOP();
}
peer_counter_diff = m_master_counter_diff;
NVIC_EnableIRQ(TS_EGU_IRQn);
} while (nrf_timer_cc_get(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL3) < 2);
ppi_counter_timer_capture_disable(ppi_chn);
nrfx_ppi_channel_free(ppi_chn);
*p_sync_timer_val = nrf_timer_cc_get(FREEWHEEL_TIMER, NRF_TIMER_CC_CHANNEL3);
*p_count_timer_val = nrf_timer_cc_get(COUNTER_TIMER, NRF_TIMER_CC_CHANNEL0);
*p_peer_counter_diff = peer_counter_diff;
atomic_clear(&m_timestamp_capture_flag);
}
int ts_init(ts_evt_handler_t evt_handler)
{
nrfx_err_t ret;
m_callback = evt_handler;
for (size_t i = 0; i < sizeof(m_params.ppi_chgs) / sizeof(m_params.ppi_chgs[0]); i++)
{
ret = nrfx_ppi_group_alloc(&m_params.ppi_chgs[i]);
if (ret != NRFX_SUCCESS)
{
return -EBUSY;
}
}
for (size_t i = 0; i < sizeof(m_params.ppi_chns) / sizeof(m_params.ppi_chns[0]); i++)
{
ret = nrfx_ppi_channel_alloc(&m_params.ppi_chns[i]);
if (ret != NRFX_SUCCESS)
{
return -EBUSY;
}
}
IRQ_DIRECT_CONNECT(TS_SWI_IRQn, 1, swi_isr, 0);
irq_enable(TS_SWI_IRQn);
IRQ_DIRECT_CONNECT(TS_EGU_IRQn, TIME_SYNC_EVT_HANDLER_IRQ_PRIORITY, egu_isr, 0);
irq_enable(TS_EGU_IRQn);
// TODO: Implement use of RTC as a low-power (and lower accuracy)
// alternative to 16 MHz TIMER
// if (SYNC_RTC_PRESCALER != m_params.rtc->PRESCALER)
// {
// // TODO: Handle this
// return -EBUSY;
// }
return 0;
}
int ts_enable(const ts_rf_config_t* p_rf_config)
{
int err;
if (p_rf_config == NULL)
{
return -EINVAL;
}
if (m_timeslot_session_open)
{
return -EBUSY;
}
/* Enable crystal oscillator for improved clock accuracy */
clk_mgr = z_nrf_clock_control_get_onoff(CLOCK_CONTROL_NRF_SUBSYS_HF);
if (!clk_mgr) {
return -ENODEV;
}
sys_notify_init_spinwait(&clk_cli.notify);
err = onoff_request(clk_mgr, &clk_cli);
if (err < 0) {
LOG_ERR("onoff_request: %d", err);
return err;
}
/* Enable constant latency mode to minimize jitter */
nrf_power_task_trigger(NRF_POWER, NRF_POWER_TASK_CONSTLAT);
memcpy(m_params.rf_addr, p_rf_config->rf_addr, sizeof(m_params.rf_addr));
m_params.rf_chn = p_rf_config->rf_chn;
ppi_timestamp_timer_configure();
// NVIC_ClearPendingIRQ(EGU_INST_irq_type);
// NVIC_SetPriority(EGU_INST_irq_type, TIME_SYNC_EVT_HANDLER_IRQ_PRIORITY);
// NVIC_EnableIRQ(EGU_INST_irq_type);
nrf_egu_int_disable(EGU_INST, NRF_EGU_INT_ALL);
nrf_egu_int_enable(EGU_INST,
NRF_EGU_INT_TRIGGERED0 |
NRF_EGU_INT_TRIGGERED2 |
NRF_EGU_INT_TRIGGERED3 |
NRF_EGU_INT_TRIGGERED4 |
NRF_EGU_INT_TRIGGERED5);
m_blocked_cancelled_count = 0;
m_radio_state = RADIO_STATE_IDLE;
atomic_clear(&m_send_sync_pkt);
timestamp_counter_start();
ppi_sync_timer_clear_configure();
sync_timer_start();
err = mpsl_timeslot_session_open(
mpsl_timeslot_callback,
&session_id);
if (err) {
LOG_ERR("mpsl_timeslot_session_open=%d", err);
return err;
}
err = mpsl_timeslot_request(
session_id,
&m_timeslot_req_earliest);
if (err) {
LOG_ERR("mpsl_timeslot_request(earliest)=%d", err);
return err;
}
atomic_set(&m_timeslot_session_open, true);
return 0;
}
int ts_disable(void)
{
int err;
atomic_set(&m_pending_close, true);
err = mpsl_timeslot_session_close(session_id);
if (err) {
LOG_ERR("mpsl_timeslot_session_close=%d", err);
return err;
}
// TODO: stop timer
nrf_power_task_trigger(NRF_POWER, NRF_POWER_TASK_LOWPWR);
err = onoff_release(clk_mgr);
if (err < 0) {
LOG_ERR("onoff_release: %d", err);
return err;
}
// TODO:
// - Close SoftDevice radio session (sd_radio_session_close())
// - Stop radio activity
// - Stop timers
// - Disable used PPI channels
// - Disable used interrupts
// - Release HFCLK (sd_clock_hfclk_release()),
// - Go back to low-power (mode sd_power_mode_set(NRF_POWER_MODE_LOWPWR))
// Care must be taken to ensure clean stop. Order of tasks above should be reconsidered.
return 0;
}
int ts_tx_start(uint32_t sync_freq_hz)
{
uint32_t distance;
if (sync_freq_hz == TIME_SYNC_FREQ_AUTO)
{
// 20-30 Hz is a good range
// 同步频率
// Higher frequency gives more margin for missed packets, but doesn't improve accuracy that much
uint32_t auto_freq_target = 25;
distance = (NRFX_ROUNDED_DIV(NRFX_ROUNDED_DIV(1000000, auto_freq_target), (TIME_SYNC_TIMER_MAX_VAL / 16))) * (TIME_SYNC_TIMER_MAX_VAL / 16);
}
else
{
distance = (1000000 / sync_freq_hz);
}
if (distance >= MPSL_TIMESLOT_DISTANCE_MAX_US)
{
return -EINVAL;
}
m_timeslot_distance = distance;
m_usec_since_tx_offset_calc = 0;
atomic_set(&m_send_sync_pkt, true);
return 0;
}
int ts_tx_stop()
{
atomic_set(&m_pending_tx_stop, true);
return 0;
}
uint32_t ts_timestamp_get_ticks_u32(void)
{
uint32_t sync_timer_val;
uint32_t count_timer_val;
int32_t peer_diff;
timers_capture(&sync_timer_val, &count_timer_val, &peer_diff);
return (((count_timer_val + peer_diff) * TIME_SYNC_TIMER_MAX_VAL) + sync_timer_val);
}
uint64_t ts_timestamp_get_ticks_u64(void)
{
uint32_t sync_timer_val;
uint32_t count_timer_val;
uint64_t timestamp;
int32_t peer_diff;
timers_capture(&sync_timer_val, &count_timer_val, &peer_diff);
timestamp = (uint64_t) count_timer_val;
timestamp += (uint64_t) peer_diff;
timestamp *= TIME_SYNC_TIMER_MAX_VAL;
timestamp += (uint64_t) sync_timer_val;
return timestamp;
}
Thank you!
