nRF5340 DK hardware configuration & software setup for EV-WT02C40C ( for nRF7002 Wi-Fi)

[Embedded developer0]

Hello Nordic Team,

I am using nRF5340 DK as a debugger/programmer to develop firmware for the Fanstel EV-WT02C40C module.
My goal is to use Wi-Fi (nRF7002)  Wi-Fi scan,   Wi-Fi shell, Wi-Fi station (STA) example on the EV-WT02C40C with nRF Connect SDK.

I have a few hardware software and build configuration related questions and would appreciate clarification.

SDK:         nRF Connect SDK v3.2.1
Toolchain: nRF Connect SDK Toolchain v3.2.1

1. Hardware configuration on nRF5340 DK

When using nRF5340 DK to program and debug EV-WT02C40C:

• Which jumpers/switches need to be set on the nRF5340 DK?

• Which USB port should be used (DEBUG USB vs nRF USB)?

• Is external power required for EV-WT02C40C, or is it powered via the DK?

• Are there any specific GPIO / interface connections (SPI, reset, etc.) that must be verified for nRF7002 Wi-Fi operation?

Basically, I want to confirm the correct HW setup of nRF5340 DK when used as a debugger for EV-WT02C40C.

2. Add Build configuration

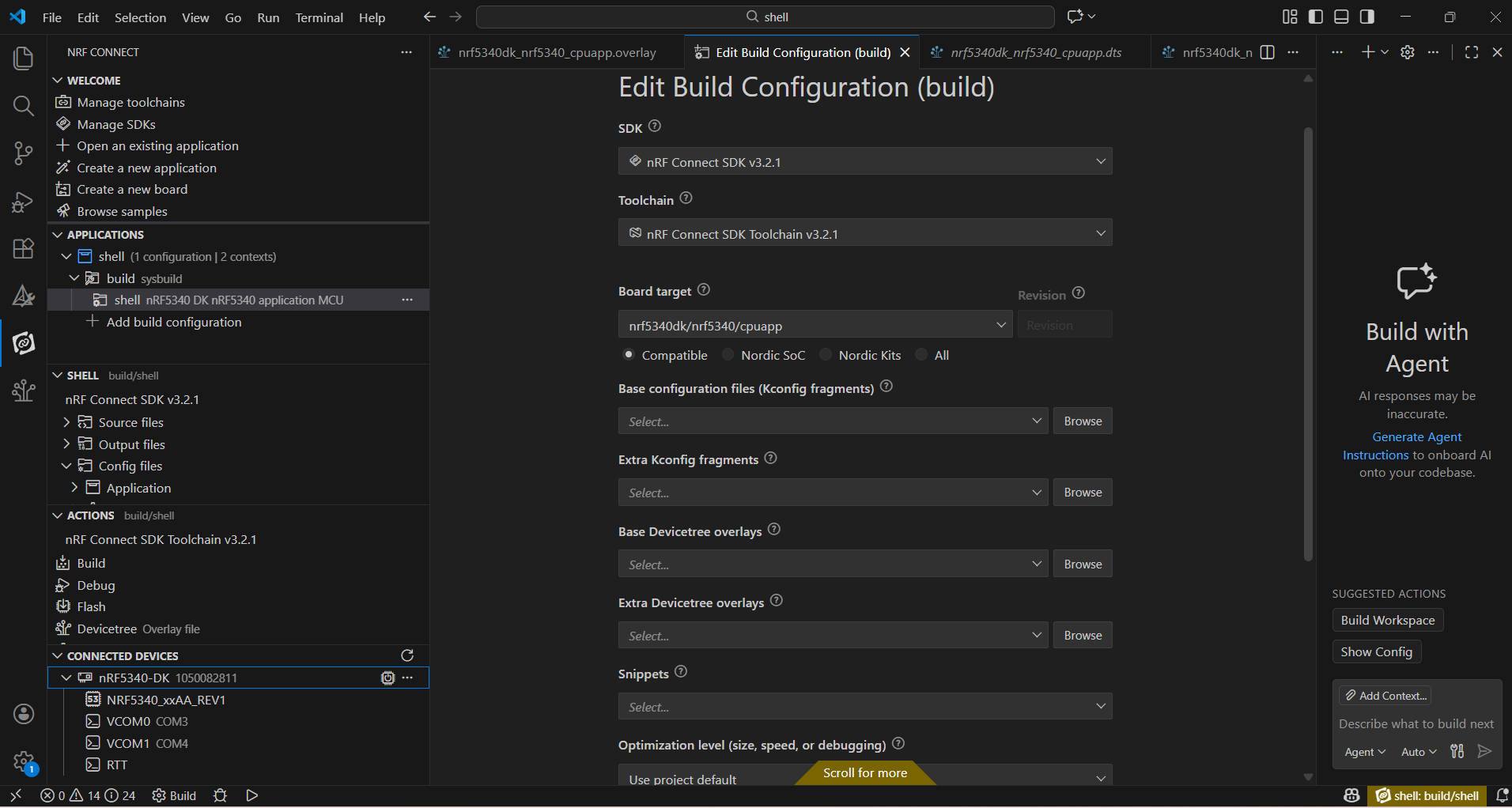

for that i attached Screenshots please review and verify

for src/main.c i have refer copy sample code (sta/shell/scan)

3. DeviceTree (.overlay) configuration

&pinctrl {

    myuart0_default: uart0_default {

        group1 {

            psels = <NRF_PSEL(UART_TX, 0, 20)>,

                    <NRF_PSEL(UART_RTS, 0, 19)>;

        };

        group2 {

            psels = <NRF_PSEL(UART_RX, 0, 22)>,

                    <NRF_PSEL(UART_CTS, 0, 21)>;

            bias-pull-up;

        };

    };

    myuart0_sleep: uart0_sleep {

        group1 {

            psels = <NRF_PSEL(UART_TX, 0, 20)>,

                    <NRF_PSEL(UART_RTS, 0, 19)>,

                    <NRF_PSEL(UART_RX, 0, 22)>,

                    <NRF_PSEL(UART_CTS, 0, 21)>;

            low-power-enable;

        };

    };

};

&uart0 {

    status = "okay";

    current-speed = <115200>;

    pinctrl-0 = <&myuart0_default>;

    pinctrl-1 = <&myuart0_sleep>;

    pinctrl-names = "default", "sleep";

};

&uart1 {

    status = "disabled";

};

&spi4 {

    status = "disabled";

};

&pwm0 {

    status = "disabled";

};

&i2c1 {

    status = "disabled";

};

&led1 {

    status = "disabled";

};

&button0 {

    status = "disabled";

};

&button1 {

    status = "disabled";

};

4. prj.conf configuration

CONFIG_WIFI=y

CONFIG_WIFI_NRF70=y

# WPA supplicant

CONFIG_WIFI_NM_WPA_SUPPLICANT=y

CONFIG_NET_L2_WIFI_SHELL=y

# Networking

CONFIG_NETWORKING=y

CONFIG_NET_SOCKETS=y

CONFIG_NET_LOG=y

CONFIG_NET_IPV6=y

CONFIG_NET_IPV4=y

CONFIG_NET_UDP=y

CONFIG_NET_TCP=y

CONFIG_NET_DHCPV4=y

CONFIG_DNS_RESOLVER=y

CONFIG_NET_STATISTICS=y

CONFIG_NET_STATISTICS_WIFI=y

CONFIG_NET_STATISTICS_USER_API=y

CONFIG_NET_PKT_RX_COUNT=8

CONFIG_NET_PKT_TX_COUNT=8

# Below section is the primary contributor to SRAM and is currently

# tuned for performance, but this will be revisited in the future.

CONFIG_NET_BUF_RX_COUNT=16

CONFIG_NET_BUF_TX_COUNT=16

CONFIG_NRF70_RX_NUM_BUFS=16

CONFIG_NRF70_MAX_TX_AGGREGATION=4

CONFIG_NET_TC_TX_COUNT=1

CONFIG_NET_IF_UNICAST_IPV6_ADDR_COUNT=4

CONFIG_NET_IF_MCAST_IPV6_ADDR_COUNT=5

CONFIG_NET_MAX_CONTEXTS=5

CONFIG_NET_CONTEXT_SYNC_RECV=y

CONFIG_INIT_STACKS=y

CONFIG_NET_L2_ETHERNET=y

CONFIG_NET_SHELL=y

# Zephyr NET Connection Manager Connectivity layer.

CONFIG_NET_CONNECTION_MANAGER=y

CONFIG_L2_WIFI_CONNECTIVITY=y

CONFIG_L2_WIFI_CONNECTIVITY_AUTO_CONNECT=y

CONFIG_L2_WIFI_CONNECTIVITY_AUTO_DOWN=n

# Memories

CONFIG_MAIN_STACK_SIZE=5200

CONFIG_SHELL_STACK_SIZE=5400

CONFIG_NET_TX_STACK_SIZE=4096

CONFIG_NET_RX_STACK_SIZE=4096

CONFIG_NET_CONNECTION_MANAGER_MONITOR_STACK_SIZE=5000

# Debugging

CONFIG_STACK_SENTINEL=y

CONFIG_DEBUG_COREDUMP=y

CONFIG_DEBUG_COREDUMP_BACKEND_LOGGING=y

CONFIG_DEBUG_COREDUMP_MEMORY_DUMP_MIN=y

CONFIG_SHELL_CMDS_RESIZE=n

#CONFIG_DEBUG=y

CONFIG_WIFI_NM_WPA_SUPPLICANT_LOG_LEVEL_INF=y

# Kernel options

CONFIG_ENTROPY_GENERATOR=y

CONFIG_REBOOT=y

# Logging

CONFIG_LOG=y

CONFIG_PRINTK=y

CONFIG_SHELL=y

CONFIG_SHELL_GETOPT=y

CONFIG_DEVICE_SHELL=y

CONFIG_POSIX_TIMERS=y

CONFIG_DATE_SHELL=y

CONFIG_NET_CONFIG_AUTO_INIT=n

CONFIG_POSIX_API=y

CONFIG_WIFI_CREDENTIALS=y

CONFIG_FLASH=y

CONFIG_FLASH_PAGE_LAYOUT=y

CONFIG_FLASH_MAP=y

CONFIG_NVS=y

CONFIG_SETTINGS=y

CONFIG_SETTINGS_NVS=y

CONFIG_NET_MGMT_EVENT_QUEUE_TIMEOUT=5000

CONFIG_NET_SOCKETS_POLL_MAX=12

CONFIG_NET_MGMT_EVENT_QUEUE_SIZE=16

Enable the Network Management relevant configurations

CONFIG_NET_MGMT=y

CONFIG_NET_MGMT_EVENT=y

CONFIG_NET_MGMT_EVENT_INFO=y

CONFIG_WIFI_CREDENTIALS_SHELL=y

Enable support for shell commands

CONFIG_WIFI_CREDENTIALS_SHELL=y

/*************************************************/

till here i done using noridc documents.

when i giving cmd : wifi scan /wifi shell , nothing is showing in serial terminal

Screenshot

[Håkon Alseth]

Hi,



When using nRF5340 DK to program and debug EV-WT02C40C:

• Which jumpers/switches need to be set on the nRF5340 DK?

Your target board must be the same voltage as the debugger (nRF5340-DK in this case). The nRF5340-DK runs on 3V:

https://docs.nordicsemi.com/bundle/ug_nrf5340_dk/page/UG/dk/hw_debug_out_segger53.html



Which USB port should be used (DEBUG USB vs nRF USB)?

The above link explains how to connect.

You shall connect it to the "Debug" USB.

Is external power required for EV-WT02C40C, or is it powered via the DK?

you must power the external device/board.



Kind regards,

Håkon

[Embedded developer0]

thank you Håkon Alseth  vary much for reply

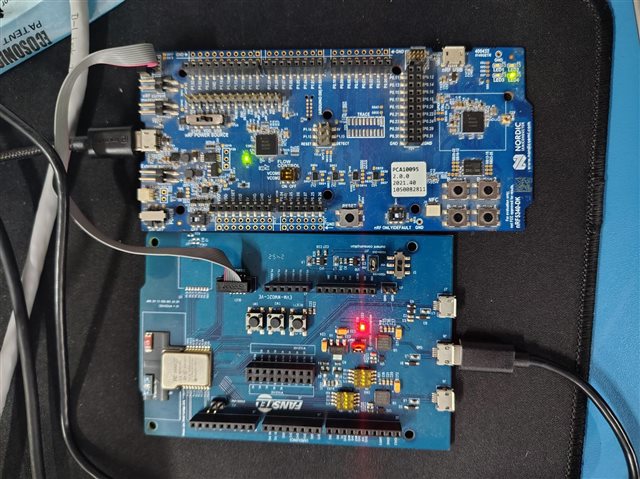

Hardware configuration of nRF5340 DK with  EV-WT02C40C n is done.

based on your shared document  instruction, i'm using P19 port and  i short solder bridge SB47.

now

please verify add build configuration from shared screenshot
and then overlay file for  nRF5340DK + EV-WT02C40C board (host MCU nRF5340 to nRF7002 connection )
note : for wifi application

[Håkon Alseth]

Hi,



Embedded developer0 said:

and then overlay file for  nRF5340DK + EV-WT02C40C board (host MCU nRF5340 to nRF7002 connection )

Please see the documentation for the module that you are using.

it is very similar to nrf7002dk.



Kind regards,

Håkon

[Embedded developer0]

whatever overlay file i shared with you that i got from document only. i need to know whether its is ok or need to add more  things in .overlay file ? if need add then please help me.

[Håkon Alseth]

Did you try to compile it for the nrf7002dk/nrf5340/cpuapp target?

Kind regards,

Håkon

[Embedded developer0]

yes,i did try with nrf7002dk/nrf5340/cpuapp target in "add build configuration" but i have nrf5340dk board for programmer/flashing. and create a new application with copy sample code "wifi Shell" as well as i added .overlay file which i copy from fanstle WT02C40C prtoduct specification documen and it's already mention above in our discussion.

[Håkon Alseth]

Hi,



Embedded developer0 said:

i did try with nrf7002dk/nrf5340/cpuapp target in "add build configuration" but i have nrf5340dk board for programmer/flashing.

Are you able to successfully program and run?



If yes, please enter debug mode to see where the device is stuck:

https://academy.nordicsemi.com/courses/nrf-connect-sdk-intermediate/lessons/lesson-2-debugging/



In your overlay, you can also add this, as the fanstel board does not have an external flash:

&mx25r64 {
	status = "disabled";
};



Kind regards,

Håkon
