Uart and NRF_Logging are printing with noise

[Kautham]

I am using Hackable kit which is a custom nrf52832 board with Bumpy a low cost Black Magic Probe alternative to program since i don't have a J-Link device. I have tried many examples but i cannot get the UART or NRF_Logs to print correctly in the Putty Console. It always prints gibberish (noisy). For this example i ran the example/peripherals/uart from the SDK 15 example with some following simple modifications

while (true)
    {
          printf("\r\nExit!\r\n");
          nrf_delay_ms(500);
//        uint8_t cr;
//        while (app_uart_get(&cr) != NRF_SUCCESS);
//        while (app_uart_put(cr) != NRF_SUCCESS);
//
//        if (cr == 'q' || cr == 'Q')
//        {
//            printf(" \r\nExit!\r\n");
//
//            while (true)
//            {
//                // Do nothing.
//            }
//        }
    }

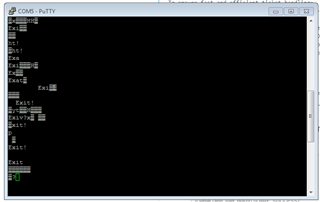

As you can see i just print the word "Exit" with 500ms delay through UART. What i get in Putty after running this code is

The following is my Putty settings

i have also tries with different flow control options. But always the gibberish noise is present.

Can someone tell me what's wrong or where is the problem?

[Martin Lesund]

Hi Krishna,

Could you try with a different Serial Terminal. Like Termite?

Then use the unmodified UART example, but define that you are using "BOARD_CUSTOM" and include the "custom_board.h" file with the correct defines for your board.

 Could you also post a picture on how you have connected the board to your pc?

Also I assume that you have updated the bumpy?

[Kautham]

Sorry for the delayed response. As you suggested i tried Termite. But this time around i couldn't see any logs even the noise in Termite. I ran the UART Example without my modification. My Hackabe board has the same footprint as pca10040 so there is no need of a custom_board.h file. I have also updated the bumpy beforehand.

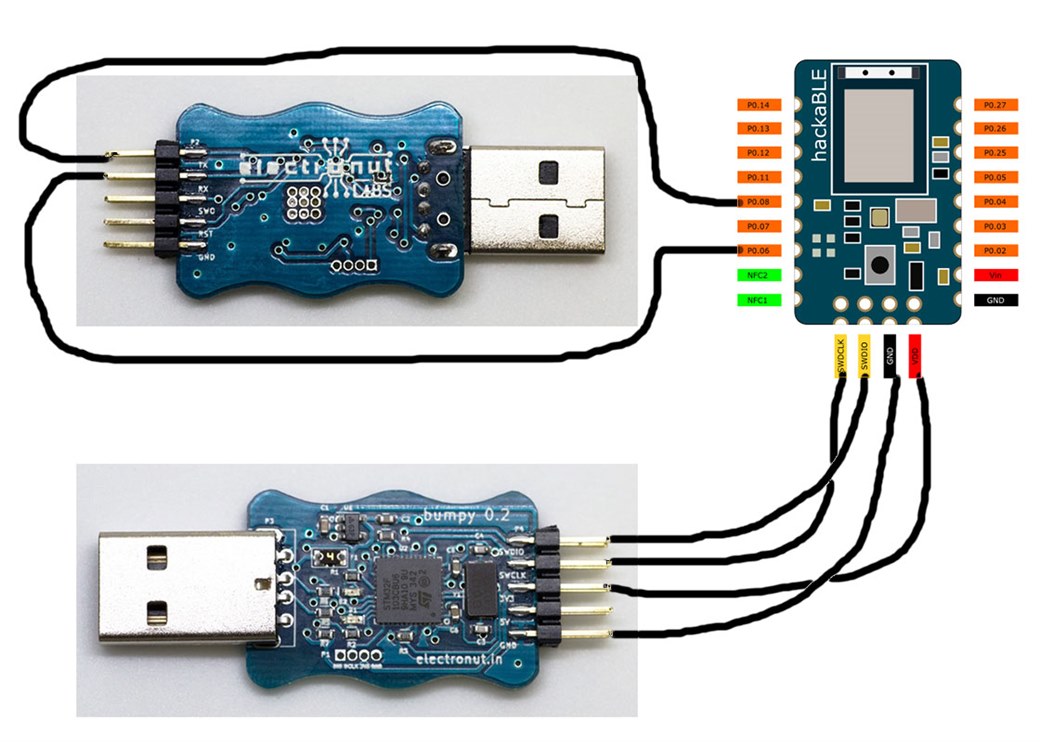

My Connection looks like below,

[Martin Lesund]

Hi Krishna,

Do you twist the UART Rx and Tx cables?

if not, this can cause a lot of noise and could also be the reason why you are seeing this "gibberish" noise.

(common pitfalls article)

[Kautham]

Thanks Martin for your time. But i found out the problem it was a hardware PIN failure. Seems like a manufacturing defect. I reconfigured the UART Tx and Rx ports to other working pins and now i get the clean logs. thanks.
