UART DFU FAIL

[hah2502]

Dears:

I test the uart dfu by examples\dfu\secure_bootloader\pca10056_uart

After I enter command like below：

nrfutil dfu serial -pkg Sena_app_uart_s140.zip -p COM5 -b 115200

then there is no response....

My environment is as below:

nRF5_SDK_15.3.0_59ac345, s140_nrf52_6.1.1_softdevice,  keil5, computer os is win7.

I use .bat file to program bin to flash.

::merge bootloader and settings
mergehex.exe --merge bootloader.hex settings.hex --output bl_temp.hex
::merge bootloader, app and softdevice
mergehex.exe --merge bl_temp.hex app.hex s140_nrf52_6.1.1_softdevice.hex --output whole.hex

nrfjprog.exe --eraseall -f NRF52
nrfjprog.exe --program whole.hex --verify -f NRF52
::the following two commands are used to enable PIN RESET
::nrfjprog.exe --memwr 0x10001200 --val 0x00000015 --verify -f NRF52
::nrfjprog.exe --memwr 0x10001204 --val 0x00000015 --verify -f NRF52
nrfjprog.exe --reset -f NRF52

pause

By the way,BLE DFU and USB DFU are both ok on my board.....

Do I need to program mbr.hex??  if so ,how can I get ths file and program.

[Amanda Hsieh]

Hi,

Could you kindly follow the setting in Secure DFU Bootloader over Serial Link (UART/USB)?

Please let me know it can help or not. Thanks.

Best regards,

Amanda

[hah2502]

of course,I referred to this document.....still fail

[Amanda Hsieh]

Hi,

Is the LED3 on? DFU mode is indicated by LED 3 being lit. If a valid application is installed on the device, hold Button 4 during startup to prevent the bootloader from starting the application and force it to enter DFU mode instead.

Do you get  any error code returned after typing "nrfutil dfu serial -pkg Sena_app_uart_s140.zip -p COM5 -b 115200 "?



Do I need to program mbr.hex??  if so ,how can I get ths file and program.

 No, the SoftDevice hex already contains the MBR

-Amanda

[hah2502]

Hi Amanda:

After I hold button 4 and reset，LED 3 is on. so I think it enter DFU mode.

There is no error code return after typing this program command.

I connect pin8 RX, pin6 TX and GND to computer serial port line.

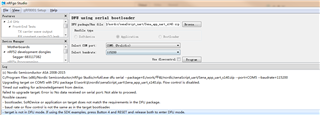

Besides, I try to DFU by  nRFgo stdio like below picture, it returned some errors.

[hah2502]

Additionally, I tested UART example(examples\peripheral\uart). It work successfully.

So I think my serial port communication is no problem.
