BLE hid Keyboard key press/release [Clarifications needed]

[abdelali]

Hi,

We're working on a ble hid keyboard project, and we need some clarifications on how the keyboard keys press/release is done !

We've started with the example in the sdk v16.0.0, the example uses the keys_send() function to send a press followed by a release of that key.

In this function there is  send_key_scan_press_release() , and i think this is the responsible for sending a press followed by a release of the key.

In our use case, we need to send just a press when the button is pushed, and a release when the button is released. in this case a hold on the button will output a successive key presses , and when released it will output just one release . this is achieved with the USB keyboard version using the app_usbd_hid_kbd_key_control() function.

 static void button_event_handler(uint8_t pin_no, uint8_t button_action)
    {
      ret_code_t err_code;
      switch(pin_no)
      {
       case BUTTON_1:
         if(button_action == APP_BUTTON_PUSH) {
            UNUSED_RETURN_VALUE(app_usbd_hid_kbd_key_control(&m_app_hid_kbd, CONFIG_KBD_KEY[0] , true));
            //NRF_LOG_INFO("button1 pressed");
         }
         else if(button_action == APP_BUTTON_RELEASE) {
            UNUSED_RETURN_VALUE(app_usbd_hid_kbd_key_control(&m_app_hid_kbd, CONFIG_KBD_KEY[0] , false));
            //NRF_LOG_INFO("button1 release");
         }
         break;

         }
    }

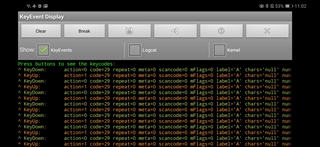

the BLE  hid keyboard output on the host, should be as in the picture bellow (same as with the USB version) :

Any help, clarifications, recommendations on how to achieve that is highly appreciated !

Best Regards,

Abdelali

[Kenneth]

Feel free to modify this as you see fit, also check out the api description:

/**@brief   Function for transmitting a key scan Press & Release Notification.
 *
 * @warning This handler is an example only. You need to analyze how you wish to send the key
 *          release.
 *
 * @param[in]  p_instance     Identifies the service for which Key Notifications are requested.
 * @param[in]  p_key_pattern  Pointer to key pattern.
 * @param[in]  pattern_len    Length of key pattern. 0 < pattern_len < 7.
 * @param[in]  pattern_offset Offset applied to Key Pattern for transmission.
 * @param[out] actual_len     Provides actual length of Key Pattern transmitted, making buffering of
 *                            rest possible if needed.
 * @return     NRF_SUCCESS on success, NRF_ERROR_RESOURCES in case transmission could not be
 *             completed due to lack of transmission buffer or other error codes indicating reason
 *             for failure.
 *
 * @note       In case of NRF_ERROR_RESOURCES, remaining pattern that could not be transmitted
 *             can be enqueued \ref buffer_enqueue function.
 *             In case a pattern of 'cofFEe' is the p_key_pattern, with pattern_len as 6 and
 *             pattern_offset as 0, the notifications as observed on the peer side would be
 *             1>    'c', 'o', 'f', 'F', 'E', 'e'
 *             2>    -  , 'o', 'f', 'F', 'E', 'e'
 *             3>    -  ,   -, 'f', 'F', 'E', 'e'
 *             4>    -  ,   -,   -, 'F', 'E', 'e'
 *             5>    -  ,   -,   -,   -, 'E', 'e'
 *             6>    -  ,   -,   -,   -,   -, 'e'
 *             7>    -  ,   -,   -,   -,   -,  -
 *             Here, '-' refers to release, 'c' refers to the key character being transmitted.
 *             Therefore 7 notifications will be sent.
 *             In case an offset of 4 was provided, the pattern notifications sent will be from 5-7
 *             will be transmitted.
 */
static uint32_t send_key_scan_press_release(ble_hids_t * p_hids,
                                            uint8_t    * p_key_pattern,
                                            uint16_t     pattern_len,
                                            uint16_t     pattern_offset,
                                            uint16_t   * p_actual_len)

If you wait more than 500ms between key press and release, then at least for Windows it will treat this as a key repeat automatically until release it received.

[abdelali]

Hi,

Ok, but i see the code snippet in your response looks like corrupted, i see just the function declaration ?! is it the same one in the ble hid keyboard example in the sdk ?

Best regards,

[Kenneth]

It's the same as the HID keyboard example yes, I only shared the description here.

[abdelali]

Hi,

I have experimented with the send_key_scan_press_release() function, just sending a one key, and not even using the buffering feature.

For the press i just fill the data array with the scan code (1 key_pattern). and for the release i clear the data array.

The BLE HID output seems to output a KEY PRESS followed by KEY RELEASE, a hold on the button will keep outputting a PRESS followed with a RELEASE.

I even tried to only send a PRESS (by not clearing the data array); but that also sends a RELEASE after.

I'm not quite sure how the RELEASE event is sent right after the PRESS, even without clearing the data[] variable!

I Really appreciate any hints/guidance/documentation on how to implement it.

Best Regards,

Abdelali

static uint32_t send_key_scan_press_release(ble_hids_t * p_hids,
                                            uint8_t    * p_key_pattern,
                                            uint16_t     pattern_len,
                                            uint8_t      action )
{
    ret_code_t err_code;
    uint16_t data_len;
    uint8_t  data[INPUT_REPORT_KEYS_MAX_LEN];

    // HID Report Descriptor enumerates an array of size 6, the pattern hence shall not be any
    // longer than this.
    STATIC_ASSERT((INPUT_REPORT_KEYS_MAX_LEN - 2) == 6);

    ASSERT(pattern_len <= (INPUT_REPORT_KEYS_MAX_LEN - 2));

    data_len = pattern_len;   // 1

  if(action == 1){ // press

        // Reset the data buffer.
        memset(data, 0, sizeof(data));
        // Copy the scan code.
        memcpy(data + SCAN_CODE_POS , p_key_pattern , data_len );

        if (modifier_status)
        {
           data[MODIFIER_KEY_POS] |= ble_hid_config[11];//
        }

    }

  else { // release

          // Reset the data buffer.
          memset(data, 0, sizeof(data));
    }

        if (!m_in_boot_mode)
        {
            err_code = ble_hids_inp_rep_send(p_hids,
                                             INPUT_REPORT_KEYS_INDEX,
                                             INPUT_REPORT_KEYS_MAX_LEN,
                                             data,
                                             m_conn_handle);
        }
        else
        {
            err_code = ble_hids_boot_kb_inp_rep_send(p_hids,
                                                     INPUT_REPORT_KEYS_MAX_LEN,
                                                     data,
                                                     m_conn_handle);
        }

        if (err_code != NRF_SUCCESS)
        {

         APP_ERROR_CHECK(err_code);

         }

    return err_code;
}

[Kenneth]

Have you tried to call ble_hids_inp_rep_send() when pressing, and then ble_hids_inp_rep_send() when releasing directly?

Just make sure that the data buffer is 8 bytes, where the first 2 bytes (data[0] and data[1]) are key modifier (e.g. shift, num lock etc), so the actual key that is pressed is 3rd byte (data[2]) in the array. The remaining data bytes (data[3]-data[7]) can be 0.

Kenneth
